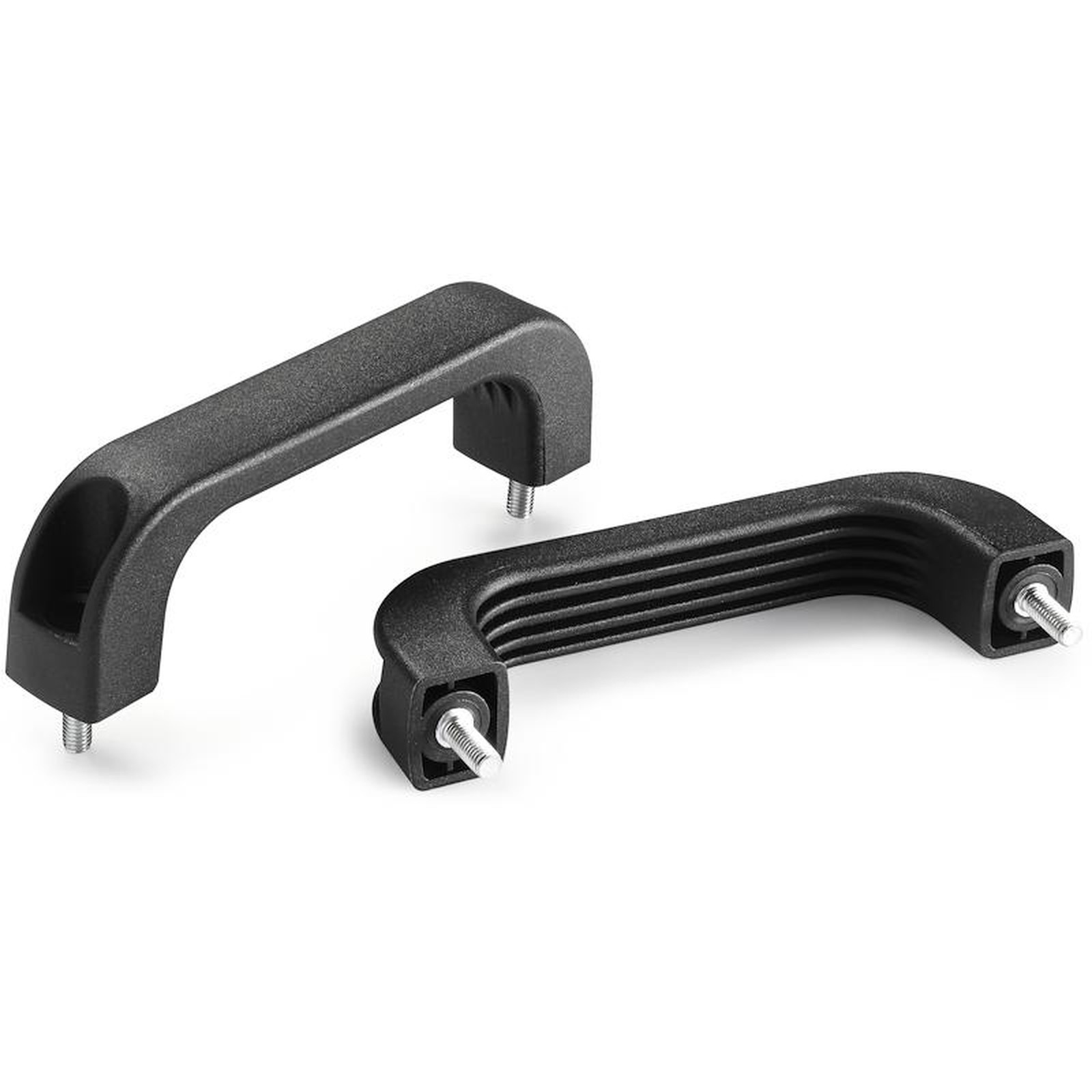

FIXED HANDLE WITH THREADED STUD
02
B228
Maniglie scaricate
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel threaded stud (thread tolerance 6g).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

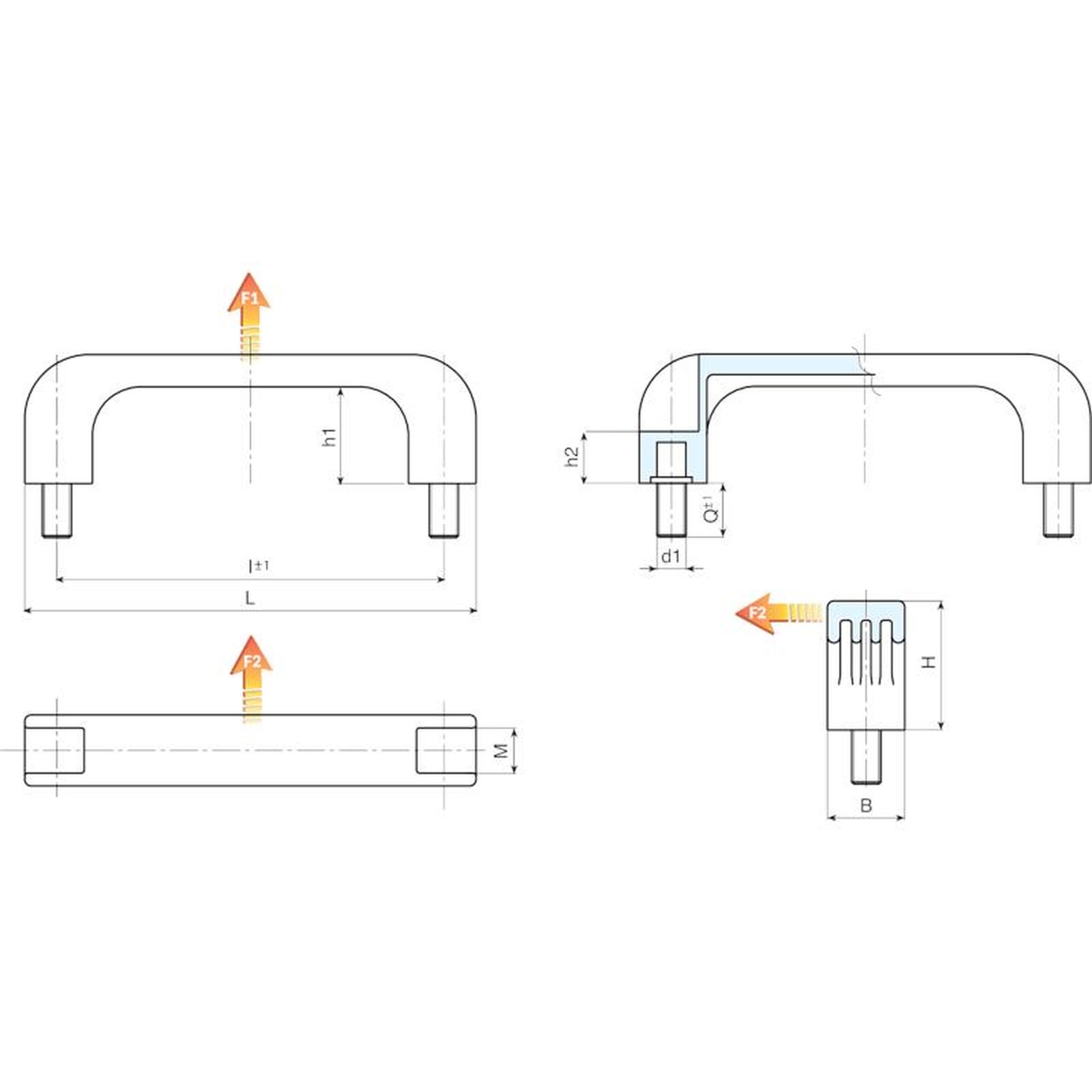

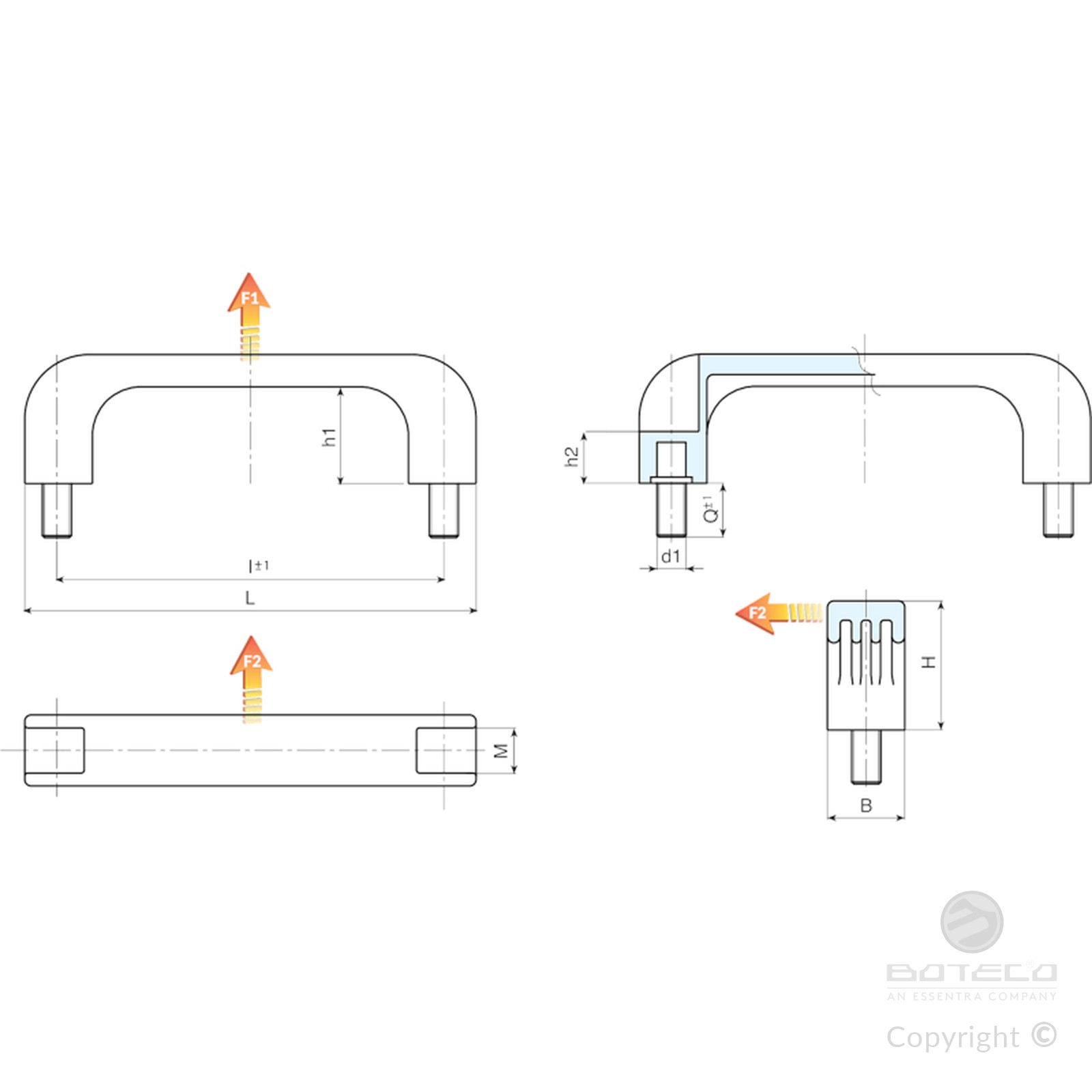

| Code | art. | L | I ±1 | B | M | H | h1 | h2 | Q | d1 6g | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B228132.0001 | B228132.TM06X1601 | 151 | 132 | 26 | 14 | 43 | 31 | 16 | 16 | M6 | 85 | 3000 | 2200 |
