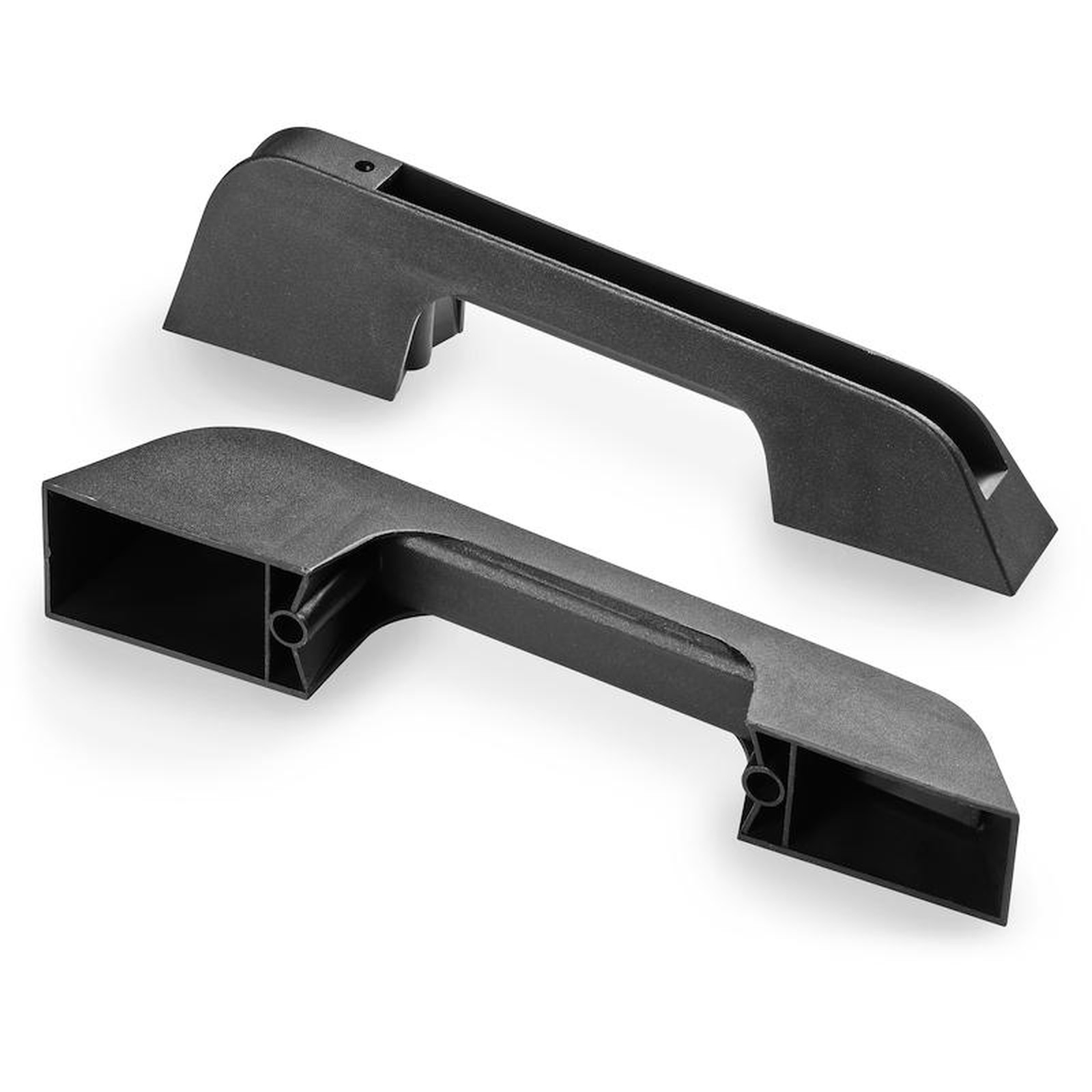

INCLINED HANDLE
02
B227
Maniglie scaricate
Materials:
Reinforced polypropylene.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Hole:
Smooth through hole obtained by moulding the plastic.
Special requests:
None.

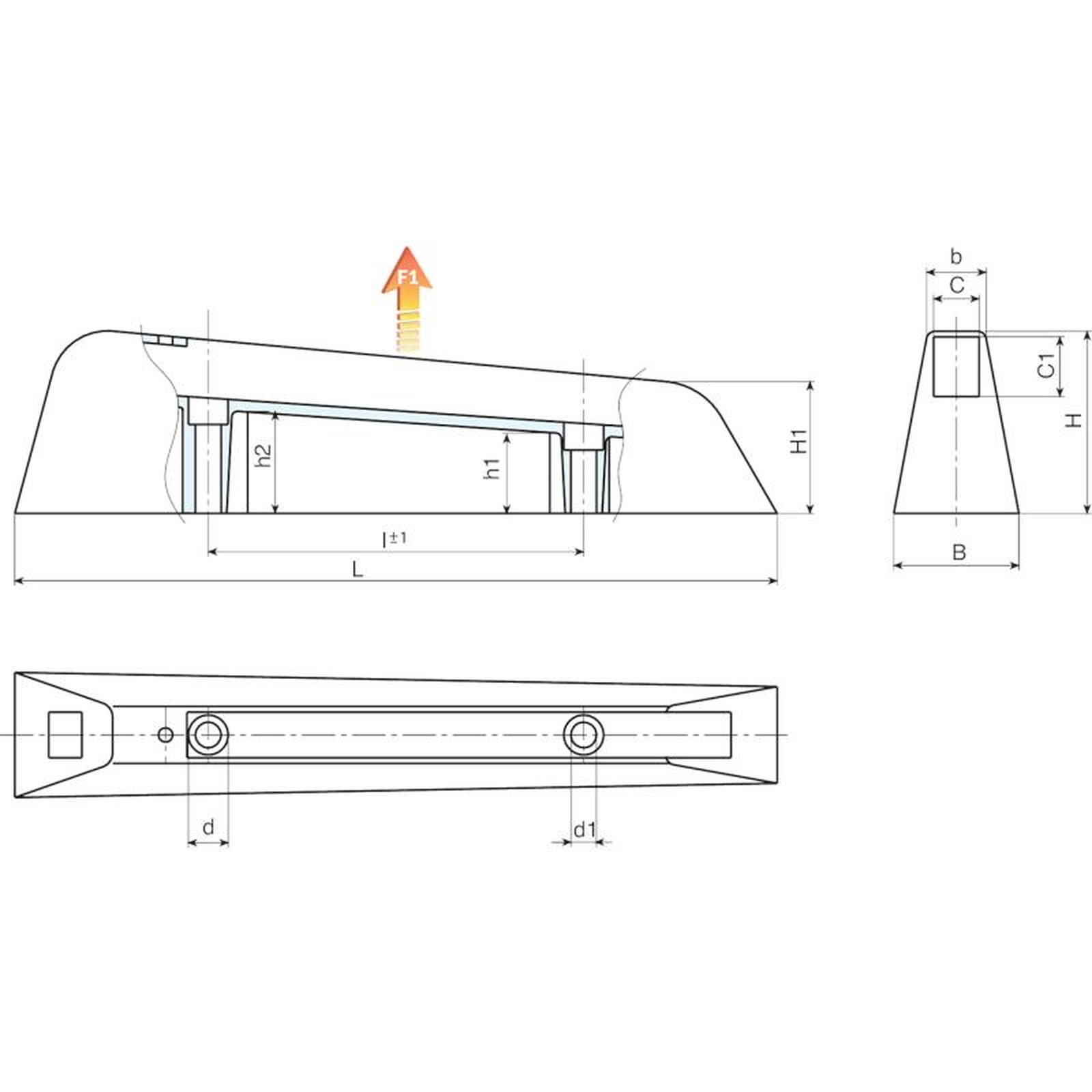

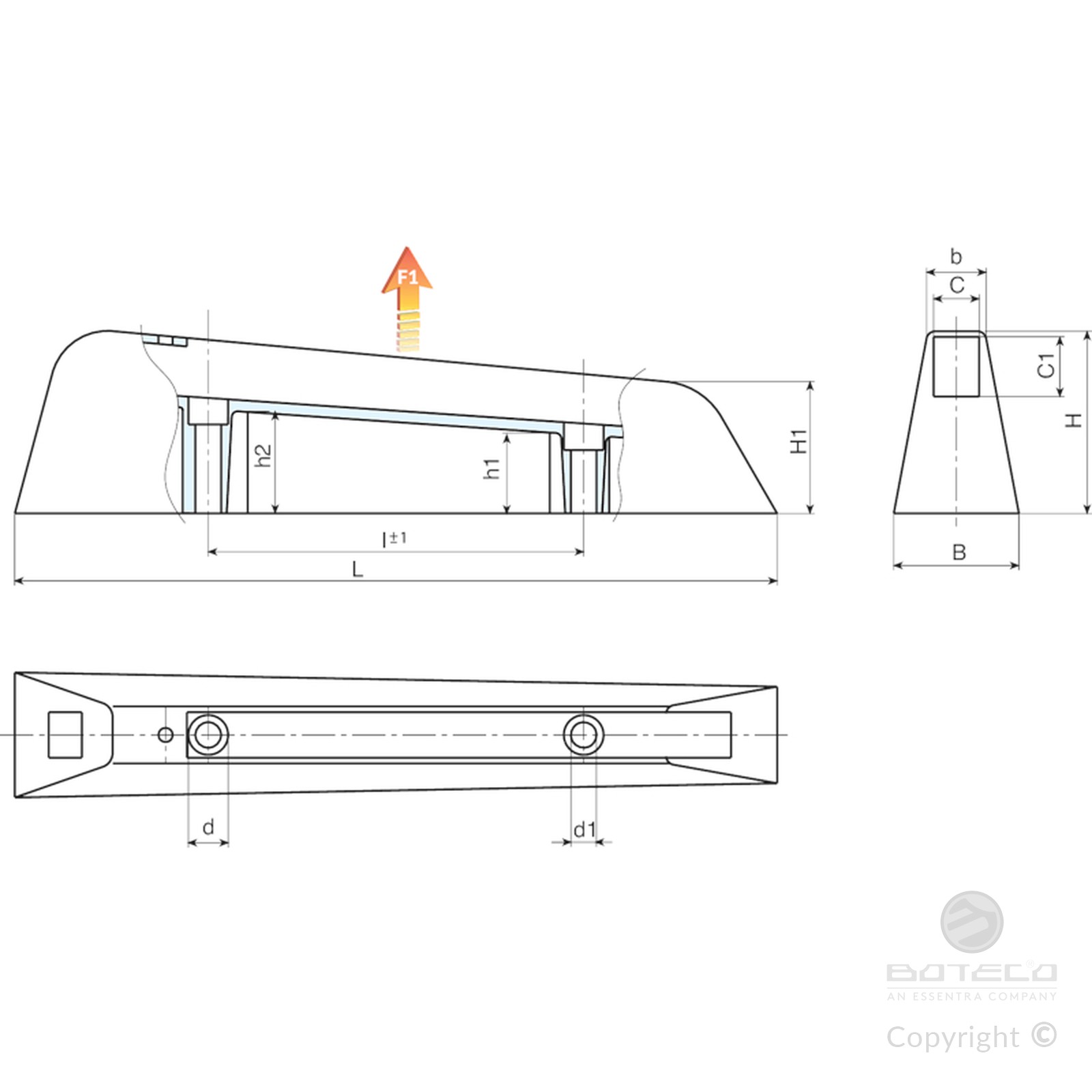

Code | art. | L | I ±1 | B | b | H | H1 | h1 | h2 | C | C1 | d | d1 | Weight (g) | F1 (N) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
B227132.0001 | B227132.TG08.501PP | 268 | 132 | 44 | 20 | 65 | 46 | 26 | 34 | 15.5 | 20.5 | 14 | 8.5 | 106 | 1540 |
