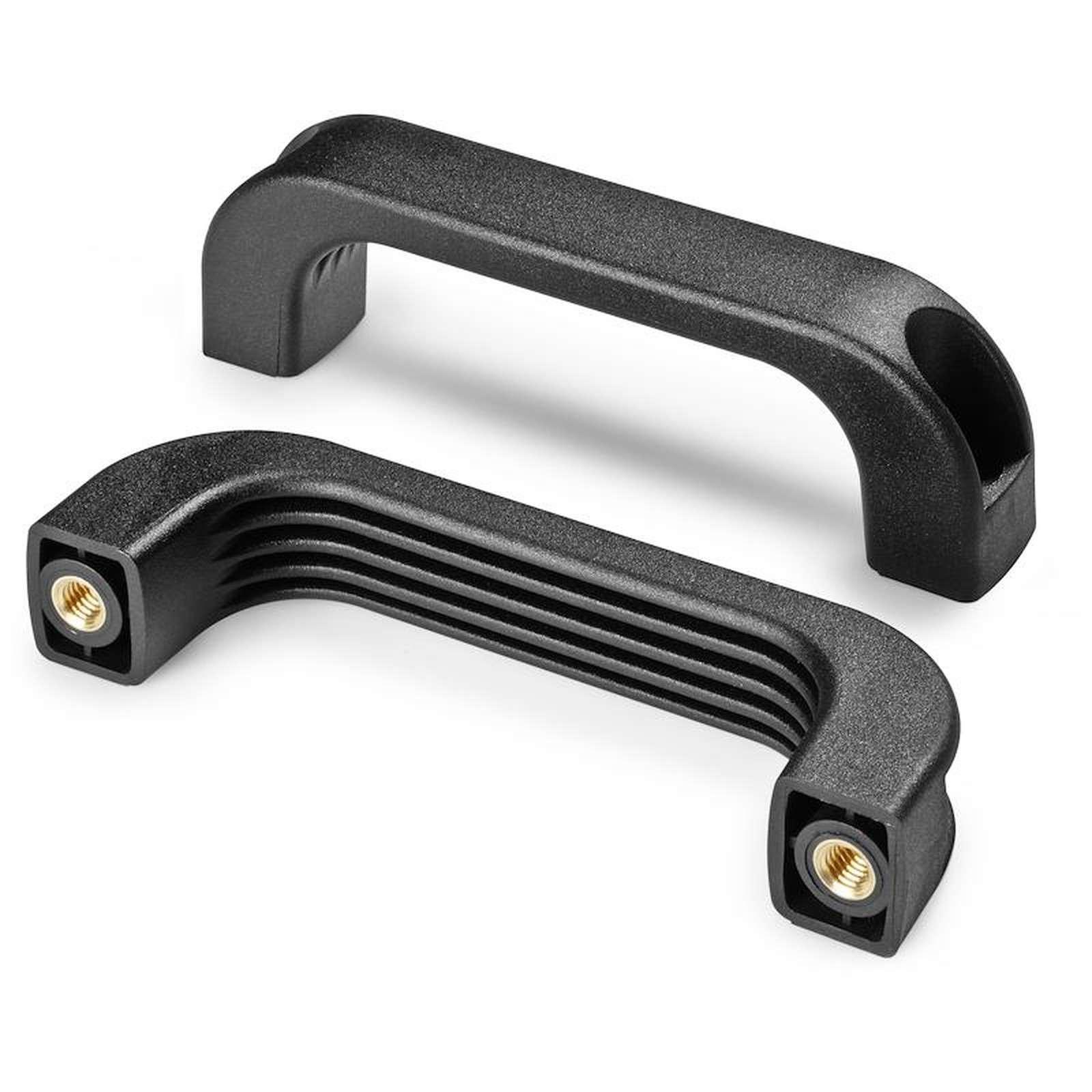

Materials:
Self-extinguishing reinforced polyamide UL94 V0 with yellow card.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.

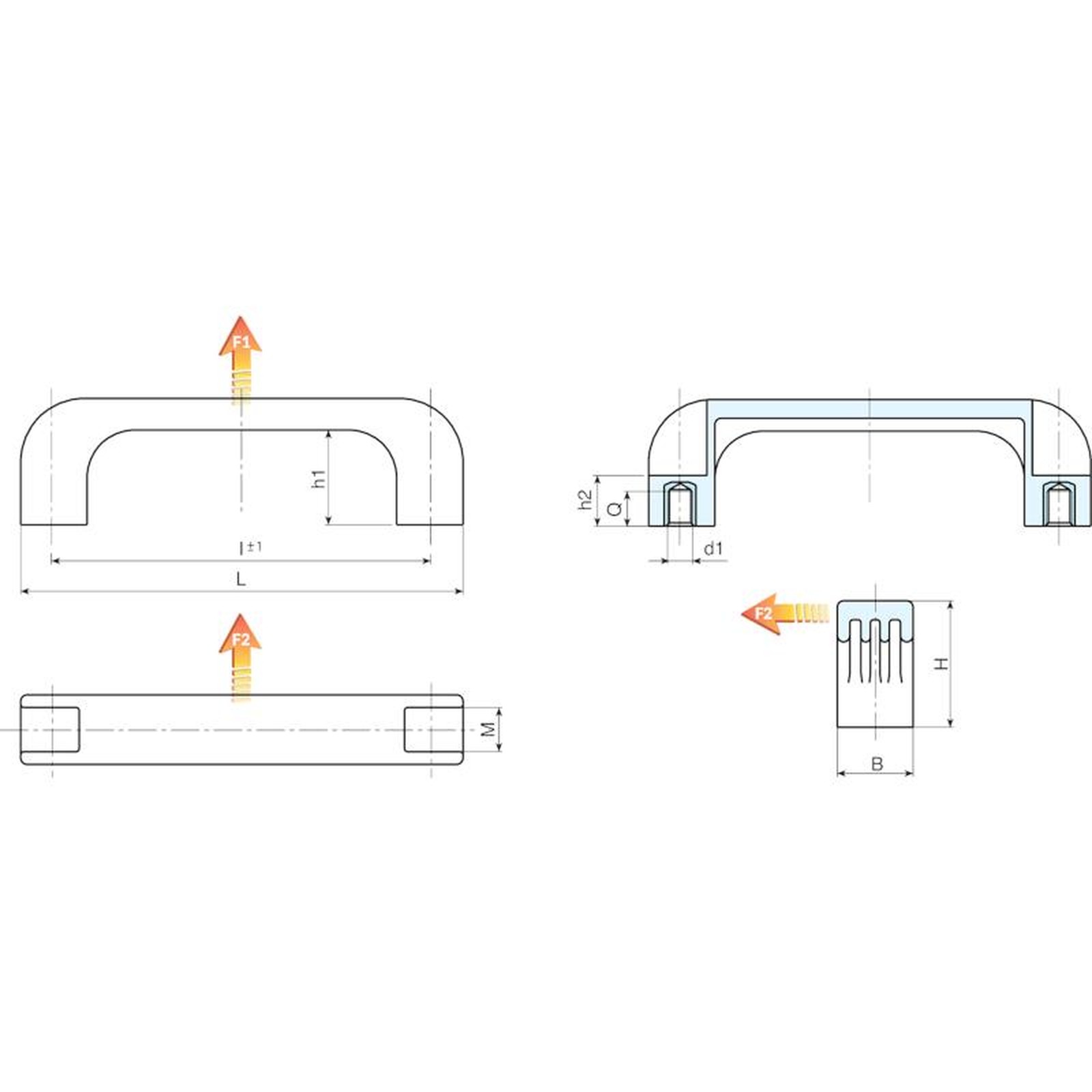

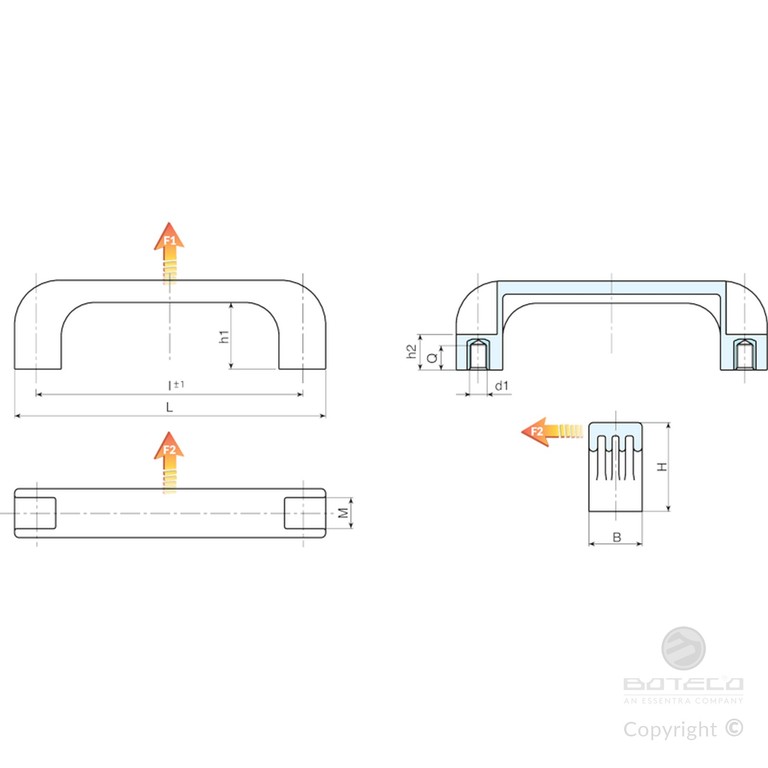

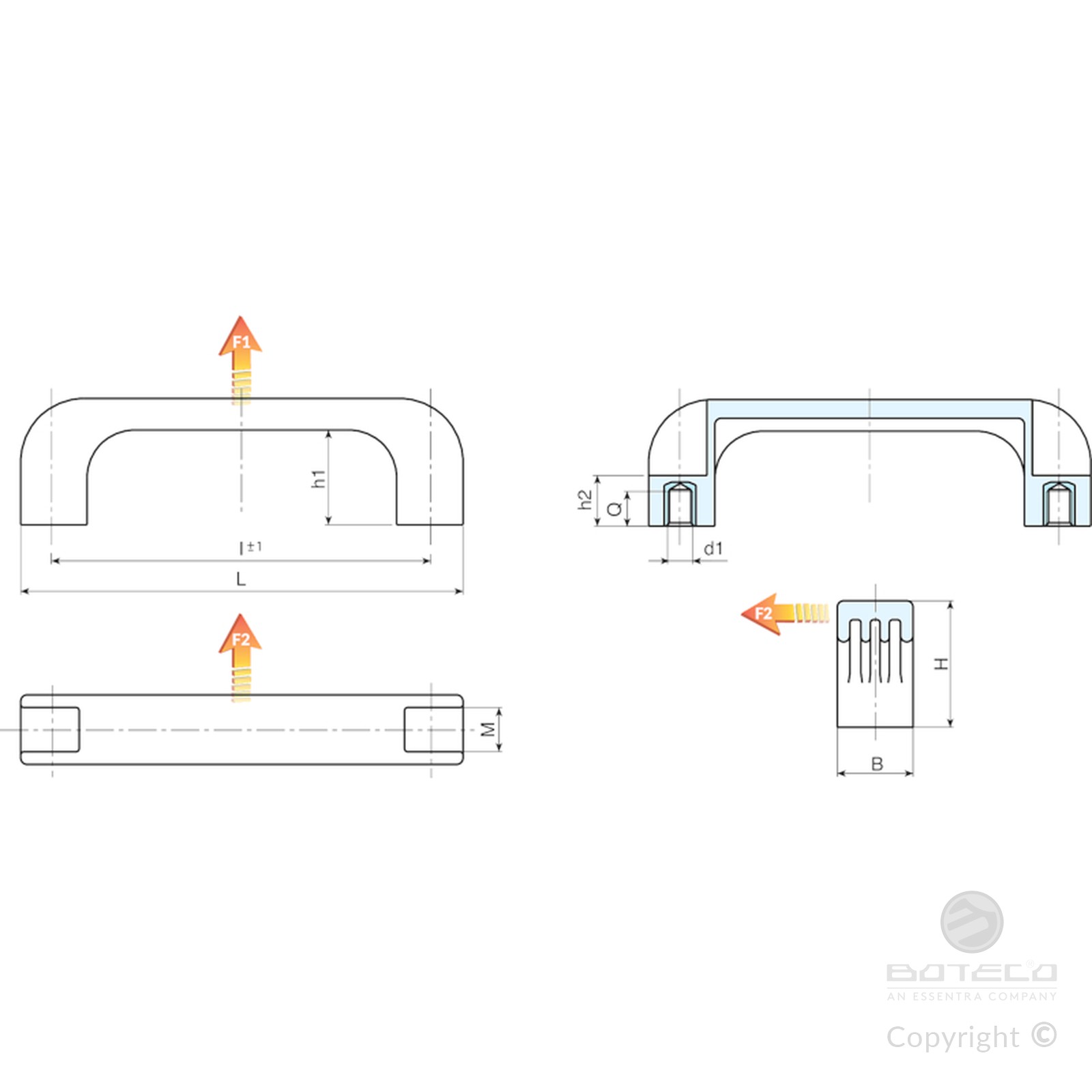

| Code | art. | L | I ±1 | B | M | H | h1 | h2 | Q | d1 6H | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B226094.0002 | B226094.TM0501AE | 110 | 94 | 21 | 13 | 37 | 29 | 13 | 7 | M5 | 23 | 4300 | 1300 |
| B226094.0005 | B226094.TM0601AE | 110 | 94 | 21 | 13 | 37 | 29 | 13 | 8 | M6 | 23 | 4300 | 1300 |
| B226117.0003 | B226117.TM0501AE | 140 | 117 | 24 | 13 | 40 | 29 | 15 | 10 | M5 | 43 | 4100 | 2800 |
| B226117.0005 | B226117.TM0601AE | 140 | 117 | 24 | 13 | 40 | 29 | 15 | 8 | M6 | 43 | 4100 | 2800 |
| B226117.0009 | B226117.TM0801AE | 140 | 117 | 24 | 13 | 40 | 29 | 15 | 8 | M8 | 43 | 4100 | 2800 |
| B226120.0002 | B226120.TM0501AE | 140 | 120 | 24 | 14 | 40 | 29 | 15 | 10 | M5 | 43 | 6100 | 2800 |
| B226120.0004 | B226120.TM0601AE | 140 | 120 | 24 | 14 | 40 | 29 | 15 | 8 | M6 | 43 | 6100 | 2800 |
| B226120.0008 | B226120.TM0801AE | 140 | 120 | 24 | 14 | 40 | 29 | 15 | 8 | M8 | 43 | 6100 | 2800 |
| B226132.0002 | B226132.TM0501AE | 151 | 132 | 26,5 | 16 | 44,5 | 31 | 16 | 10 | M5 | 70 | 7300 | 3500 |
| B226132.0004 | B226132.TM0601AE | 151 | 132 | 26,5 | 16 | 44,5 | 31 | 16 | 8 | M6 | 70 | 7300 | 3500 |
| B226132.0006 | B226132.TM0801AE | 151 | 132 | 26,5 | 16 | 44,5 | 31 | 16 | 8 | M8 | 70 | 3700 | 2800 |
| B226180.0003 | B226180.TM0801AE | 200 | 180 | 28 | 17 | 51 | 39 | 21 | 14 | M8 | 88 | 3700 | 2800 |
| B226235.0002 | B226235.TM0801AE | 262 | 235 | 32 | 20 | 53 | 40 | 21 | 14 | M8 | 123 | 4300 | 3200 |
| B226235.0004 | B226235.TM1001AE | 262 | 235 | 32 | 20 | 53 | 40 | 21 | 14 | M10 | 123 | 4300 | 3200 |
