FIXED HANDLE FOR CURVED SURFACES
02
B225
Maniglie scaricate
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Hole:
Smooth through hole obtained by moulding the plastic for self-tapping screw.
Special requests:
Upon request and for special quantities available in the colours indicated in the chart.

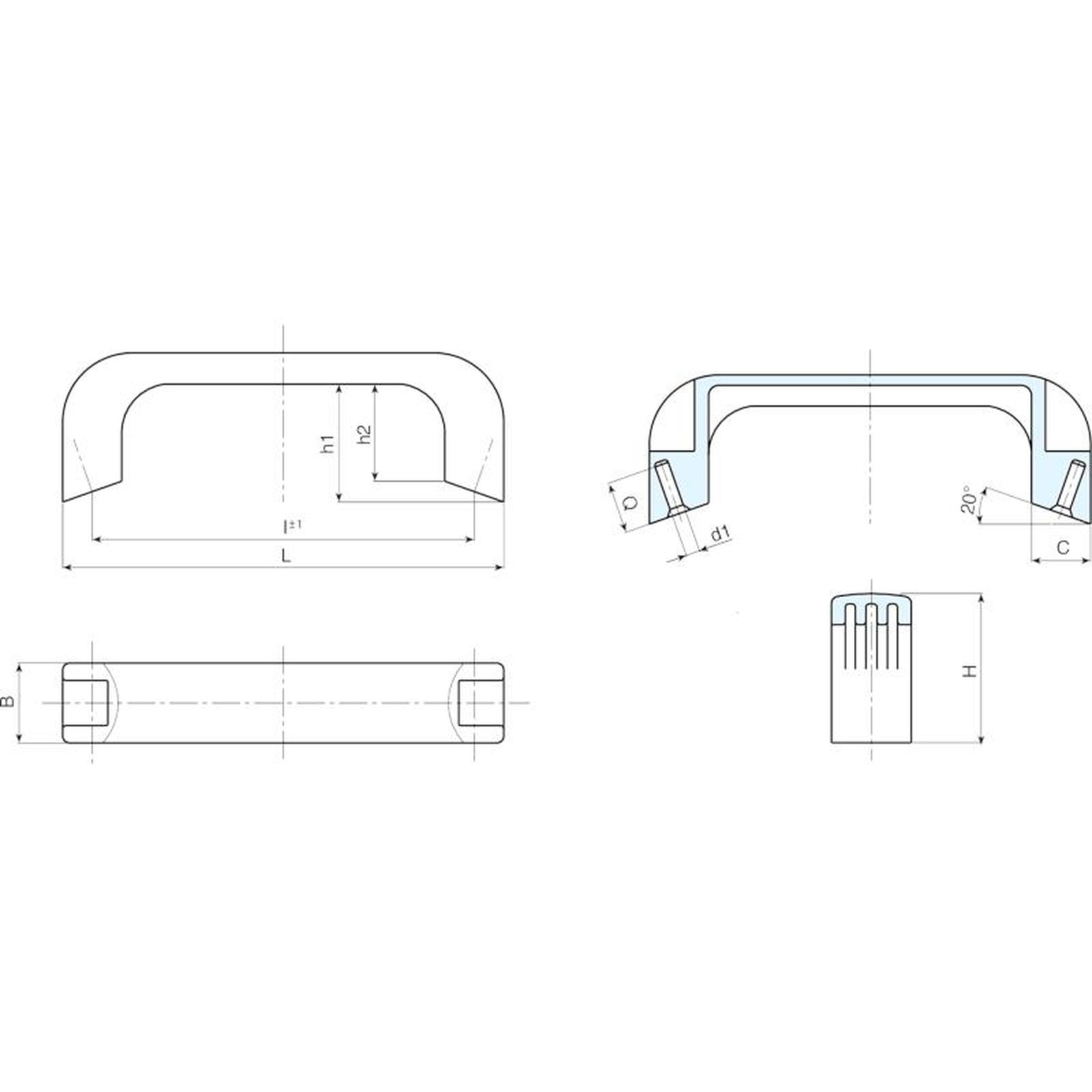

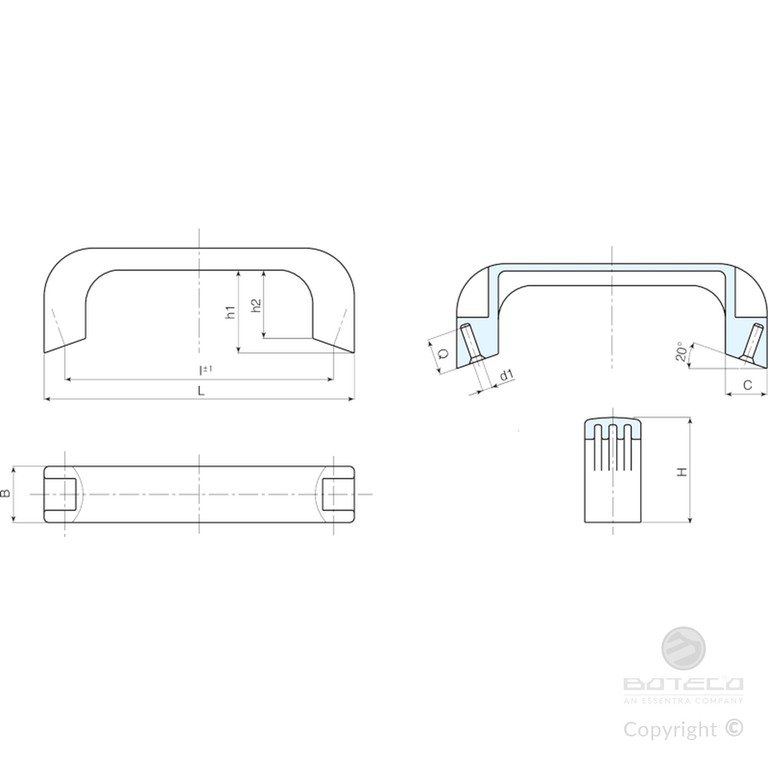

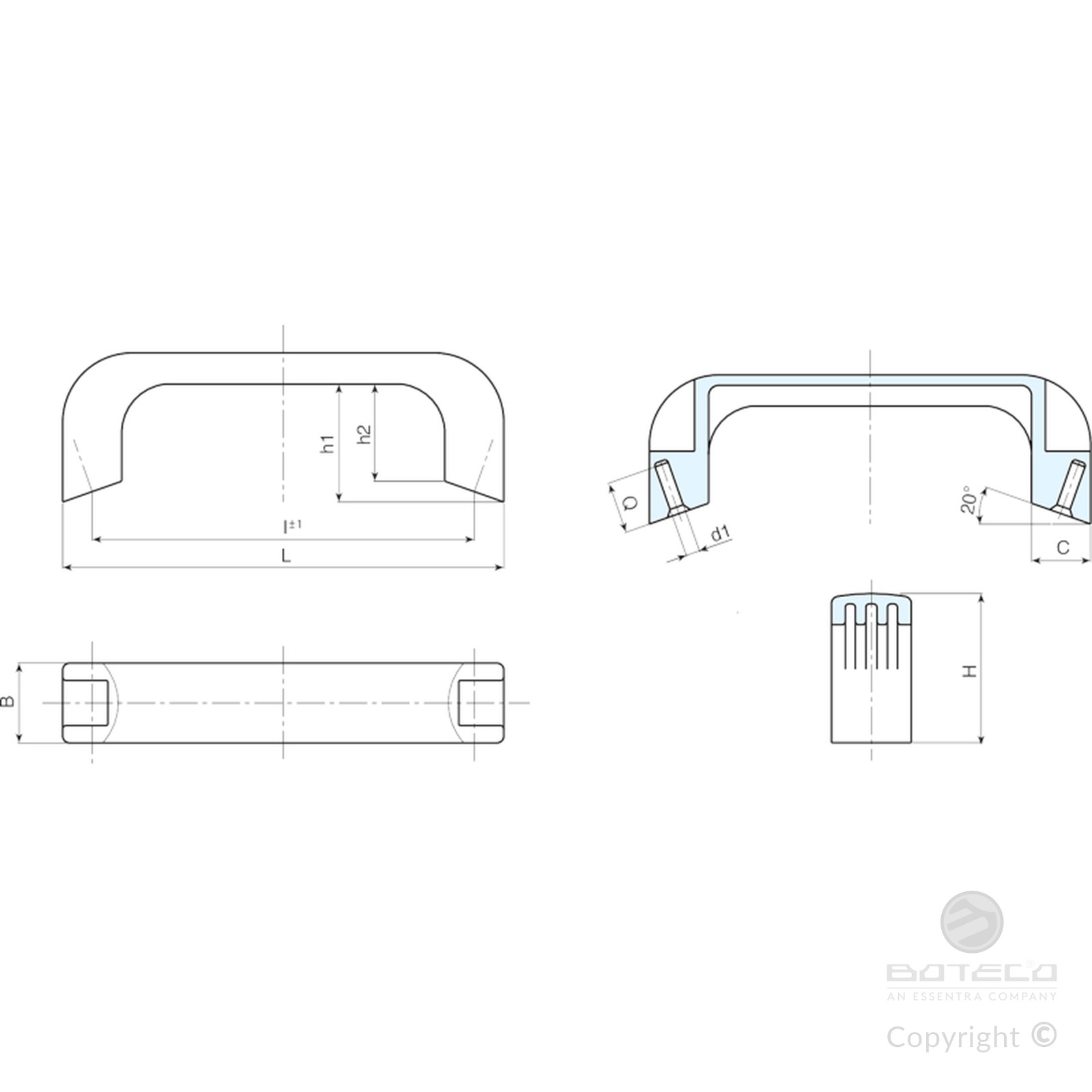

| Code | art. | L | I ±1 | B | H | h1 | C | d1 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| B225110.0001 | B225110.TG0401CP | 127 | 110 | 24 | 43 | 34 | 16 | 4 | 16 | 35 |
