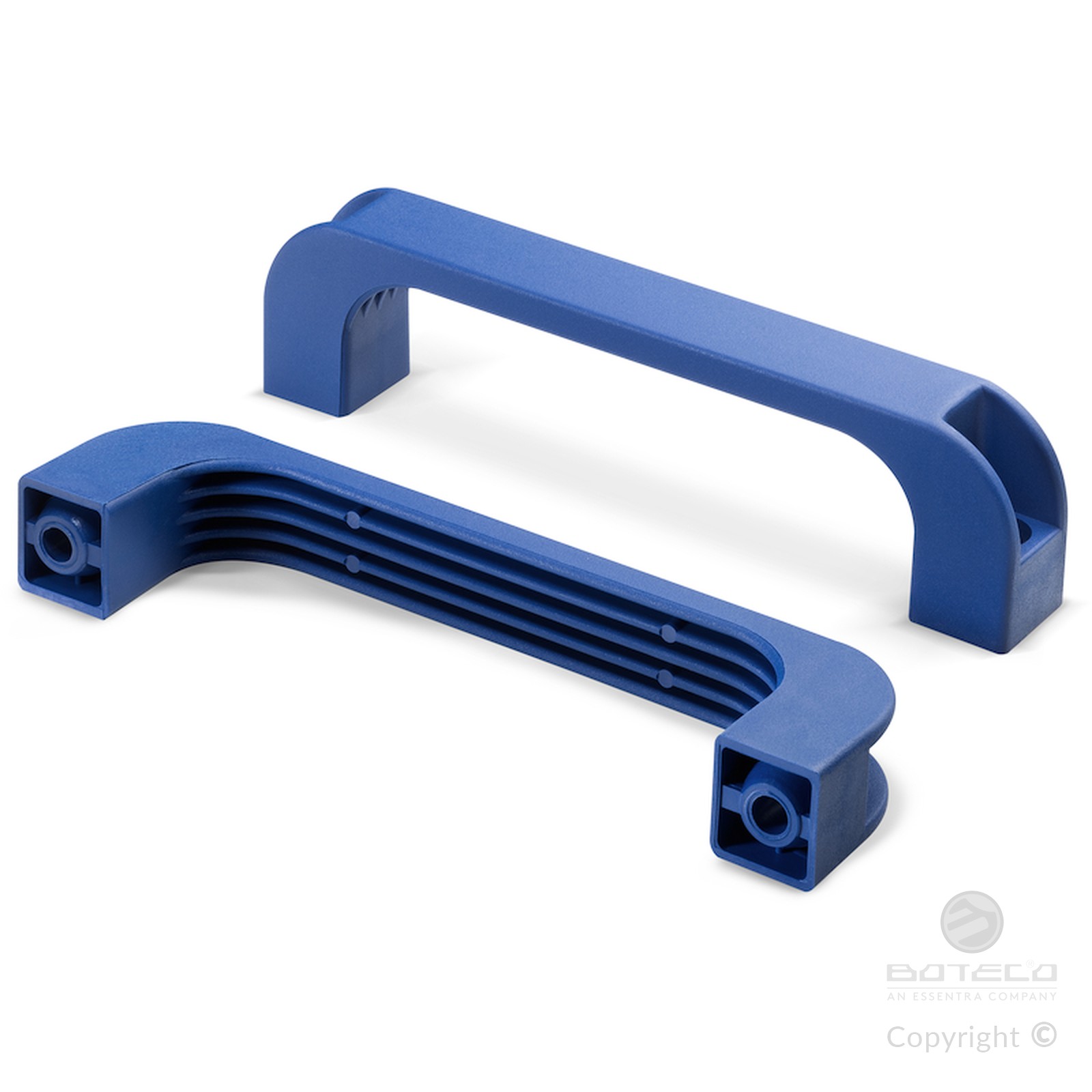

FIXED HANDLE WITH THROUGH HOLE MADE FROM BLUE FOOD-GRADE MATERIAL
02
B224ID
Maniglie scaricate
Description
Notes: Articles produced with materials suitable for contact with foodstuffs; they are used in machinery and equipment for the food industry. The Blue RAL 5005 colour makes it easy to identify an article, or part of an article, that has accidentally ended up in a food processing procedure and can be immediately removed.
Materials:
Food-grade reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Blue: (RAL 5005 cod. 95).
Hole:
Smooth through hole obtained by moulding the plastic.
Special requests:
None.

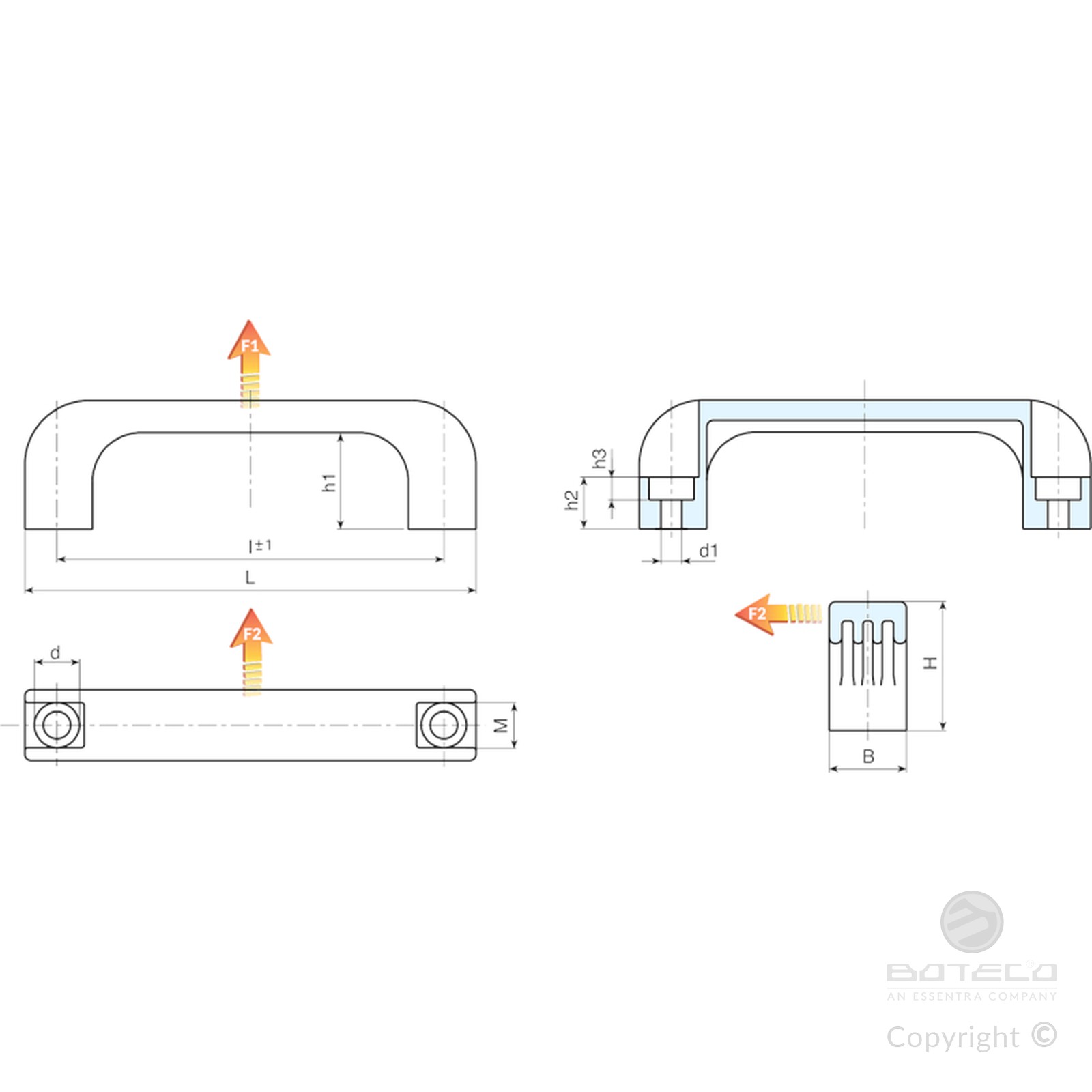

| Code | art. | L | I ±1 | B | M | H | h1 | h2 | h3 | d | d1 | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B224094.0007 | B224094.TG6.595ID | 110 | 94 | 21 | 13 | 37 | 29 | 13 | 7 | 11 | 6.5 | 22 | 2500 | 1251 |
| B224117.0023 | B224117.TG6.595ID | 140 | 117 | 24 | 13 | 40 | 29 | 15 | 7 | 14 | 6.5 | 43 | 4400 | 3000 |
| B224117.0024 | B224117.TG8.595ID | 140 | 117 | 24 | 13 | 40 | 29 | 15 | 9 | 14 | 8.5 | 39 | 4400 | 3000 |
| B224120.0015 | B224120.TG6.595ID | 140 | 120 | 24 | 14 | 40 | 29 | 15 | 7 | 14 | 6.5 | 42 | 4800 | 3200 |
| B224120.0016 | B224120.TG8.595ID | 140 | 120 | 24 | 14 | 40 | 29 | 15 | 9 | 14 | 8.5 | 39 | 4800 | 3200 |
| B224132.0008 | B224132.TG8.595ID | 151 | 132 | 26 | 14 | 43 | 31 | 16 | 9 | 14 | 8.5 | 63 | 3400 | 3200 |
| B224180.0006 | B224180.TG8.595ID | 200 | 180 | 28 | 17 | 51 | 39 | 21 | 9 | 14 | 8.5 | 74 | 4000 | 3000 |
| B224235.0006 | B224235.TG10.595ID | 262 | 235 | 32 | 20 | 53 | 40 | 21 | 11 | 17 | 10.5 | 123 | 3800 | 3000 |
