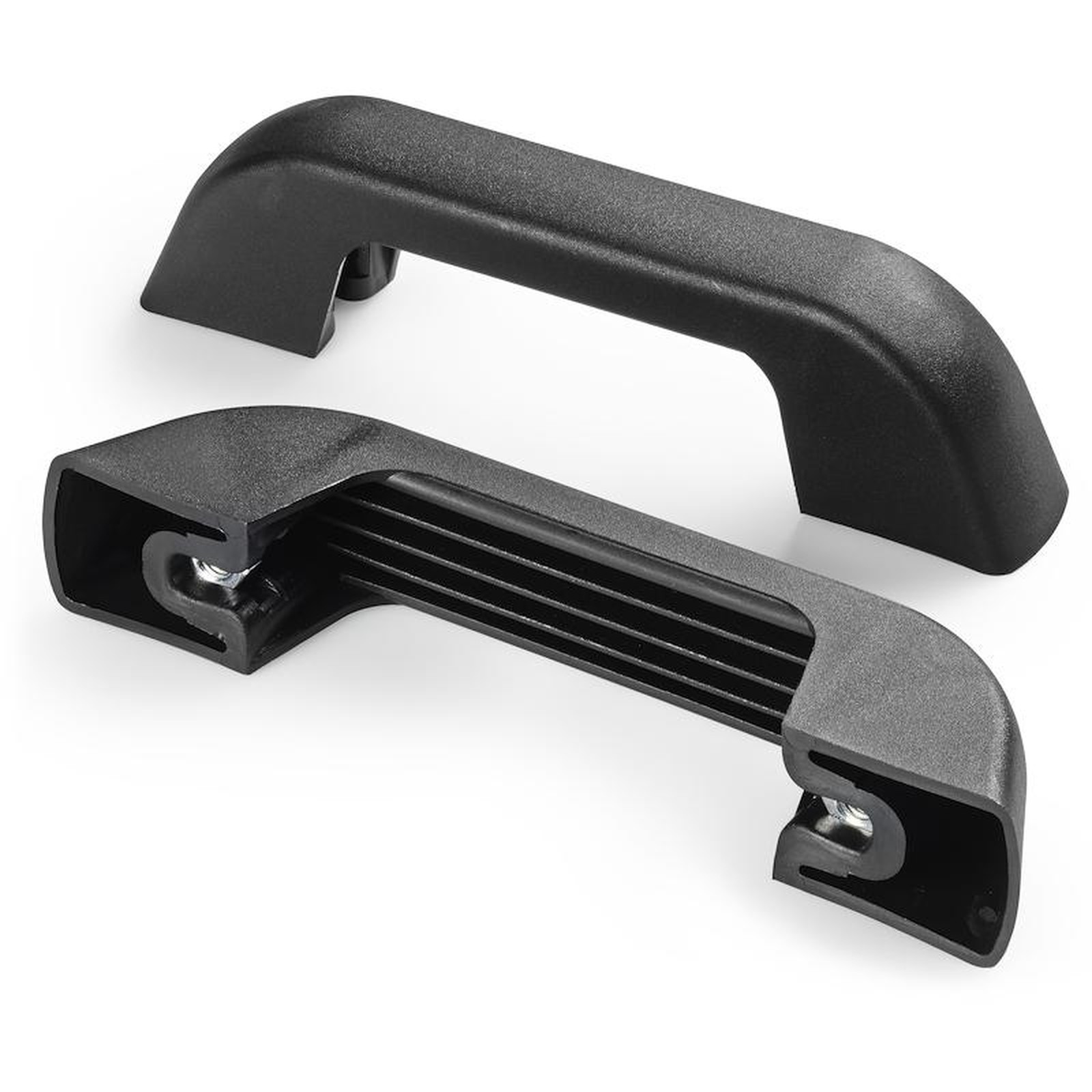

FIXED HANDLE WITH NUT
02
B221
Maniglie scaricate
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
2 galvanised steel nuts DIN 934 - UNI 5588
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

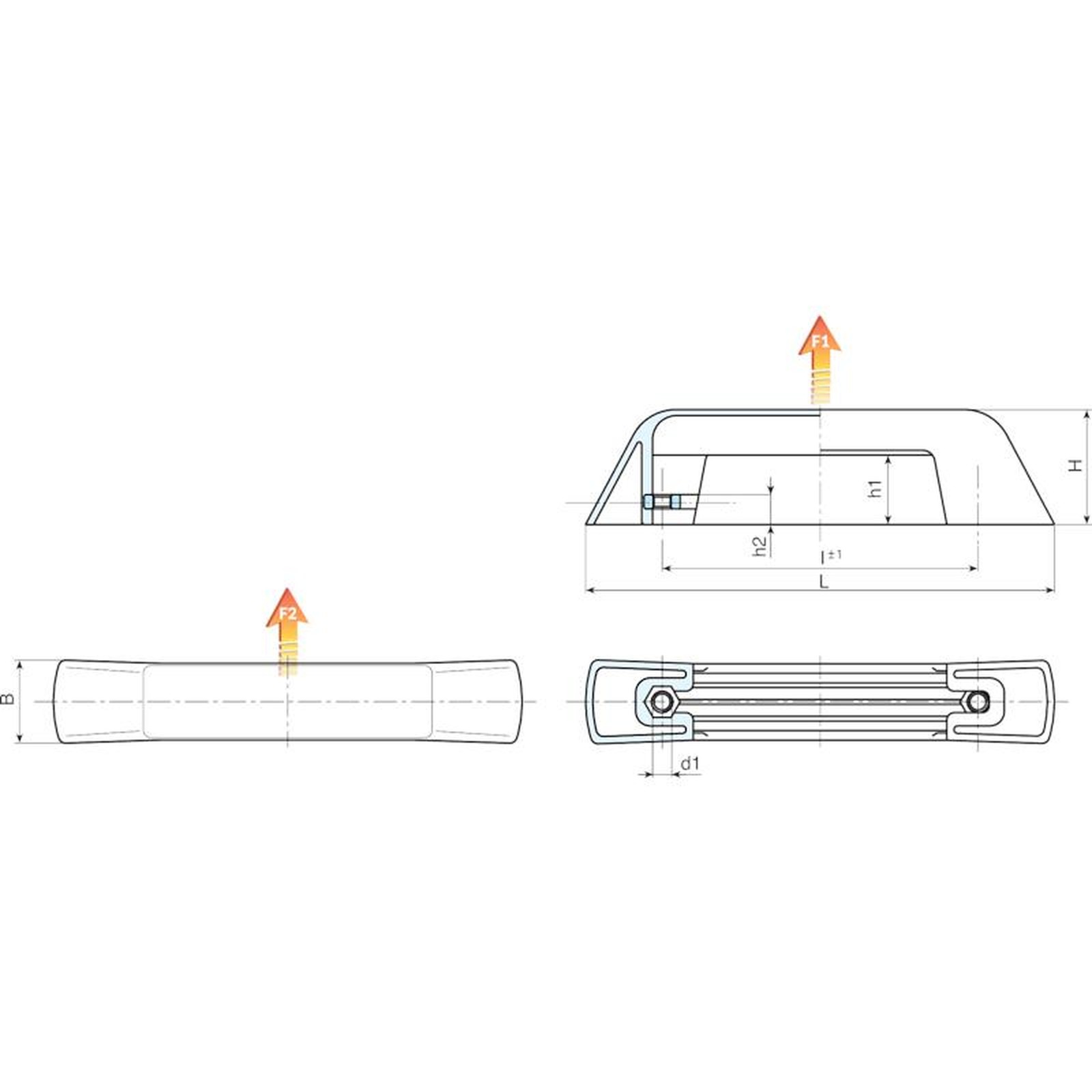

Code | art. | L | I ±1 | B | H | h1 | h2 | d1 | Weight (g) | F1 (N) | F2 (N) |
---|---|---|---|---|---|---|---|---|---|---|---|
B221132.0001 | B221132.TM0801 | 198 | 132 | 34 | 48 | 29 | 12.5 | M8 | 107 | 6785 | 3400 |
