Materials:
Phenolic resin.
Resistant to oils and greases.
Resistant to high temperatures.
Surface finish:
Glossy.
Colour:
Black(RAL 9011).
Inserts:

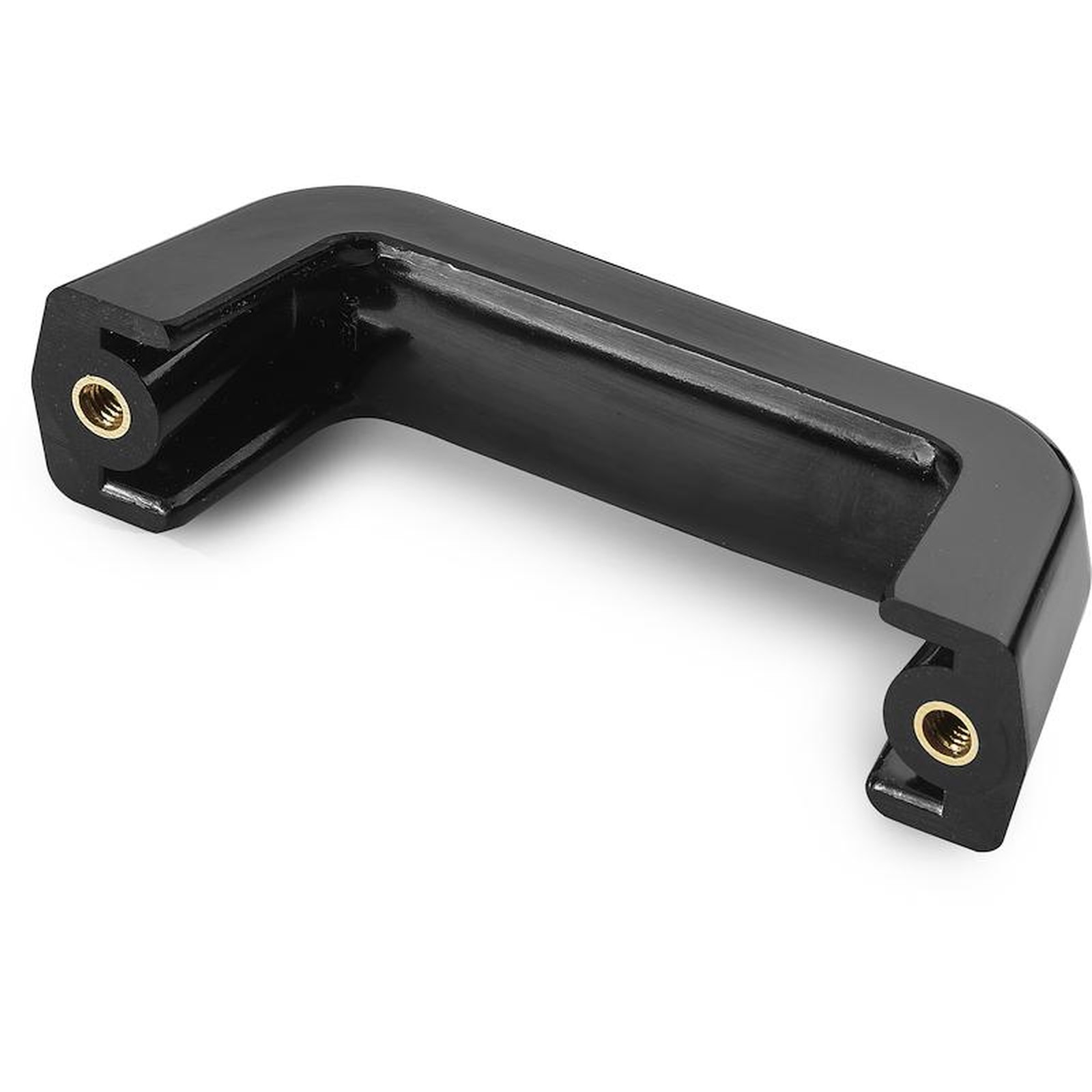

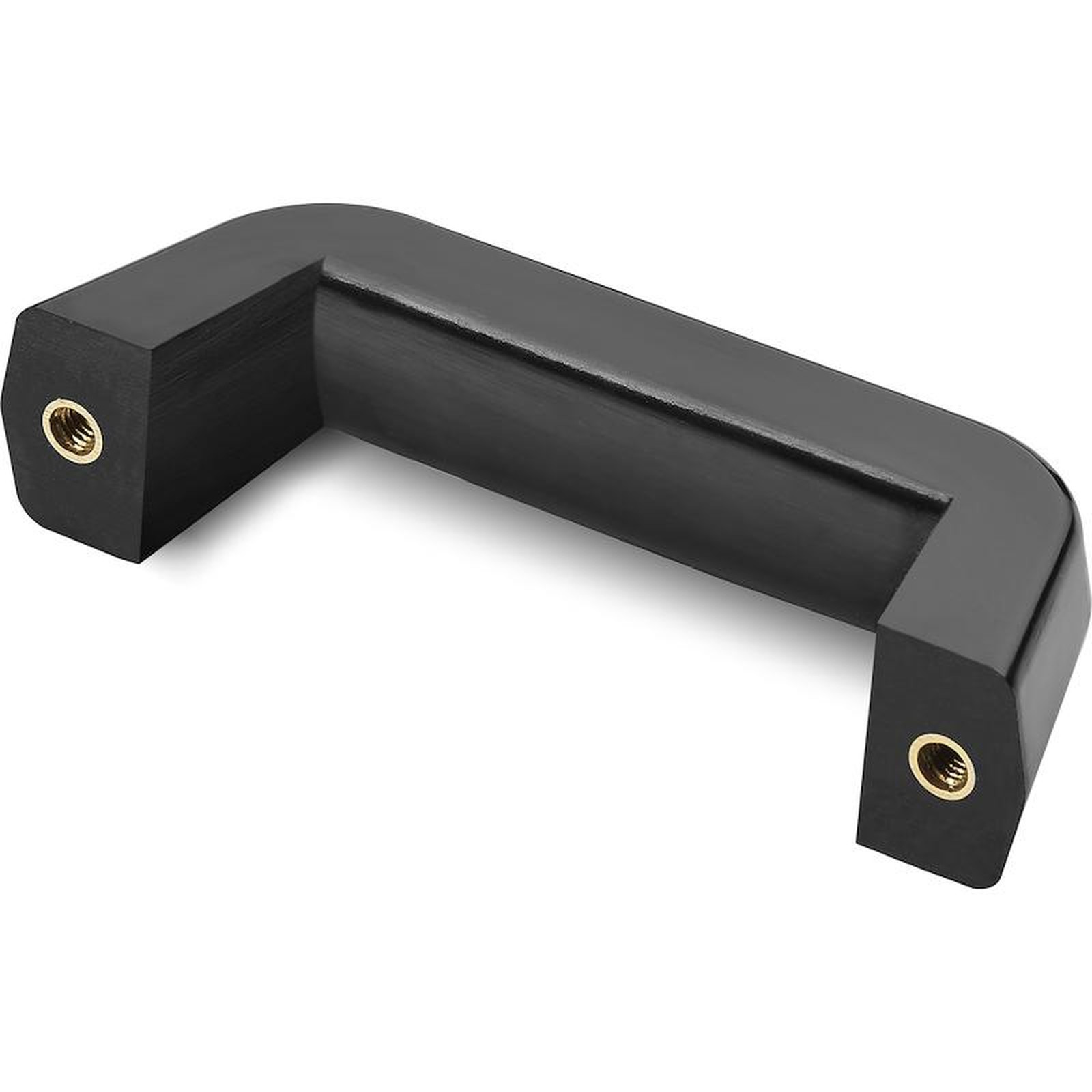

Brass insert with female threaded hole (thread tolerance 6H).
Special requests:
None.

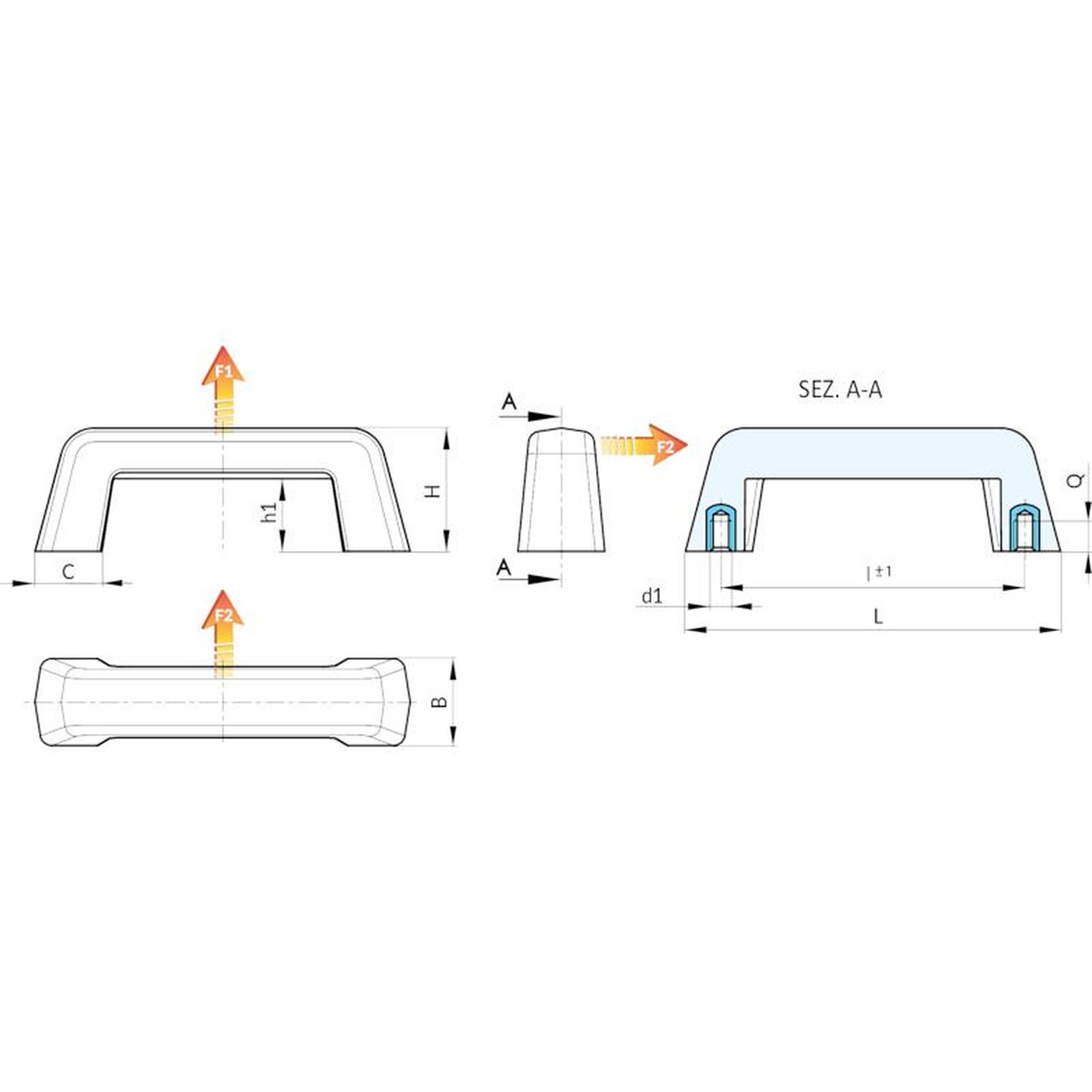

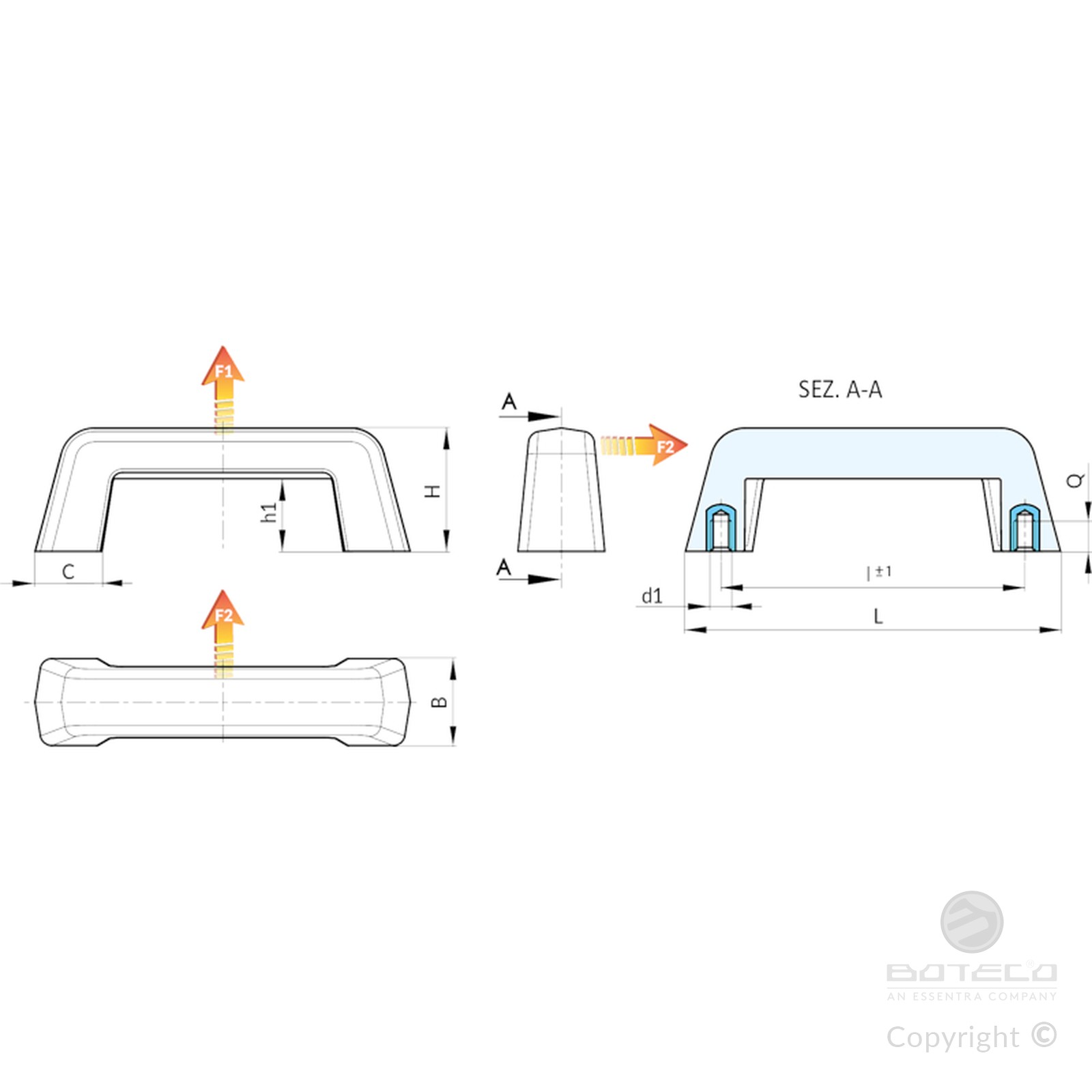

| Code | art. | L | I | B | H | h1 | C | d1 6H | Q | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B219110.0001 * | B219110.BM0501 | 130,5 | 109 (+0 -1) | 32 | 45 | 29 | 21 | M5 | 10 | 94 | 800 | 500 |
| B219110.0002 * | B219110.BM0601 | 130,5 | 109 (+0 -1) | 32 | 45 | 29 | 21 | M6 | 10 | 95 | 800 | 500 |
| B219132.0001 | B219132.BM0801 | 164 | 132 ± 1 | 38 | 56 | 34 | 30,5 | M8 | 12 | 190 | 1500 | 850 |
| B219132.0002 | B219132.BM1001 | 164 | 132 ± 1 | 38 | 56 | 34 | 30,5 | M10 | 18 | 193 | 1500 | 850 |
| B219150.0001 | B219150.BM0801 | 187 | 150 ± 1 | 40,5 | 61 | 43 | 35 | M8 | 18 | 217 | 2000 | 1000 |
| B219150.0002 | B219150.BM1001 | 187 | 150 ± 1 | 40,5 | 61 | 43 | 35 | M10 | 18 | 216 | 2000 | 1000 |
