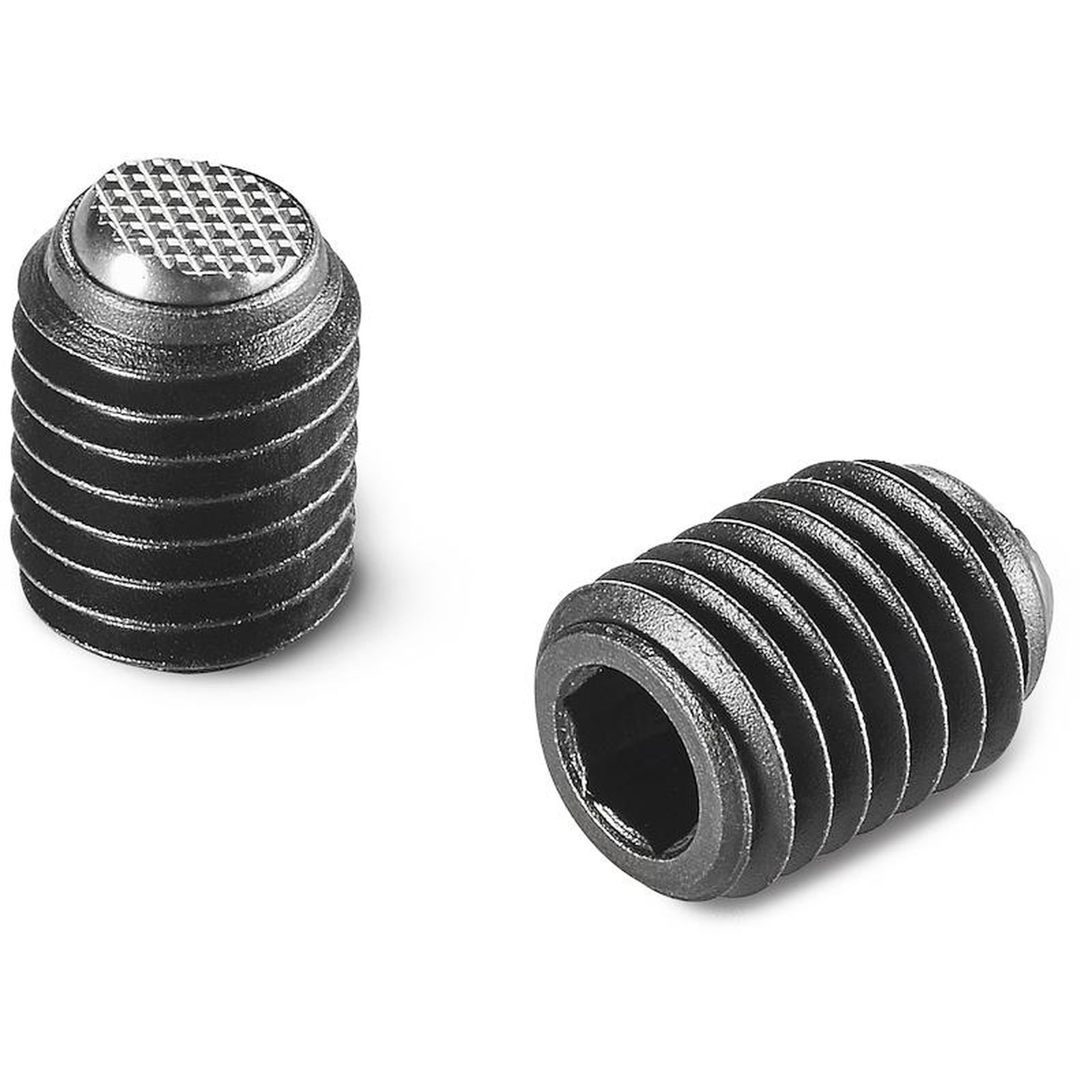

THREADED STEEL GRUB SCREW WITH HEAGON SOCKET END AND FLATTENED KNURLED BALL POINT

21

W852


Grano di pressione e sfera/sfera spianata

Materials:

Quenched steel grub screw body with strength class 10.9.

Surface finish:

Smooth.

Colour:

Nose pin:

Natural

Grub screw body:

Black-oxide treated.

Ball:

Flattened knurled hardened stainless steel ball (Aisi 420). Optimal angle adjustment between 0° and 9°. The ball is not fixed, it can rotate.

Special requests:

None.

Data sheet

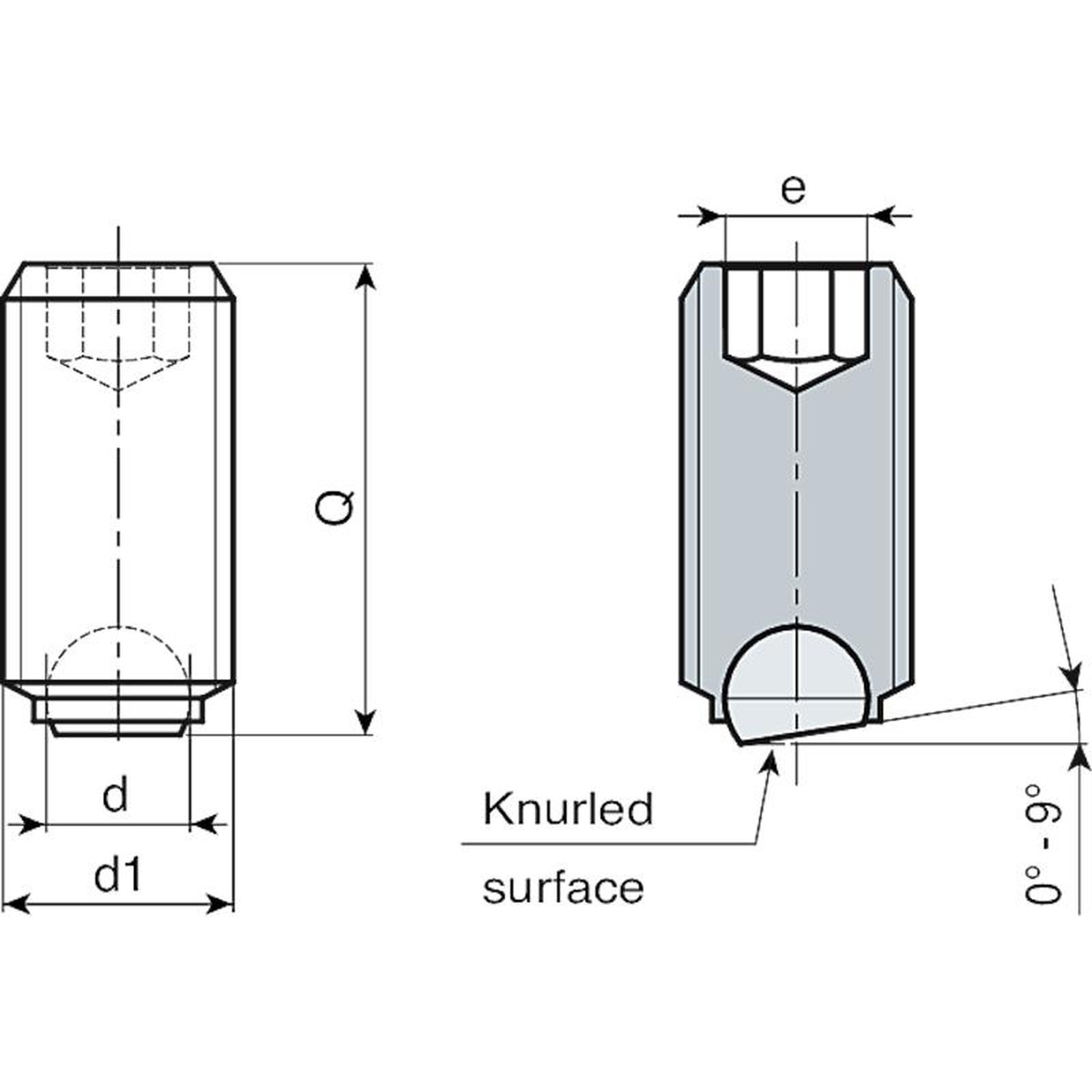

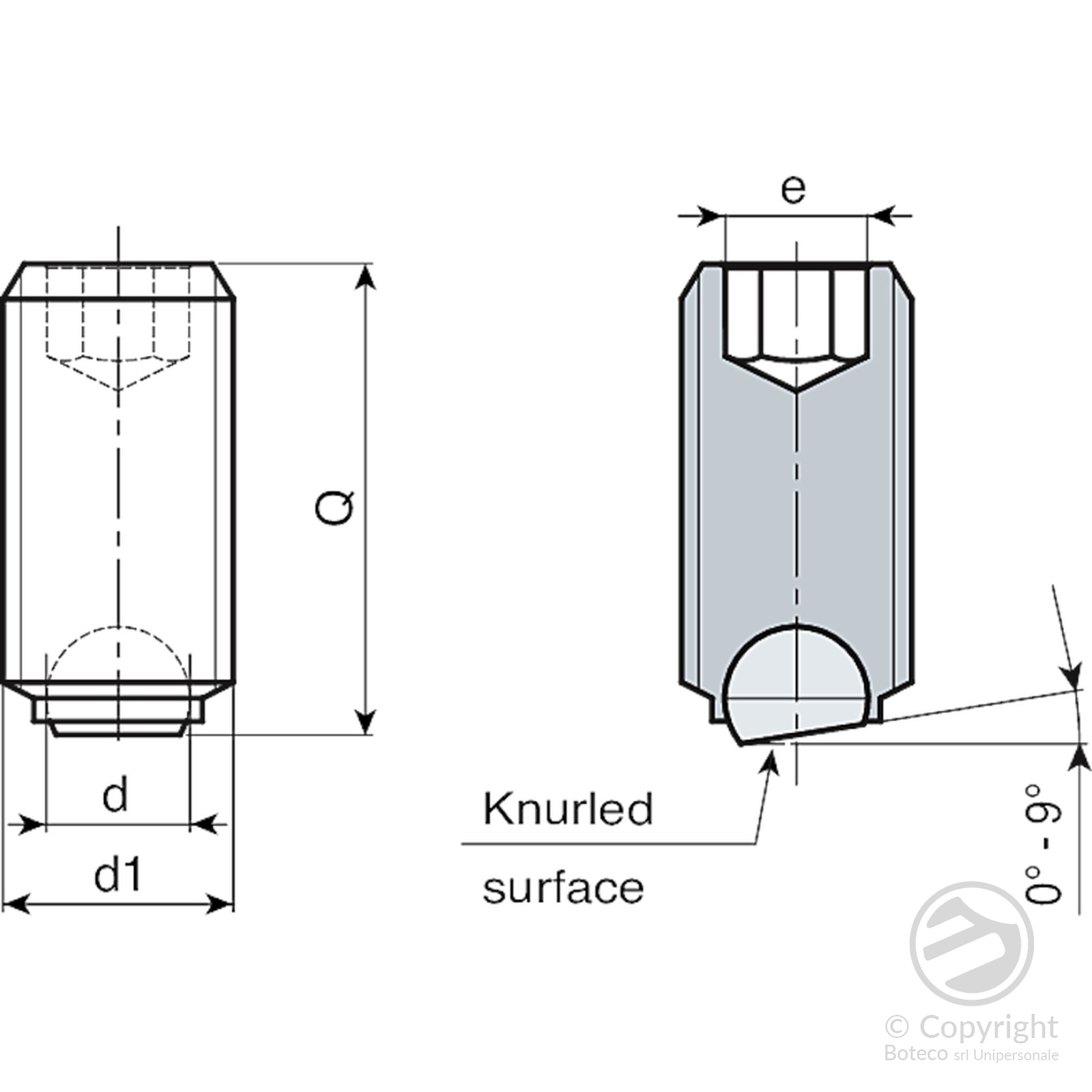

Code art. d1 6g e d Q Weight (g)
W852.0001 W852.SBM10X12 M10 5 7 12 5
W852.0002 W852.SBM10X16 M10 5 7 16 7
W852.0003 W852.SBM10X20 M10 5 7 20 9
W852.0004 W852.SBM10X25 M10 5 7 25 11
W852.0005 W852.SBM10X35 M10 5 7 35 16
W852.0006 W852.SBM12X16 M12 6 8.5 16 10
W852.0007 W852.SBM12X20 M12 6 8.5 20 12,5
W852.0008 W852.SBM12X30 M12 6 8.5 30 20
W852.0009 W852.SBM12X40 M12 6 8.5 40 28,5
W852.0010 W852.SBM16X20 M16 8 12 20 22
W852.0011 W852.SBM16X25 M16 8 12 25 28
W852.0012 W852.SBM16X35 M16 8 12 35 41
W852.0013 W852.SBM16X50 M16 8 12 50 48
