SMOOTH PLASTIC SPRING PLUNGER WITH PLASTIC OR STAINLESS STEEL BALL
21
W846
Pressore a molla liscio con sfera
Materials:
Moulded plastic plunger body (POM - Delrin).
Colour:
Body:
Black.
Ball:
W846: White.
W846CIN: Natural.
Ball:
W846:
White moulded plastic ball (POM).
W846CIN:
Hardened stainless steel ball (Aisi 420).
Type of spring thrust:
Normal.
Spring:
Stainless steel spring (Aisi 301).
Special requests:
None.

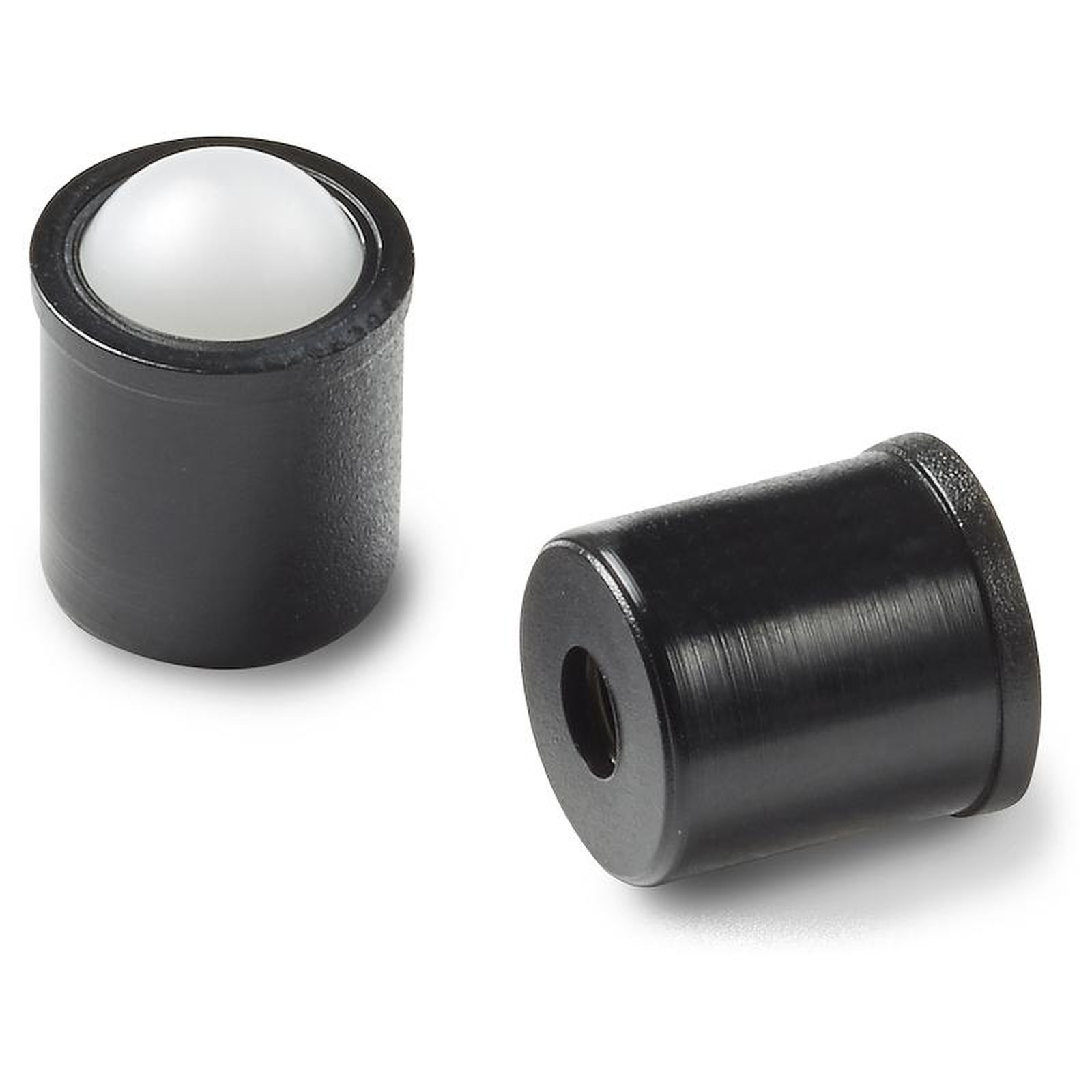

Version W846: with plastic ball (Delrin)

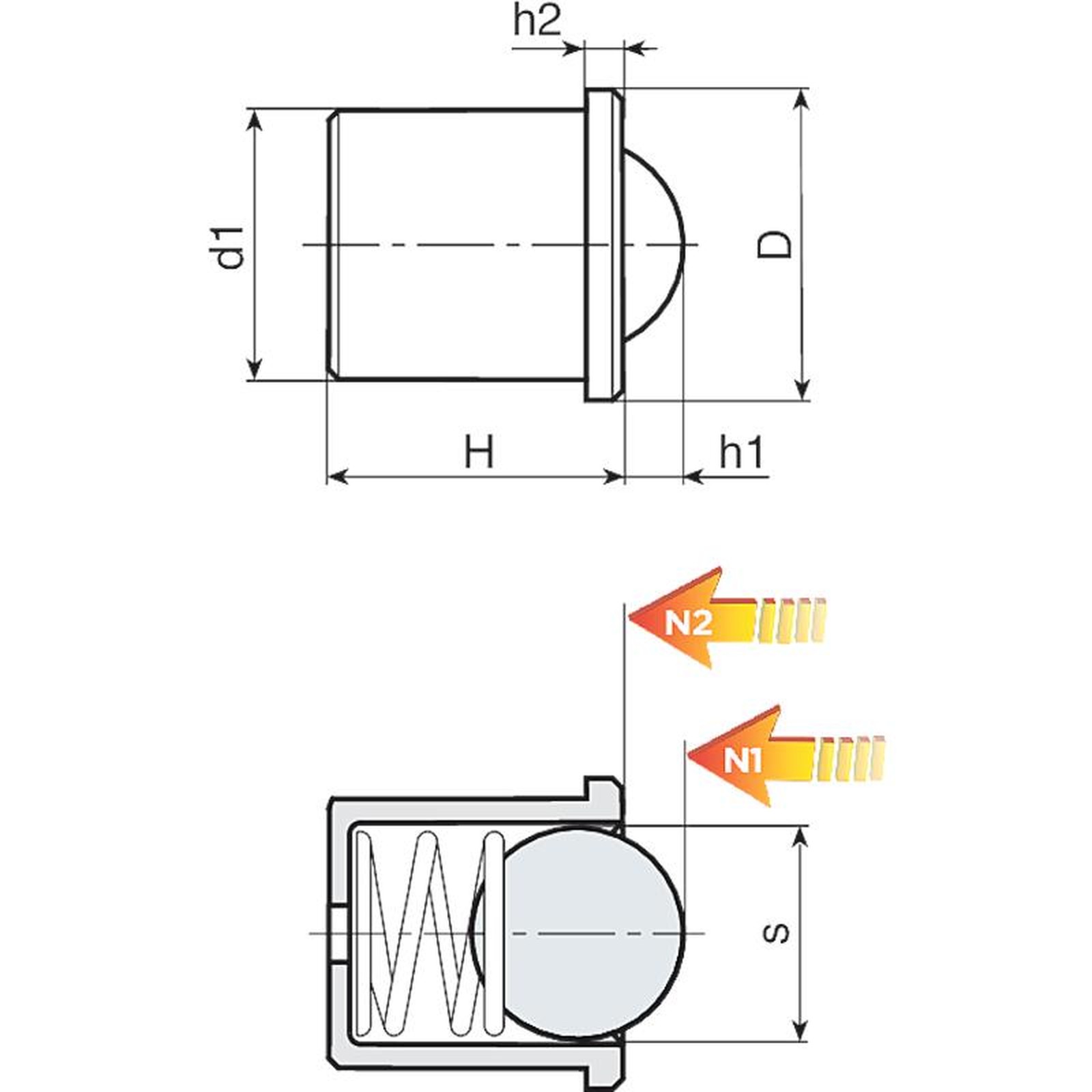

| Code | art. | s | H | h1 | h2 | D | N1 (N) | N2 (N) | d1 (+0.1 +0) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| W846.0001 | W846.TND04 | 3 | 5 | 0.7 | 1 | 4.6 | 3 | 7 | 4 | 0.2 |
| W846.0002 | W846.TND05 | 4 | 6 | 1 | 1 | 5.6 | 4 | 7 | 5 | 0.35 |
| W846.0003 | W846.TND06 | 5 | 7 | 1.5 | 1 | 6.5 | 6 | 12 | 6 | 0.7 |
| W846.0004 | W846.TND08 | 6.5 | 9 | 1.8 | 1 | 8.5 | 6 | 12 | 8 | 1.5 |
| W846.0005 | W846.TND10 | 8 | 13.5 | 2.7 | 2.5 | 12 | 10 | 20 | 10 | 2 |
| W846.0006 | W846.TND12 | 10 | 16 | 3.5 | 2.5 | 14 | 15 | 25 | 12 | 2.3 |

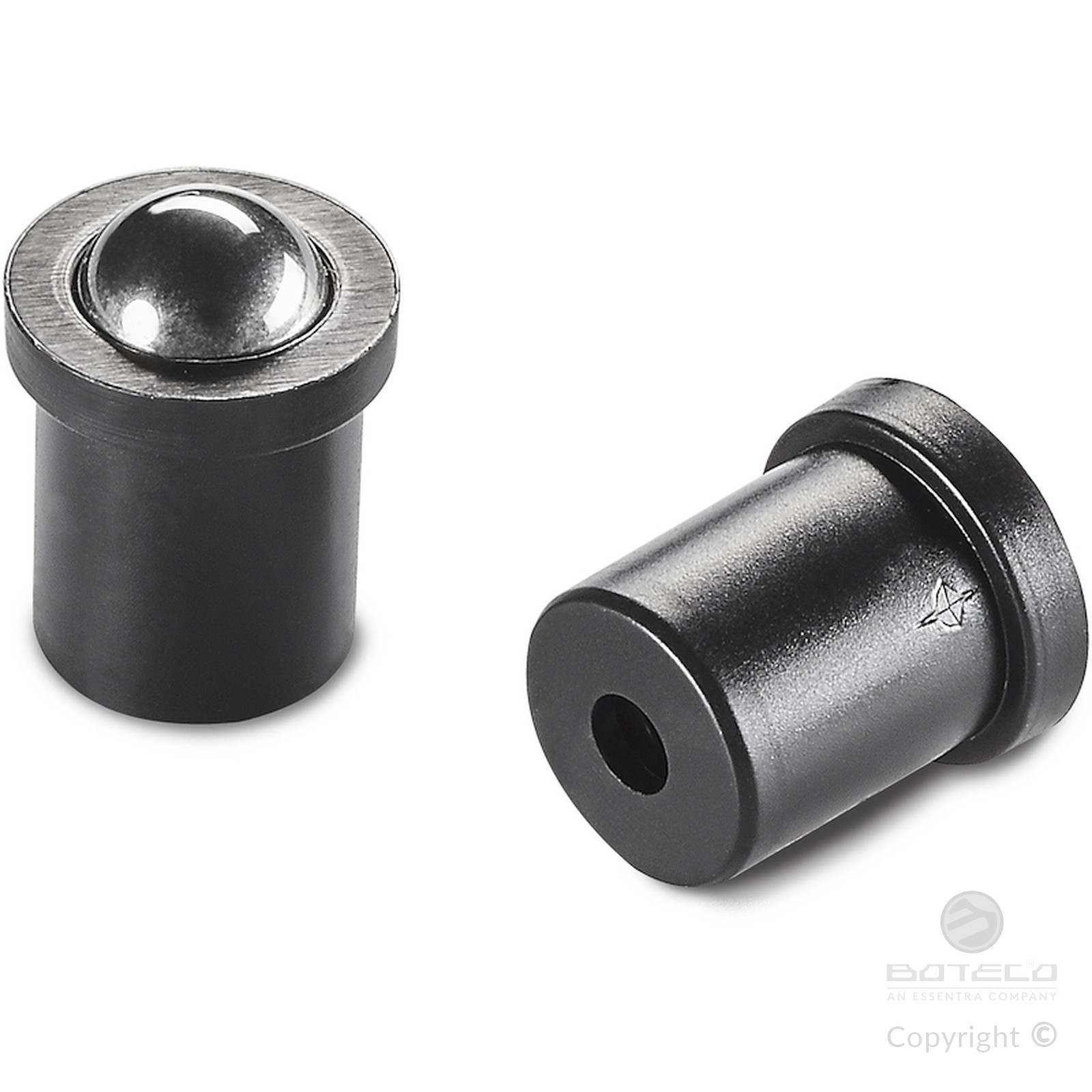

Version W846CIN: with stainless steel ball

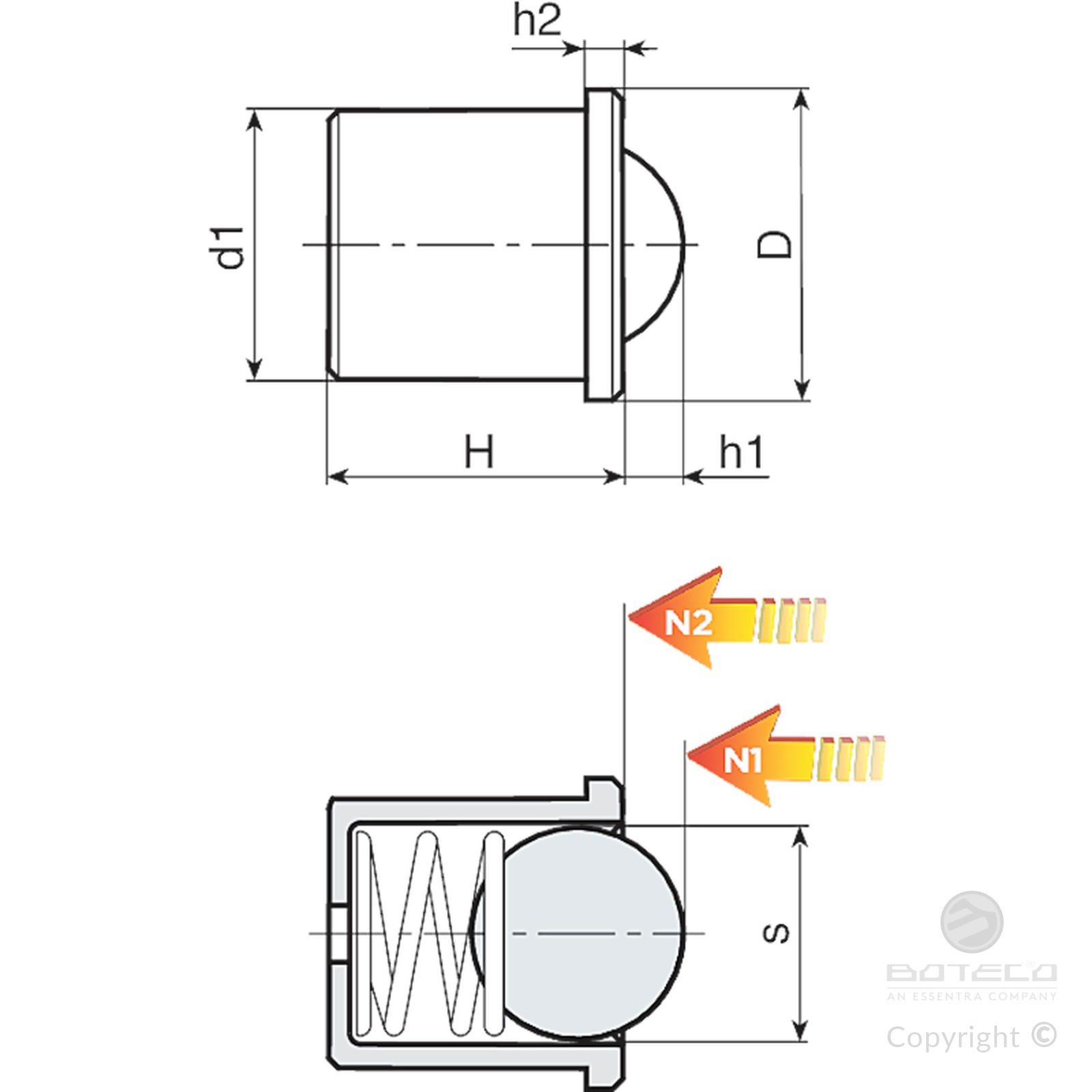

| Code | art. | s | H | h1 | h2 | D | N1 (N) | N2 (N) | d1 (+0.1 +0) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| W846.0007 | W846.TND04CIN | 3 | 5 | 0.7 | 1 | 4.6 | 3 | 7 | 4 | 0.2 |
| W846.0008 | W846.TND05CIN | 4 | 6 | 1 | 1 | 5.6 | 4 | 7 | 5 | 0,4 |
| W846.0009 | W846.TND06CIN | 5 | 7 | 1.5 | 1 | 6.5 | 6 | 12 | 6 | 0.7 |
| W846.0010 | W846.TND08CIN | 6.5 | 9 | 1.8 | 1 | 8.5 | 6 | 12 | 8 | 1,6 |
| W846.0011 | W846.TND10CIN | 8 | 13.5 | 2.7 | 2.5 | 12 | 10 | 20 | 10 | 3 |
| W846.0012 | W846.TND12CIN | 10 | 16 | 3.5 | 2.5 | 14 | 15 | 25 | 12 | 6 |
