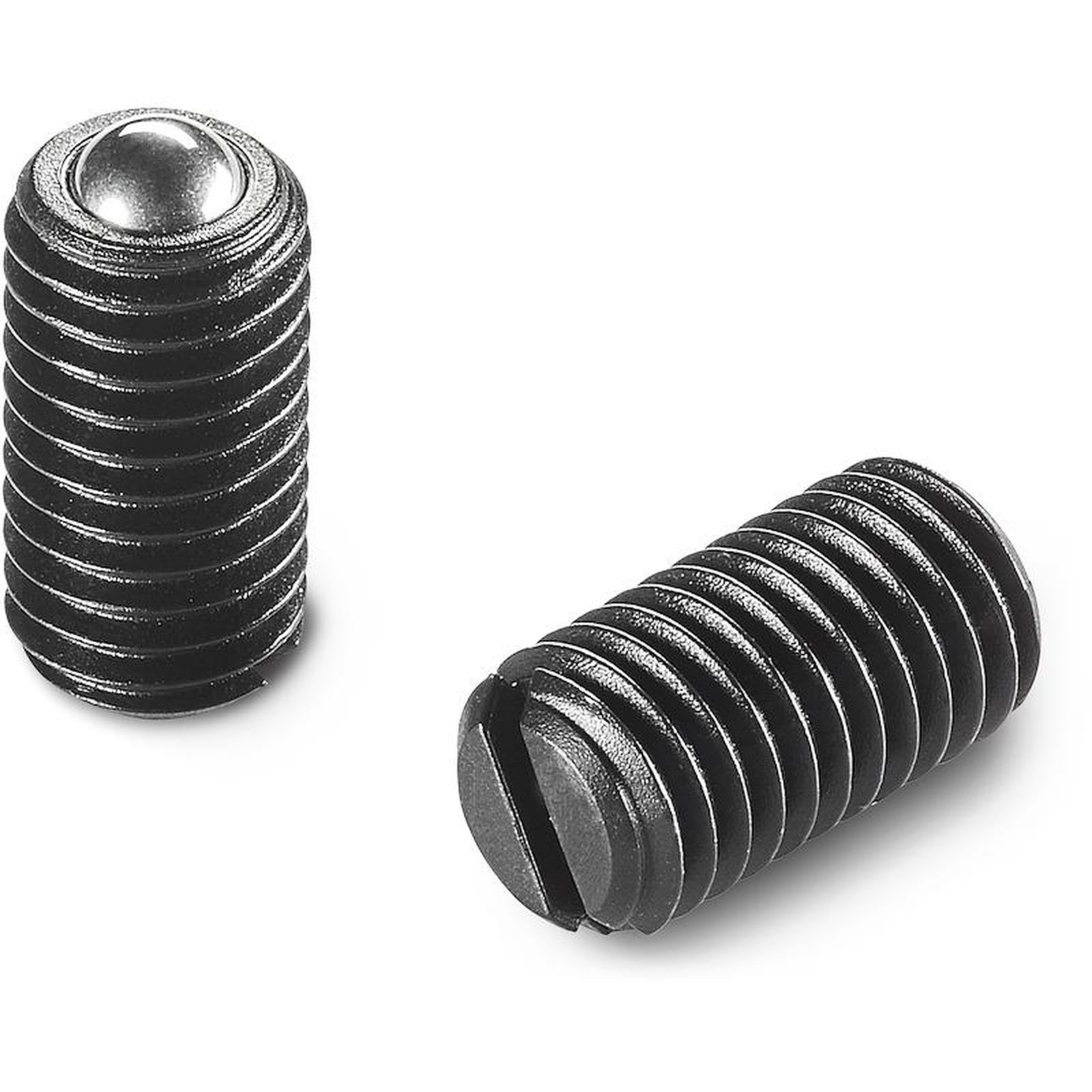

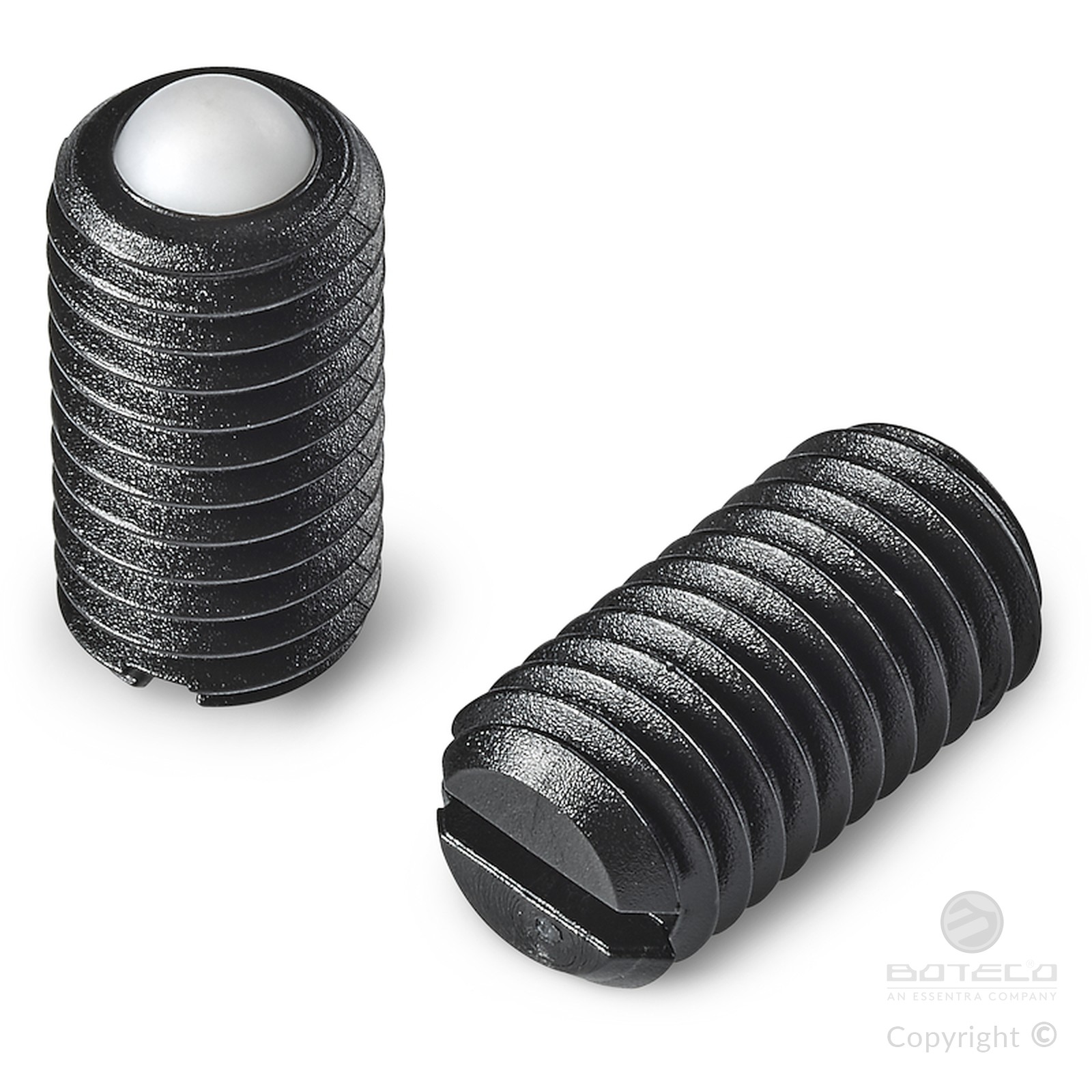

THREADED PLASTIC SPRING PLUNGER WITH SLOTTED END AND PLASTIC OR STEEL BALL
21
W838
Pressore a molla filettato con sfera
Materials:
Moulded plastic plunger body (POM - Delrin).
Surface finish:
Light satin.
Colour:
Black (RAL 9011).
Ball:
W838:
White moulded plastic ball (POM).
W838CIN
Hardened stainless steel ball (Aisi 420).
Type of spring thrust:
Normal.
Spring:
Stainless steel spring (Aisi 301).
Special requests:
None.
Version W838: with plastic ball (DELRIN)

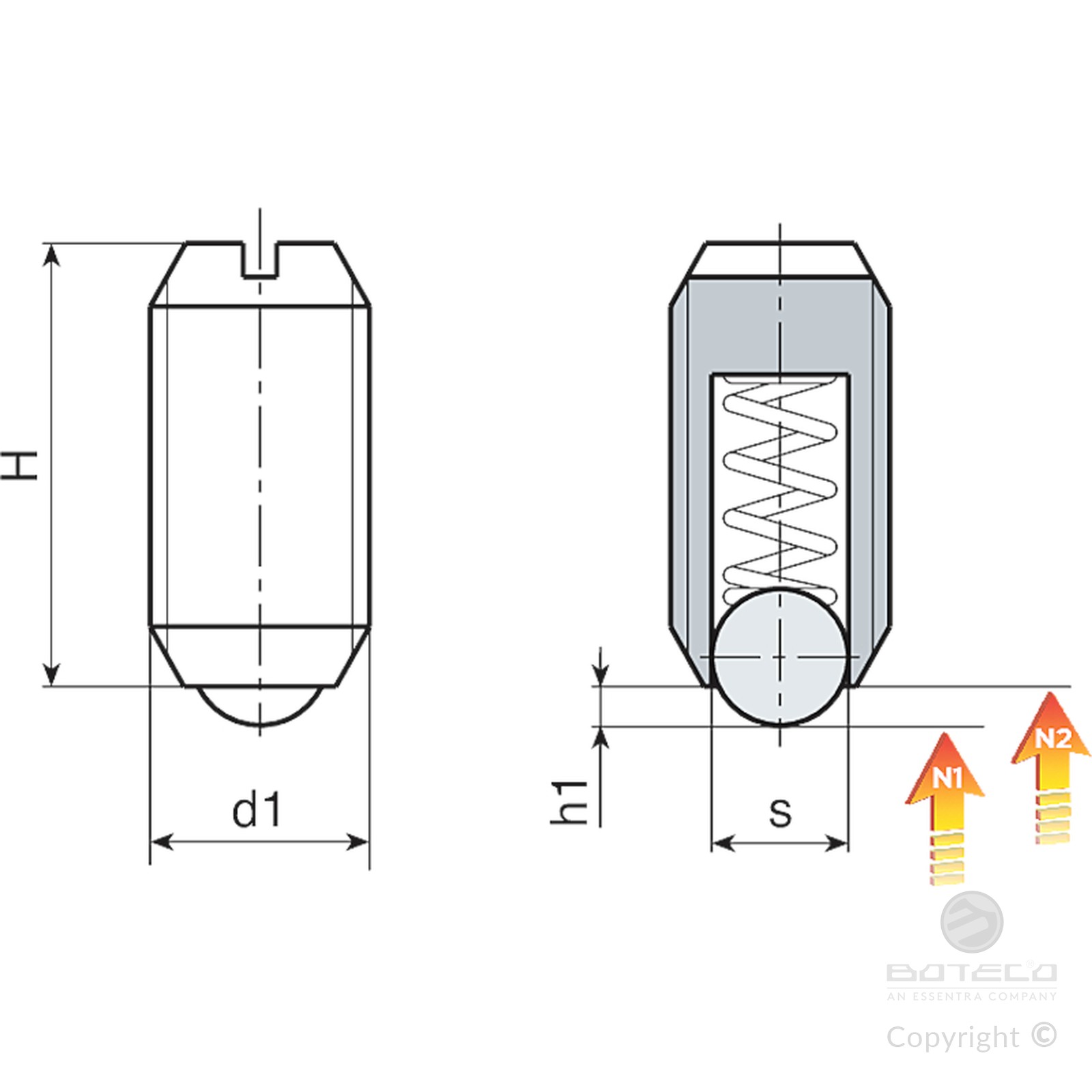

| Code | art. | s | H | h1 | N1 (N) | N2 (N) | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| W838.0001 | W838.TM06 | 3.5 | 14 | 1 | 9 | 13 | M6 | 0.4 |
| W838.0002 | W838.TM08 | 5 | 16 | 1.5 | 15 | 30 | M8 | 1 |
| W838.0003 | W838.TM10 | 6 | 19 | 2 | 20 | 40 | M10 | 2 |

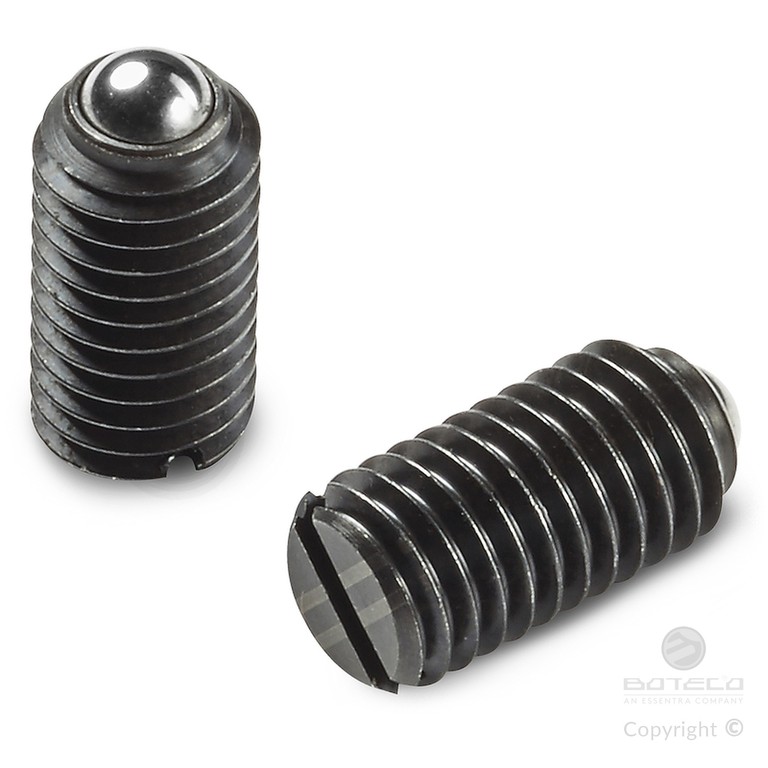

Version W838CIN: with stainless steel ball.
| Code | art. | s | H | h1 | N1 (N) | N2 (N) | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| W838.0004 | W838.TM06CIN | 3.5 | 14 | 1 | 9 | 13 | M6 | 0.4 |
| W838.0005 | W838.TM08CIN | 5 | 16 | 1.5 | 15 | 30 | M8 | 1 |
| W838.0006 | W838.TM10CIN | 6 | 19 | 2 | 20 | 40 | M10 | 2 |
