THREADED STEEL SPRING PLUNGER WITH HEXAGON SOCKET END AND NOSE PIN
21
W836
Pressore a molla filettato con puntale
Materials:
W836:
Steel plunger body with property class 5.8.
W836CIN:
Stainless steel plunger body (Aisi 303).
Surface finish:
Smooth.
Colour:
W836:
Black-oxide treated.
W836CIN:
Natural.
Nose pin:
W836:
Turned hardened and black-oxide treated steel nose pin.
W836CIN:
Turned stainless steel nose pin (Aisi 303).
Spring:
W836:
Harmonic steel spring.
W836CIN:
Stainless steel spring (Aisi 301).
Type of spring thrust:
Normal.
Special requests:
None.

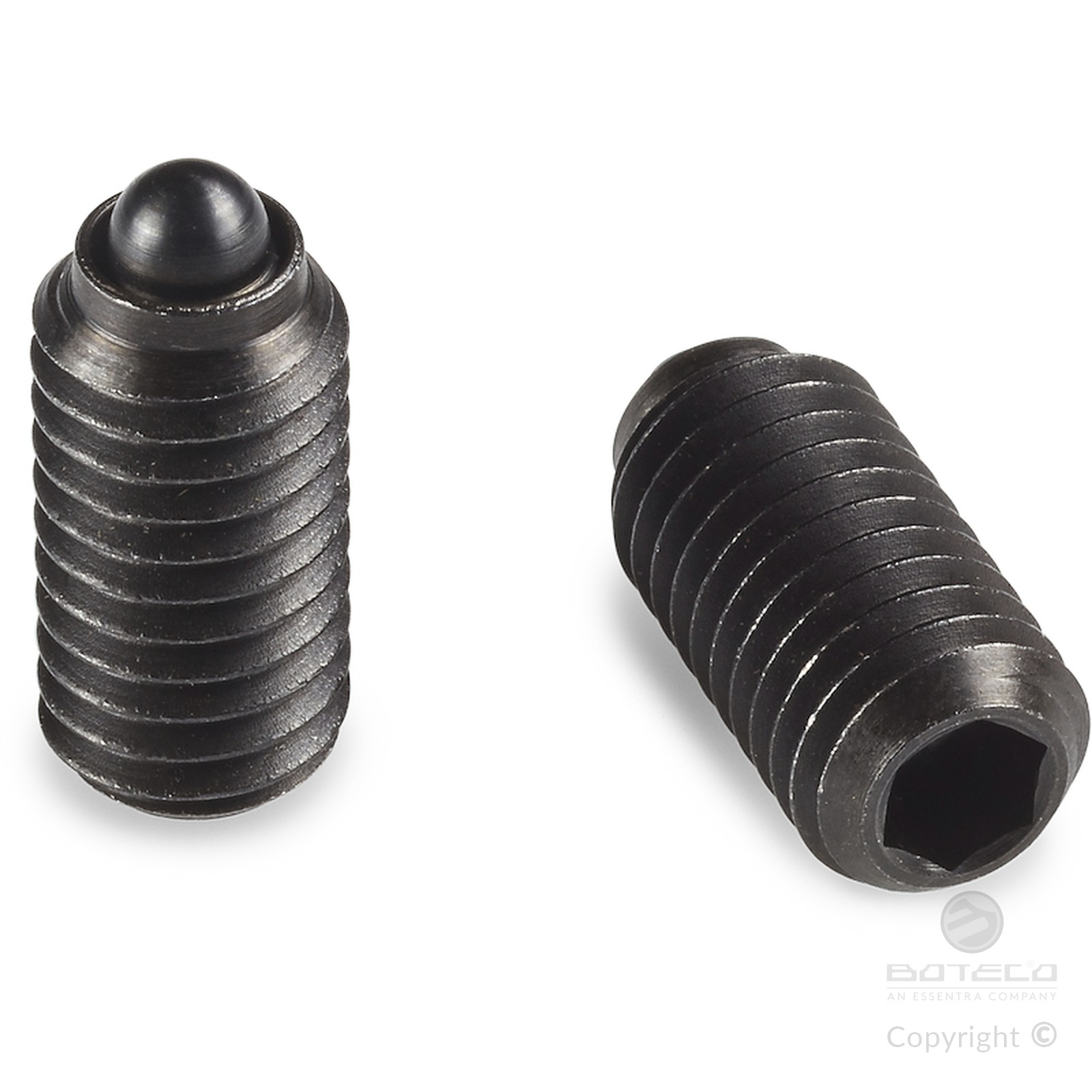

Version W836: black-oxide treated steel

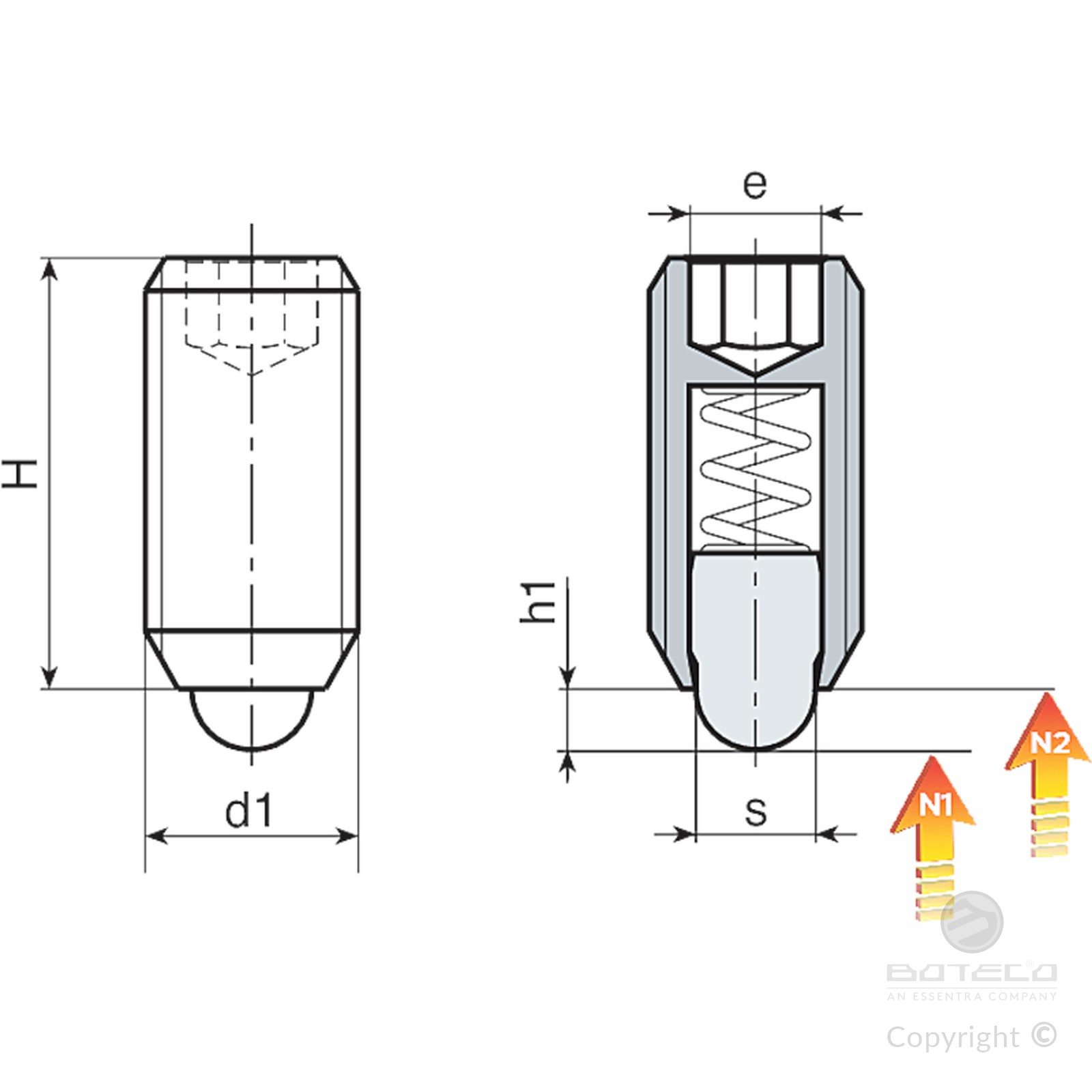

| Code | art. | s | H | h1 | e | N1 (N) | N2 (N) | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| W836.0010 | W836.VBM04 | 1.8 | 12 | 1.5 | 2 | 4 | 12 | M4 | 1 |
| W836.0011 | W836.VBM05 | 2.4 | 14 | 2 | 3 | 6 | 17 | M5 | 1.1 |
| W836.0012 | W836.VBM06 | 2.7 | 15 | 2 | 3 | 7 | 18 | M6 | 2 |
| W836.0013 | W836.VBM08 | 4 | 16 | 2 | 4 | 20 | 35 | M8 | 4 |
| W836.0014 | W836.VBM10 | 4.5 | 23 | 2.5 | 5 | 20 | 45 | M10 | 8 |
| W836.0015 | W836.VBM12 | 6 | 26 | 3.5 | 6 | 25 | 60 | M12 | 12 |
| W836.0016 | W836.VBM16 | 8.5 | 33 | 4.5 | 8 | 50 | 95 | M16 | 31 |
| W836.0017 | W836.VBM20 | 10 | 43 | 6.5 | 10 | 45 | 85 | M20 | 64 |
| W836.0018 | W836.VBM24 | 13 | 48 | 8 | 12 | 72 | 155 | M24 | 100 |

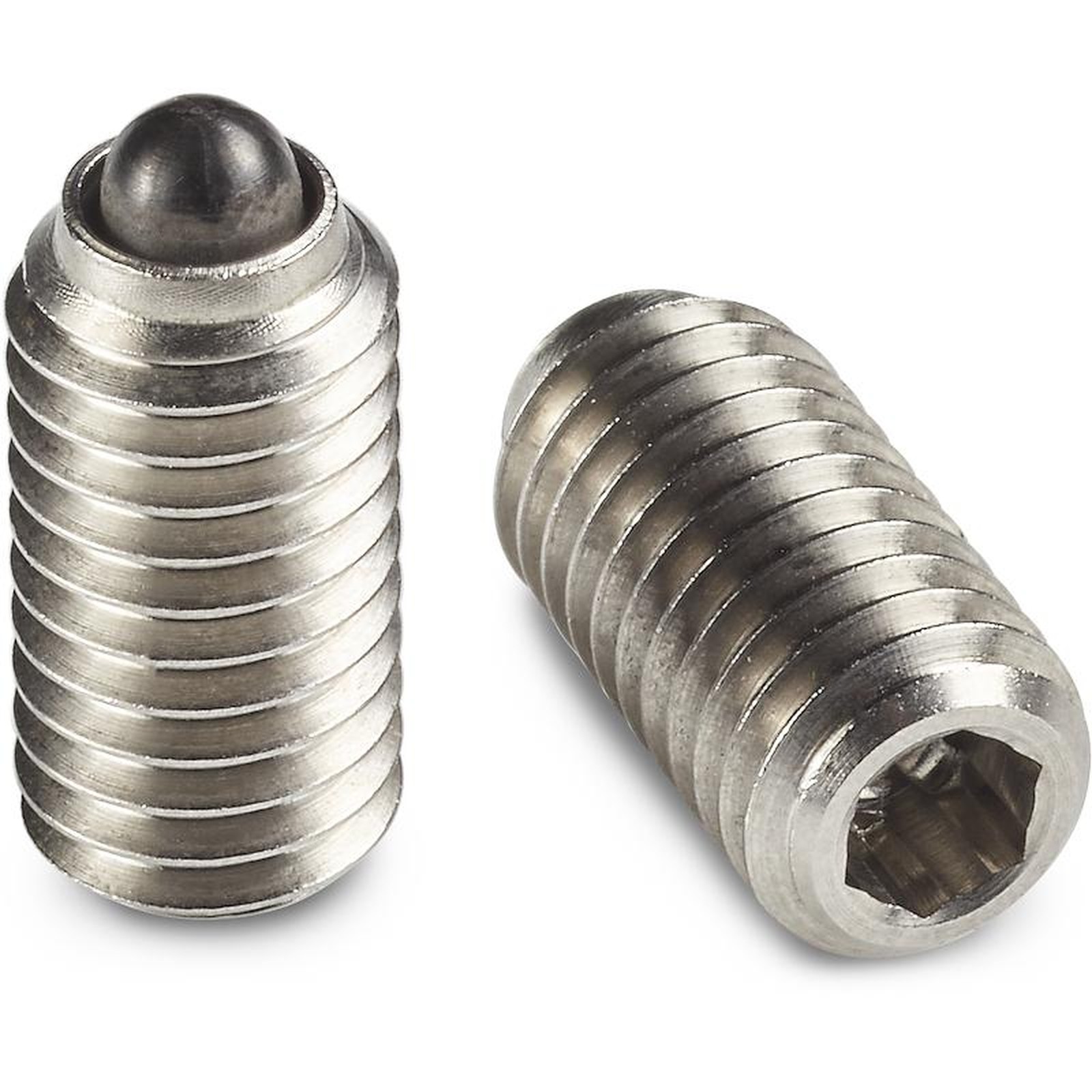

Version W836CIN - stainless steel (Aisi 303)
| Code | art. | s | H | h1 | e | N1 (N) | N2 (N) | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| W836.0001 | W836.INM04CIN | 1.8 | 12 | 1.5 | 2 | 4 | 12 | M4 | 1 |
| W836.0002 | W836.INM05CIN | 2.4 | 14 | 2 | 3 | 6 | 17 | M5 | 1.1 |
| W836.0003 | W836.INM06CIN | 2.7 | 15 | 2 | 3 | 7 | 18 | M6 | 2 |
| W836.0004 | W836.INM08CIN | 4 | 16 | 2 | 4 | 20 | 35 | M8 | 4 |
| W836.0005 | W836.INM10CIN | 4.5 | 23 | 2.5 | 5 | 20 | 45 | M10 | 8 |
| W836.0006 | W836.INM12CIN | 6 | 26 | 3.5 | 6 | 25 | 60 | M12 | 12 |
| W836.0007 | W836.INM16CIN | 8.5 | 33 | 4.5 | 8 | 50 | 95 | M16 | 31 |
| W836.0008 | W836.INM20CIN | 10 | 43 | 6.5 | 10 | 45 | 85 | M20 | 64 |
| W836.0009 | W836.INM24CIN | 13 | 48 | 8 | 12 | 72 | 155 | M24 | 100 |
