THREADED STEEL SPRING PLUNGER WITH HEXAGON SOCKET END
21
W834
Pressore a molla filettato con sfera
Materials:
W834:
Steel plunger body with property class 5.8.
W834CIN:
Stainless steel plunger body (Aisi 303).
Surface finish:
Smooth.
Colour:
W834:
Black-oxide treated.
W834CIN:
Natural.
Ball:
Hardened stainless steel ball (bearing type) (Aisi 420).
Spring:
W834:
Harmonic steel spring.
W834CIN:
Stainless steel spring (Aisi 301).
Type of spring thrust:
Normal.
Special requests:
None.

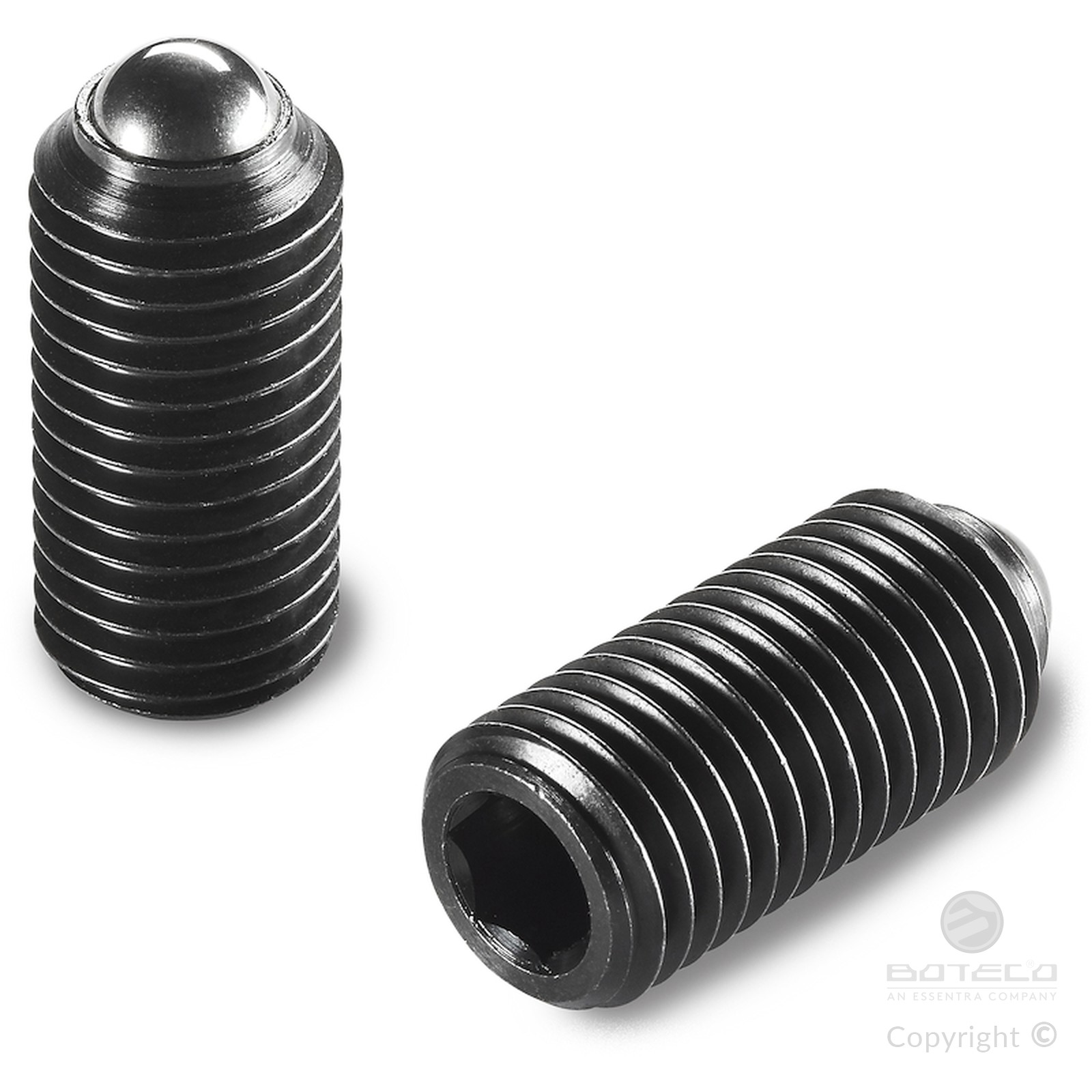

Version W834: black-oxide treated steel

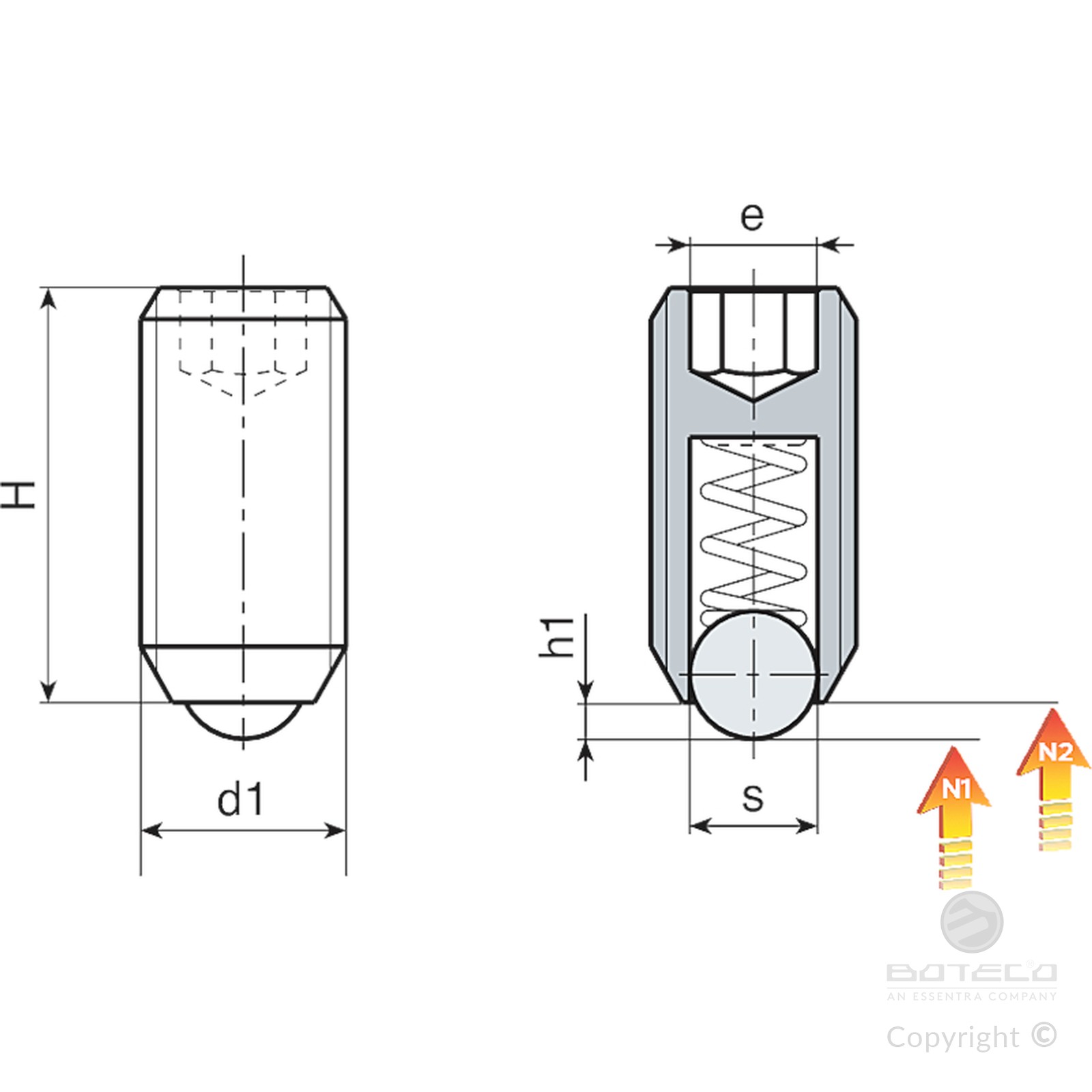

| Code | art. | s | H | h1 | e | N1 (N) | N2 (N) | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| W834.0011 | W834.VBM03 | 1.5 | 9 | 0.5 | 1.5 | 2 | 3 | M3 | 0.2 |
| W834.0012 | W834.VBM04 | 2.5 | 10 | 0.8 | 2 | 4 | 10 | M4 | 0.4 |
| W834.0013 | W834.VBM05 | 3 | 14 | 0.9 | 3 | 6 | 11 | M5 | 1.2 |
| W834.0014 | W834.VBM06 | 3.5 | 15 | 1 | 3 | 9 | 13 | M6 | 2 |
| W834.0015 | W834.VBM08 | 5 | 16 | 1.5 | 4 | 15 | 30 | M8 | 4 |
| W834.0016 | W834.VBM10 | 6 | 23 | 2 | 5 | 20 | 35 | M10 | 8 |
| W834.0017 | W834.VBM12 | 8 | 26 | 2.5 | 6 | 30 | 55 | M12 | 12 |
| W834.0018 | W834.VBM16 | 10 | 33 | 3.5 | 8 | 65 | 125 | M16 | 31 |
| W834.0019 | W834.VBM20 | 12 | 43 | 4.5 | 10 | 80 | 160 | M20 | 64 |
| W834.0020 | W834.VBM24 | 15 | 48 | 5.5 | 12 | 90 | 180 | M24 | 100 |

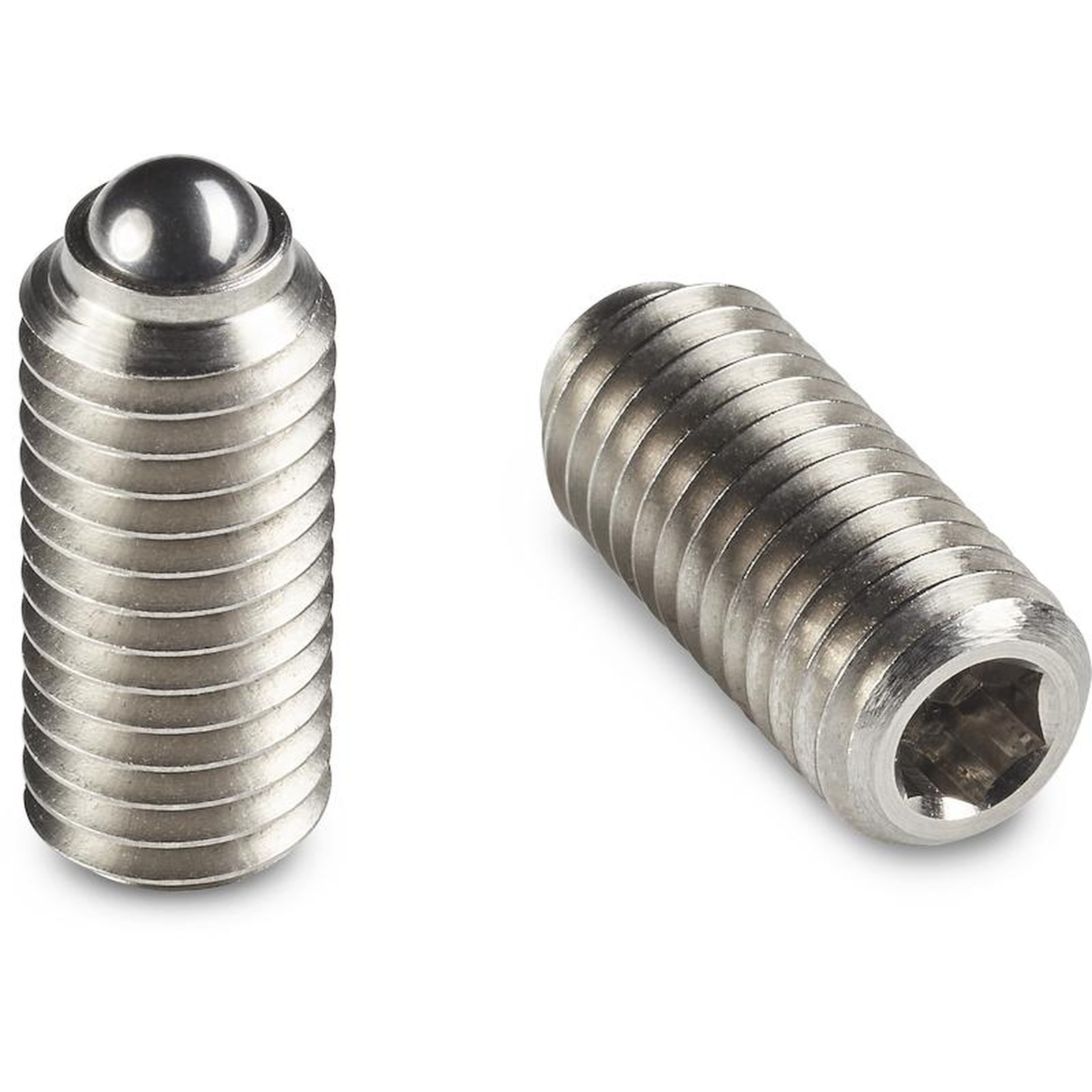

Version W834CIN - stainless steel (Aisi 303)
| Code | art. | s | H | h1 | e | N1 (N) | N2 (N) | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| W834.0001 | W834.INM03CIN | 1.5 | 9 | 0.5 | 1.5 | 2 | 3 | M3 | 0.2 |
| W834.0002 | W834.INM04CIN | 2.5 | 10 | 0.8 | 2 | 4 | 10 | M4 | 0.4 |
| W834.0003 | W834.INM05CIN | 3 | 14 | 0.9 | 3 | 6 | 11 | M5 | 1.2 |
| W834.0004 | W834.INM06CIN | 3.5 | 15 | 1 | 3 | 9 | 13 | M6 | 2 |
| W834.0005 | W834.INM08CIN | 5 | 16 | 1.5 | 4 | 15 | 30 | M8 | 4 |
| W834.0006 | W834.INM10CIN | 6 | 23 | 2 | 5 | 20 | 35 | M10 | 8 |
| W834.0007 | W834.INM12CIN | 8 | 26 | 2.5 | 6 | 30 | 55 | M12 | 12 |
| W834.0008 | W834.INM16CIN | 10 | 33 | 3.5 | 8 | 65 | 125 | M16 | 31 |
| W834.0009 | W834.INM20CIN | 12 | 43 | 4.5 | 10 | 80 | 160 | M20 | 64 |
| W834.0010 | W834.INM24CIN | 15 | 48 | 5.5 | 12 | 90 | 180 | M24 | 100 |
