W833
THREADED STEEL SPRING PLUNGER WITH SLOTTED END AND NOSE PIN - STRONGER THRUST
Threaded spring plunger with nose pin
Materials:
W833:
Steel plunger body with property class 5.8.
W833CIN:
Stainless steel plunger body (Aisi 303).
Surface finish:
Smooth.
Colour:
W833:
Black-oxide treated.
W833CIN:
Natural.
Nose pin:
W833:
Turned hardened and black-oxide treated steel nose pin.
W833CIN:
Turned stainless steel nose pin (Aisi 303).
Spring:
W833:
Harmonic steel spring.
W833CIN:
Stainless steel spring (Aisi 301).
Type of spring thrust:
Stronger.
Special requests:
None.

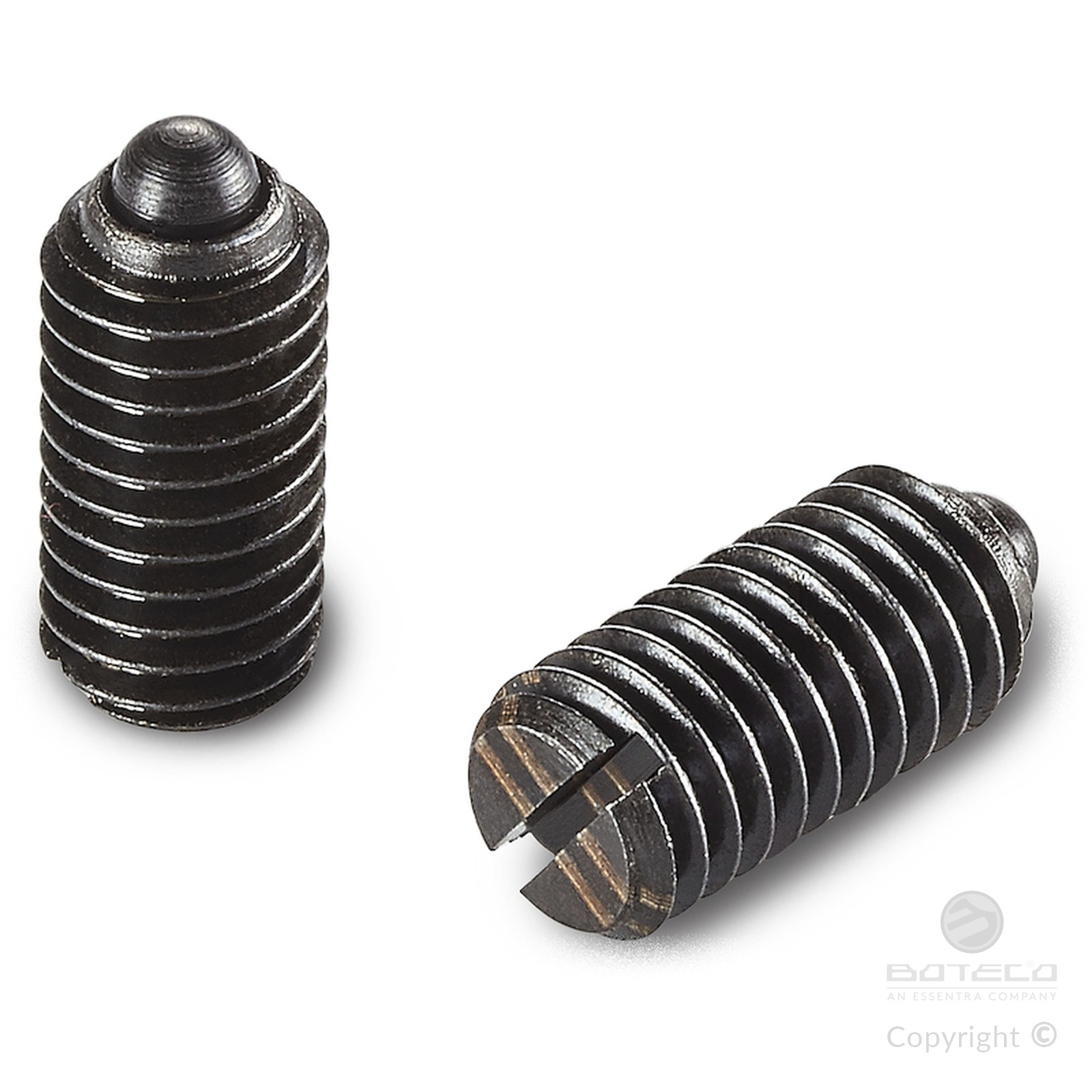

Version W833: black-oxide treated steel

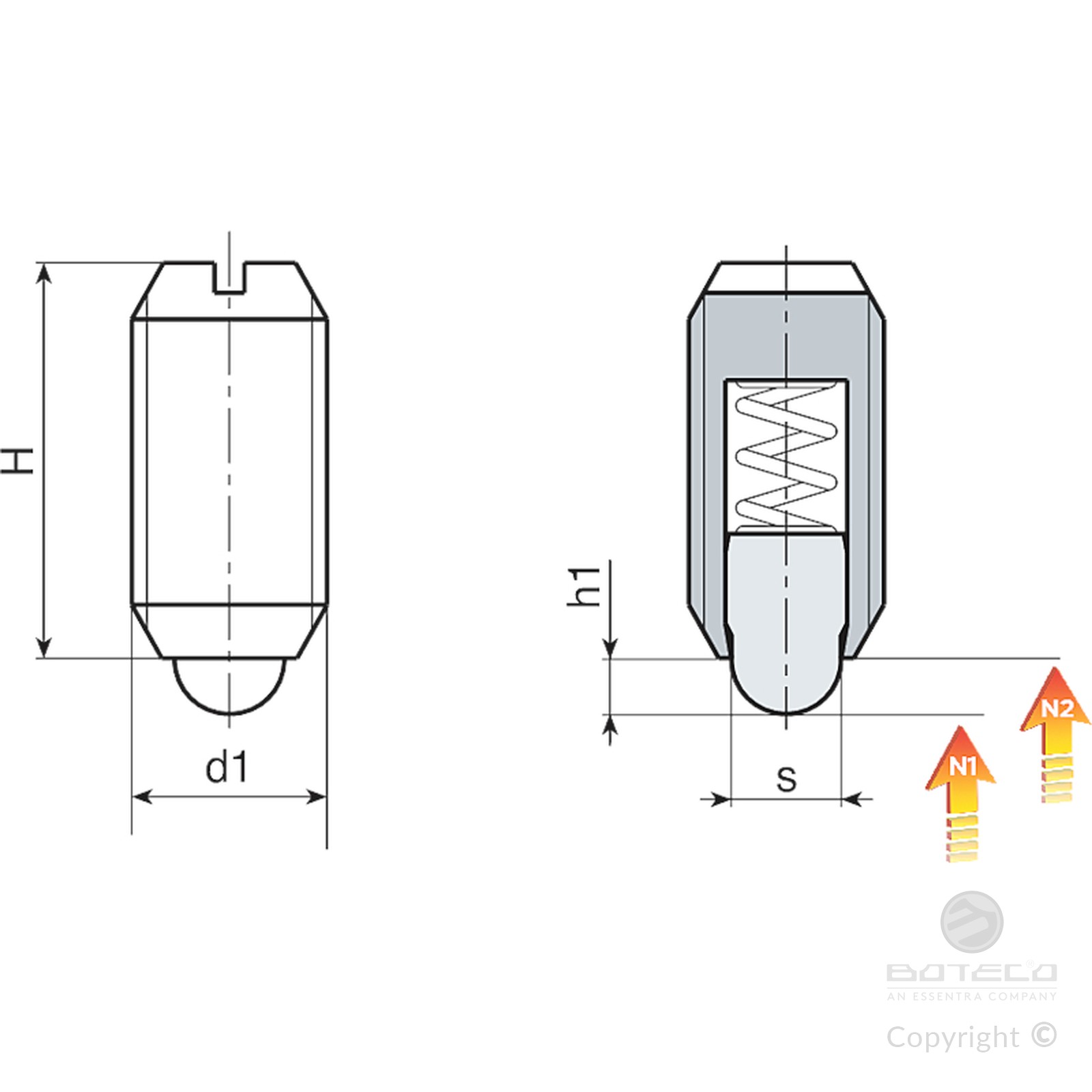

| Code | art. | s | H | h1 | N1 (N) | N2 (N) | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| W833.0009 | W833.VBM05 | 2.4 | 12 | 2 | 9 | 25 | M5 | 1 |
| W833.0010 | W833.VBM06 | 2.7 | 14 | 2 | 11 | 25 | M6 | 1.7 |
| W833.0011 | W833.VBM08 | 4 | 16 | 2 | 22 | 43 | M8 | 4 |
| W833.0013 | W833.VBM10 | 4.5 | 19 | 2.5 | 20 | 54 | M10 | 7 |
| W833.0014 | W833.VBM12 | 6 | 22 | 3.5 | 36 | 94 | M12 | 13 |
| W833.0015 | W833.VBM16 | 8.5 | 24 | 4.5 | 60 | 110 | M16 | 24 |

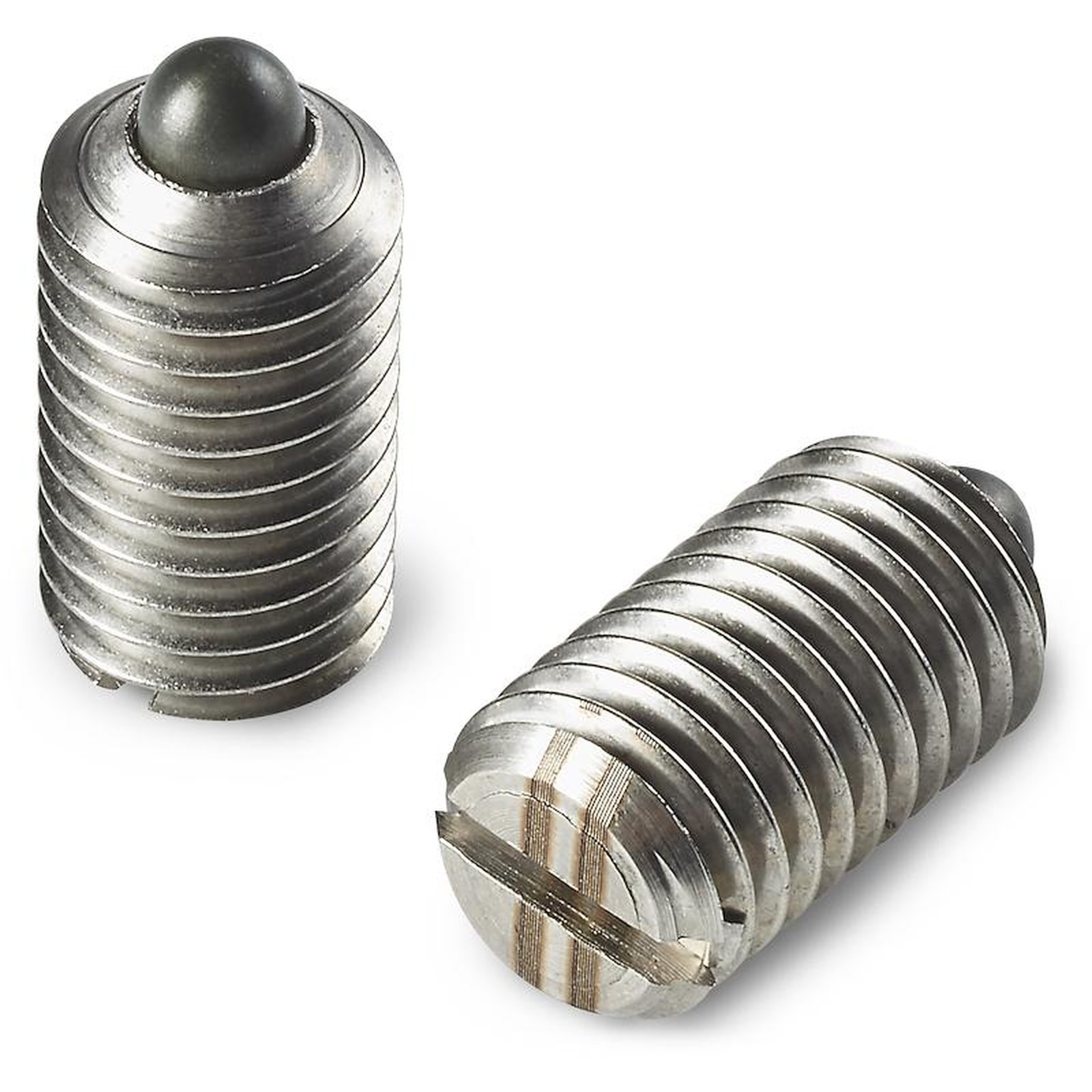

Version W833 CIN - stainless steel (Aisi 303).
| Code | art. | s | H | h1 | N1 (N) | N2 (N) | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| W833.0002 | W833.INM05CIN | 2.4 | 12 | 2 | 9 | 25 | M5 | 1 |
| W833.0003 | W833.INM06CIN | 2.7 | 14 | 2 | 11 | 25 | M6 | 1.7 |
| W833.0004 | W833.INM08CIN | 4 | 16 | 2 | 22 | 43 | M8 | 4 |
| W833.0005 | W833.INM10CIN | 4.5 | 19 | 2.5 | 20 | 54 | M10 | 7 |
| W833.0006 | W833.INM12CIN | 6 | 22 | 3.5 | 36 | 94 | M12 | 13 |
| W833.0007 | W833.INM16CIN | 8.5 | 24 | 4.5 | 60 | 110 | M16 | 24 |
