THREADED STEEL SPRING PLUNGER WITH SLOTTED END AND NOSE PIN
21
W832
Pressore a molla filettato con puntale
Materials:
W832:
Steel plunger body with property class 5.8.
W832CIN:
Stainless steel plunger body (Aisi 303).
Surface finish:
Smooth.
Colour:
W832:

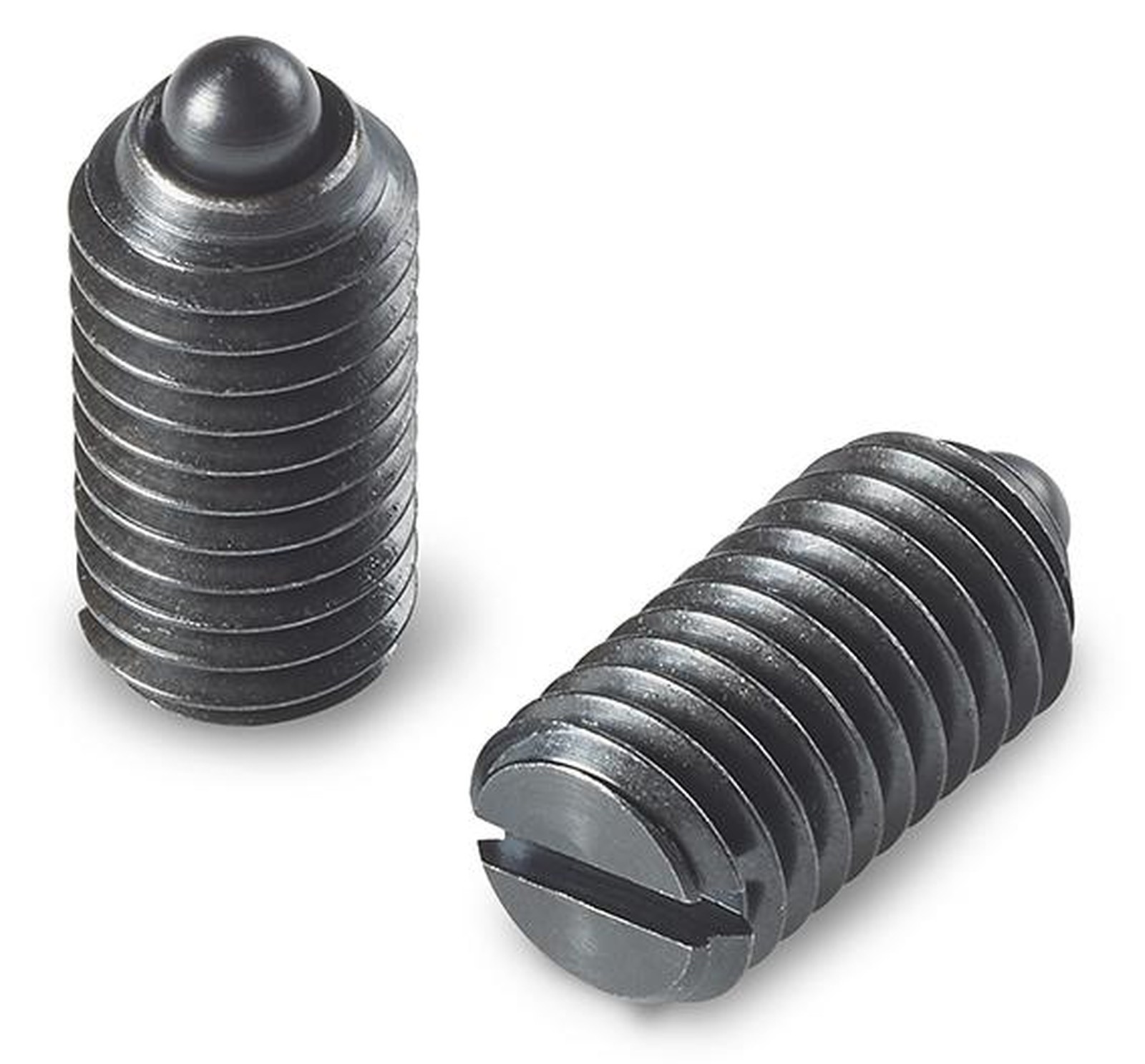

Black-oxide treated.
W832CIN:

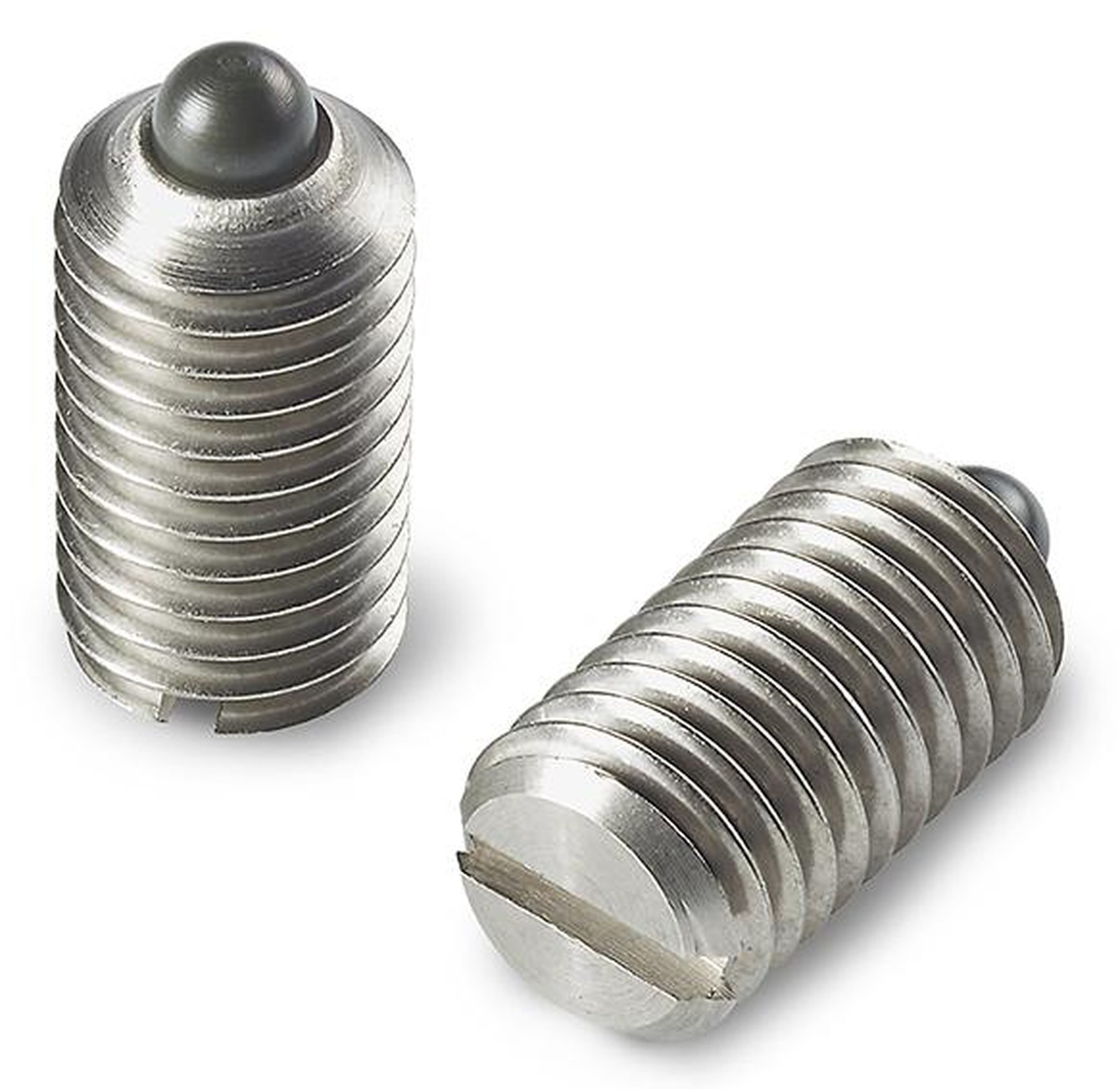

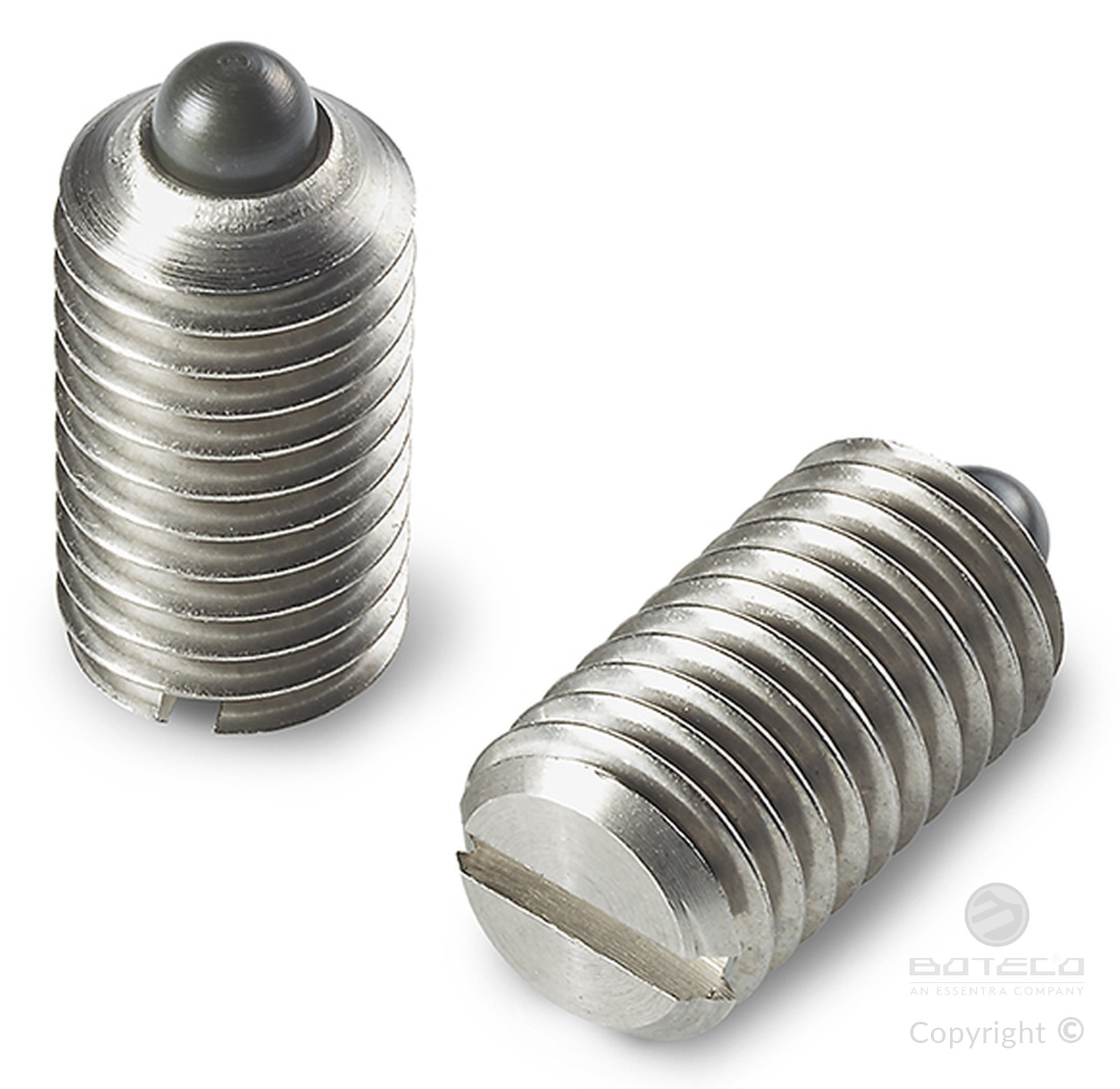

Natural.
Nose pin:
W832:
Turned hardened and black-oxide treated steel nose pin.
W832CIN:
Turned stainless steel nose pin (Aisi 303).
Spring:
W832:
Harmonic steel spring.
W832CIN:
Stainless steel spring (Aisi 301).
Type of spring thrust:
Normal.
Special requests:
None.
Version W832: black-oxide treated steel

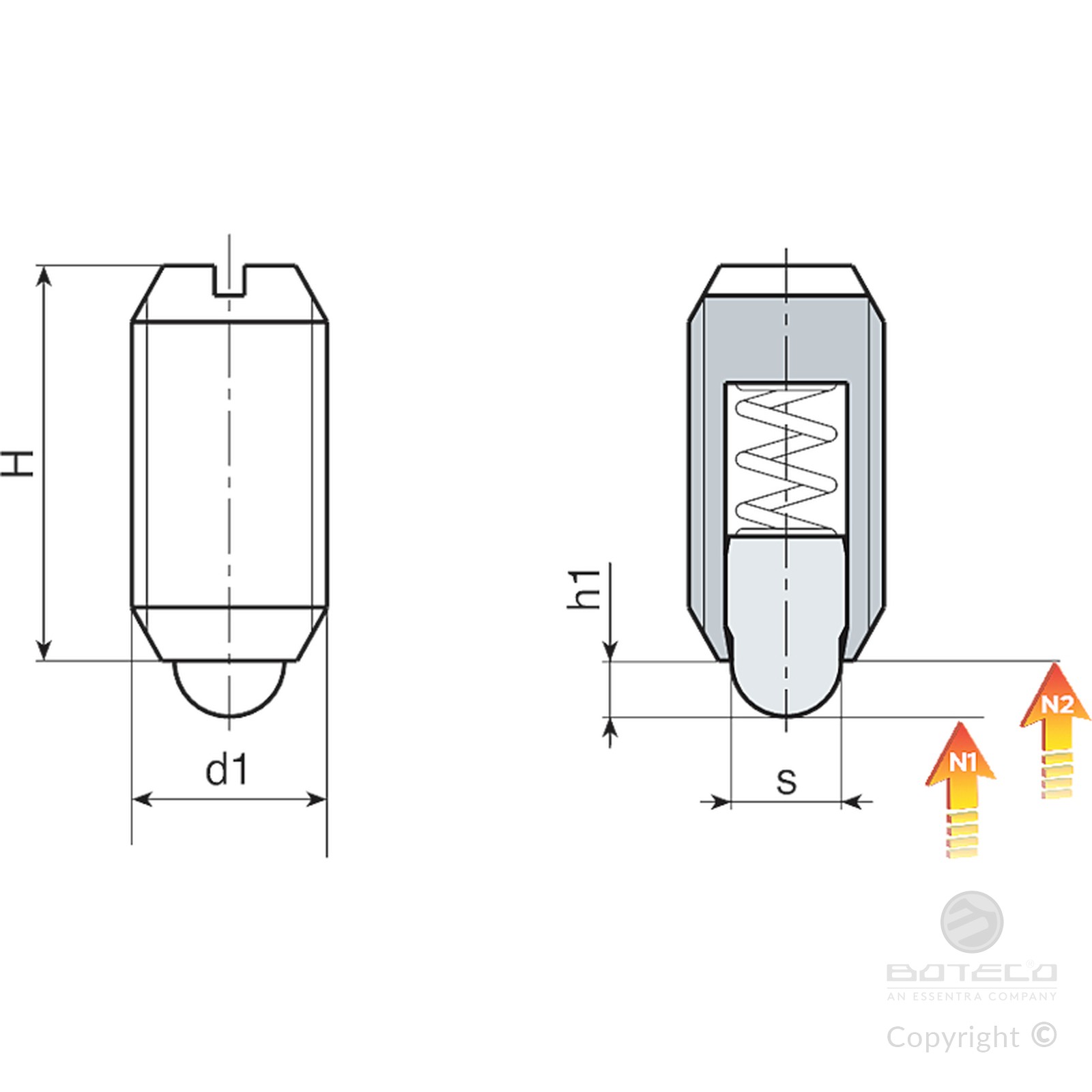

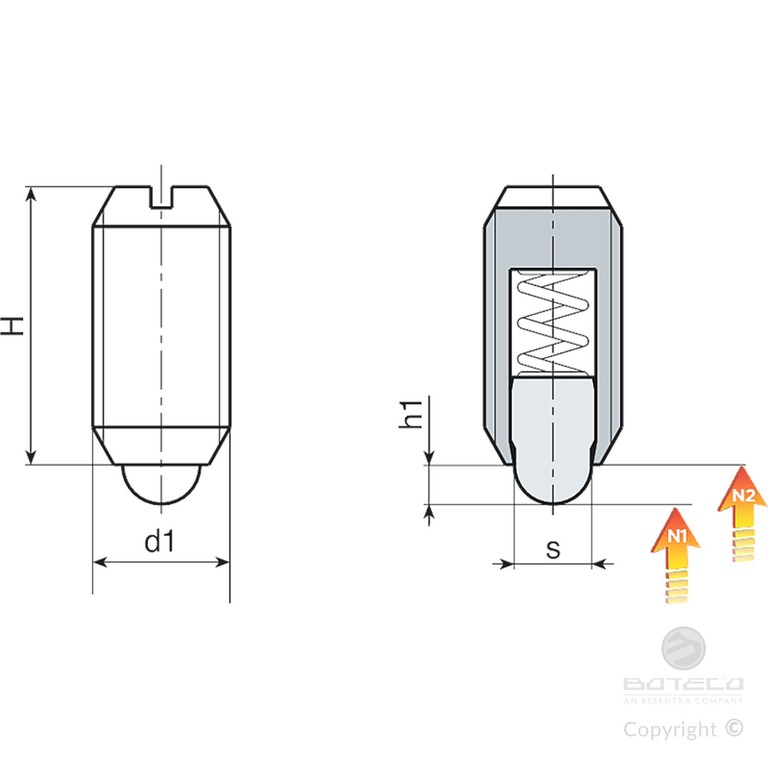

| Code | art. | s | H | h1 | N1 (N) | N2 (N) | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| W832.0009 | W832.VBM04 | 1.8 | 9 | 1.5 | 6 | 20 | M4 | 0.5 |
| W832.0010 | W832.VBM05 | 2.4 | 12 | 2 | 6 | 20 | M5 | 1 |
| W832.0011 | W832.VBM06 | 2.7 | 14 | 2 | 7 | 20 | M6 | 1.7 |
| W832.0012 | W832.VBM08 | 4 | 16 | 2 | 15 | 30 | M8 | 4 |
| W832.0013 | W832.VBM10 | 4.5 | 19 | 2.5 | 20 | 35 | M10 | 7 |
| W832.0014 | W832.VBM12 | 6 | 22 | 3.5 | 30 | 55 | M12 | 13 |
| W832.0015 | W832.VBM16 | 8.5 | 24 | 4.5 | 45 | 100 | M16 | 24 |
| W832.0016 | W832.VBM20 | 10 | 30 | 6.5 | 60 | 120 | M20 | 46 |
| Code | art. | s | H | h1 | N1 (N) | N2 (N) | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| W832.0001 | W832.INM04CIN | 1.8 | 9 | 1.5 | 6 | 20 | M4 | 0.5 |
| W832.0002 | W832.INM05CIN | 2.4 | 12 | 2 | 6 | 20 | M5 | 1 |
| W832.0003 | W832.INM06CIN | 2.7 | 14 | 2 | 7 | 20 | M6 | 1.7 |
| W832.0004 | W832.INM08CIN | 4 | 16 | 2 | 15 | 30 | M8 | 4 |
| W832.0005 | W832.INM10CIN | 4.5 | 19 | 2.5 | 20 | 35 | M10 | 7 |
| W832.0006 | W832.INM12CIN | 6 | 22 | 3.5 | 30 | 55 | M12 | 13 |
| W832.0007 | W832.INM16CIN | 8.5 | 24 | 4.5 | 45 | 100 | M16 | 24 |
| W832.0008 | W832.INM20CIN | 10 | 30 | 6.5 | 60 | 120 | M20 | 46 |
