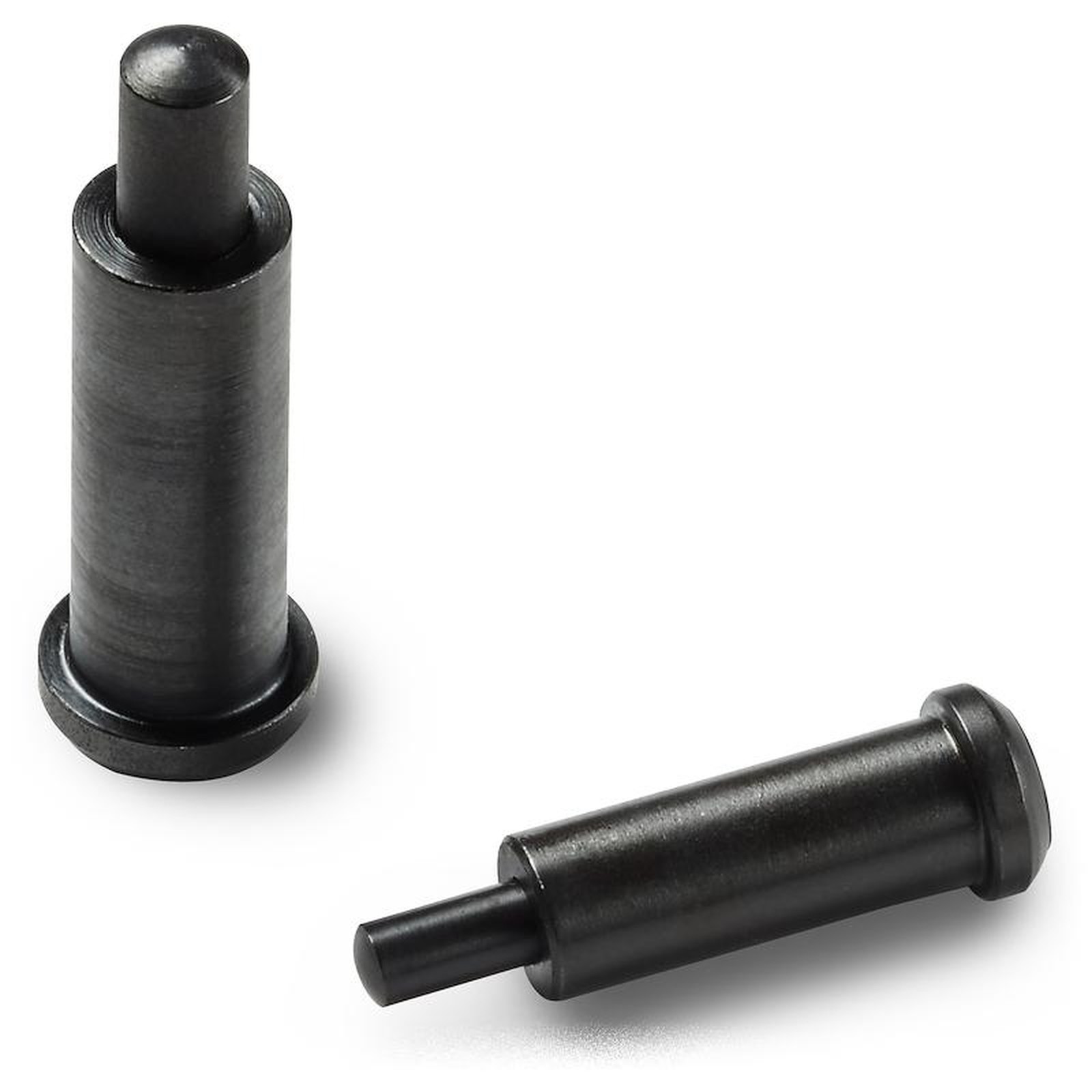

LONG SMOOTH STEEL SPRING PLUNGER WITH HEAD
21
W622
Pressore a molla liscio con puntale
Materials:
(2) Plunger body in free-cutting steel.
Surface finish:
Smooth.
Colour:
Black-oxide treated.
Nose pin:
Hardened steel nose pin.
Type of spring thrust:
Normal.
Spring:
Harmonic steel spring.
Special requests:
None.

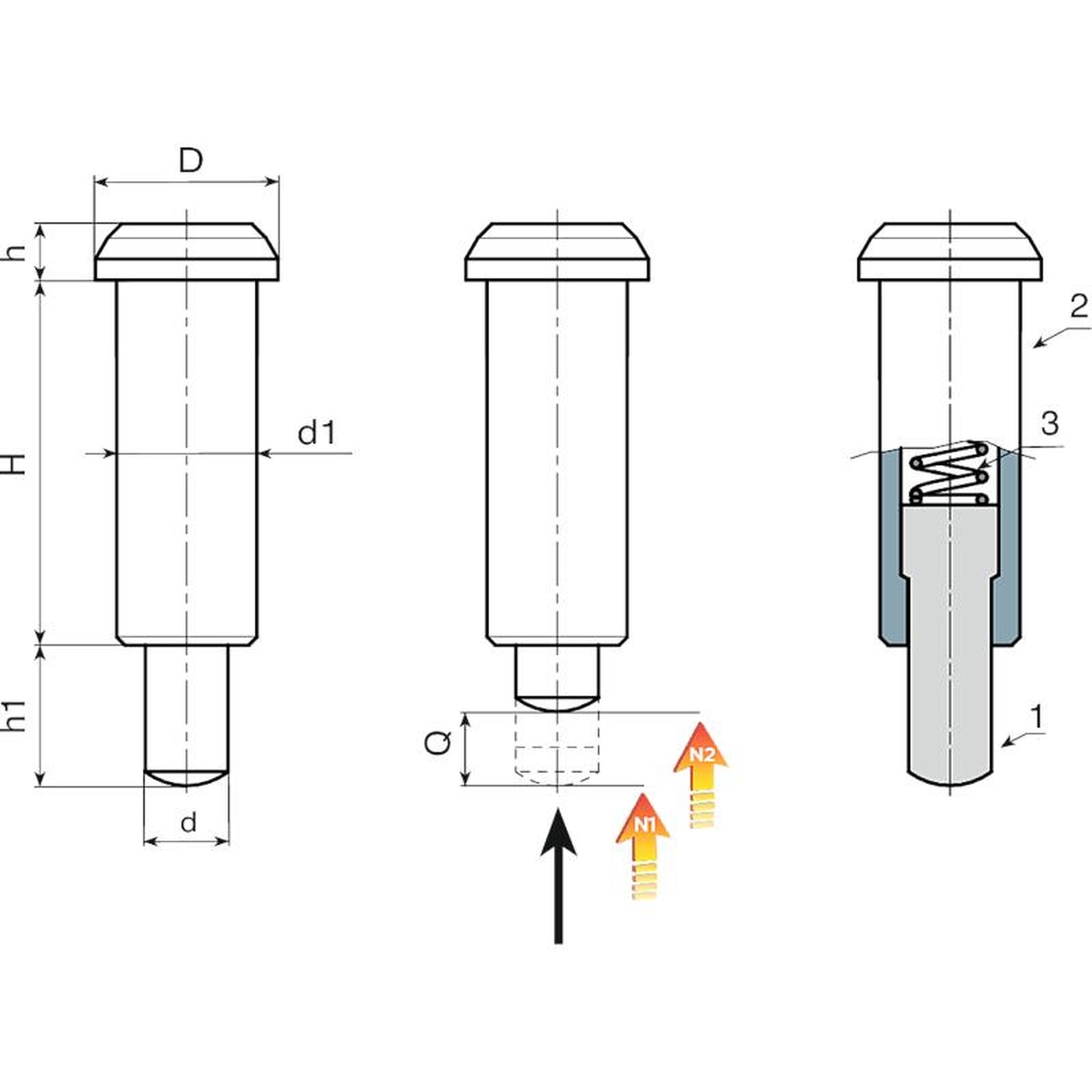

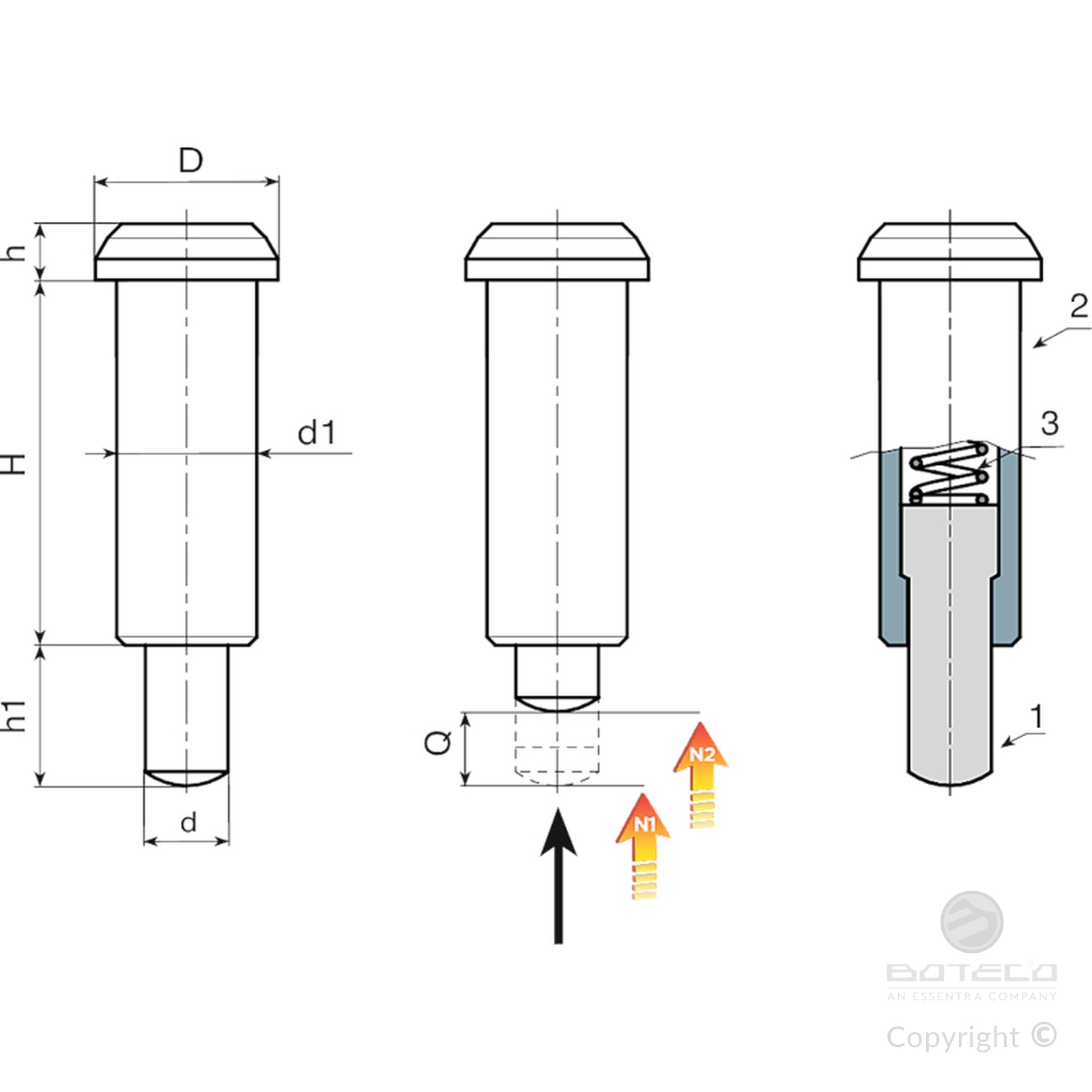

| Code | art. | D | H | h1 | h | d | N1 (N) | N2 (N) | d1 (+0 -0.08) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| W622.0001 | W622.VBD08 | 10 | 20.8 | 8 | 3.2 | 3.95 | 30 | 90 | 8 | 8 |
| W622.0002 | W622.VBD10 | 13 | 26 | 10 | 4 | 5.95 | 42 | 110 | 10 | 14 |
| W622.0003 | W622.VBD12 | 16 | 31 | 12 | 5 | 7.95 | 50 | 130 | 12 | 26 |
