SCREW-TYPE SPRING BALL PLUNGER
21
W620
Pressore a molla filettato con sfera
Materials:
W620:
Turned free-cutting steel screw, with hexagon socket head.

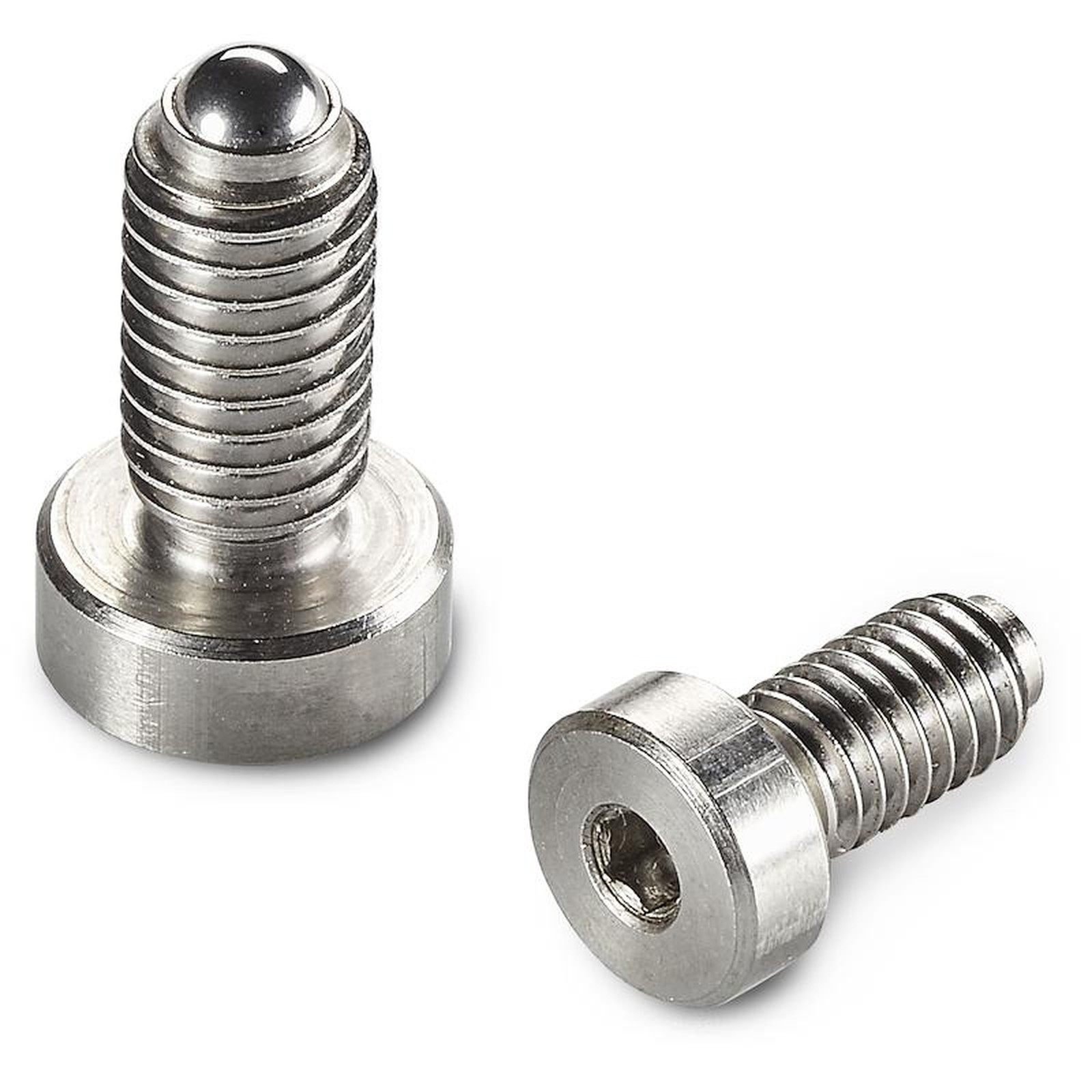

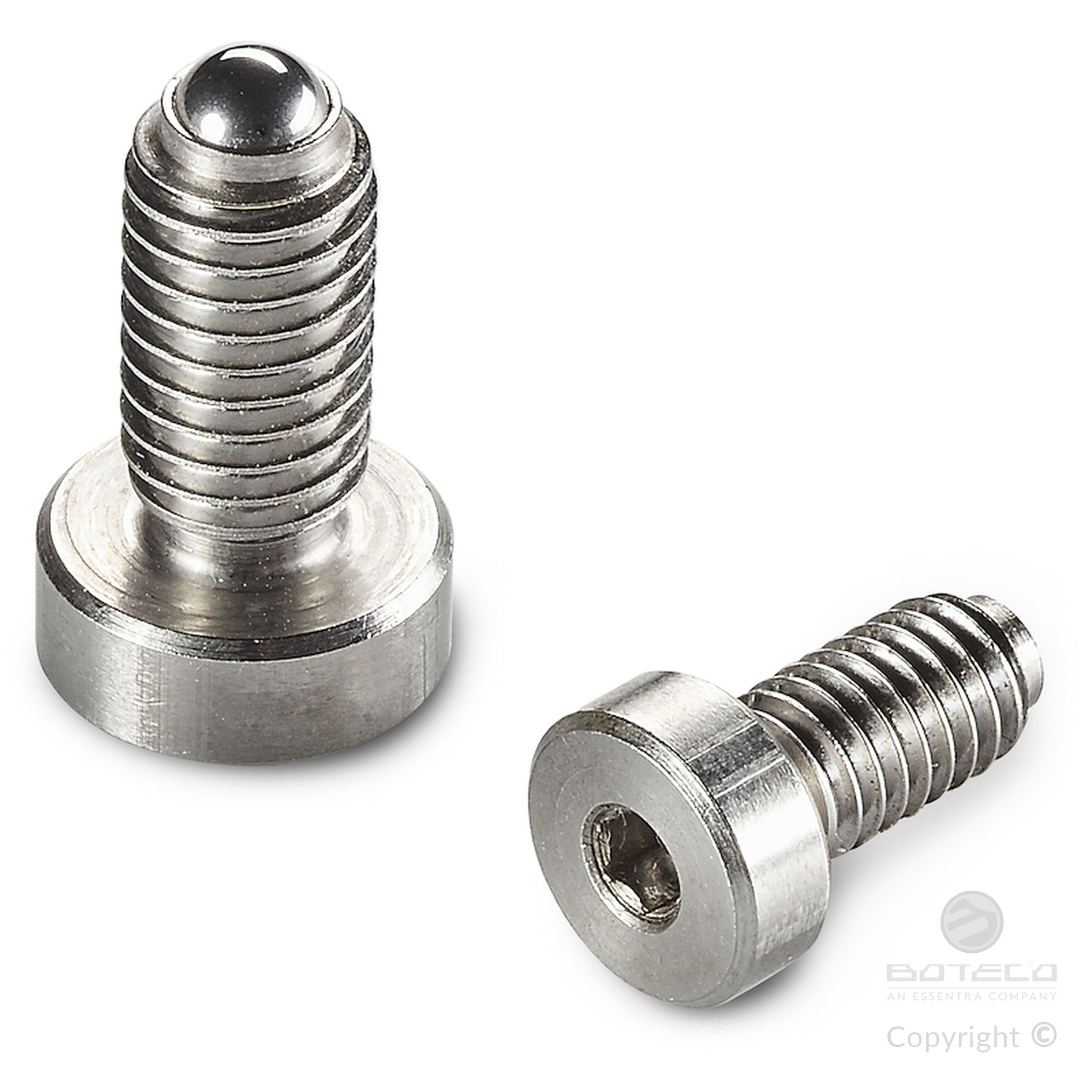

W620CIN:
Turned stainless steel screw (Aisi 303), with hexagon socket head.
Surface finish:
Smooth.
Colour:
W620:
Black-oxide treated.
W620CIN:
Natural.
Ball:
Hardened stainless steel ball (Aisi 420).
Spring:
Stainless steel spring (Aisi 301).
Type of spring thrust:
Normal.
Special requests:
None.

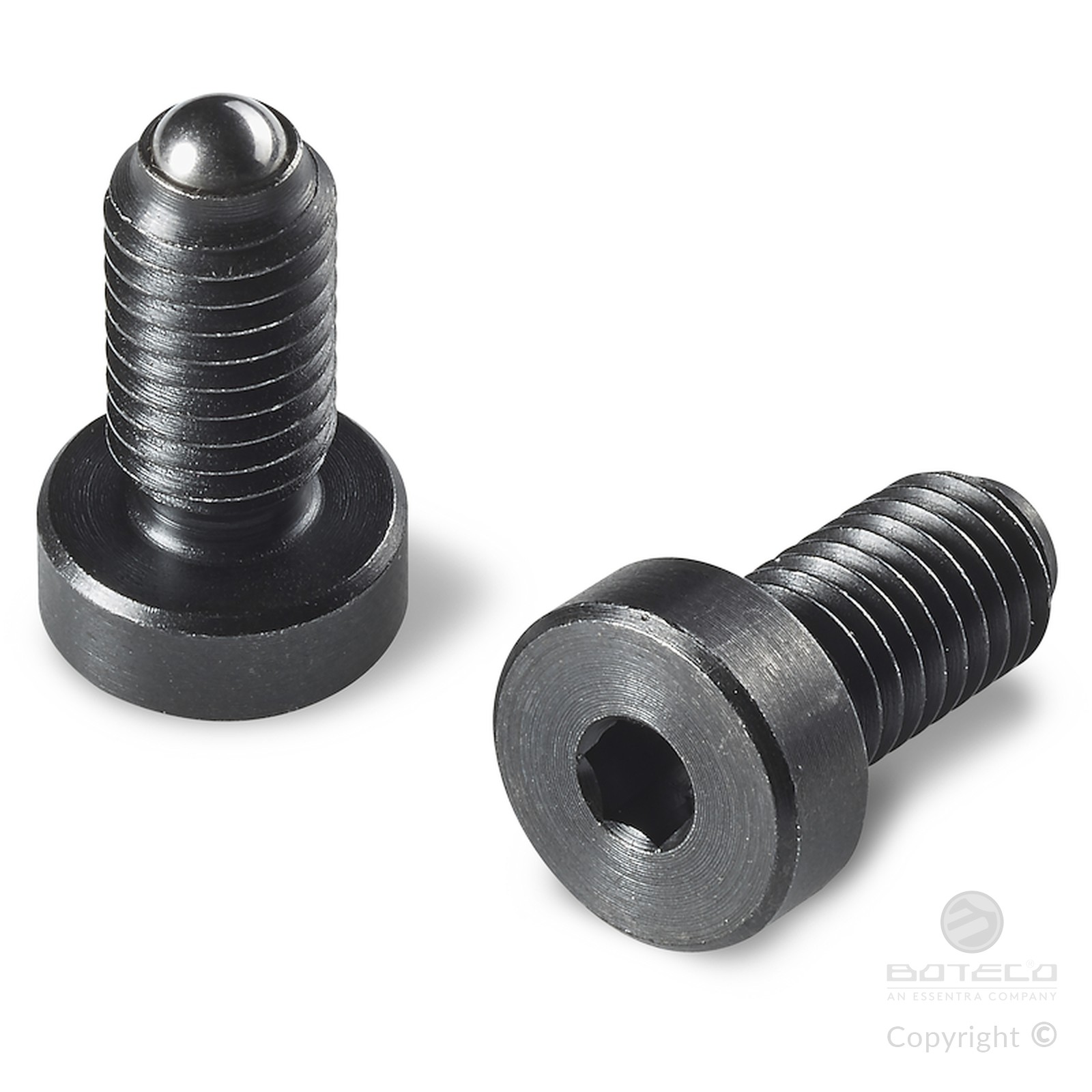

Version W620 - black-oxide treated steel

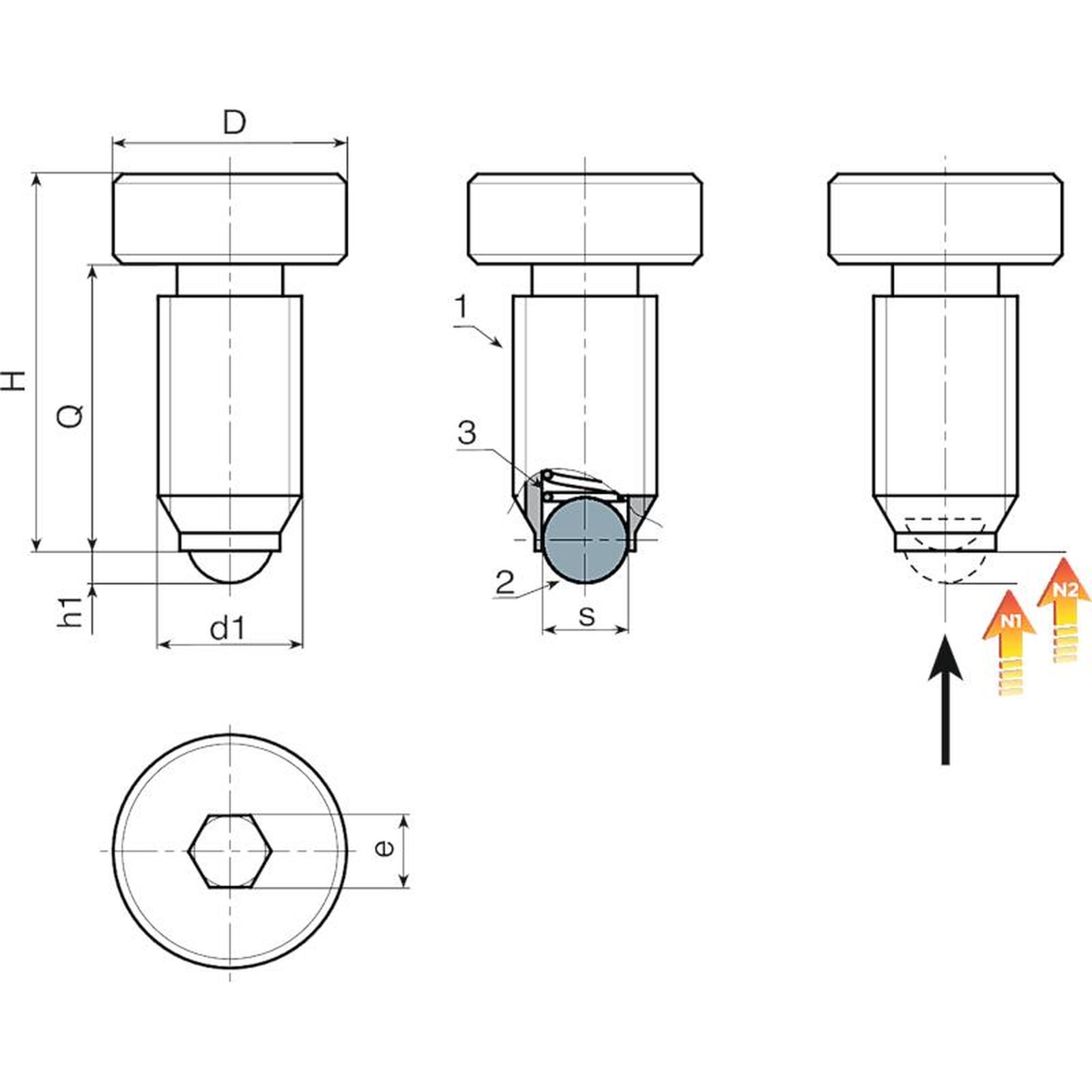

| Code | art. | D (+0 -0.2) | H | h1 | e | s | N1 (N) | N2 (N) | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| W620.0005 | W620.VBM06X12 | 10 | 16 | 1 | 3 | 3.5 | 9 | 9 | M6 | 12 | 4 |
| W620.0006 | W620.VBM08X16 | 13 | 21 | 1.5 | 4 | 5 | 15 | 15 | M8 | 16 | 9 |
| W620.0007 | W620.VBM10X20 | 16 | 26 | 2 | 5 | 6 | 20 | 20 | M10 | 20 | 17 |
| W620.0008 | W620.VBM12X25 | 18 | 32 | 2.5 | 6 | 8 | 30 | 30 | M12 | 25 | 27 |
Version W620 CIN - stainless steel (Aisi 303)
| Code | art. | D (+0 -0.2) | H | h1 | e | s | N1 (N) | N2 (N) | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| W620.0001 | W620.INM06X12CIN | 10 | 16 | 1 | 3 | 3.5 | 9 | 9 | M6 | 12 | 4 |
| W620.0002 | W620.INM08X16CIN | 13 | 21 | 1.5 | 4 | 5 | 15 | 15 | M8 | 16 | 9 |
| W620.0003 | W620.INM10X20CIN | 16 | 26 | 2 | 5 | 6 | 20 | 20 | M10 | 20 | 17 |
| W620.0004 | W620.INM12X25CIN | 18 | 32 | 2.5 | 6 | 8 | 30 | 30 | M12 | 25 | 27 |
