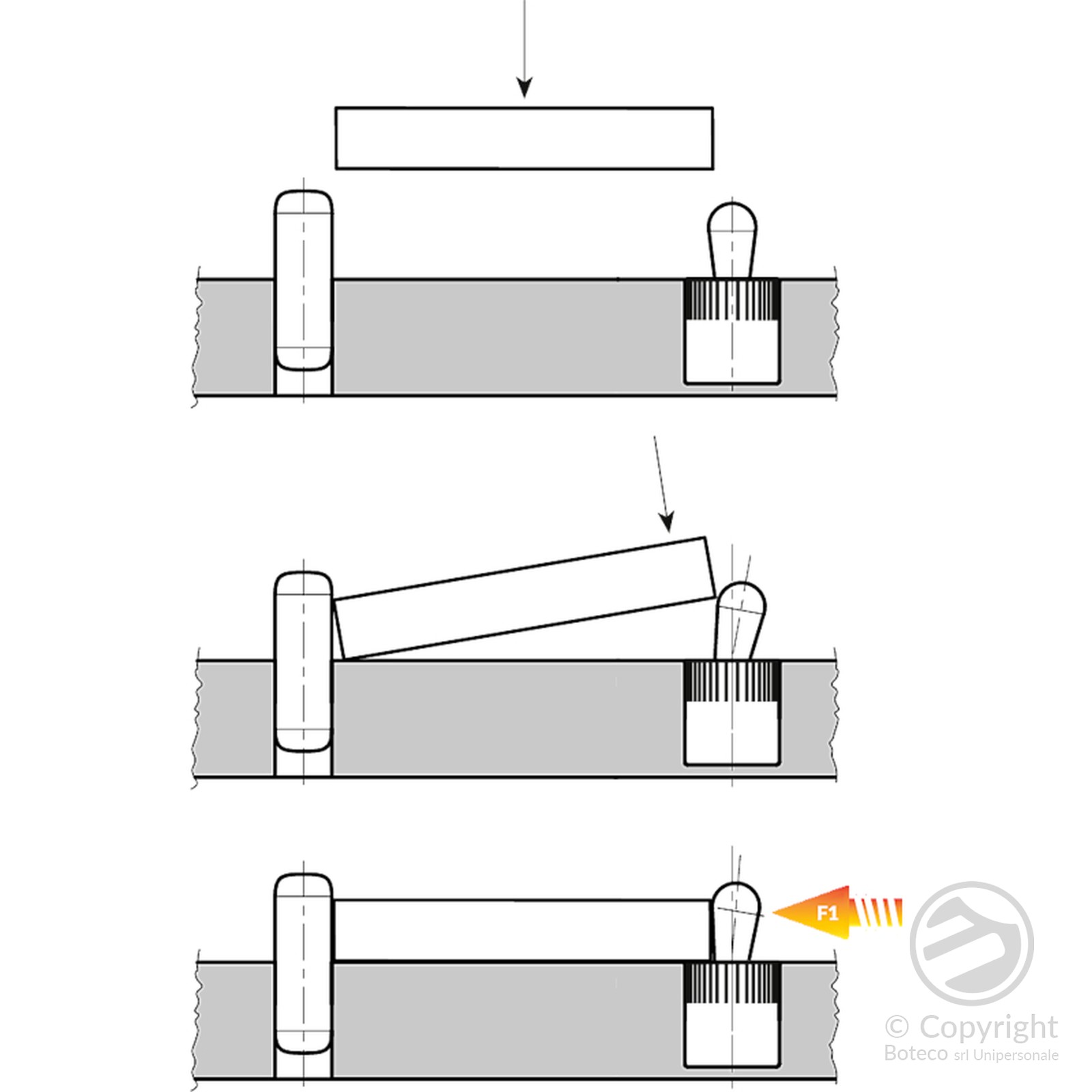

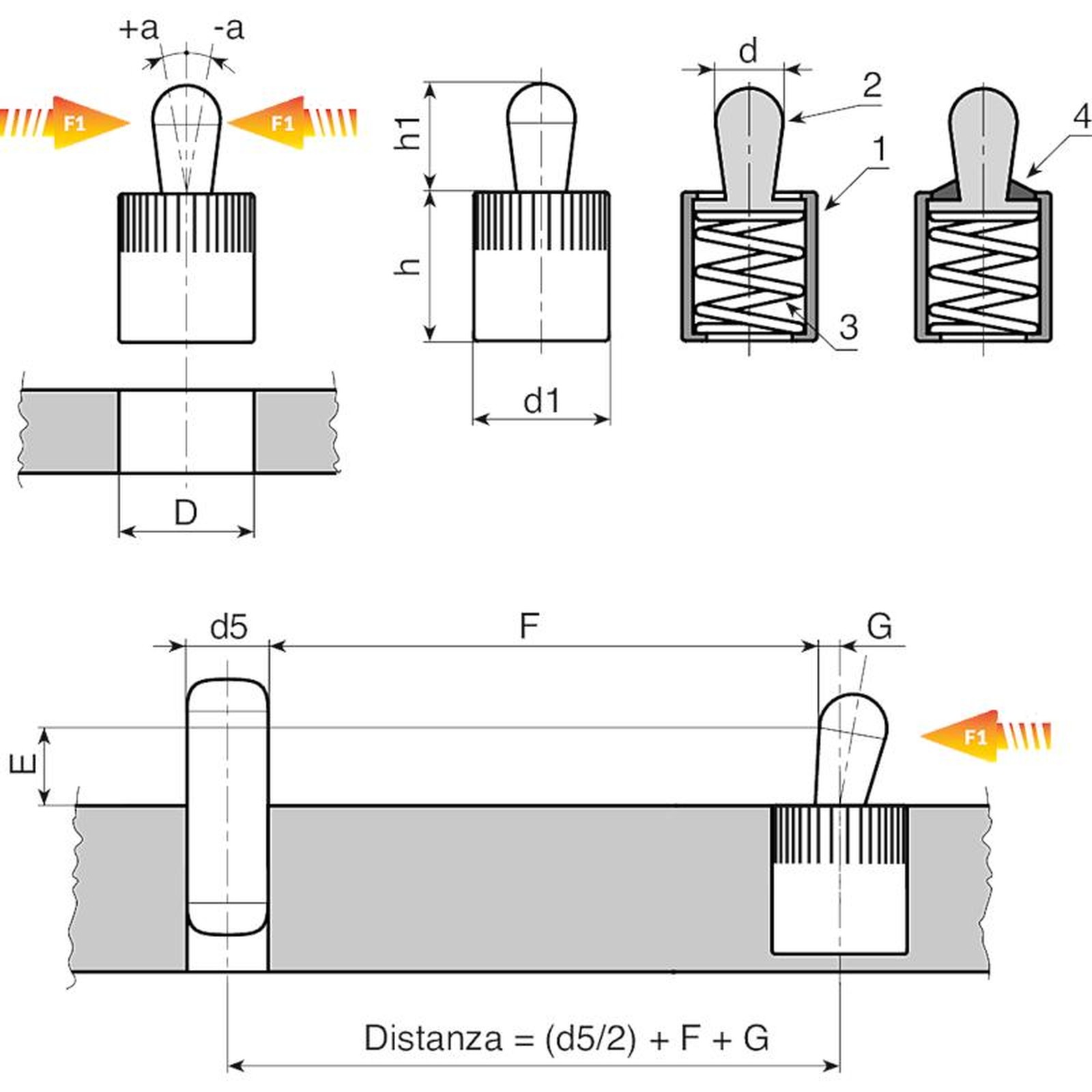

Materials:
(1) Turned aluminium plunger body.
(3) Stainless steel spring (Aisi 302).
(2) White plastic nose pin (POM - Delrin).
(4) Black seal.
Surface finish:
Smooth.
Colour:
(1,3)#tab#Natural.
(2)#tab#Natural white.
ATTENTION:
We recommend the plunger hole to be made with a +0.1 mm tolerance.
ATTENTION:

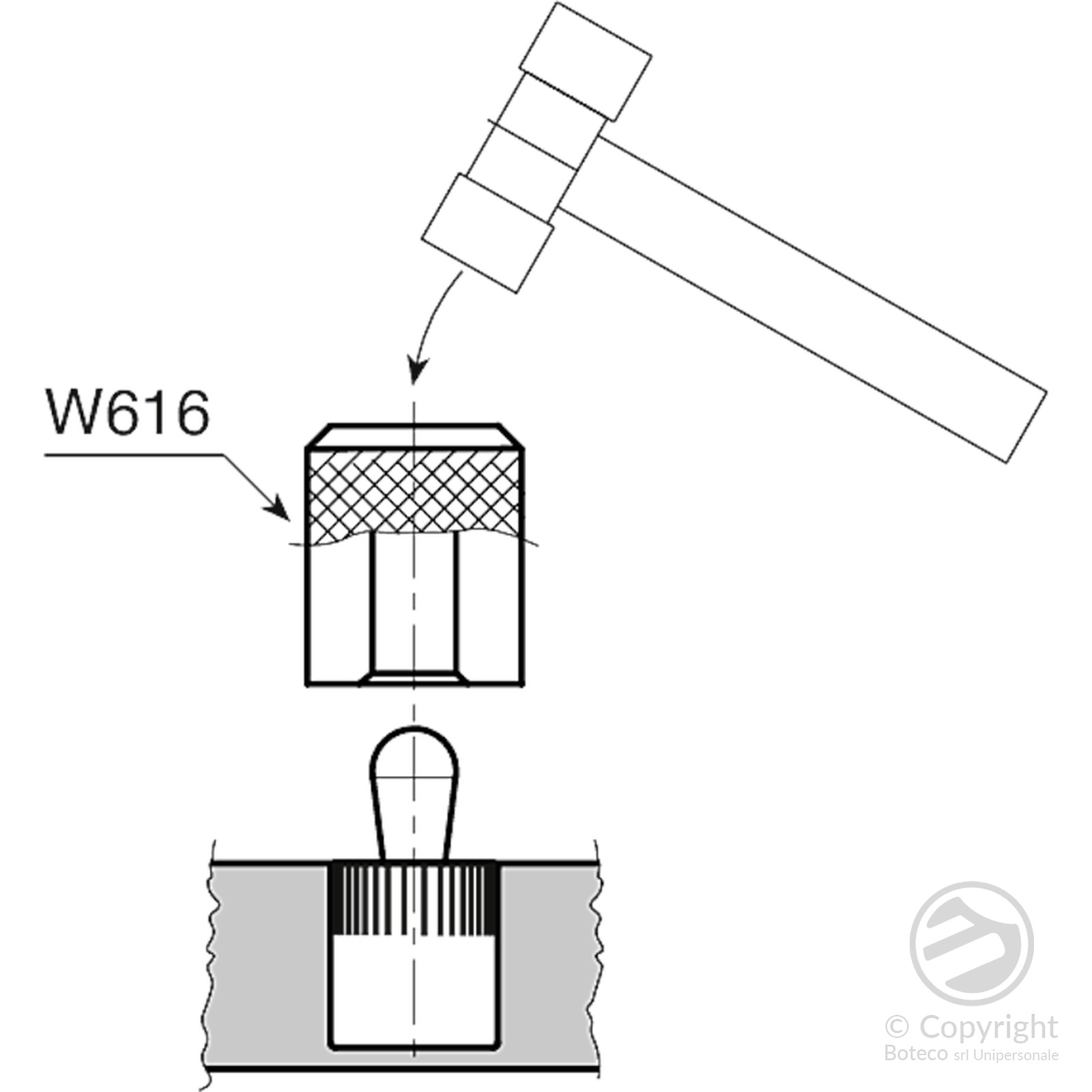

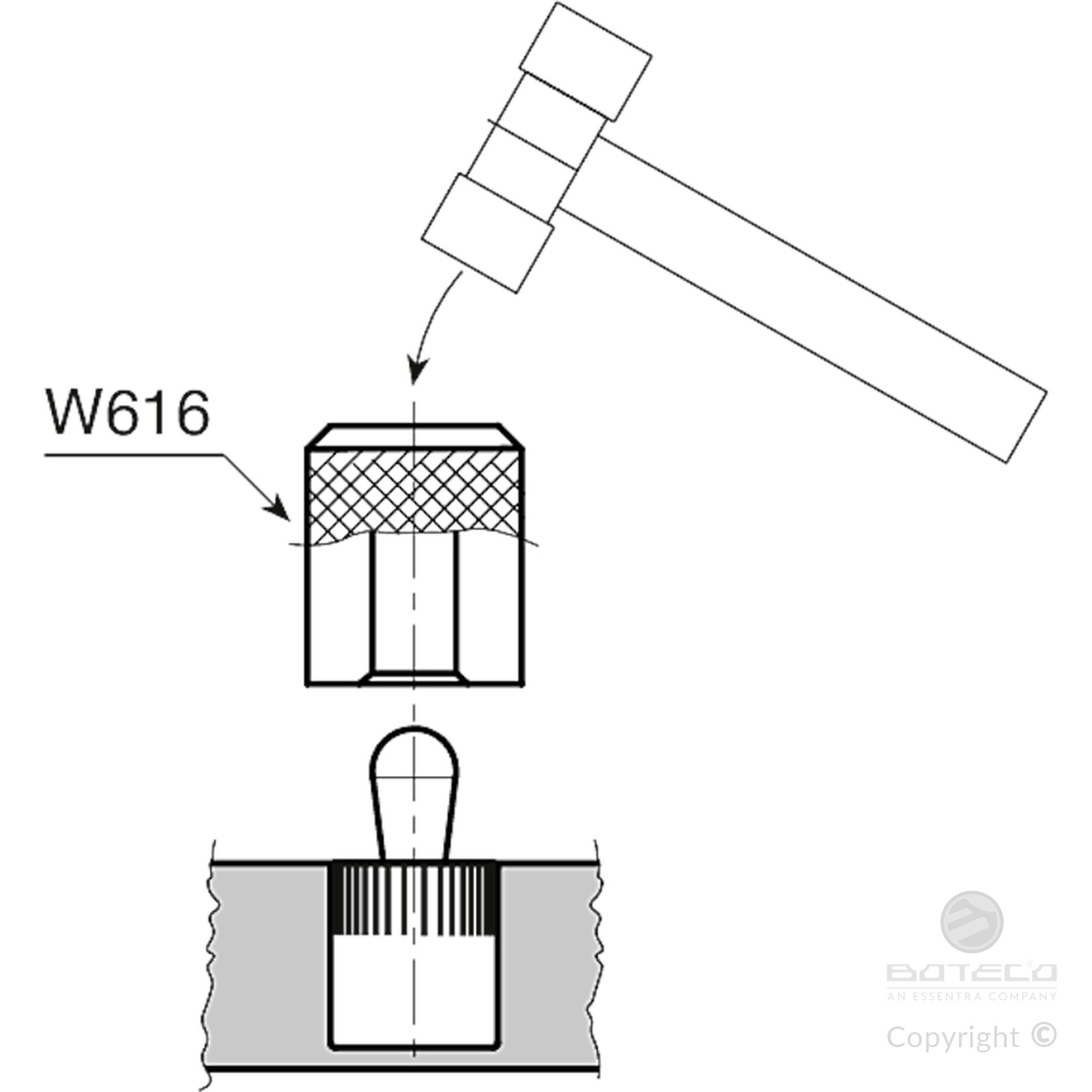

The plunger mount bush can be ordered separately. See the code no. on the product line. Turned galvanised free-cutting steel bush.
Special requests:
None.

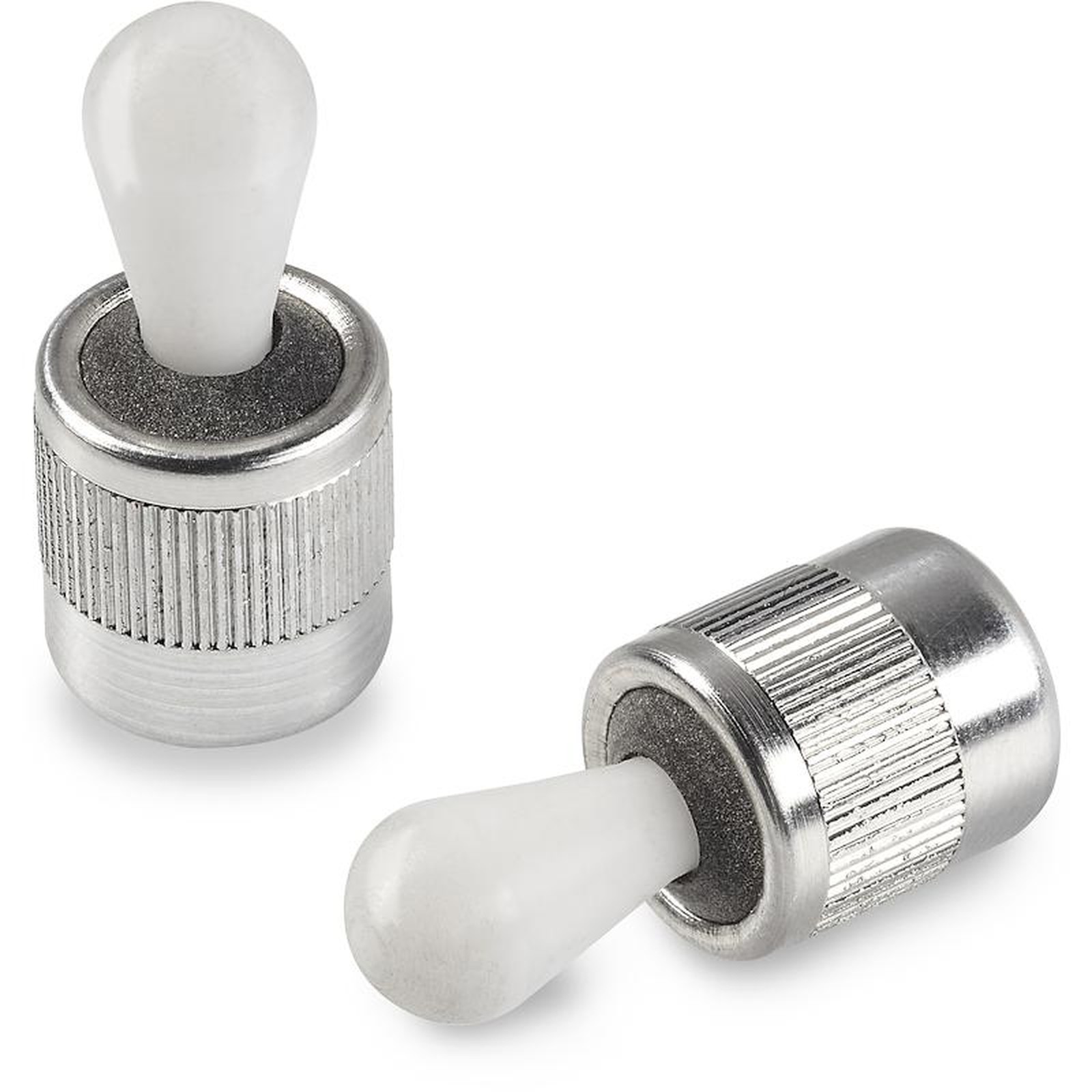

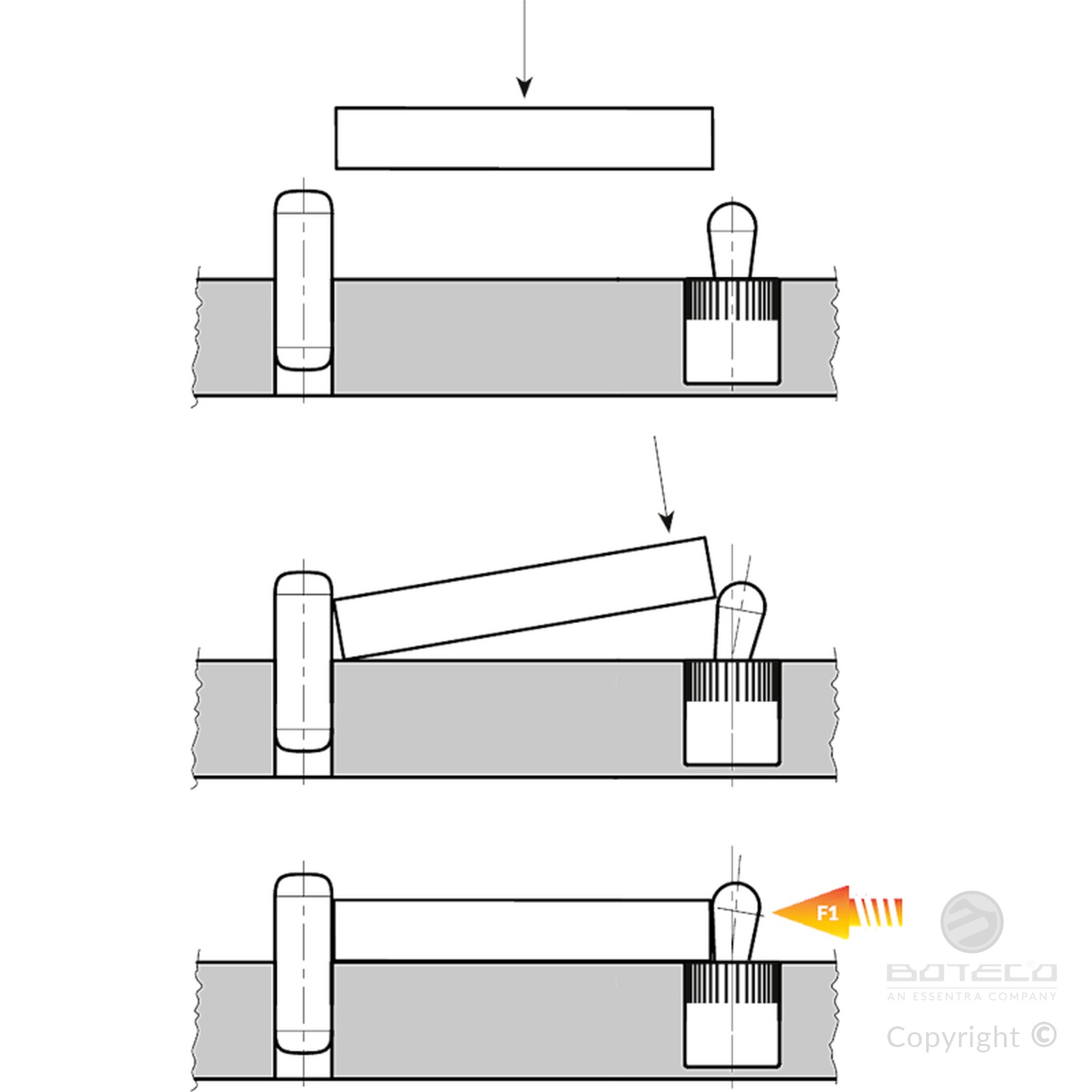

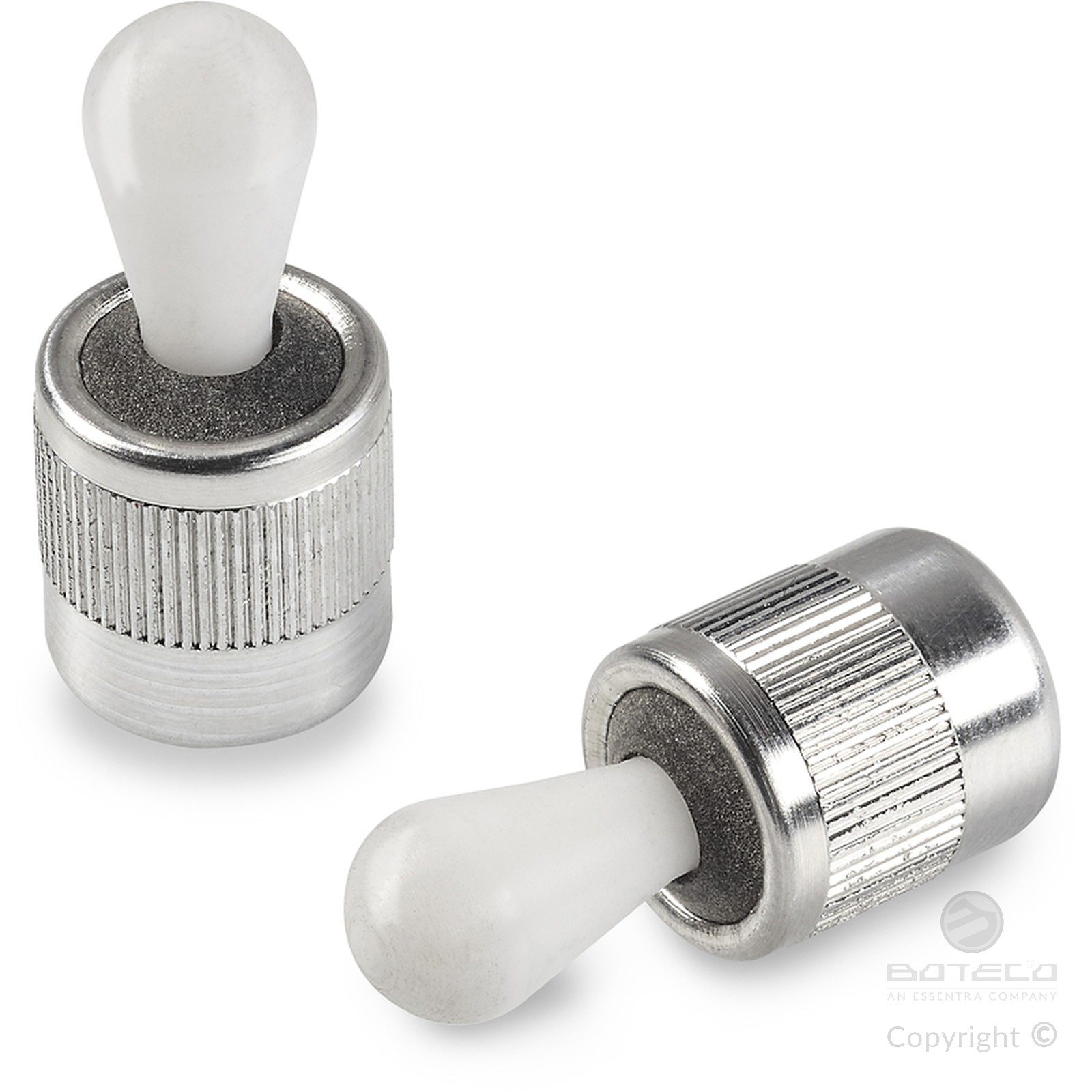

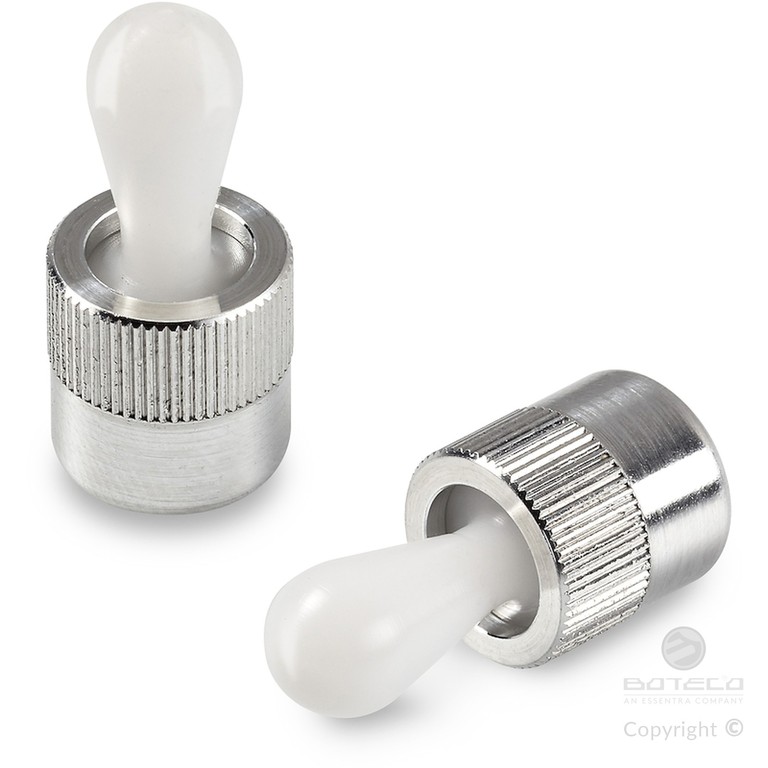

Version W615: Lateral spring plunger with POM nose pin and seal

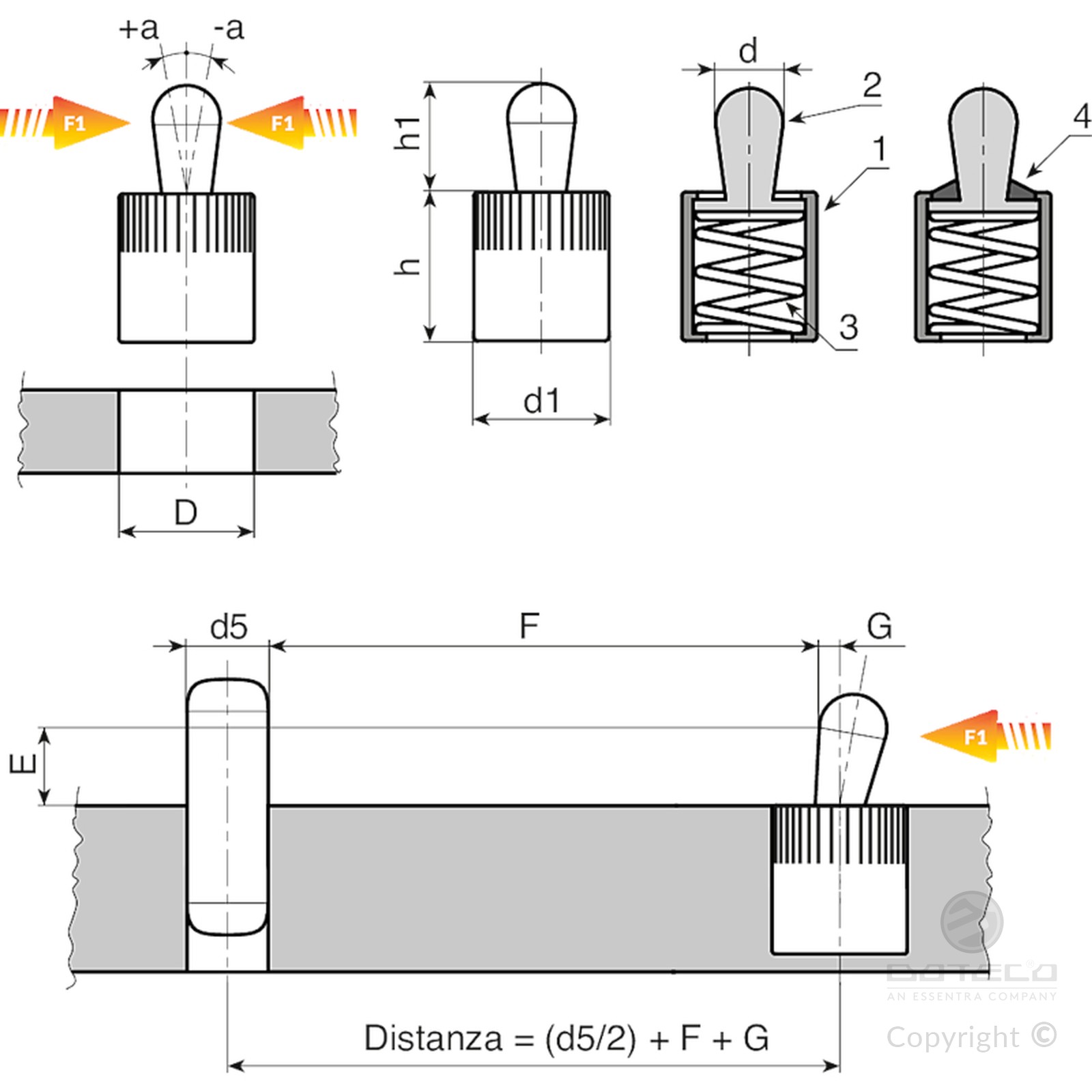

| Code | art. | d1 | d | h | h1 | D | a | F1 (N) | G E=1 | G E=2 | G E=3 | G E=4,5 | G E=6 | G E=8 | Weight (g) | Bush |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W615006.0001 | W615006.VZD03F010 | 6 | 3 | 7 | 4 | 6,1 | 0,5 | 10 | 0,8 | 1 | 1 | 1 | 1 | 1 | 0,4 | W616.03 |
| W615010.0001 | W615010.VZD05F020 | 10 | 5 | 11 | 6,7 | 10,1 | 0,8 | 20 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | 1,3 | W616.05 |
| W615010.0002 | W615010.VZD06F040 | 10 | 6 | 11 | 10,7 | 10,1 | 1 | 40 | - | - | - | 1,7 | 1,9 | 1,9 | 1.6 | W616.06 |
| W615012.0001 | W615012.VZD08F050 | 12 | 8 | 13 | 13,9 | 12,1 | 1,3 | 50 | - | - | - | - | 2,5 | 2,7 | 2,9 | W616.08 |
| W615016.0001 | W615016.VZD10F100 | 16 | 10 | 17 | 16,7 | 16,1 | 1,6 | 100 | - | - | - | - | - | 3,1 | 7,3 | W616.10 |
