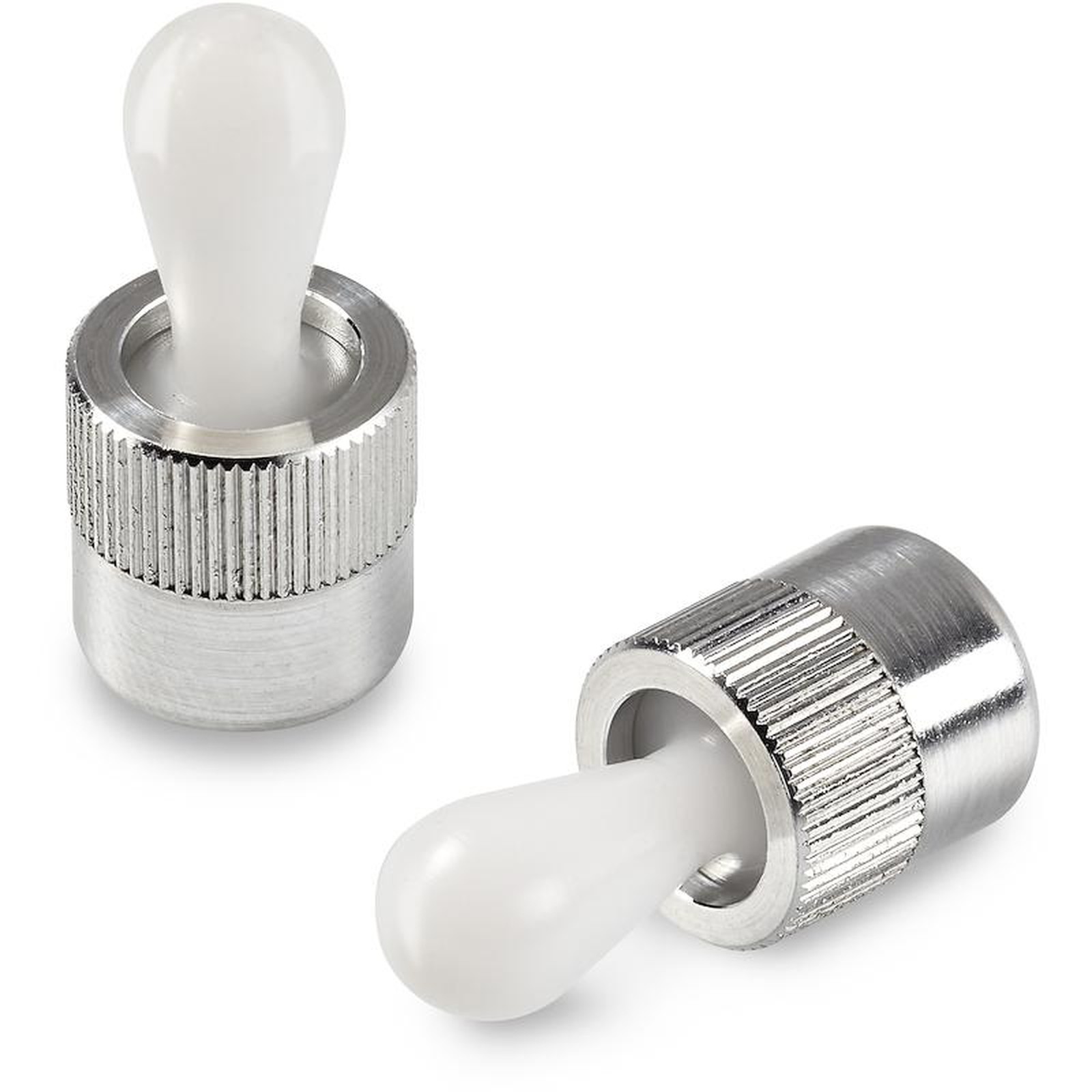

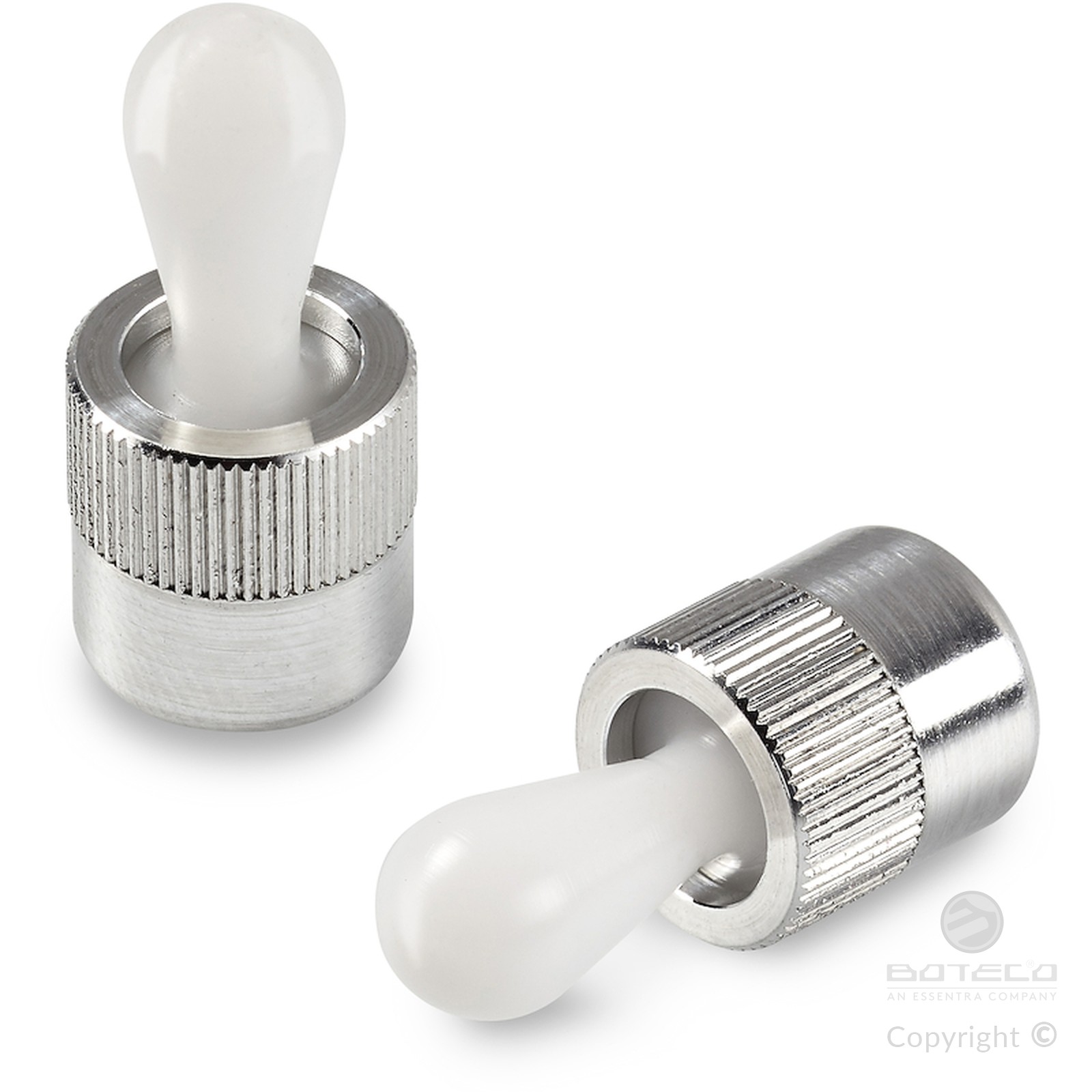

ALUMINIUM LATERAL SPRING PLUNGER WITH PLASTIC NOSE
21
W614
Pressore a molla laterale
Materials:
(1) Turned aluminium plunger body.
(3) Stainless steel spring (Aisi 302).
(2) White plastic nose pin (POM - Delrin).
Surface finish:
Smooth.
Colour:
(1,3) #tab# Natural.
(2) #tab# Natural white.

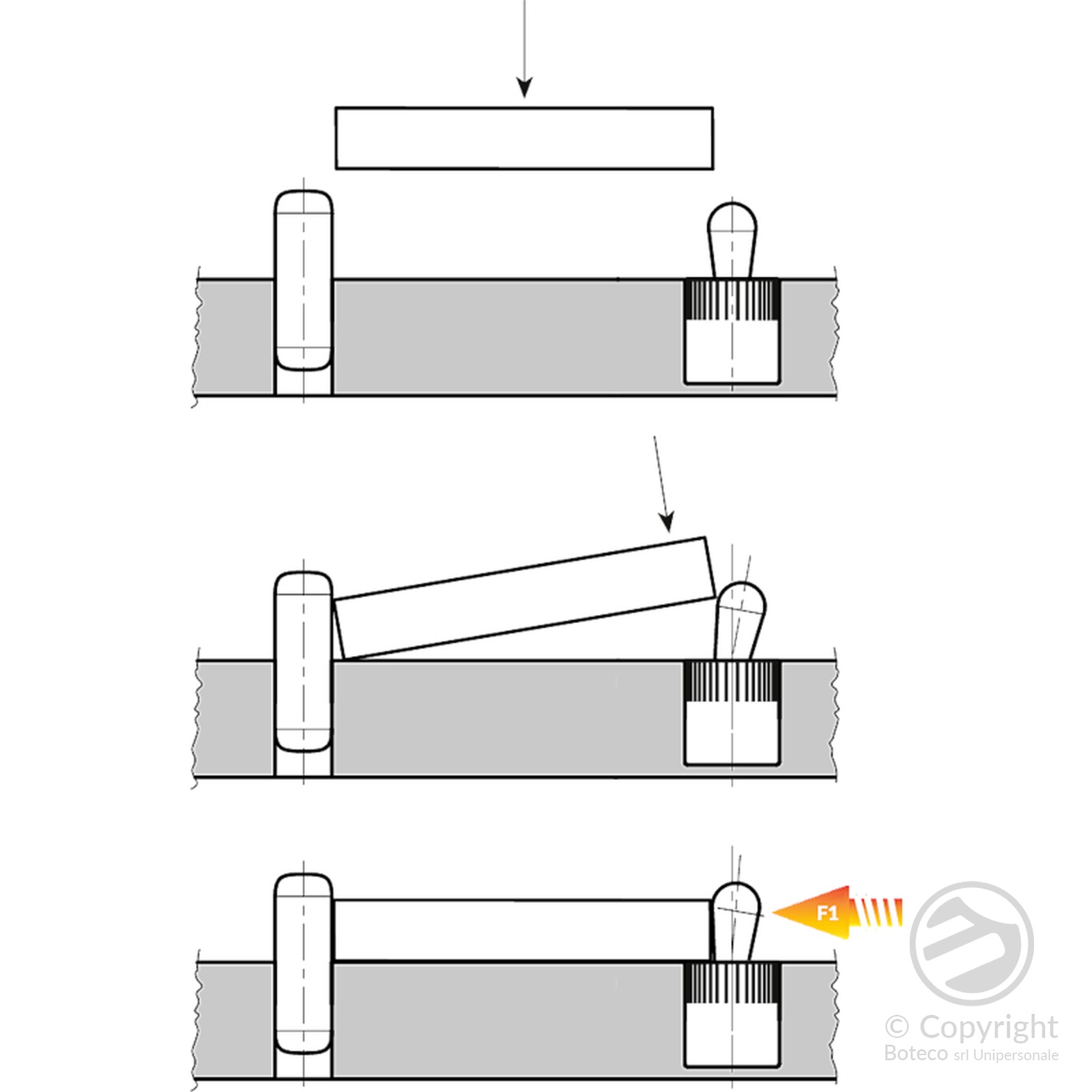

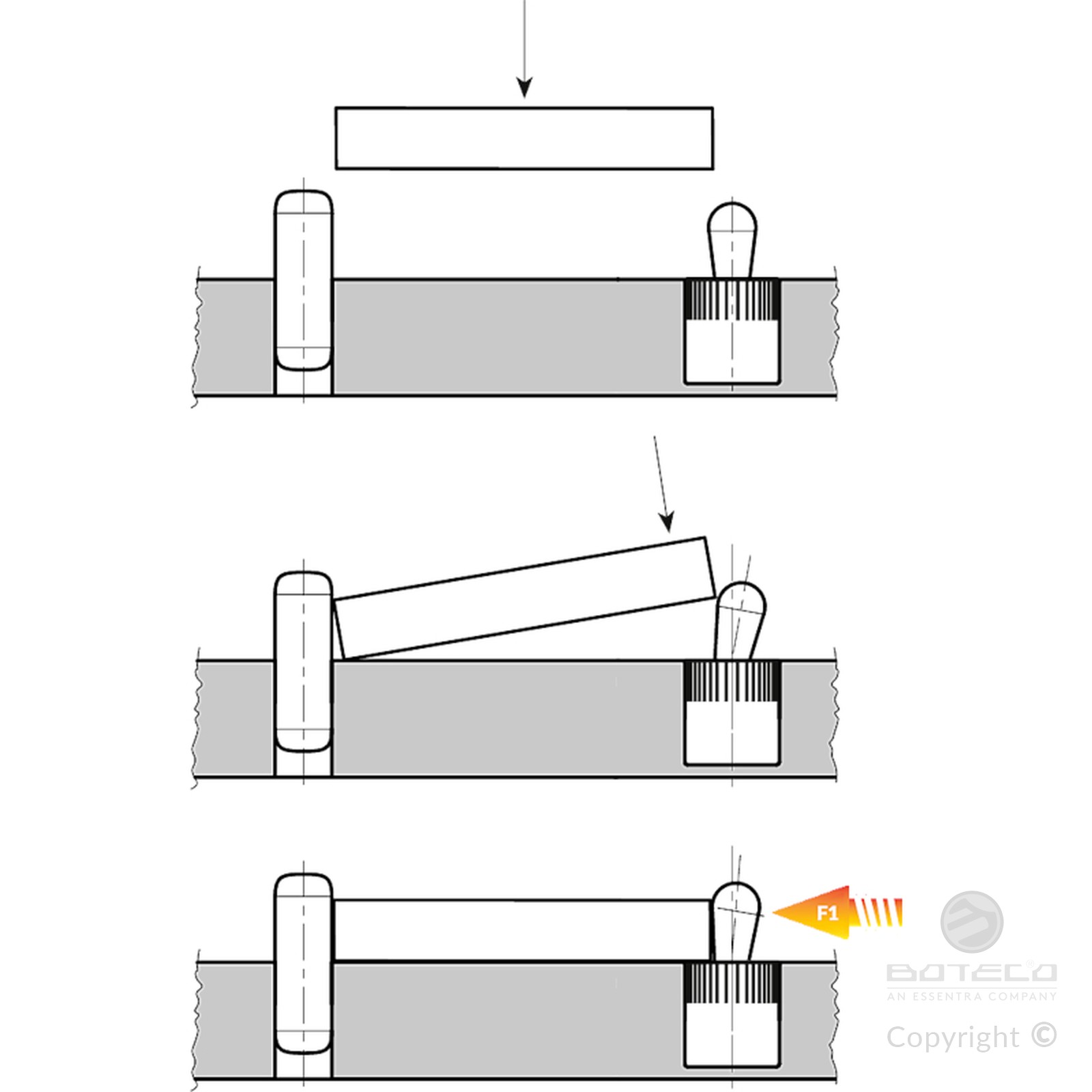

ATTENTION:
We recommend the plunger hole to be made with a +0.1 mm tolerance.
ATTENTION:

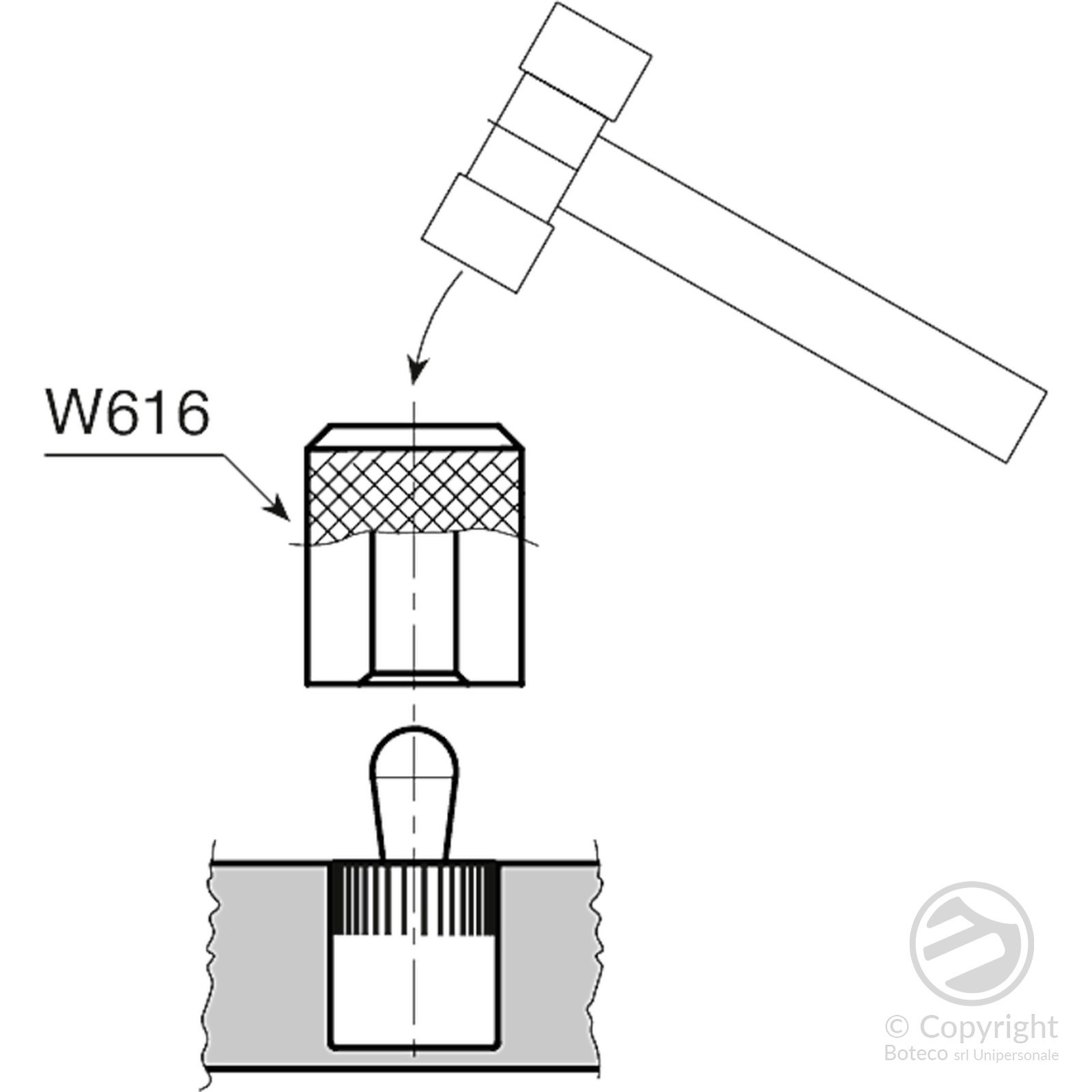

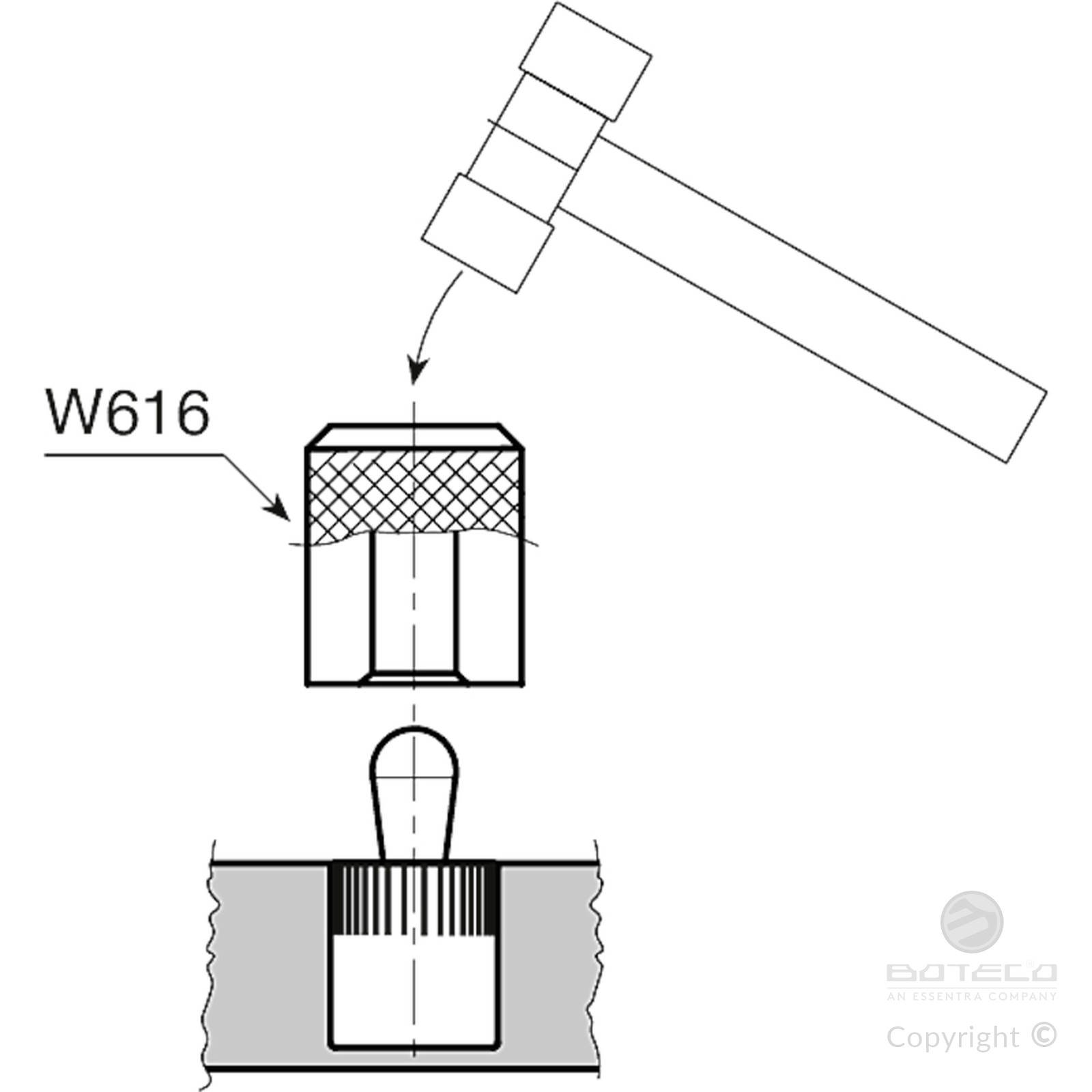

The plunger mount bush can be ordered separately. See the code no. on the product line. Turned galvanised free-cutting steel bush.
Special requests:
None.

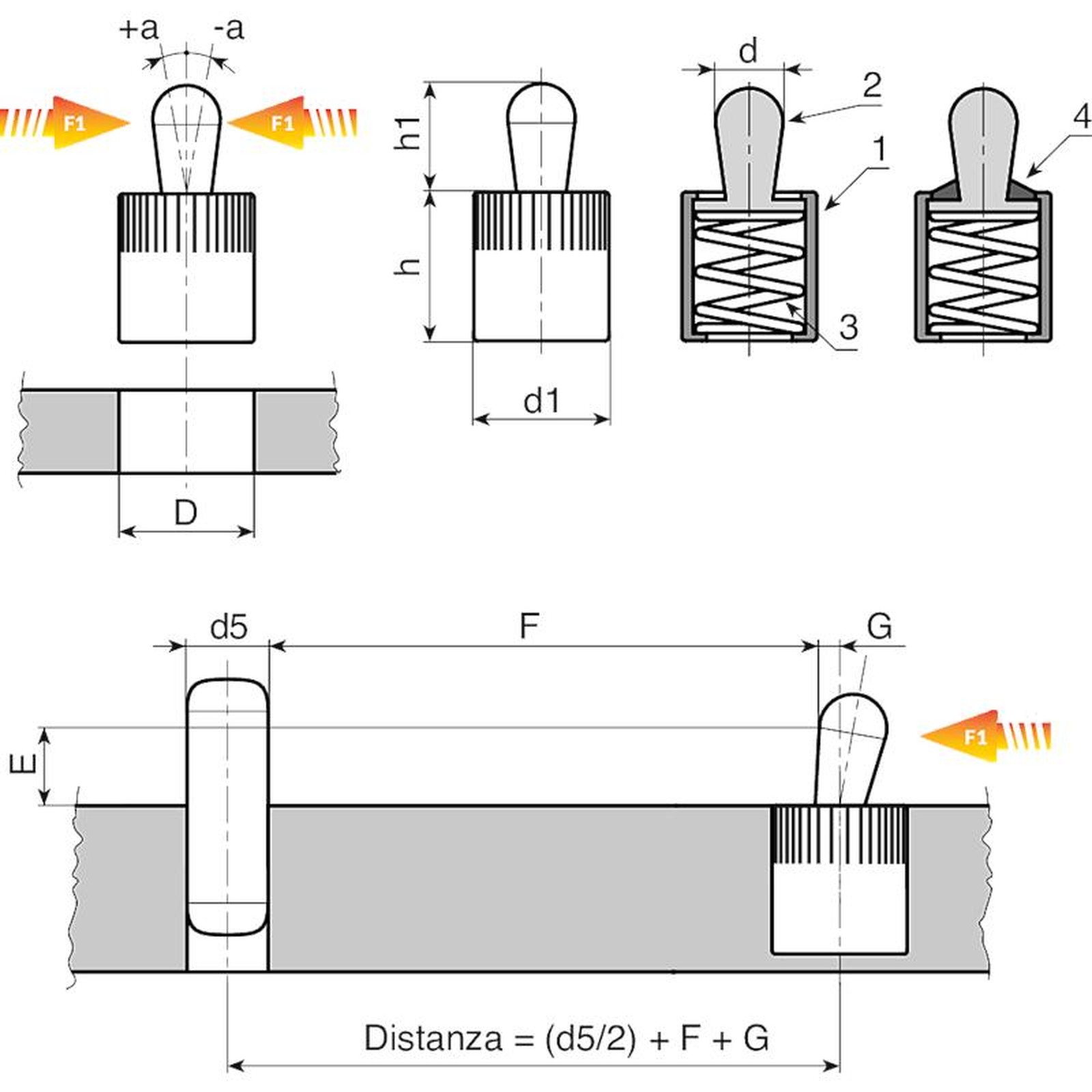

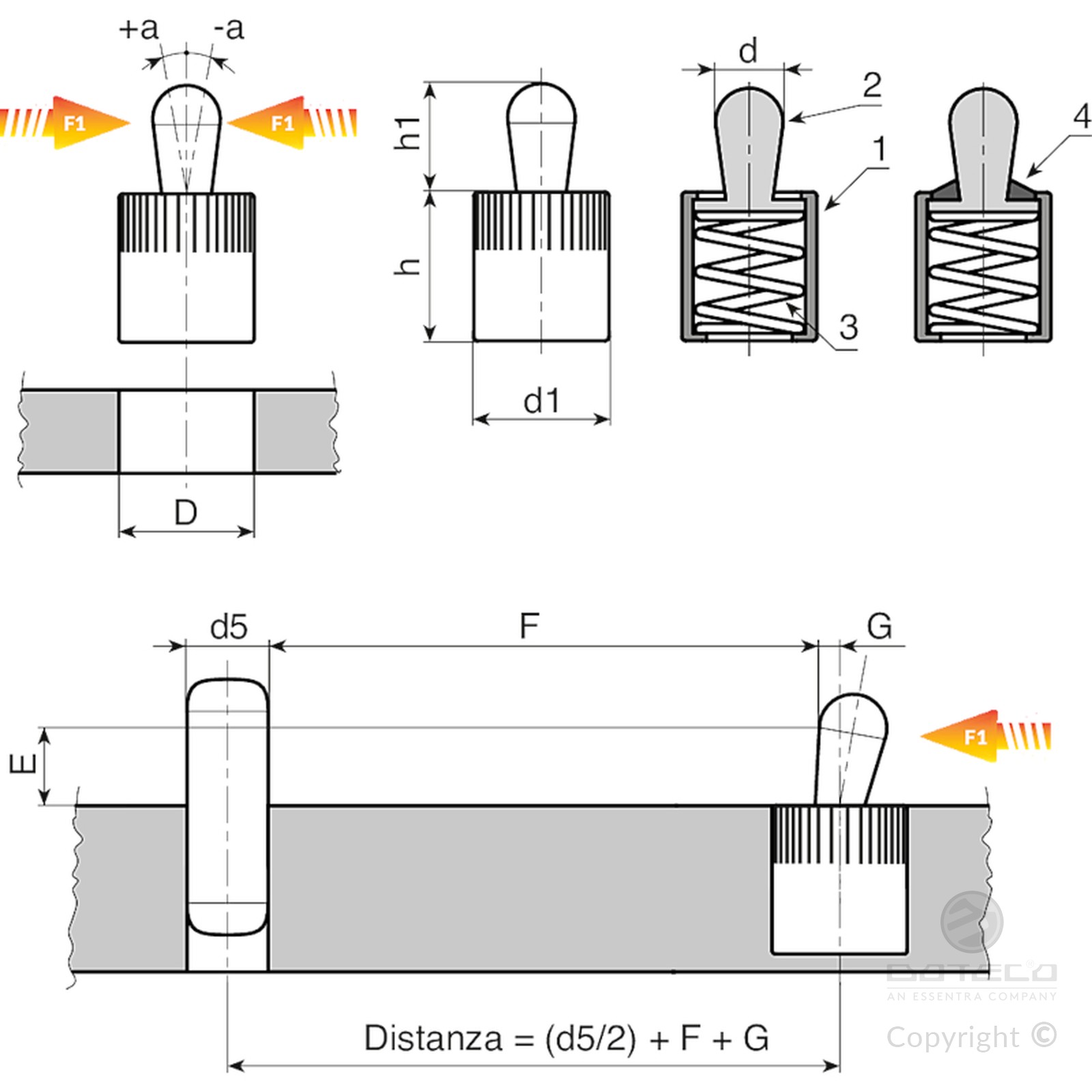

Version W614: Lateral spring plunger with POM nose pin
| Code | art. | d1 | d | h | h1 | D | a | F1 (N) | G E=1 | G E=2 | G E=3 | G E=4,5 | G E=6 | G E=8 | Weight (g) | Bush |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W614006.0001 | W614006.VZD03F010 | 6 | 3 | 7 | 4 | 6,1 | 0,5 | 10 | 0,8 | 1 | 1 | 1 | 1 | 1 | 0,4 | W616.03 |
| W614010.0001 | W614010.VZD05F020 | 10 | 5 | 11 | 6,7 | 10,1 | 0,8 | 20 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | 1,3 | W616.05 |
| W614010.0002 | W614010.VZD06F040 | 10 | 6 | 11 | 10,7 | 10,1 | 1 | 40 | - | - | - | 1,7 | 1,9 | 1,9 | 1.5 | W616.06 |
| W614012.0001 | W614012.VZD08F050 | 12 | 8 | 13 | 13,9 | 12,1 | 1,3 | 50 | - | - | - | - | 2,5 | 2,7 | 2,9 | W616.08 |
| W614016.0001 | W614016.VZD10F100 | 16 | 10 | 17 | 16,7 | 16,1 | 1,6 | 100 | - | - | - | - | - | 3,1 | 7,2 | W616.10 |
