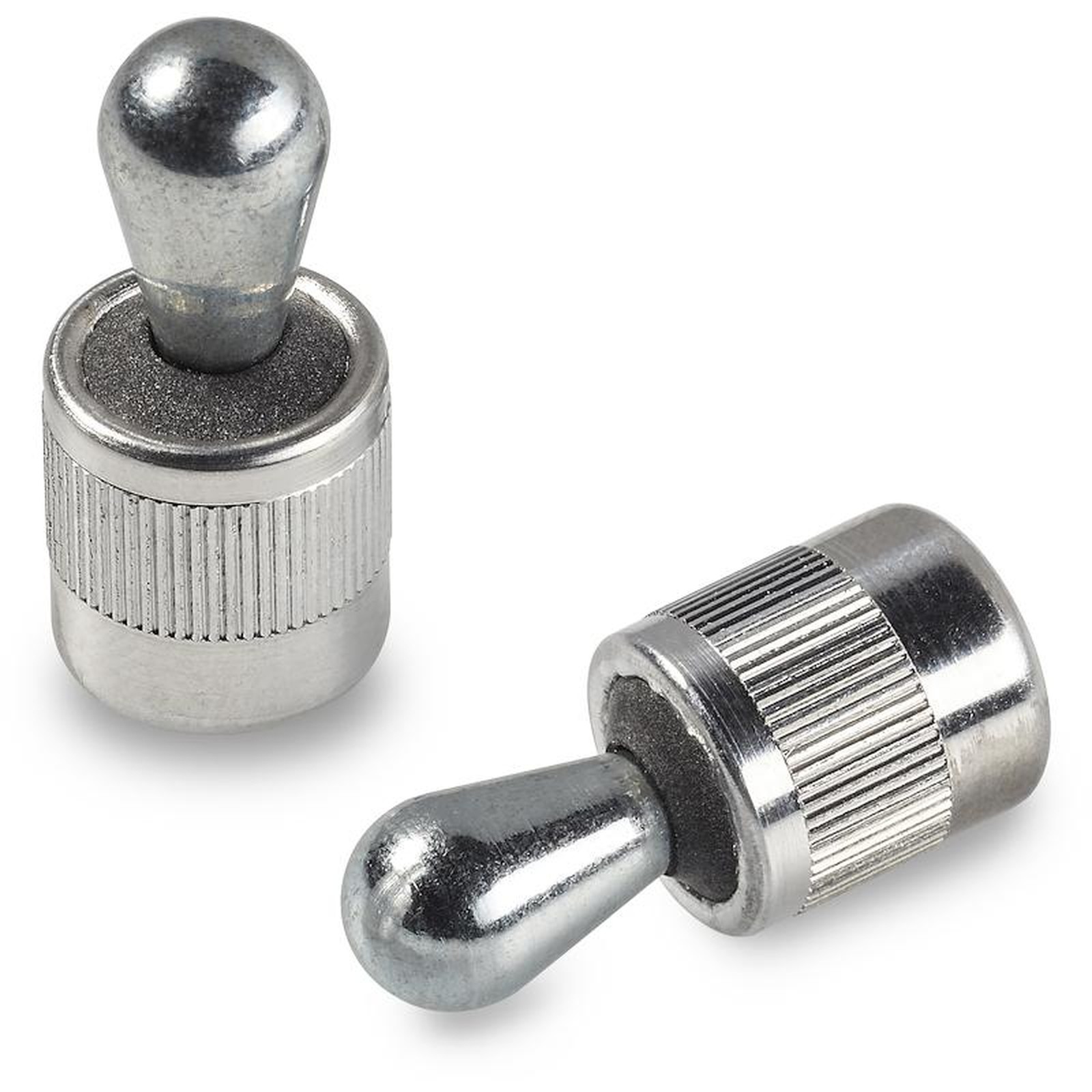

ALUMINIUM LATERAL SPRING PLUNGER WITH STEEL NOSE WITH SEAL
21
W613
Pressore a molla laterale
Materials:
(1) Turned aluminium plunger body.
(3) Stainless steel spring (Aisi 302).
(2) Hardened steel nose pin.
(4) Black seal.
Surface finish:
Smooth.
Colour:
(1,3) #tab# Natural.
(2) #tab# Zincato.
ATTENTION:
We recommend the plunger hole to be made with a +0.1 mm tolerance.
ATTENTION:

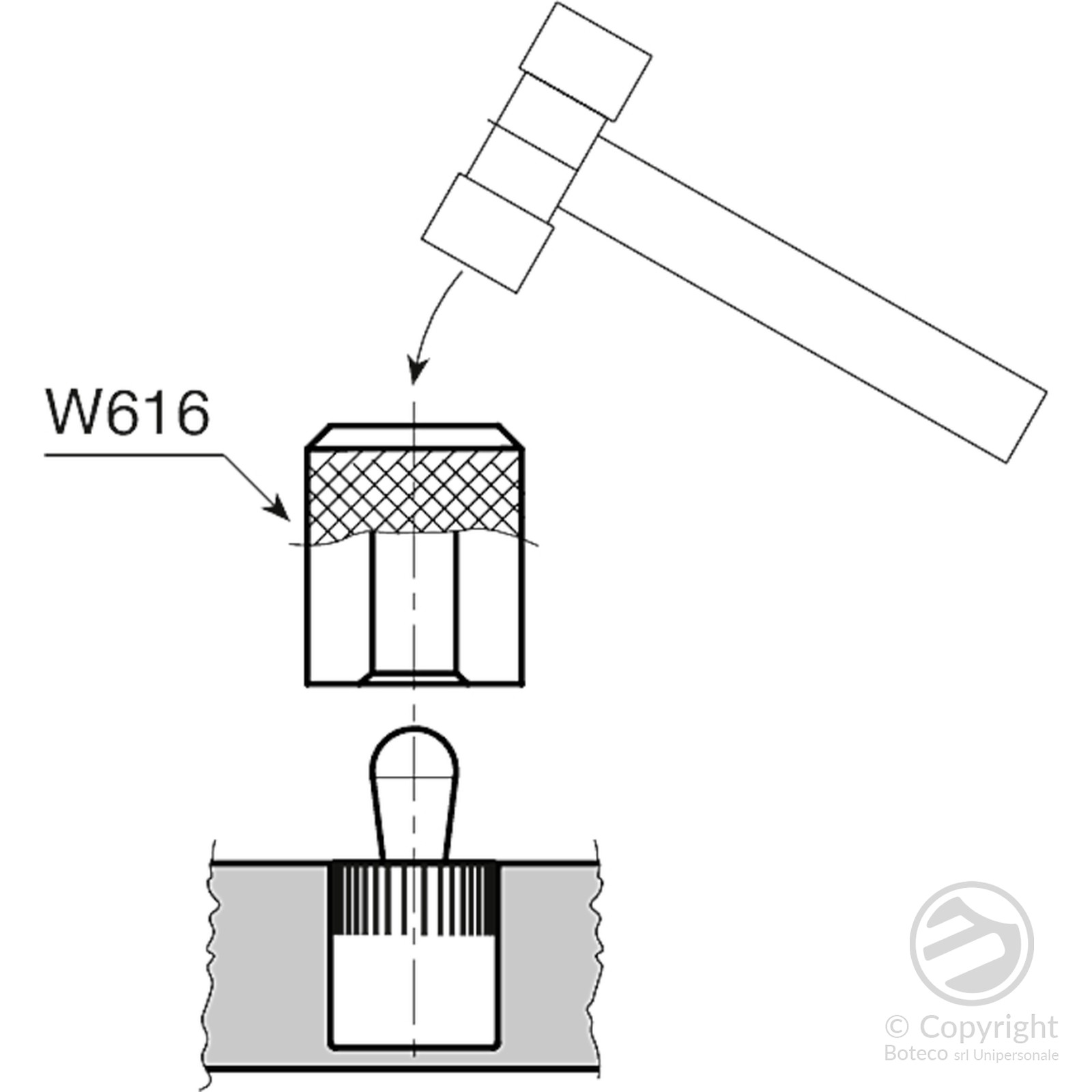

The plunger mount bush can be ordered separately. See the code no. on the product line. Turned galvanised free-cutting steel bush.
Special requests:
None.

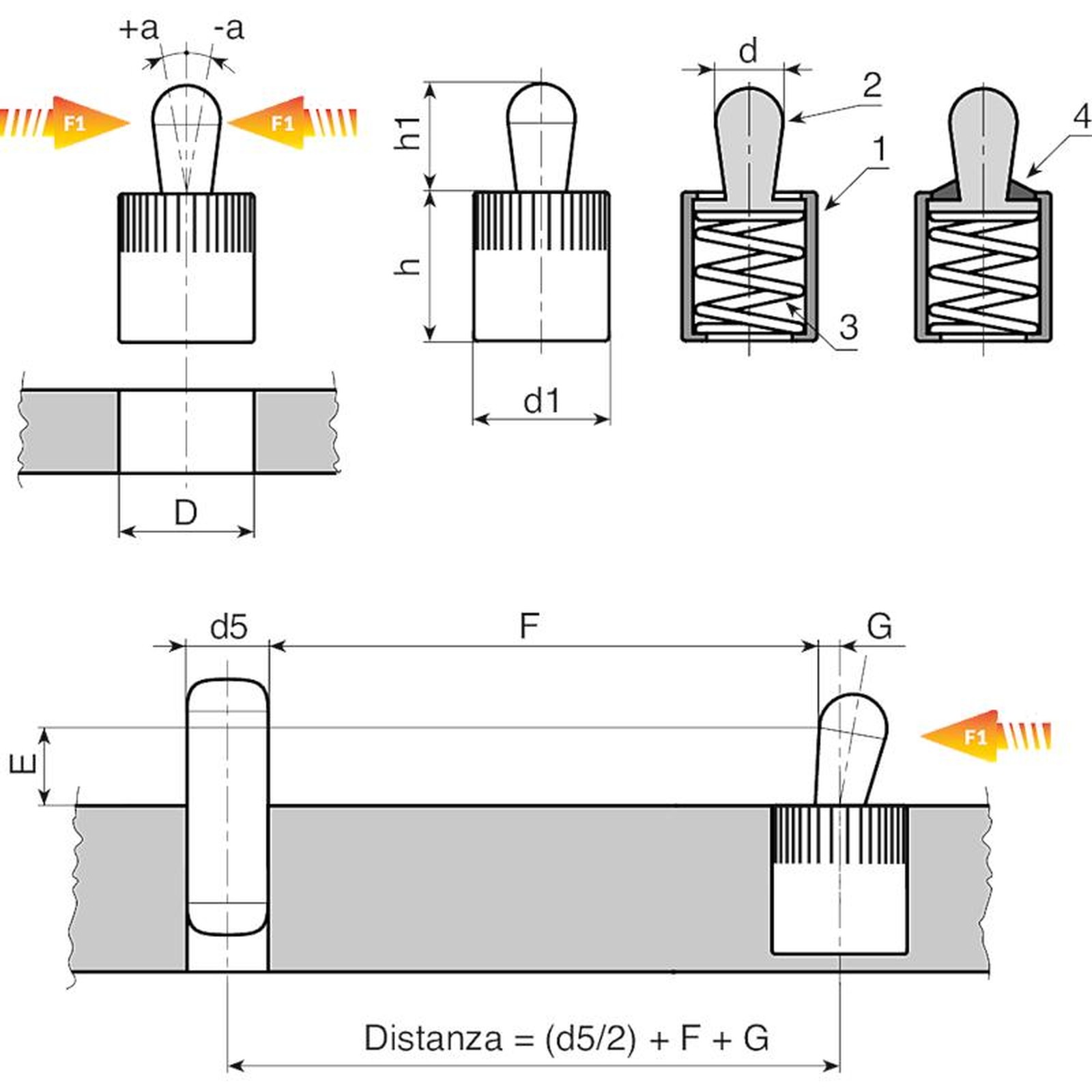

Version W613: Lateral spring plunger with steel nose pin with seal
| Code | art. | d1 | d | h | h1 | D | a | F1 (N) | G E=1 | G E=2 | G E=3 | G E=4,5 | G E=6 | G E=8 | Weight (g) | Bush |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W613006.0001 | W613006.VZD03F010 | 6 | 3 | 7 | 4 | 6,1 | 0,5 | 10 | 0,8 | 1 | 1 | 1 | 1 | 1 | 0,6 | W616.03 |
| W613006.0002 | W613006.VZD03F020 | 6 | 3 | 7 | 4 | 6,1 | 0,5 | 20 | 0,8 | 1 | 1 | 1 | 1 | 1 | 0,7 | W616.03 |
| W613006.0003 | W613006.VZD03F040 | 6 | 3 | 7 | 4 | 6,1 | 0,5 | 40 | 0,8 | 1 | 1 | 1 | 1 | 1 | 1,4 | W616.03 |
| W613010.0001 | W613010.VZD05F020 | 10 | 5 | 11 | 6,7 | 10,1 | 0,8 | 20 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | 2,6 | W616.05 |
| W613010.0002 | W613010.VZD05F050 | 10 | 5 | 11 | 6,7 | 10,1 | 0,8 | 50 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | 2,8 | W616.05 |
| W613010.0003 | W613010.VZD05F100 | 10 | 5 | 11 | 6,7 | 10,1 | 0,8 | 100 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | 3 | W616.05 |
| W613010.0004 | W613010.VZD06F040 | 10 | 6 | 11 | 10,7 | 10,1 | 1 | 40 | - | - | - | 1,7 | 1,9 | 1,9 | 3,4 | W616.06 |
| W613010.0005 | W613010.VZD06F075 | 10 | 6 | 11 | 10,7 | 10,1 | 1 | 75 | - | - | - | 1,7 | 1,9 | 1,9 | 3,7 | W616.06 |
| W613012.0001 | W613012.VZD08F050 | 12 | 8 | 13 | 13,9 | 12,1 | 1,3 | 50 | - | - | - | - | 2,5 | 2,7 | 6,8 | W616.08 |
| W613012.0002 | W613012.VZD08F100 | 12 | 8 | 13 | 13,9 | 12,1 | 1,3 | 100 | - | - | - | - | 2,5 | 2,7 | 7,4 | W616.08 |
| W613012.0003 | W613012.VZD08F150 | 12 | 8 | 13 | 13,9 | 12,1 | 1,3 | 150 | - | - | - | - | 2,5 | 2,7 | 7,8 | W616.08 |
| W613016.0001 | W613016.VZD10F100 | 16 | 10 | 17 | 16,7 | 16,1 | 1,6 | 100 | - | - | - | - | - | 3,1 | 15,1 | W616.10 |
| W613016.0002 | W613016.VZD10F150 | 16 | 10 | 17 | 16,7 | 16,1 | 1,6 | 150 | - | - | - | - | - | 3,1 | 15,2 | W616.10 |
| W613016.0003 | W613016.VZD10F200 | 16 | 10 | 17 | 16,7 | 16,1 | 1,6 | 200 | - | - | - | - | - | 3,1 | 15,8 | W616.10 |
