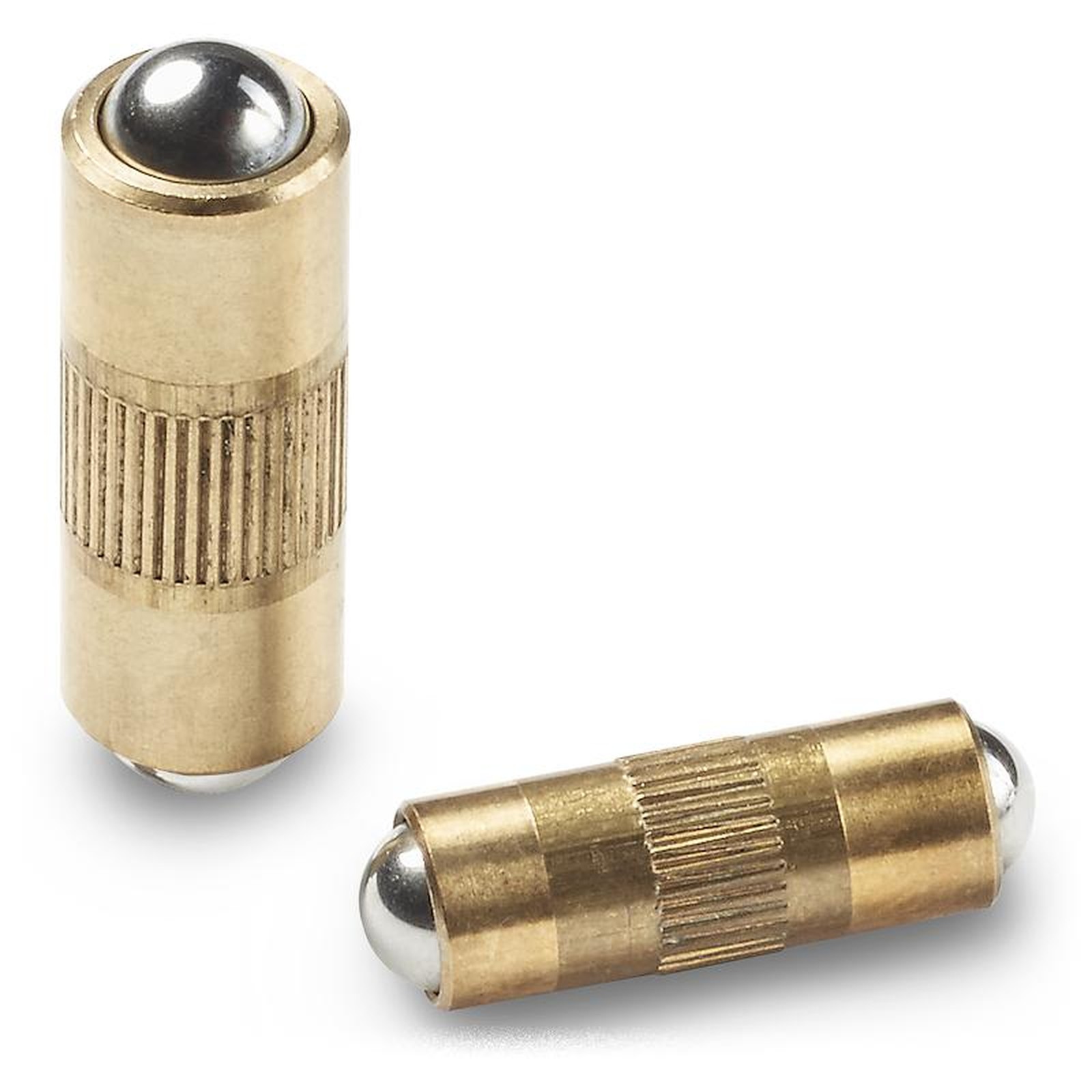

Materials:
Plunger body in turned brass.
Surface finish:
Smooth.
Colour:
Natural yellow brass.
Ball:
Hardened stainless steel ball (Aisi 420).
Type of spring thrust:
Normal.
Spring:
Stainless steel spring (Aisi 301).
Special requests:
None.

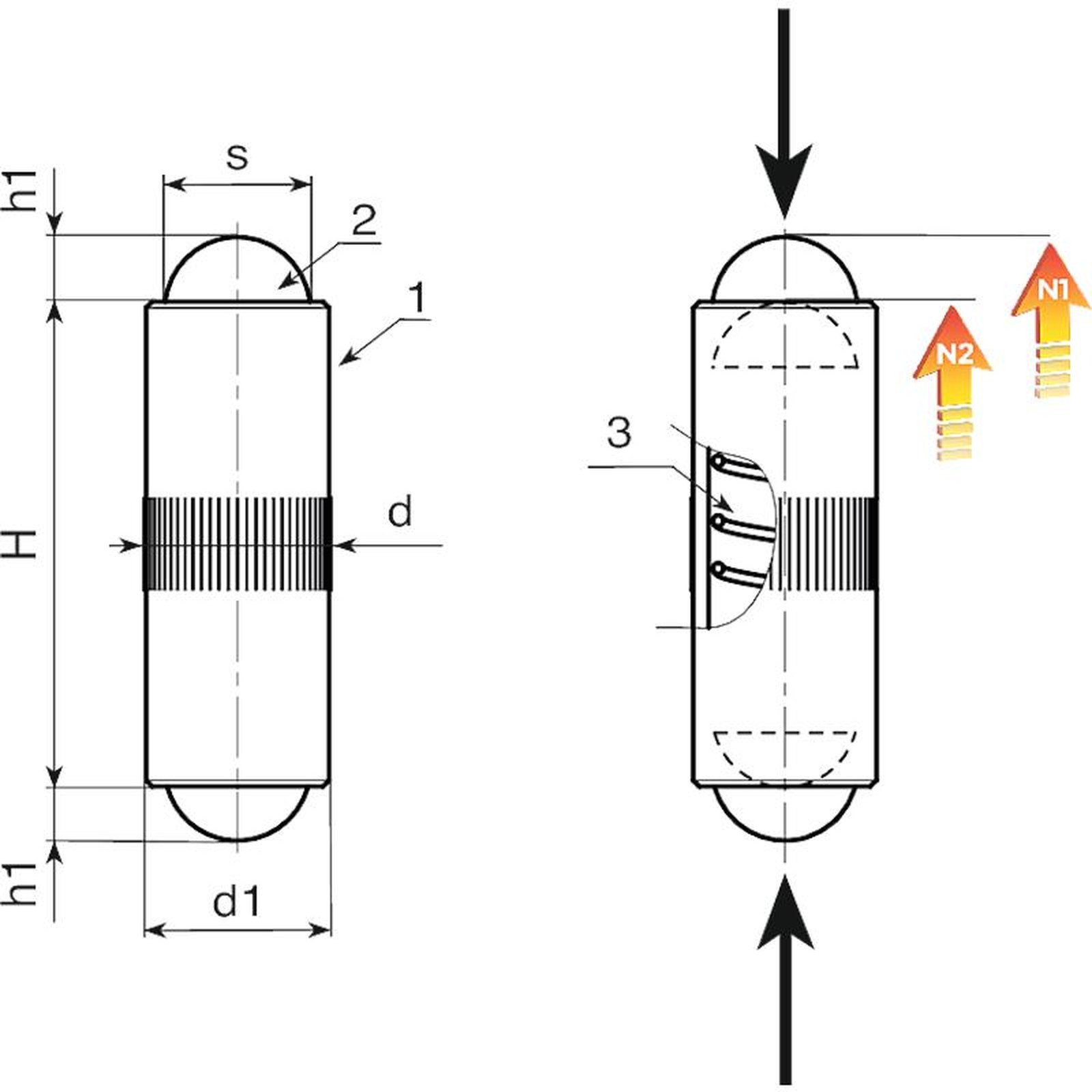

| Code | art. | s | H (+0 -0.2) | h1 | d (+0.05 -0) | N1 (N) | N2 (N) | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| W610.0001 | W610.OND04 | 3 | 10 | 0.9 | 4.05 | 3 | 7 | 4 | 0.7 |
| W610.0002 | W610.OND05 | 4 | 12 | 1.2 | 5.05 | 4 | 8 | 5 | 1.3 |
| W610.0003 | W610.OND06 | 5 | 16 | 1.6 | 6.05 | 6 | 10 | 6 | 2.4 |
| W610.0004 | W610.OND08 | 6 | 20 | 2 | 8.05 | 8 | 12 | 8 | 5.8 |
| W610.0005 | W610.OND10 | 8 | 24 | 2.9 | 10.05 | 10 | 16 | 10 | 10.5 |
