SMOOTH FULL STAINLESS STEEL BALL PLUNGER WITHOUT COLLAR
21
W600CIN
Pressore a molla liscio con sfera
Materials:
Stainless steel plunger body (Aisi 303).
Surface finish:
Smooth.
Colour:
Natural stainless steel.
Ball:
Hardened stainless steel ball (Aisi 420).
Type of spring thrust:
Normal.
Spring:
Stainless steel spring (Aisi 301).
Special requests:
None.

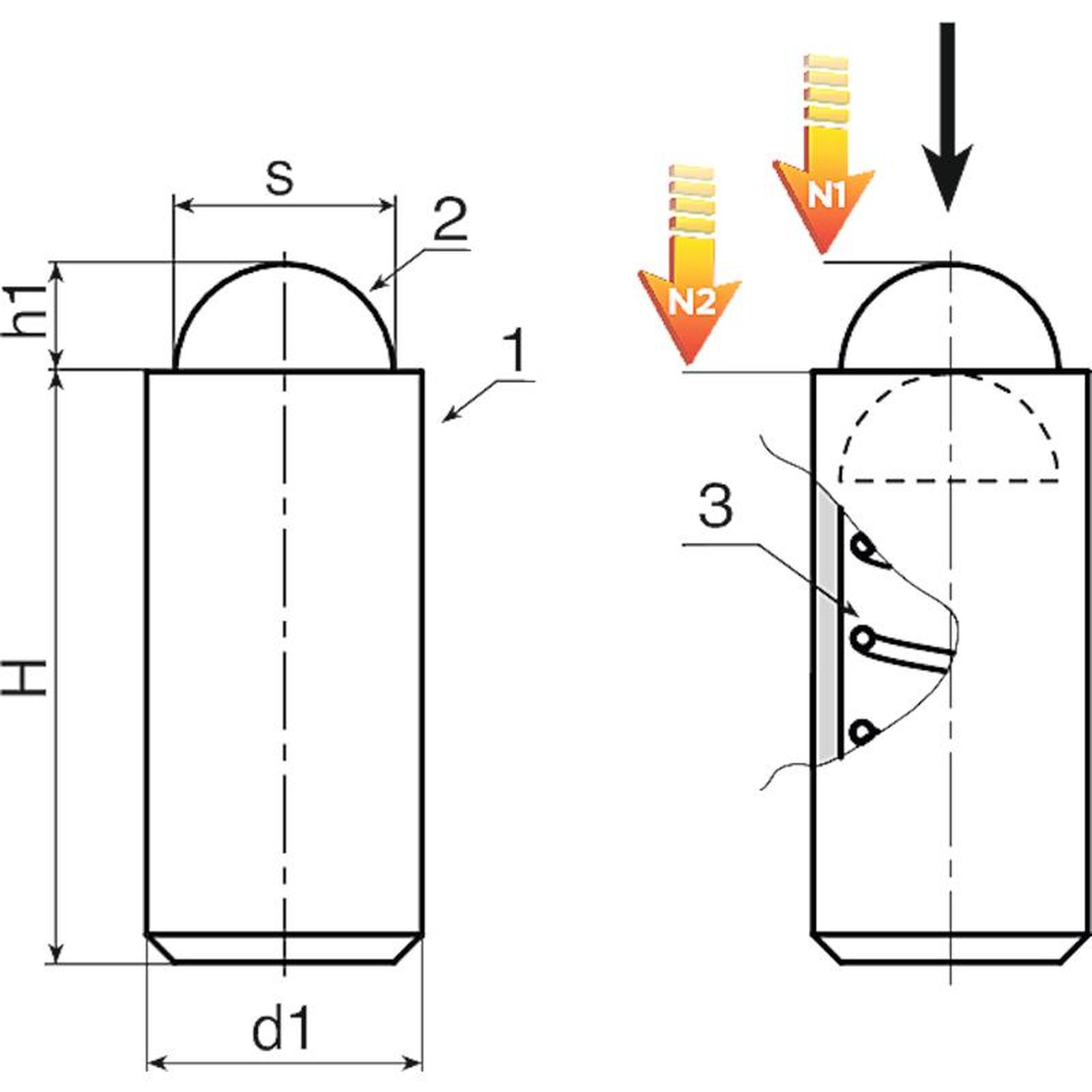

| Code | art. | s | H | h1 | N1 (N) | N2 (N) | d1 (+0.02 -0.06) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| W600.0001 | W600.IND03CIN | 2 | 7 | 0.65 | 5 | 7 | 3 | 0.4 |
| W600.0002 | W600.IND04CIN | 3 | 9 | 0.8 | 12 | 22 | 4 | 0.6 |
| W600.0003 | W600.IND05CIN | 4 | 12 | 1 | 19 | 30 | 5 | 1.2 |
| W600.0004 | W600.IND06CIN | 5 | 14 | 1.5 | 22 | 40 | 6 | 2 |
| W600.0005 | W600.IND08CIN | 6 | 16 | 1.8 | 42 | 73 | 8 | 5 |
| W600.0006 | W600.IND10CIN | 8 | 22 | 2.7 | 54 | 100 | 10 | 9 |
| W600.0007 | W600.IND12CIN | 10 | 24 | 3.2 | 54 | 122 | 12 | 15 |
