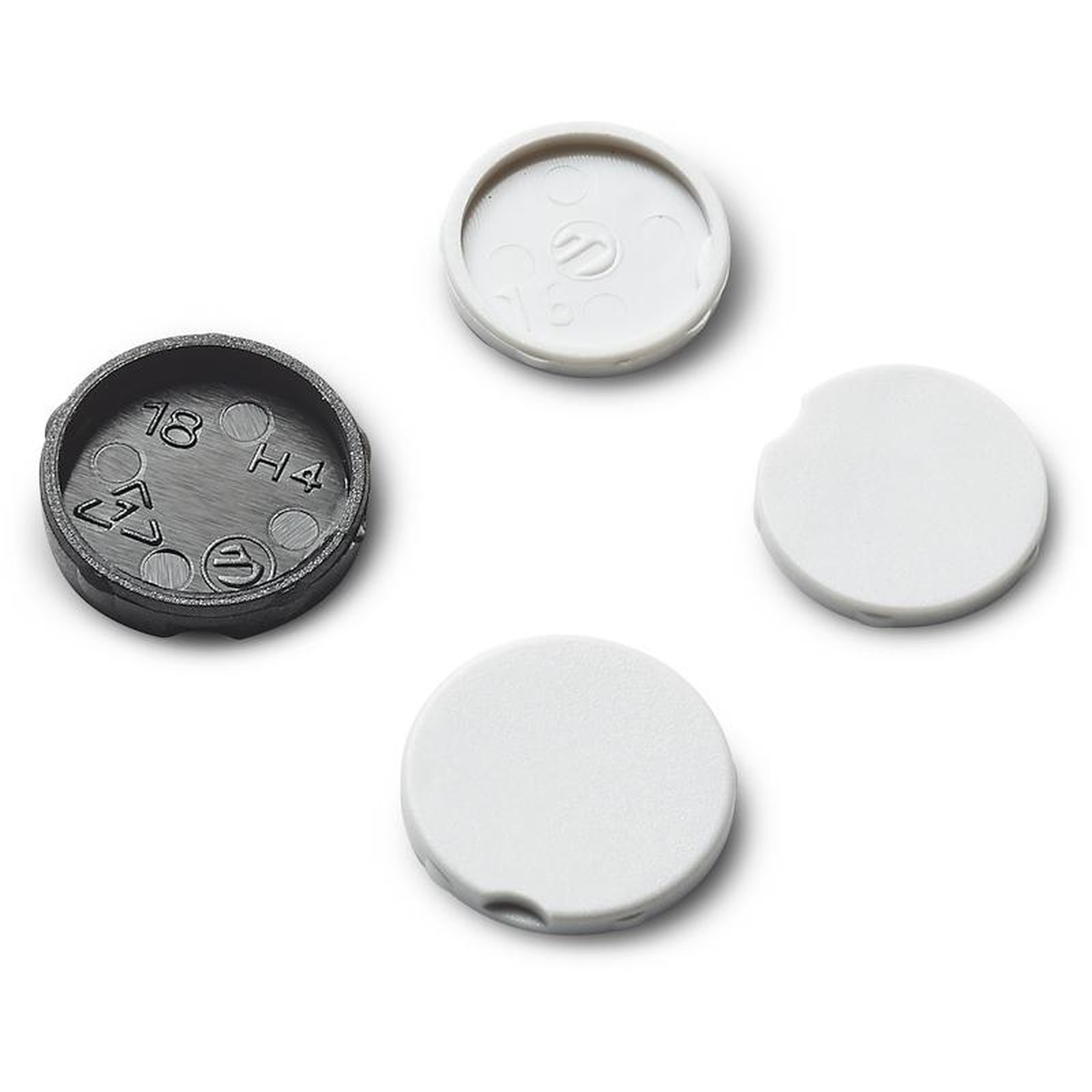

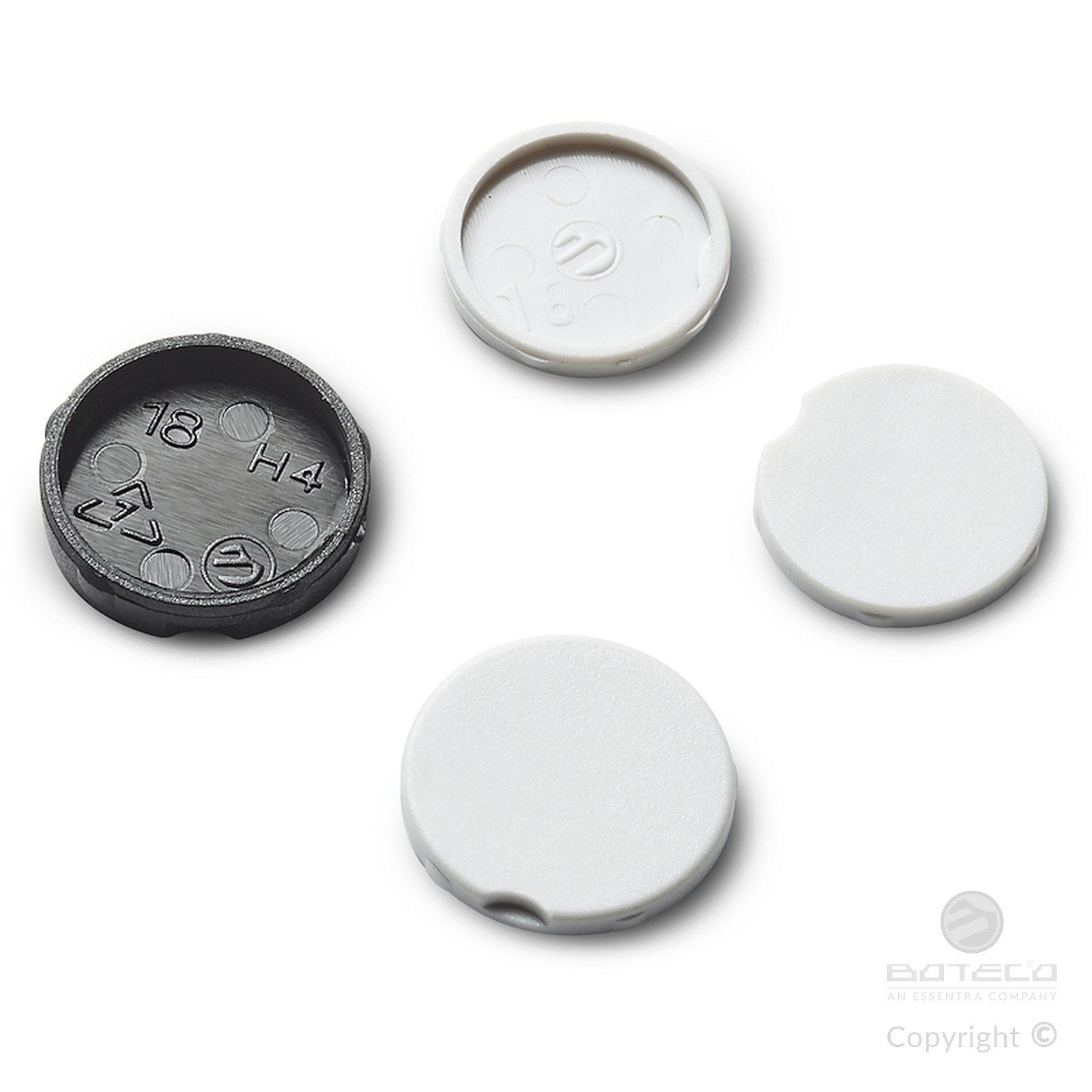

HOLE COVER CAP, HEIGHT 4, FOR 02 SERIES

24

COP.H4


Tappi per prodotti Boteco

Materials:

Polyamide with ABS.

Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Grey RAL 7035 code 13. (standard).

Fixing method:

Push-fit.

Alternative cap colours:

Black (RAL 9011 code 01).

Orange (RAL 2004 code 02).

Blue (RAL 5015 code 07).

Yellow (RAL 1021 code 10).

Red (RAL 3000 code 16).

Green (RAL 6024 code 17).

Special requests:

None.

PAD PRINTING SERVICE

Upon request and for special quantities caps can be supplied with custom pad printing.

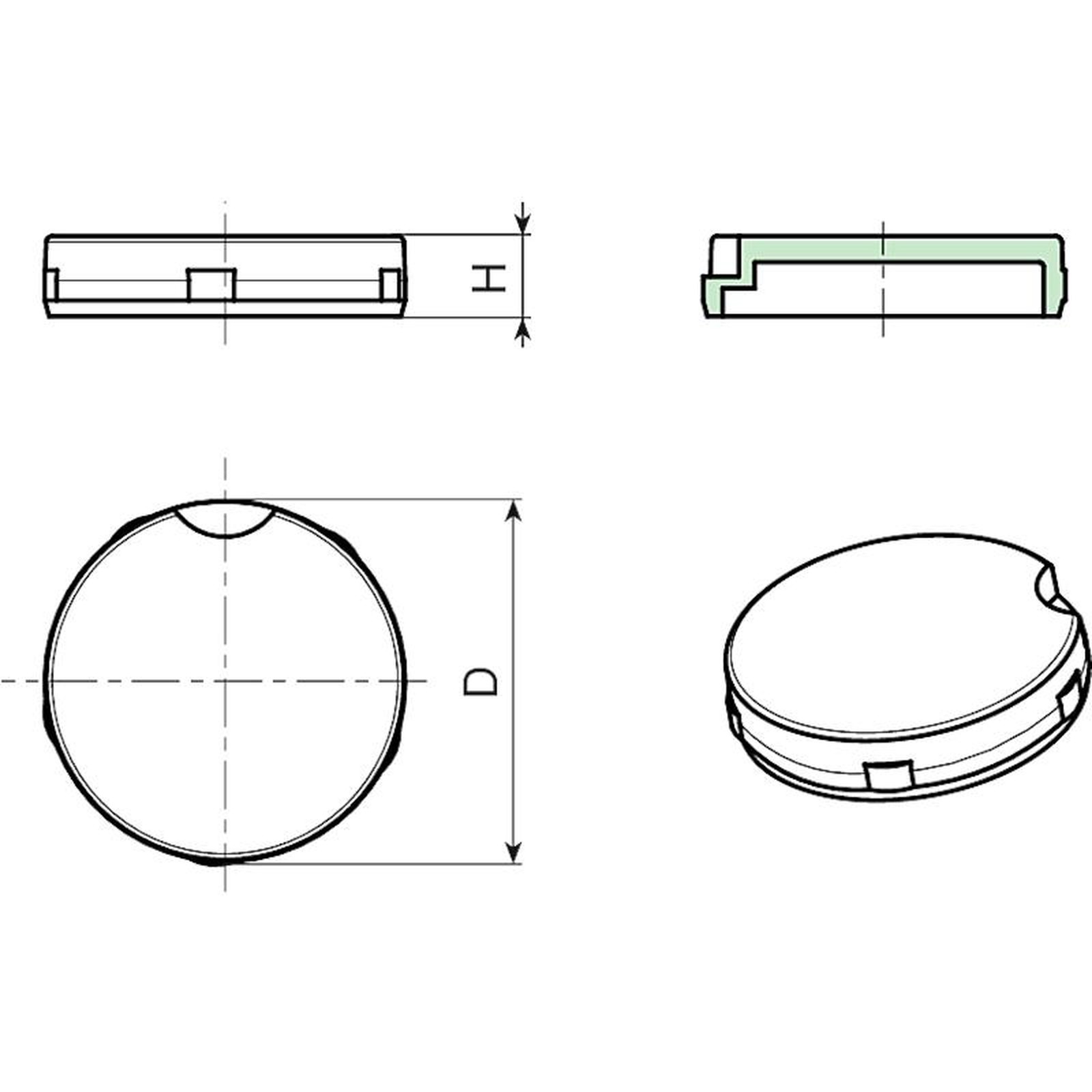

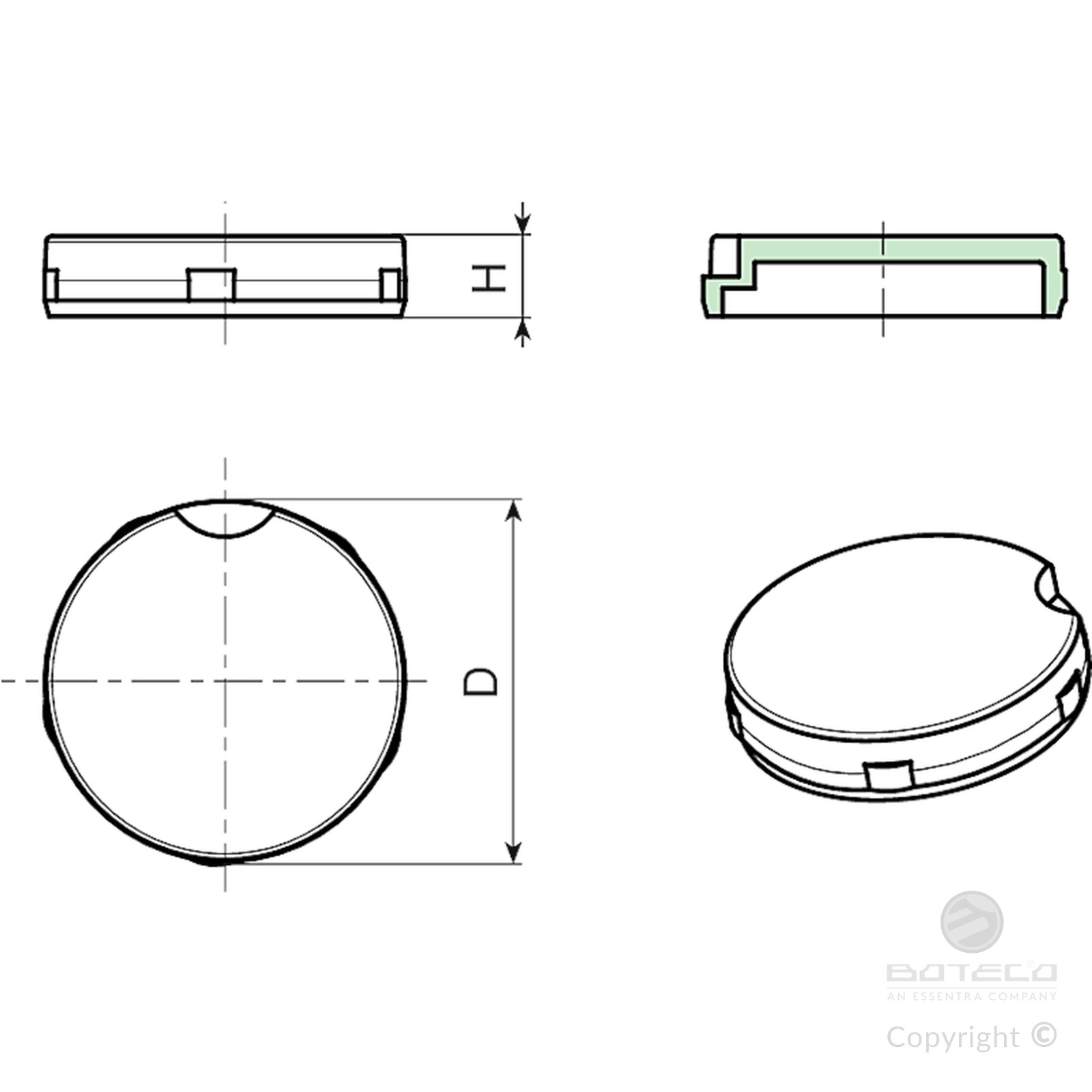

Data sheet

Version: 01 - Black RAL 9011

Code art. D H Weight (g)
COP.D16H401 COP.D16H401 16 4 0,2
COP.D18H401 COP.D18H401 18 4 1

Version: 02 - Orange RAL 2004

Code art. D H Weight (g)
COP.D16H402 COP.D16H402 16 4 0,2
COP.D18H402 COP.D18H402 18 4 1

Version: 07 - Blue RAL 5015

Code art. D H Weight (g)
COP.D16H407 COP.D16H407 16 4 0,2
COP.D18H407 COP.D18H407 18 4 1

Version: 10 - Yellow RAL 1021

Code art. D H Weight (g)
COP.D16H410 COP.D16H410 16 4 0,2
COP.D18H410 COP.D18H410 18 4 1

Version: 13 - Grey RAL 7035

Code art. D H Weight (g)
COP.D16H413 COP.D16H413 16 4 0,2
COP.D18H413 COP.D18H413 18 4 1

Version: 16 - Red RAL 3000

Code art. D H Weight (g)
COP.D16H416 COP.D16H416 16 4 0,2
COP.D18H416 COP.D18H416 18 4 1

Version: 17 - Green RAL 6024

Code art. D H Weight (g)
COP.D16H417 COP.D16H417 16 4 0,2
COP.D18H417 COP.D18H417 18 4 1
