GEWINDESTIFT AUS STAHL MIT INNENSECHSKANT UND ABGEFLACHTER SOWIE GERÄNDELTER KUGELSPITZE

21

W852


Grano di pressione e sfera/sfera spianata

Material:

Gewindestift aus vergütetem Stahl der Festigkeitsklasse 10.9.

Oberfläche:

Glatt.

Farbe:

Spitze:

Natur

Gewindestift:

Brüniert.

Kugel:

Abgeflachte, gerändelte, gehärtete Kugel aus Edelstahl (AISI 420). Optimaler Anpassungswinkel zwischen 0° und 9°. Kugel nicht fest und deshalb frei neigbar.

Weitere Möglichkeiten:

Keine.

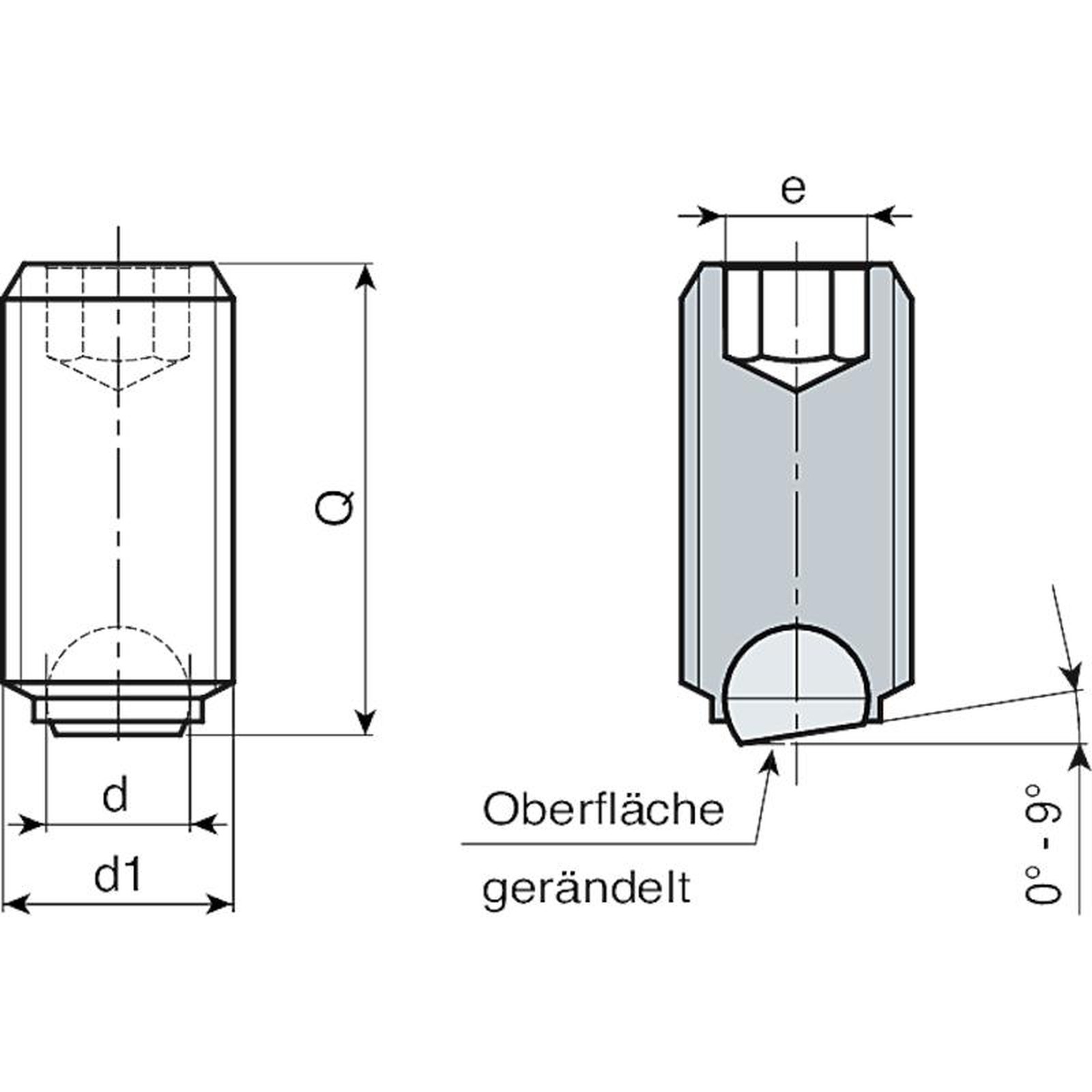

Datenblatt
Code Art. d1 6g e d Q Gewicht (g)
W852.0001 W852.SBM10X12 M10 5 7 12 5
W852.0002 W852.SBM10X16 M10 5 7 16 7
W852.0003 W852.SBM10X20 M10 5 7 20 9
W852.0004 W852.SBM10X25 M10 5 7 25 11
W852.0005 W852.SBM10X35 M10 5 7 35 16
W852.0006 W852.SBM12X16 M12 6 8.5 16 10
W852.0007 W852.SBM12X20 M12 6 8.5 20 12,5
W852.0008 W852.SBM12X30 M12 6 8.5 30 20
W852.0009 W852.SBM12X40 M12 6 8.5 40 28,5
W852.0010 W852.SBM16X20 M16 8 12 20 22
W852.0011 W852.SBM16X25 M16 8 12 25 28
W852.0012 W852.SBM16X35 M16 8 12 35 41
W852.0013 W852.SBM16X50 M16 8 12 50 48
