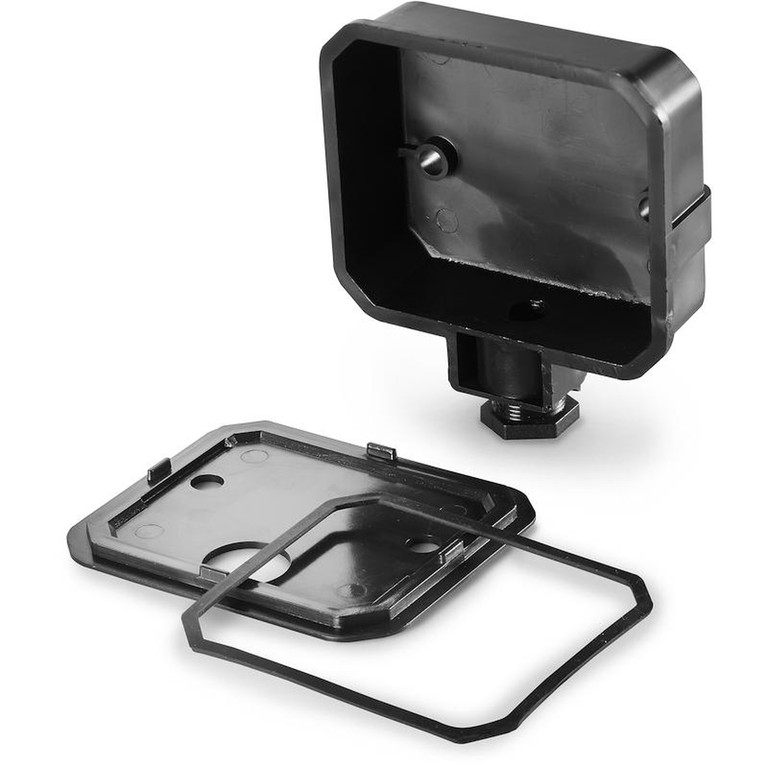

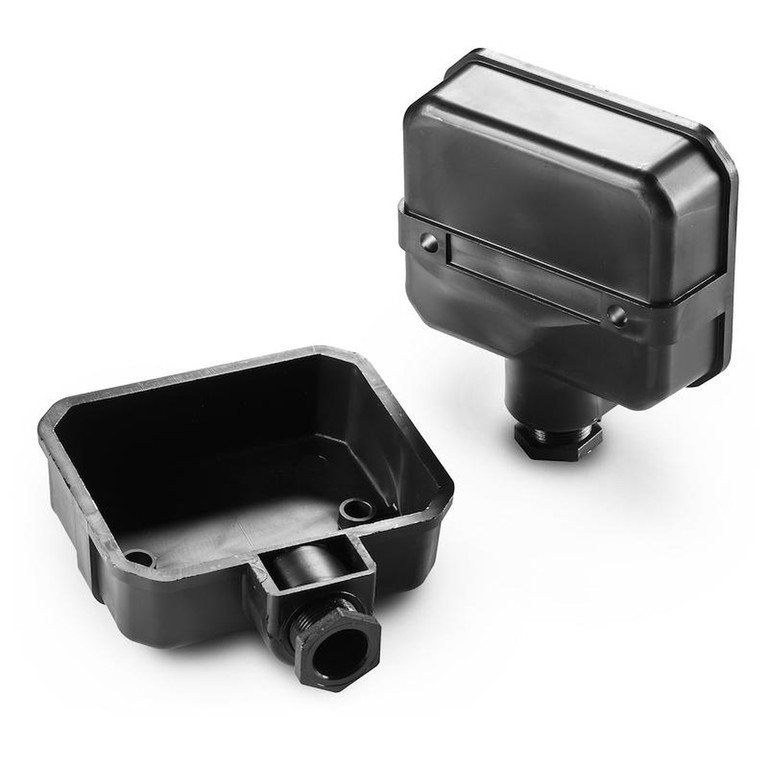

GEHÄUSE FÜR KLEMMENBLOCK MIT DICHTUNG UND KABELDURCHFÜHRUNG PG16
20
R535
Morsettiere e coperchi
Material:
(1-2-4) Polistirolo antiurto.
(3-5) Thermoplastischer Kunststoff 75 Shore.
Oberfläche:
Glatt.
Farbe:
Schwarz (RAL 9011).
Weitere Möglichkeiten:
Keine.
Kompatibles Zubehör:
Klemmenblock R530.
Klemmenblock R534.

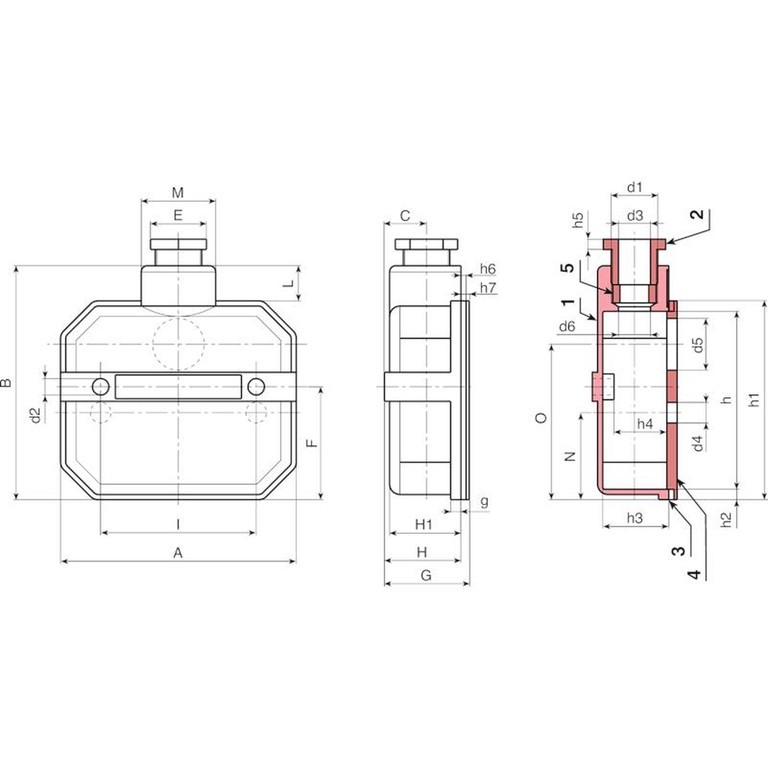

Code | Art. | A | B | C | E | F | G | H | H1 | I | L | M | N | O | d1 | d2 | d3 | d4 | d5 | d6 | g | h | h1 | h2 | h3 | h4 | h5 | h6 | h7 | Gewicht (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R535114.0001 | R535114.P01 | 114 | 114 | 20,5 | 27 | 53,5 | 41,5 | 37 | 35 | 75 | 18 | 35,5 | 42 | 75 | PG16 | 7,5 | 17,5 | 9 | 25 | 16 | 5 | 86 | 96 | 5 | 32,5 | 25 | 5 | 2,5 | 4 | 115 |
