KABELVERRIEGELUNG
19
S599
Accessori vari per saldatrici
Material:
Polyamid glasfaserverstärkt (PA6+GF).
Öl- und fettbeständig.
Oberfläche:
Matt.
Farbe:
Schwarz (RAL 9011).
Loch:
Durchgangsbohrung, die durch Formung im Kunststoff hergestellt wird.
Weitere Möglichkeiten:
Keine.

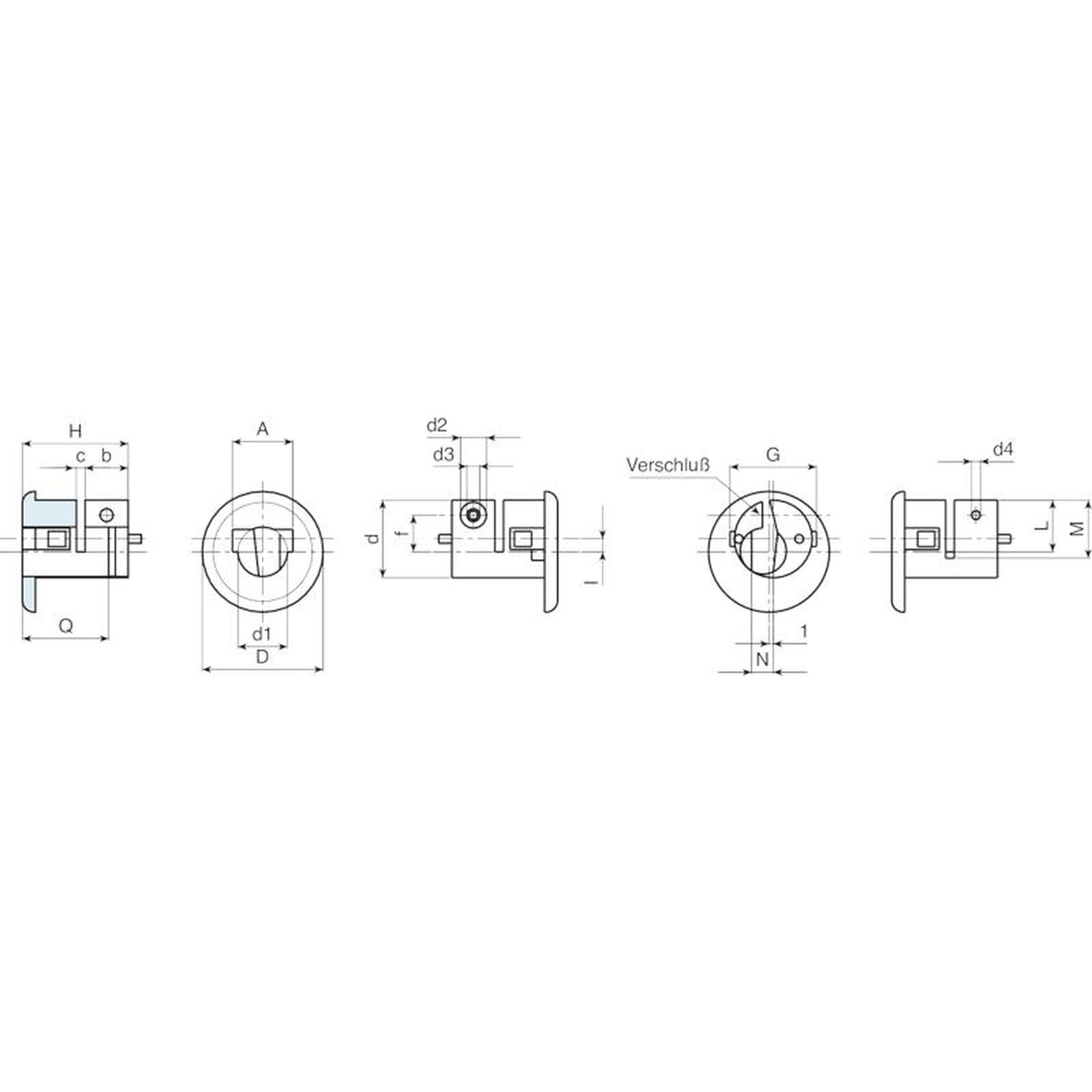

Code | Art. | D | H | d | d1 | d2 | d3 | d4 | A | b | c | f | G | I | L | M | N | Q | Gewicht (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
S59928.0001 | S59928.T01 | 28 | 25 | 18 | 11.5 | 6 | 3 | 2 | 14 | 10 | 2 | 8.5 | 20 | 3 | 12 | 15 | 5 | 13 | 65 |
