FLACHSCHARNIERE MIT GEWINDEBUCHSE
15
O430

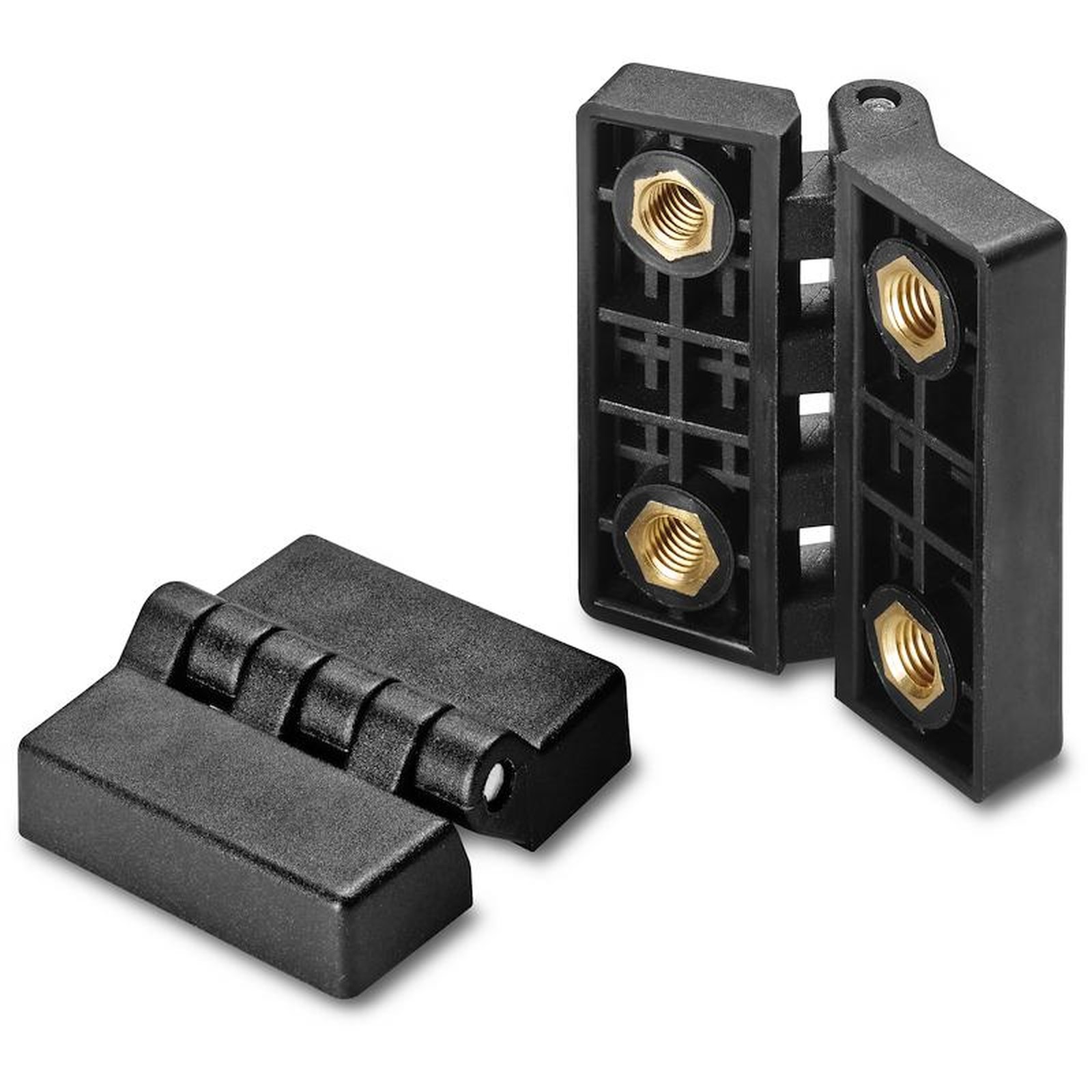

Cerniere in plastica con inserti filettati
Material:
Polyamid glasfaserverstärkt (PA6+GF).
Öl- und fettbeständig.
Oberfläche:
Matt.
Farbe:
Schwarz (RAL 9011).
Einsatz:
Stift aus verzinktem Stahl.
Gewindebuchse aus Messing (Gewindetoleranz 6H).
Weitere Möglichkeiten:
Kundenspezifische Materialien der Einsätze.
Individuelle Farben möglich, siehe Farbtabelle.

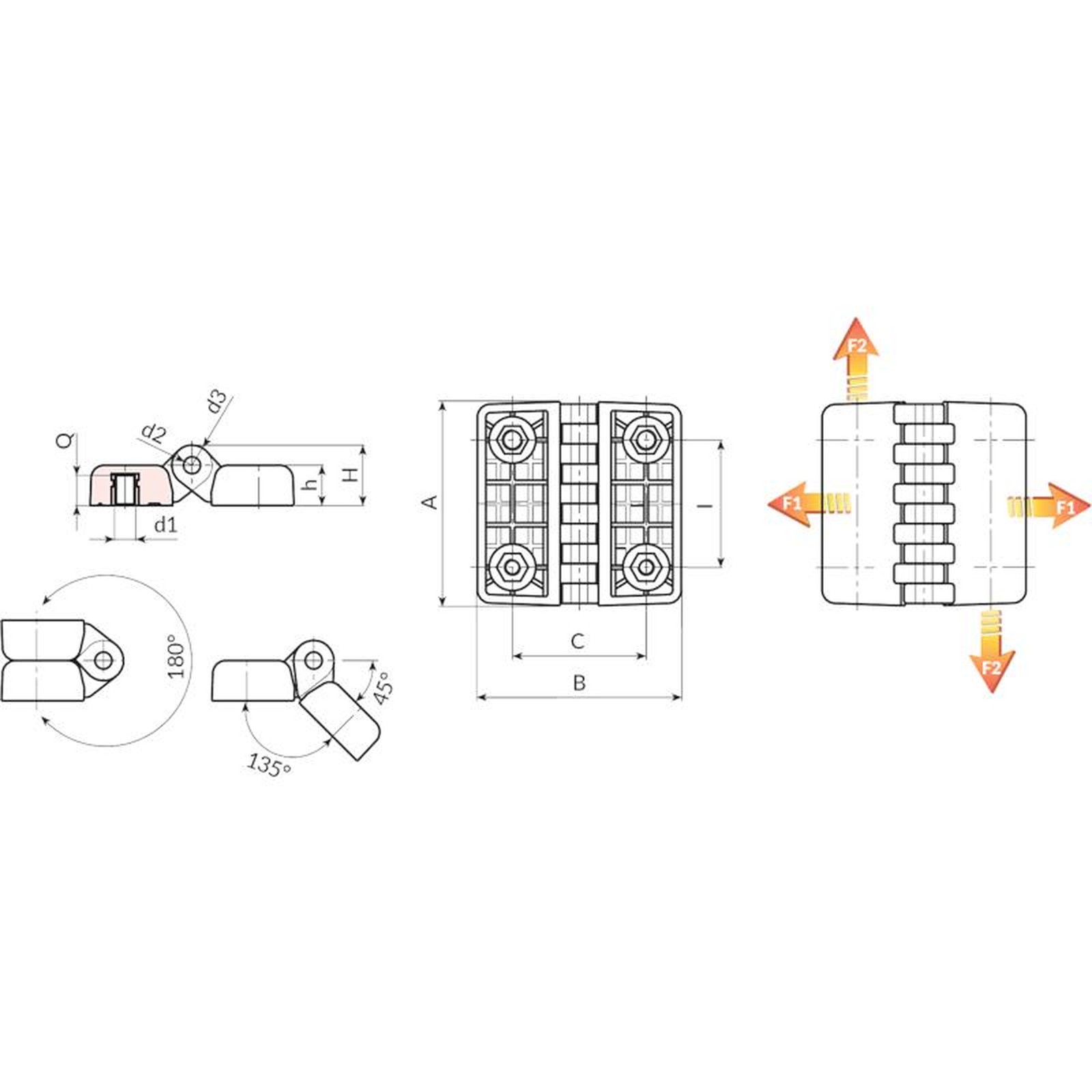

Code | Art. | I | C | A | B | h | H | d2 | d3 | d1 6H | Q | Gewicht (g) | F1 (N) | F2 (N) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
O43030.0001 | O43030.TM0501 | 30 | 30 | 48 | 48 | 10.5 | 15.5 | 5 | 10 | M5 | 7 | 35 | 2000 | 1370 |
O43030.0002 | O43030.TM0601 | 30 | 30 | 48 | 48 | 10.5 | 15.5 | 5 | 10 | M6 | 7 | 35 | 2000 | 1370 |
O43040.0001 | O43040.TM0601 | 40 | 40 | 64 | 64 | 13 | 19 | 5 | 12 | M6 | 8,5 | 67 | 4100 | 1800 |
O43040.0004 | O43040.TM0801 | 40 | 40 | 64 | 64 | 13 | 19 | 5 | 12 | M8 | 8,5 | 65 | 4100 | 1800 |
O43060.0001 | O43060.TM0801 | 60 | 63 | 96 | 96 | 19 | 28.5 | 8 | 19 | M8 | 14 | 220 | 2450 | 2650 |
O43060.0002 | O43060.TM1001 | 60 | 63 | 96 | 96 | 19 | 28.5 | 8 | 19 | M10 | 14 | 228 | 2450 | 2650 |
