METALLSCHARNIERE MIT DURCHGANGSLÖCHERN
15
O300
Cerniere in zama
Material:
Druckgegossene Zamaklegierung (Legierung aus Zink, Aluminium und Kupfer).
Oberfläche:
Glatt.
Farbe:
O300:
Schwarz elektrophoretisch lackiert.
O300 Z:
Standardmäßige Blauverzinkung.
Einsatz:
Drehstift aus Edelstahl (AISI 303).
Löcher:
Durchgangslöcher, durch Formung hergestellt. 90° Senkbohrung für Schrauben UNI 5933 - UNI 6109.
Weitere Möglichkeiten:
Keine.

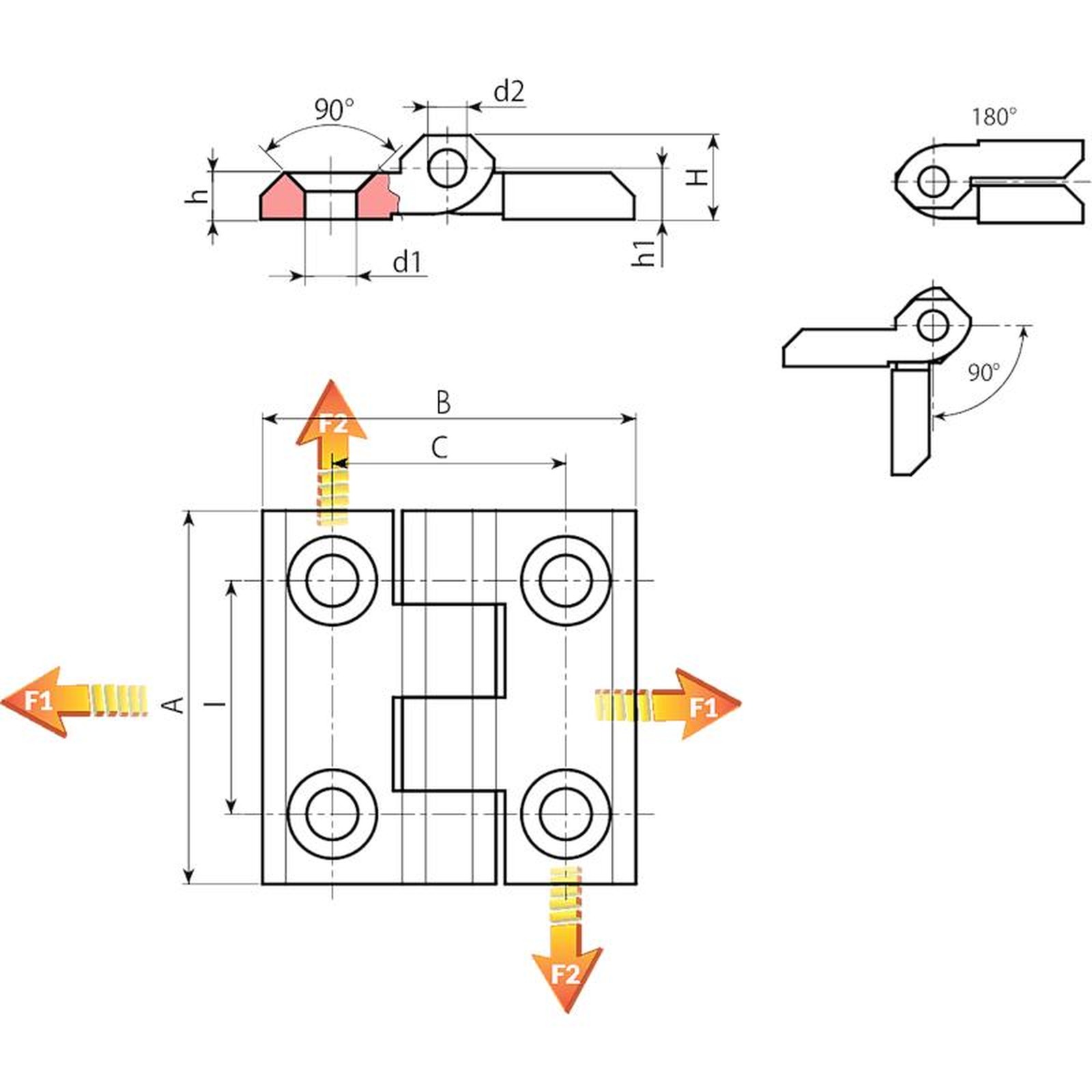

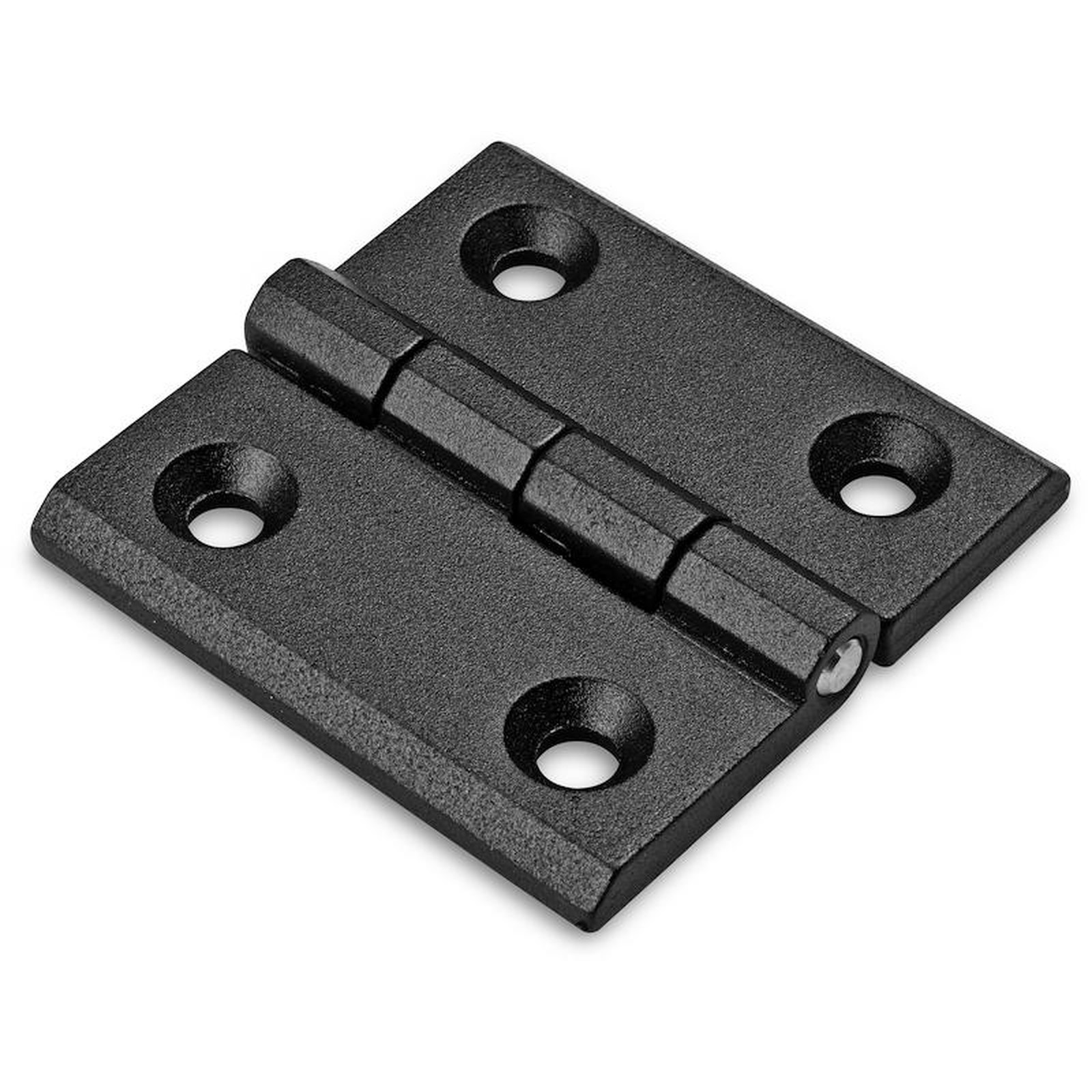

Ausführung O300: Scharnier aus Zamak, schwarz durch Kataphorese
Code | Art. | I | C | A | B | H | h | h1 | d2 | d1 | Gewicht (g) | F1 (N) | F2 (N) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
O30025.0002 | O30025.ZG5.501 | 25 | 25 | 40 | 40 | 10 | 5 | 5.5 | 4 | 5.5 | 45 | - | - |
O30030.0002 | O30030.ZG6.501 | 30 | 30 | 50 | 50 | 11,5 | 6 | 6 | 6 | 6,5 | 90 | 6230 | 1420 |
O30036.0002 | O30036.ZG6.501 | 36 | 36 | 60 | 60 | 15 | 8 | 9 | 6 | 6,5 | 115 | - | - |
O30036.0004 | O30036.ZG8.501 | 36 | 36 | 60 | 60 | 15 | 8 | 9 | 6 | 8,5 | 110 | - | - |
O30040.0001 | O30040.ZG6.501 | 40 | 40 | 64 | 64 | 11,5 | 6 | 6,5 | 6 | 6,5 | 115 | 4340 | 4200 |

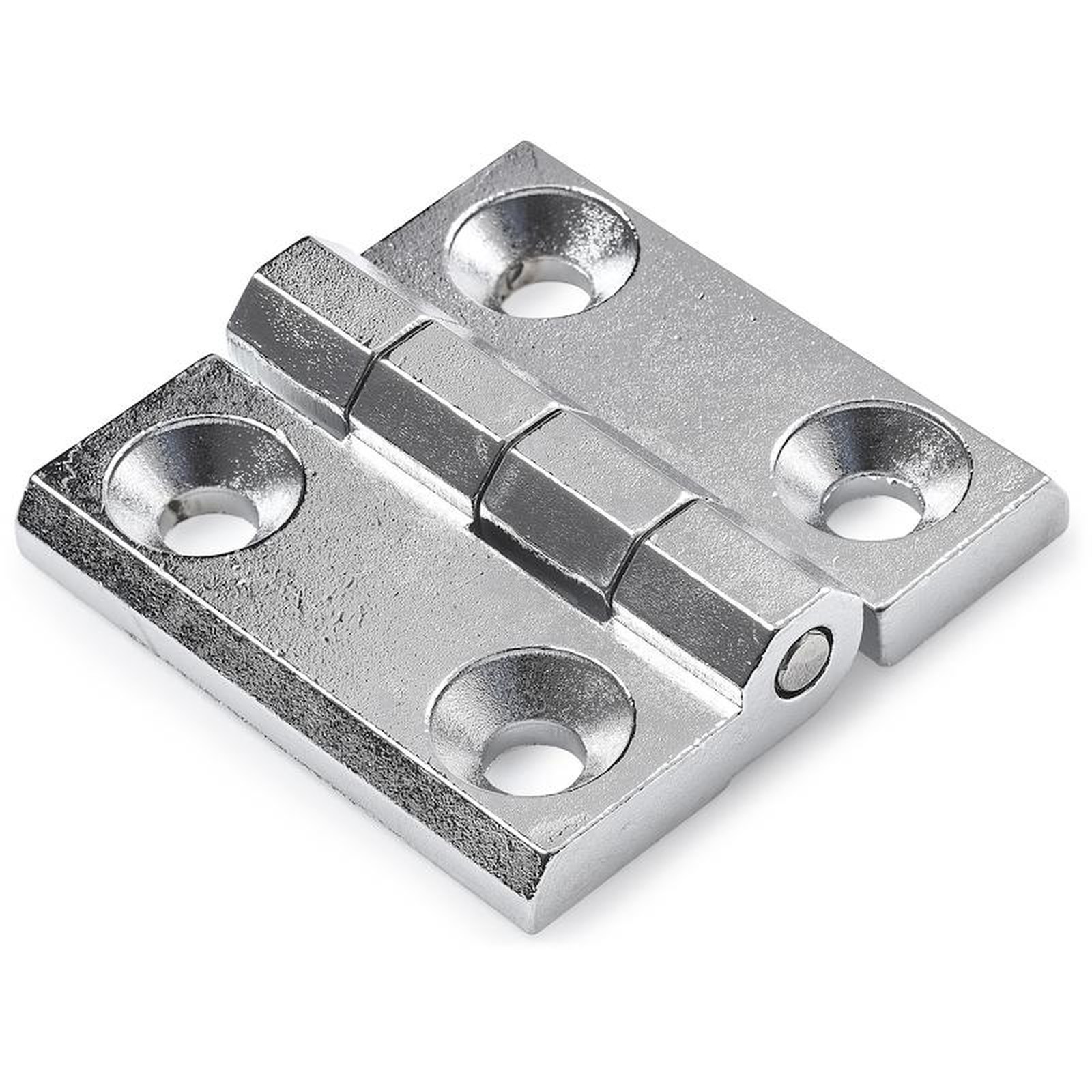

Ausführung O300Z: Scharnier aus verzinktem Zamak
Code | Art. | I | C | A | B | H | h | h1 | d2 | d1 | Gewicht (g) | F1 (N) | F2 (N) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
O30025.0004 | O30025.ZG5.5Z | 25 | 25 | 40 | 40 | 10 | 5 | 5,5 | 4 | 5,5 | 45 | - | - |
O30030.0004 | O30030.ZG6.5Z | 30 | 30 | 50 | 50 | 11,5 | 6 | 6 | 6 | 6,5 | 90 | 6230 | 1420 |
O30036.0003 | O30036.ZG6.5Z | 36 | 36 | 60 | 60 | 15 | 8 | 9 | 6 | 6,5 | 120 | - | - |
O30036.0006 | O30036.ZG8.5Z | 36 | 36 | 60 | 60 | 15 | 8 | 9 | 6 | 8,5 | 112 | - | - |
O30040.0002 | O30040.ZG6.5Z | 40 | 40 | 64 | 64 | 11,5 | 6 | 6,5 | 6 | 6,5 | 115 | 4340 | 4200 |
