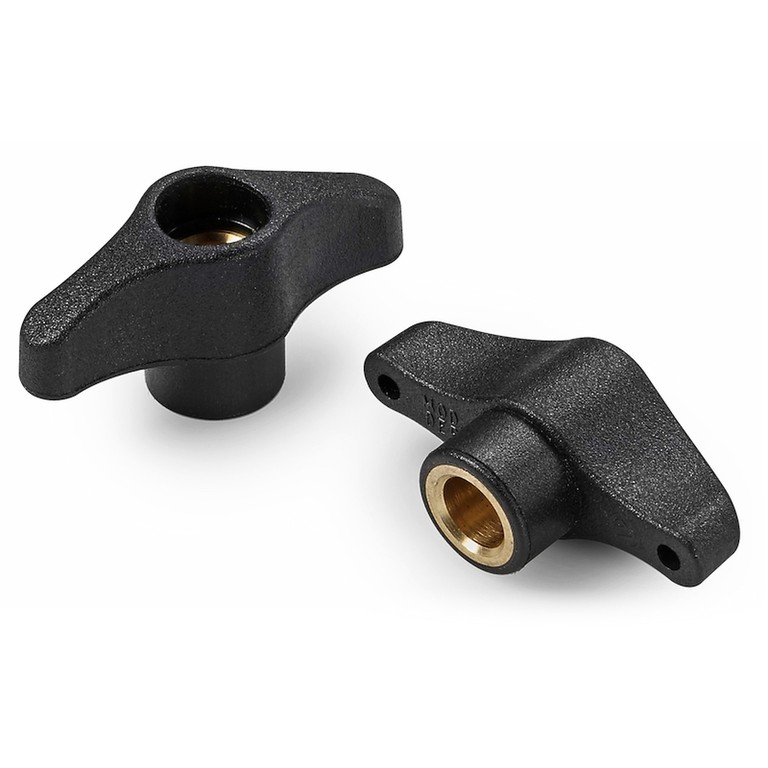

“EUROMODEL” VINGEMØTRIK MED GLAT GENNEMGÅENDE HULBØSNING UDEN PROP
12
L808
Galletti Euromodel
Materialer:
Forstærket polyamid.
Olie- og fedtbestandig.
Overflade:
Satineret.
Farve:
Sort (RAL 9011).
Indsatser:
L808:
Bøsning med gennemgående glat hul af messing (hultolerance H9).
L808PIN:
Bøsning med gennemgående glat hul af rustfrit stål (AISI 303) (hultolerance H9).
Andre muligheder:
På forespørgsel og i funktion af antal kan indsatsene leveres i andre materialer.
Farver på forespørgsel og i funktion af antal (bemærk, begrænset udvalg) iht. farvetabel.







Version L808: standardindsats af messing.

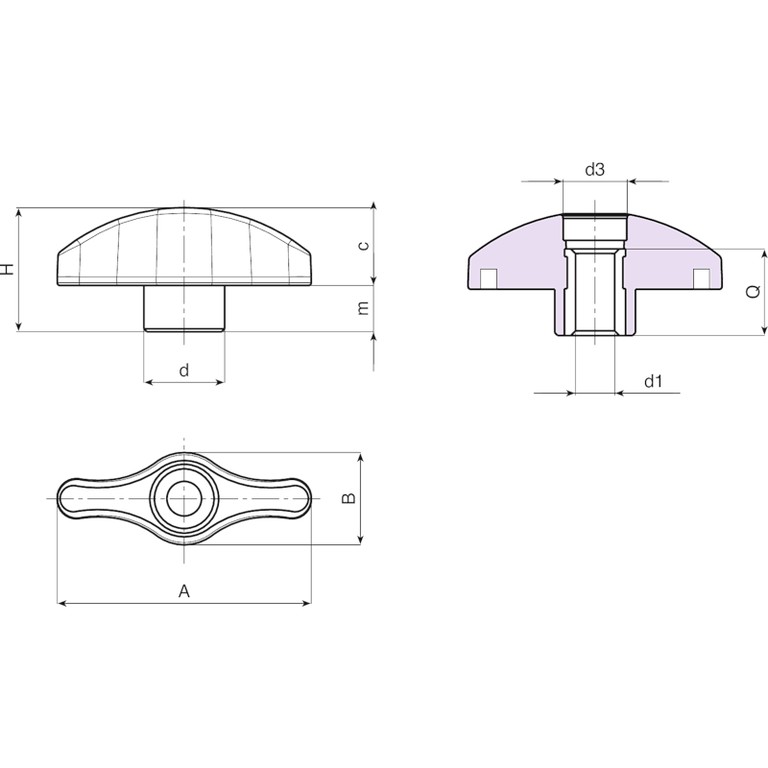

Kode | art. | A | B | H | m | c | d | d3 | d1 H9 | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|
L80844.0001 | L80844.TD0501 | 44 | 16 | 21.5 | 8 | 14 | 14 | 10 | 5 | 15 | 8 |
L80844.0002 | L80844.TD0601 | 44 | 16 | 21.5 | 8 | 14 | 14 | 10 | 6 | 15 | 8 |
L80844.0004 | L80844.TD0801 | 44 | 16 | 21.5 | 8 | 14 | 14 | 10 | 8 | 15 | 9 |
L80852.0005 | L80852.TD0501 | 52 | 19 | 25.5 | 9.5 | 16.5 | 17 | 13 | 5 | 18 | 13 |
L80852.0001 | L80852.TD0601 | 52 | 19 | 25.5 | 9.5 | 16.5 | 17 | 13 | 6 | 18 | 13 |
L80852.0002 | L80852.TD0801 | 52 | 19 | 25.5 | 9.5 | 16.5 | 17 | 13 | 8 | 18 | 14 |
L80852.0004 | L80852.TD1001 | 52 | 19 | 25.5 | 9.5 | 16.5 | 17 | 13 | 10 | 18 | 15 |
L80867.0001 | L80867.TD0601 | 67 | 24 | 32 | 11 | 21.5 | 21 | 16 | 6 | 18 | 24 |
L80867.0002 | L80867.TD0801 | 67 | 24 | 32 | 11 | 21.5 | 21 | 16 | 8 | 18 | 24 |
L80867.0003 | L80867.TD1001 | 67 | 24 | 32 | 11 | 21.5 | 21 | 16 | 10 | 18 | 25 |
L80867.0005 | L80867.TD1201 | 67 | 24 | 32 | 11 | 21.5 | 21 | 16 | 12 | 18 | 25 |
Version L808PIN: indsats af rustfrit stål (AISI 303).
Kode | art. | A | B | H | m | c | d | d3 | d1 H9 | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|
L80844.0003 | L80844.TD0601PIN | 44 | 16 | 21.5 | 8 | 14 | 14 | 10 | 6 | 15 | 8 |
L80852.0003 | L80852.TD0801PIN | 52 | 19 | 25.5 | 9.5 | 16.5 | 17 | 13 | 8 | 18 | 14 |
L80867.0004 | L80867.TD1001PIN | 67 | 24 | 32 | 11 | 21.5 | 21 | 16 | 10 | 18 | 25 |
