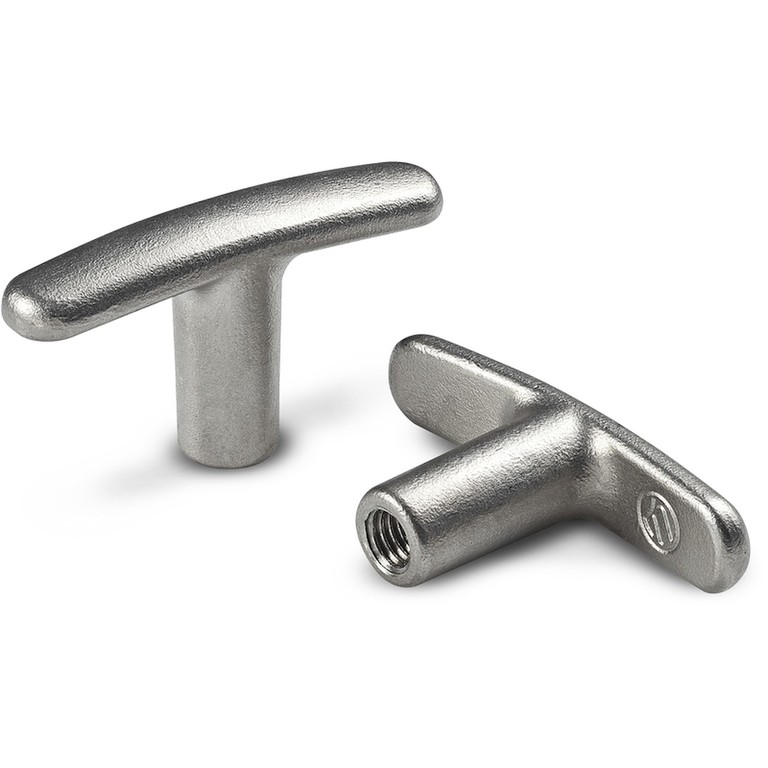

T-GREB AF HELSTØBT RUSTFRIT STÅL MED BLINDT GEVINDSKÅRET HUL
12
L274HIN
Tiranti in acciaio
Materialer:
Mikrostøbt rustfrit stål (AISI 304).
Overflade:
Satineret.
Farve:
Naturlig.
Hul:
Blindt gevindskåret hul, udført vha. efterfølgende bearbejdning, (gevindtolerance 6H).
Andre muligheder:
På forespørgsel og i funktion af antal kan hullet udføres efter tegning.
På forespørgsel og i funktion af antal kan T-grebet udføres i rustfrit stål (AISI 316).

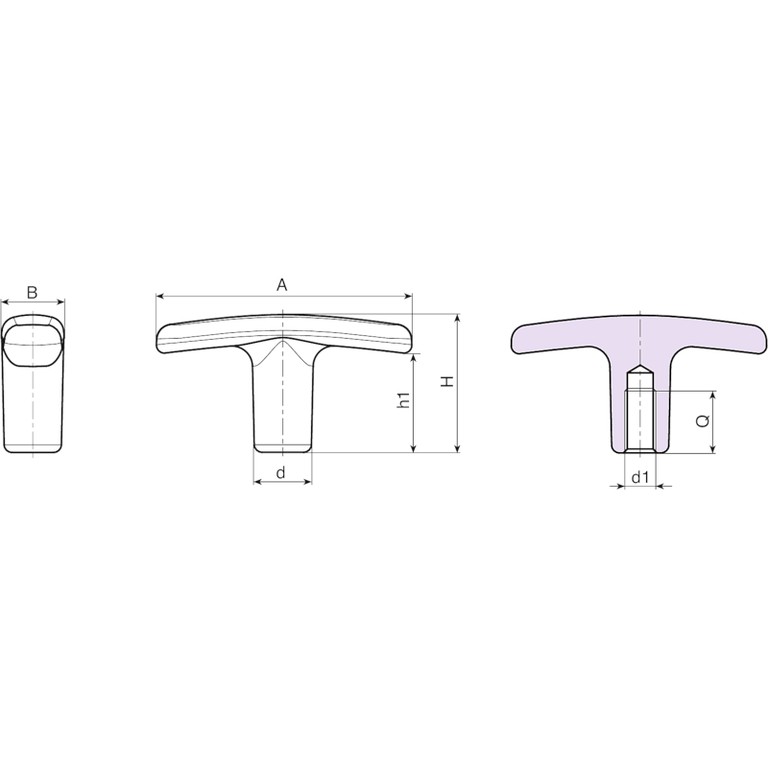

Kode | Art. | A | B | H | h1 | d | d1 6H | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|
L27450.0001 | L27450.HNM06HIN | 50 | 12 | 27 | 19 | 11 | M6 | 12 | -- |
L27460.0001 | L27460.HNM08HIN | 60 | 14 | 34 | 24 | 13 | M8 | 16 | -- |
L27472.0001 | L27472.HNM08HIN | 72 | 16 | 40 | 30 | 15 | M8 | 16 | -- |
L27472.0002 | L27472.HNM10HIN | 72 | 16 | 40 | 30 | 15 | M10 | 16 | -- |
