BREDT FLADT OVALT HÅNDTAG AF ALUMINIUM
02
B405
Maniglie in metallo
Materialer:
Håndtag i aluminiumslegering 6060.
Overflade:
Sandblæst satinering.
Farve:
Version B405-01:
Sort anodiseret.
Version B405-99:
Naturlig anodiseret sølv.
Andre muligheder:
Ingen.
B405 - Anodiseret sort version - kod. 01

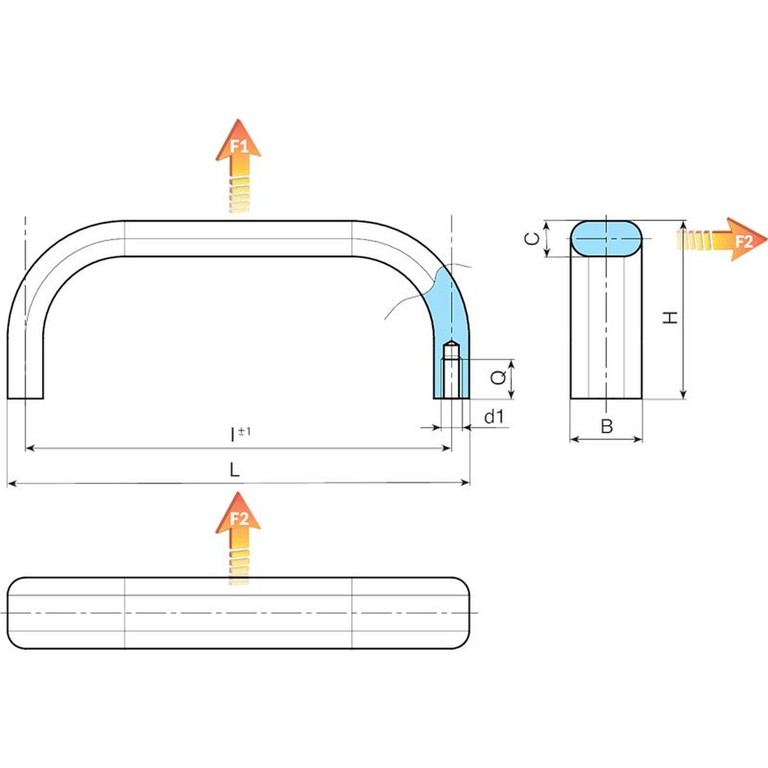

| Kode | art. | L | I ±1 | H | B | C | Q | d1 | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B405120.0001 | B405120.A20M0501 | 130 | 120 | 45 | 20 | 10 | 10 | M5 | 85 | 500 | 500 |
| B405180.0001 | B405180.A20M0501 | 190 | 180 | 45 | 20 | 10 | 10 | M5 | 100 | 500 | 500 |
| B405200.0001 | B405200.A20M0501 | 210 | 200 | 45 | 20 | 10 | 10 | M5 | 120 | 500 | 500 |
| B405350.0001 | B405350.A20M0601 | 360 | 350 | 45 | 20 | 10 | 12 | M6 | 190 | 500 | 500 |
B405 - Naturlig sølvfarvet version - kod. 99
| Kode | art. | L | I ±1 | H | B | C | Q | d1 | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B405120.0002 | B405120.A20M0599 | 130 | 120 | 45 | 20 | 10 | 10 | M5 | 85 | 500 | 500 |
| B405180.0002 | B405180.A20M0599 | 190 | 180 | 45 | 20 | 10 | 10 | M5 | 100 | 500 | 500 |
| B405200.0002 | B405200.A20M0599 | 210 | 200 | 45 | 20 | 10 | 10 | M5 | 120 | 500 | 500 |
| B405350.0002 | B405350.A20M0699 | 360 | 350 | 45 | 20 | 10 | 12 | M6 | 190 | 500 | 500 |
