Y705
DIN 705 - PIERŚCIEŃ ZAMYKAJĄCY ZE STALI Z KOŁKIEM USTALAJĄCYM DIN 553 ZE STALI
Pierścienie zaciskowe
Materiały:
Y705:
Stal standardowa.
Y705PIN:
Stal inox (AISI 303).
Powierzchnia:
Gładka, toczona.
Kolor:
Y705:
Oksydowanie.
Y705PIN:
Naturalny.
Kołek ustalający:
Kołek ustalający z nacięciem na śrubokręt DIN 553.
Uwaga:

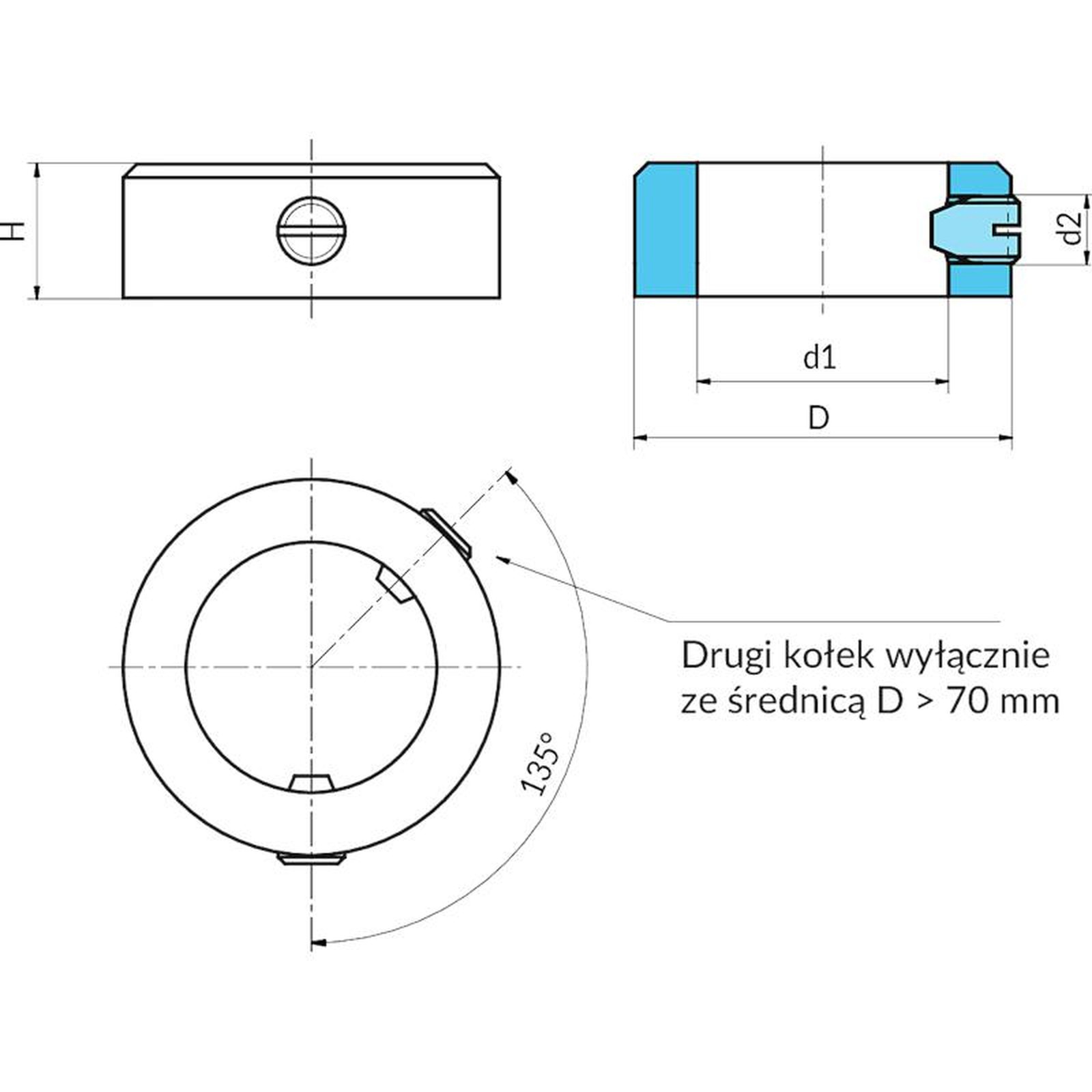

Drugi kołek jest dostarczany począwszy od średnicy D=>70 mm.
Wykonanie na specjalne zamówienie:
Nie uwzględnia się.
Wersja Y705: ze stali oksydowanej
| Kod | Art. | D h13 | H js14 | d2 | d1 H8 | Waga (g) |
|---|---|---|---|---|---|---|
| Y705007.0002 | Y705007.VBD003 | 7 | 5 | M2 | 3 | 1,2 |
| Y705008.0002 | Y705008.VBD004 | 8 | 5 | M2.5 | 4 | 1,4 |
| Y705010.0002 | Y705010.VBD005 | 10 | 6 | M3 | 5 | 2,7 |
| Y705012.0003 | Y705012.VBD006 | 12 | 8 | M4 | 6 | 5 |
| Y705012.0004 | Y705012.VBD007 | 12 | 8 | M4 | 7 | 5 |
| Y705016.0002 | Y705016.VBD008 | 16 | 8 | M4 | 8 | 9 |
| Y705018.0002 | Y705018.VBD009 | 18 | 10 | M5 | 9 | 14,5 |
| Y705020.0003 | Y705020.VBD010 | 20 | 10 | M5 | 10 | 18 |
| Y705020.0004 | Y705020.VBD011 | 20 | 10 | M5 | 11 | 16,5 |
| Y705022.0002 | Y705022.VBD012 | 22 | 12 | M6 | 12 | 24 |
| Y705025.0003 | Y705025.VBD014 | 25 | 12 | M6 | 14 | 30,5 |
| Y705025.0004 | Y705025.VBD015 | 25 | 12 | M6 | 15 | 28 |
| Y705028.0002 | Y705028.VBD016 | 28 | 12 | M6 | 16 | 37 |
| Y705032.0003 | Y705032.VBD018 | 32 | 14 | M6 | 18 | 58 |
| Y705032.0004 | Y705032.VBD020 | 32 | 14 | M6 | 20 | 52 |
| Y705040.0004 | Y705040.VBD024 | 40 | 16 | M8 | 24 | 98 |
| Y705040.0005 | Y705040.VBD025 | 40 | 16 | M8 | 25 | 94 |
| Y705040.0006 | Y705040.VBD026 | 40 | 16 | M8 | 26 | 86,5 |
| Y705045.0003 | Y705045.VBD028 | 45 | 16 | M8 | 28 | 120 |
| Y705045.0004 | Y705045.VBD030 | 45 | 16 | M8 | 30 | 107 |
| Y705050.0002 | Y705050.VBD032 | 50 | 16 | M8 | 32 | 142 |
| Y706056.0004 | Y706056.VBD035 | 56 | 16 | M8 | 35 | 184 |
| Y705056.0005 | Y705056.VBD036 | 56 | 16 | M8 | 36 | 177 |
| Y705056.0006 | Y705056.VBD038 | 56 | 16 | M8 | 38 | 163 |
| Y705063.0003 | Y705063.VBD040 | 63 | 18 | M10 | 40 | 256 |
| Y705063.0004 | Y705063.VBD042 | 63 | 18 | M10 | 42 | 240 |
| Y705070.0003 | Y705070.VBD045 | 70 | 18 | M10 | 45 | 313 |
| Y705070.0004 | Y705070.VBD048 | 70 | 18 | M10 | 48 | 313 |
| Y705080.0005 | Y705080.VBD050 | 80 | 18 | M10 | 50 | 424 |
| Y705080.0006 | Y705080.VBD052 | 80 | 18 | M10 | 52 | 401 |
| Y705080.0007 | Y705080.VBD055 | 80 | 18 | M10 | 55 | 367 |
| Y705080.0008 | Y705080.VBD056 | 80 | 18 | M10 | 56 | 362 |
| Y705090.0004 | Y705090.VBD058 | 90 | 20 | M10 | 58 | 572 |
| Y705090.0005 | Y705090.VBD060 | 90 | 20 | M10 | 60 | 555 |
| Y705090.0006 | Y705090.VBD063 | 90 | 20 | M10 | 63 | 498 |
| Y705100.0004 | Y705100.VBD065 | 100 | 20 | M10 | 65 | 702 |
| Y705100.0005 | Y705100.VBD068 | 100 | 20 | M10 | 68 | 702 |
| Y705100.0006 | Y705100.VBD070 | 100 | 20 | M10 | 70 | 615 |
| Y705110.0004 | Y705110.VBD072 | 110 | 22 | M12 | 72 | 938 |
| Y705110.0005 | Y705110.VBD075 | 110 | 22 | M12 | 75 | 878 |
| Y705110.0006 | Y705110.VBD080 | 110 | 22 | M12 | 80 | 773 |
| Y705125.0003 | Y705125.VBD085 | 125 | 22 | M12 | 85 | 1139 |
| Y705125.0004 | Y705125.VBD090 | 125 | 22 | M12 | 90 | 1021 |
| Y705140.0002 | Y705140.VBD100 | 140 | 25 | M12 | 100 | 1480 |
Wersja Y705 PIN - ze stali inox (AISI 303)
| Kod | Art. | D h13 | H js14 | d2 | d1 H8 | Waga (g) |
|---|---|---|---|---|---|---|
| Y705007.0001 | Y705007.IND003PIN | 7 | 5 | M2 | 3 | 1,2 |
| Y705008.0001 | Y705008.IND004PIN | 8 | 5 | M2,5 | 4 | 1,4 |
| Y705010.0001 | Y705010.IND005PIN | 10 | 6 | M3 | 5 | 2,7 |
| Y705012.0001 | Y705012.IND006PIN | 12 | 8 | M4 | 6 | 5 |
| Y705012.0002 | Y705012.IND007PIN | 12 | 8 | M4 | 7 | 5 |
| Y705016.0001 | Y705016.IND008PIN | 16 | 8 | M4 | 8 | 9 |
| Y705018.0001 | Y705018.IND009PIN | 18 | 10 | M5 | 9 | 14,5 |
| Y705020.0001 | Y705020.IND010PIN | 20 | 10 | M5 | 10 | 18 |
| Y705020.0002 | Y705020.IND011PIN | 20 | 10 | M5 | 11 | 16,5 |
| Y705022.0001 | Y705022.IND012PIN | 22 | 12 | M6 | 12 | 24 |
| Y705025.0001 | Y705025.IND014PIN | 25 | 12 | M6 | 14 | 30,5 |
| Y705025.0002 | Y705025.IND015PIN | 25 | 12 | M6 | 15 | 28 |
| Y705028.0001 | Y705028.IND016PIN | 28 | 12 | M6 | 16 | 37 |
| Y705032.0001 | Y705032.IND018PIN | 32 | 14 | M6 | 18 | 58 |
| Y705032.0002 | Y705032.IND020PIN | 32 | 14 | M6 | 20 | 52 |
| Y705040.0001 | Y705040.IND024PIN | 40 | 16 | M8 | 24 | 98 |
| Y705040.0002 | Y705040.IND025PIN | 40 | 16 | M8 | 25 | 94 |
| Y705040.0003 | Y705040.IND026PIN | 40 | 16 | M8 | 26 | 86,5 |
| Y705045.0001 | Y705045.IND028PIN | 45 | 16 | M8 | 28 | 120 |
| Y705045.0002 | Y705045.IND030PIN | 45 | 16 | M8 | 30 | 107 |
| Y705050.0001 | Y705050.IND032PIN | 50 | 16 | M8 | 32 | 142 |
| Y705056.0001 | Y705056.IND035PIN | 56 | 16 | M8 | 35 | 184 |
| Y705056.0002 | Y705056.IND036PIN | 56 | 16 | M8 | 36 | 177 |
| Y705056.0003 | Y705056.IND038PIN | 56 | 16 | M8 | 38 | 163 |
| Y705063.0001 | Y705063.IND040PIN | 63 | 18 | M10 | 40 | 256 |
| Y705063.0002 | Y705063.IND042PIN | 63 | 18 | M10 | 42 | 240 |
| Y705070.0001 | Y705070.IND045PIN | 70 | 18 | M10 | 45 | 313 |
| Y705070.0002 | Y705070.IND048PIN | 70 | 18 | M10 | 48 | 313 |
| Y705080.0001 | Y705080.IND050PIN | 80 | 18 | M10 | 50 | 424 |
| Y705080.0002 | Y705080.IND052PIN | 80 | 18 | M10 | 52 | 401 |
| Y705080.0003 | Y705080.IND055PIN | 80 | 18 | M10 | 55 | 367 |
| Y705080.0004 | Y705080.IND056PIN | 80 | 18 | M10 | 56 | 362 |
| Y705090.0001 | Y705090.IND058PIN | 90 | 20 | M10 | 58 | 572 |
| Y705090.0002 | Y705090.IND060PIN | 90 | 20 | M10 | 60 | 555 |
| Y705090.0003 | Y705090.IND063PIN | 90 | 20 | M10 | 63 | 498 |
| Y705100.0001 | Y705100.IND065PIN | 100 | 20 | M10 | 65 | 702 |
| Y705100.0002 | Y705100.IND068PIN | 100 | 20 | M10 | 68 | 702 |
| Y705100.0003 | Y705100.IND070PIN | 100 | 20 | M10 | 70 | 615 |
| Y705110.0001 | Y705110.IND072PIN | 110 | 22 | M12 | 72 | 938 |
| Y705110.0002 | Y705110.IND075PIN | 110 | 22 | M12 | 75 | 878 |
| Y705110.0003 | Y705110.IND080PIN | 110 | 22 | M12 | 80 | 773 |
| Y705125.0001 | Y705125.IND085PIN | 125 | 22 | M12 | 85 | 1139 |
| Y705125.0002 | Y705125.IND090PIN | 125 | 22 | M12 | 90 | 1021 |
| Y705140.0001 | Y705140.IND100PIN | 140 | 25 | M12 | 100 | 1480 |
