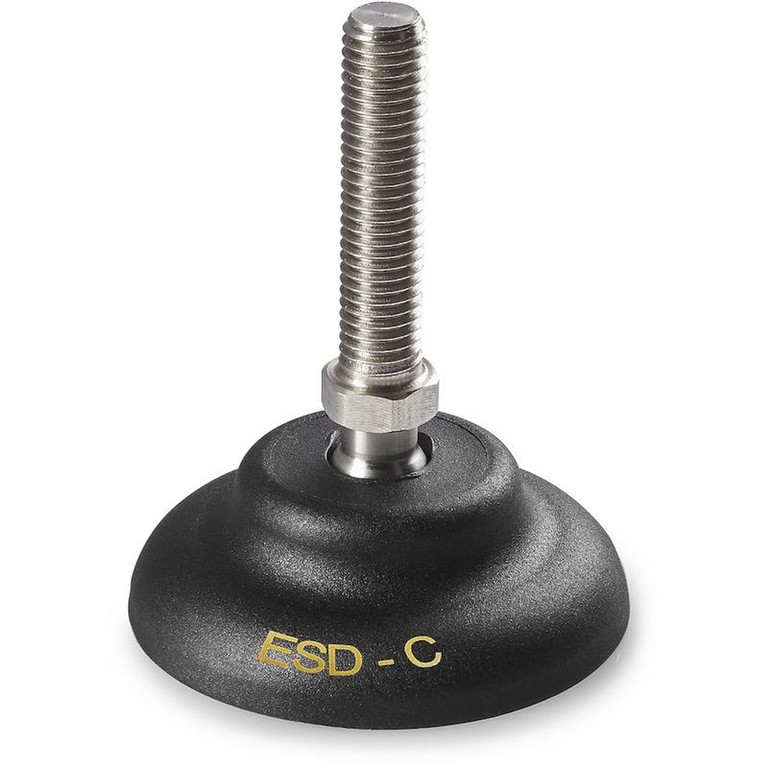

P900ESD
KLEINE STELVOET - IN ESD-MATERIAAL - MET STALEN ZWENKBAAR DRAADEIND TYPE A EN KOGEL 12.4
Plastic stelvoeten - zwenkbaar
Beschrijving
Opmerkingen: Dit artikel is vervaardigd in materiaal met ESD-C (Electro Static Discharge - Conductive) additief in overeenstemming met de EN IEC 61340-5-1 norm. Het product is geleidend en voorkomt de vorming van elektrostatische ontladingen door de ontlading naar de aarde te vergemakkelijken. Het gele ESD-C-opschrift helpt bij de identificatie van het product. Product geschikt voor productielijnen met elektronisch materiaal en voor gebruik in explosieve omgevingen.
Materiaal:
Versterkte polyamide, met geleidende additieven (ESD-C).
Bestand tegen oliën en vetten.
Oppervlak:
Gesatineerd.
Kleur:
Zwart(RAL 9011).
Inzetstuk:
P900ESD:
Zwenkbaar draadeind (kogel 12,4) met zeskantbasis in verzinkt staal (schroefdraad tolerantie 6g).
P900CINESD:
Zwenkbaar draadeind (kogel 12,4) met zeskantbasis in RVS (AISI 303) (schroefdraad tolerantie 6g).
Speciale verzoeken:
Op aanvraag en voor grote hoeveelheden zijn de inzetstukken leverbaar met gepersonaliseerde lengte.
Versie P900ESD: Stelvoet met draadeind type A (met zeskantbasis) en kogel 12.4

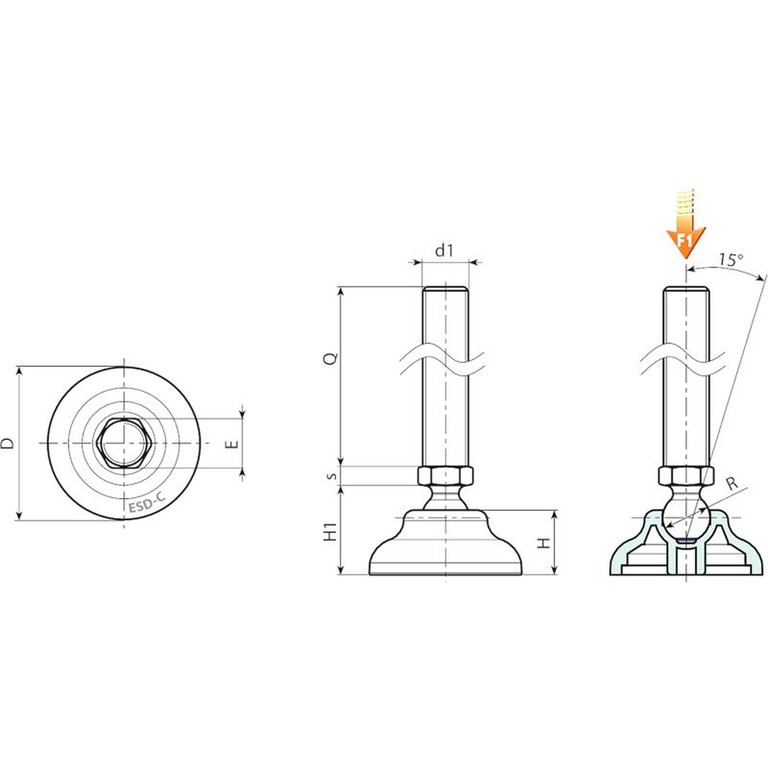

| Code | Art. | D | H | H1 | E | s | R | d1 6g | Q | Gewicht (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P90040.0027 | P90040.TM08X4501ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M8 | 45 | 40 | 10 |
| P90040.0028 | P90040.TM08X7001ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M8 | 70 | 47 | 10 |
| P90040.0029 | P90040.TM10X4501ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M10 | 45 | 48 | 10 |
| P90040.0030 | P90040.TM10X7001ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M10 | 70 | 60 | 10 |
| P90040.0031 | P90040.TM10X10001ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M10 | 100 | 75 | 10 |
| P90040.0032 | P90040.TM12X4501ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M12 | 45 | 58 | 10 |
| P90040.0033 | P90040.TM12X7001ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M12 | 70 | 75 | 10 |
| P90040.0034 | P90040.TM12X10001ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M12 | 100 | 97 | 10 |
| P90050.0025 | P90050.TM08X4501ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M8 | 45 | 46 | 10 |
| P90050.0026 | P90050.TM08X7001ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M8 | 70 | 53 | 10 |
| P90050.0027 | P90050.TM10X4501ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M10 | 45 | 54 | 10 |
| P90050.0028 | P90050.TM10X7001ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M10 | 70 | 63 | 10 |
| P90050.0029 | P90050.TM10X10001ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M10 | 100 | 77 | 10 |
| P90050.0030 | P90050.TM12X4501ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M12 | 45 | 64 | 10 |
| P90050.0031 | P90050.TM12X7001ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M12 | 70 | 78 | 10 |
| P90050.0032 | P90050.TM12X10001ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M12 | 100 | 99 | 10 |
| P90060.0030 | P90060.TM08X4501ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M8 | 45 | 58 | 10 |
| P90060.0031 | P90060.TM08X7001ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M8 | 70 | 66 | 10 |
| P90060.0032 | P90060.TM10X4501ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M10 | 45 | 68 | 10 |
| P90060.0033 | P90060.TM10X7001ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M10 | 70 | 80 | 10 |
| P90060.0034 | P90060.TM10X10001ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M10 | 100 | 95 | 10 |
| P90060.0035 | P90060.TM12X4501ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M12 | 45 | 78 | 10 |
| P90060.0036 | P90060.TM12X7001ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M12 | 70 | 96 | 10 |
| P90060.0037 | P90060.TM12X10001ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M12 | 100 | 117 | 10 |
Versie P900CINESD: Stelvoet met draadeind type A (met zeskantbasis) en kogel 12,4 - in RVS
| Code | Art. | D | H | H1 | E | s | R | d1 6g | Q | Gewicht (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P90040.0035 | P90040.TM08X4501CINESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M8 | 45 | 40 | 10 |
| P90040.0036 | P90040.TM08X7001CINESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M8 | 70 | 47 | 10 |
| P90040.0037 | P90040.TM10X4501CINESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M10 | 45 | 48 | 10 |
| P90040.0038 | P90040.TM10X7001CINESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M10 | 70 | 60 | 10 |
| P90040.0039 | P90040.TM12X4501CINESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M12 | 45 | 58 | 10 |
| P90040.0040 | P90040.TM12X7001CINESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M12 | 70 | 75 | 10 |
| P90040.0041 | P90040.TM12X10001CINESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M12 | 100 | 99 | 10 |
| P90050.0033 | P90050.TM08X4501CINESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M8 | 45 | 46 | 10 |
| P90050.0034 | P90050.TM08X7001CINESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M8 | 70 | 53 | 10 |
| P90050.0035 | P90050.TM10X4501CINESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M10 | 45 | 54 | 10 |
| P90050.0036 | P90050.TM10X7001CINESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M10 | 70 | 63 | 10 |
| P90050.0037 | P90050.TM12X4501CINESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M12 | 45 | 64 | 10 |
| P90050.0038 | P90050.TM12X7001CINESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M12 | 70 | 78 | 10 |
| P90050.0039 | P90050.TM12X10001CINESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M12 | 100 | 102 | 10 |
| P90060.0038 | P90060.TM08X4501CINESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M8 | 45 | 58 | 10 |
| P90060.0039 | P90060.TM08X7001CINESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M8 | 70 | 66 | 10 |
| P90060.0040 | P90060.TM10X4501CINESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M10 | 45 | 68 | 10 |
| P90060.0041 | P90060.TM10X7001CINESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M10 | 70 | 80 | 10 |
| P90060.0042 | P90060.TM12X4501CINESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M12 | 45 | 78 | 10 |
| P90060.0043 | P90060.TM12X7001CINESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M12 | 70 | 96 | 10 |
| P90060.0044 | P90060.TM12X10001CINESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M12 | 100 | 120 | 10 |
