Materiaal:
Versterkte polyamide.
Bestand tegen oliën en vetten.
Oppervlak:
Gesatineerd.
Kleur:
Zwart(RAL 9011).
Centrale dop:
PA6 Grijs (RAL 7035 code 13).
Beschikbare kleuren voor dop:
Oranje(RAL 2004 code 02).
Blauw(RAL 5015 code 07).
Geel(RAL 1021 code 10).
Rood(RAL 3000 code 16).
Groen(RAL 6024 code 17).
Zwart(RAL 9011 code 01).
Inzetstuk:
L804:
Draadeind in verzinkt staal (schroefdraad tolerantie 6g).
L804CIN:
Draadeind in RVS (AISI 303) (schroefdraad tolerantie 6g).
Speciale verzoeken:
Op aanvraag en voor grote hoeveelheden zijn de inzetstukken leverbaar met gepersonaliseerde lengte.
Op aanvraag en voor grote hoeveelheden kunnen de inzetstukken worden geleverd in verschillende materialen.
Op aanvraag en voor grote hoeveelheden zijn de kleuren uit de kleurentabel leverbaar (let op: beperkt gamma).
Versie L804: draadeind in verzinkt staal.

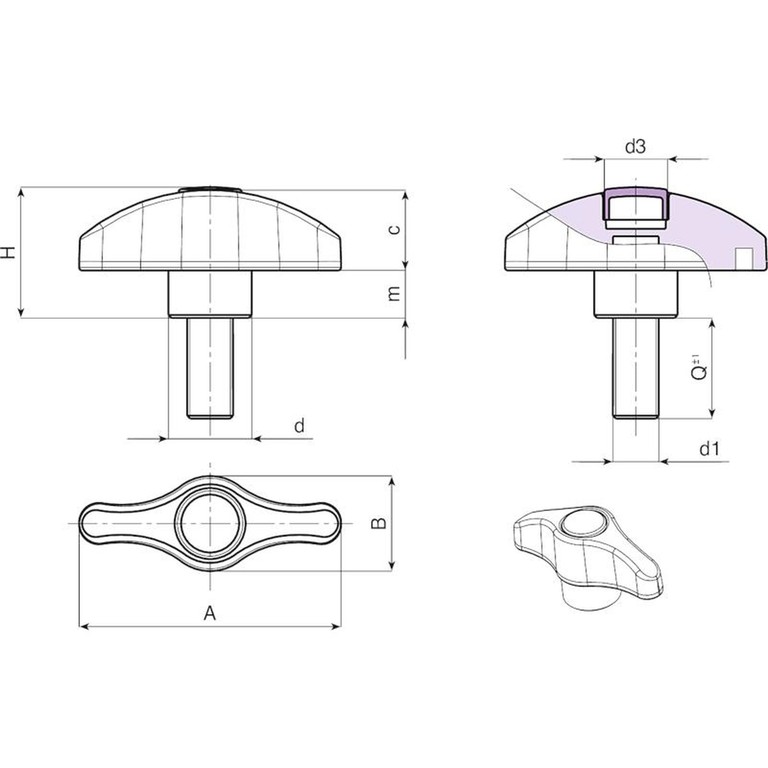

| Code | art. | A | B | H | m | c | d | d3 | LM | d1 6g | Q | Gewicht (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L80444.0004 | L80444.TM05X160113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M5 | 16 | 11 |
| L80444.0008 | L80444.TM05X200113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M5 | 20 | 11,5 |
| L80444.0012 | L80444.TM05X250113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M5 | 25 | 12 |
| L80444.0014 | L80444.TM05X300113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M5 | 30 | 12,5 |
| L80444.0016 | L80444.TM05X400113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M5 | 40 | 13,5 |
| L80444.0018 | L80444.TM05X500113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M5 | 50 | 14,5 |
| L80444.0023 | L80444.TM06X160113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M6 | 16 | 12 |
| L80444.0029 | L80444.TM06X200113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M6 | 20 | 13 |
| L80444.0035 | L80444.TM06X250113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M6 | 25 | 14 |
| L80444.0038 | L80444.TM06X300113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M6 | 30 | 15 |
| L80444.0042 | L80444.TM06X400113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M6 | 40 | 16 |
| L80444.0046 | L80444.TM06X500113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M6 | 50 | 17 |
| L80444.0050 | L80444.TM08X160113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M8 | 16 | 19 |
| L80444.0054 | L80444.TM08X200113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M8 | 20 | 20,5 |
| L80444.0058 | L80444.TM08X250113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M8 | 25 | 22 |
| L80444.0060 | L80444.TM08X300113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M8 | 30 | 23,5 |
| L80444.0063 | L80444.TM08X400113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M8 | 40 | 26 |
| L80444.0066 | L80444.TM08X500113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | 80 | M8 | 50 | 29 |
| L80452.0002 | L80452.TM06X160113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M6 | 16 | 17 |
| L80452.0004 | L80452.TM06X200113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M6 | 20 | 18 |
| L80452.0006 | L80452.TM06X250113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M6 | 25 | 19 |
| L80452.0007 | L80452.TM06X300113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M6 | 30 | 20 |
| L80452.0012 | L80452.TM06X400113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M6 | 40 | 21 |
| L80452.0015 | L80452.TM06X500113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M6 | 50 | 22 |
| L80452.0017 | L80452.TM08X160113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M8 | 16 | 24 |
| L80452.0024 | L80452.TM08X200113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M8 | 20 | 25,5 |
| L80452.0031 | L80452.TM08X250113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M8 | 25 | 27 |
| L80452.0033 | L80452.TM08X300113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M8 | 30 | 28,5 |
| L80452.0038 | L80452.TM08X400113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M8 | 40 | 31 |
| L80452.0043 | L80452.TM08X500113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M8 | 50 | 34 |
| L80452.0049 | L80452.TM10X200113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M10 | 20 | 32 |
| L80452.0054 | L80452.TM10X250113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M10 | 25 | 35 |
| L80452.0058 | L80452.TM10X300113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M10 | 30 | 38 |
| L80452.0060 | L80452.TM10X400113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M10 | 40 | 42 |
| L80452.0063 | L80452.TM10X500113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | 80 | M10 | 50 | 47 |
| L80467.0004 | L80467.TM08X160113 | 67 | 24 | 32.5 | 11 | 21.5 | 21 | 16 | 100 | M8 | 16 | 32 |
| L80467.0008 | L80467.TM08X200113 | 67 | 24 | 32.5 | 11 | 21.5 | 21 | 16 | 100 | M8 | 20 | 33,5 |
| L80467.0010 | L80467.TM08X250113 | 67 | 24 | 32.5 | 11 | 21.5 | 21 | 16 | 100 | M8 | 25 | 35 |
| L80467.0013 | L80467.TM08X300113 | 67 | 24 | 32.5 | 11 | 21.5 | 21 | 16 | 100 | M8 | 30 | 36,5 |
| L80467.0016 | L80467.TM08X400113 | 67 | 24 | 32.5 | 11 | 21.5 | 21 | 16 | 100 | M8 | 40 | 39,5 |
| L80467.0019 | L80467.TM08X500113 | 67 | 24 | 32.5 | 11 | 21.5 | 21 | 16 | 100 | M8 | 50 | 42,5 |
| L80467.0027 | L80467.TM10X300113 | 67 | 24 | 32.5 | 11 | 21.5 | 21 | 16 | 100 | M10 | 30 | 44,5 |
| L80467.0033 | L80467.TM10X500113 | 67 | 24 | 32.5 | 11 | 21.5 | 21 | 16 | 100 | M10 | 50 | 54,5 |
| L80467.0036 | L80467.TM12X300113 | 67 | 24 | 32.5 | 11 | 21.5 | 21 | 16 | 100 | M12 | 30 | 52 |
| L80467.0037 | L80467.TM12X400113 | 67 | 24 | 32.5 | 11 | 21.5 | 21 | 16 | 100 | M12 | 40 | 59 |
Stud lengtes op aanvraag met een minimum van 250 stuks.
LM = maximumlengte die kan geperst worden.
Versie L804CIN: draadeind in RVS (AISI 303).
| Code | art. | A | B | H | m | c | d | d3 | LM | d1 6g | Q | Gewicht (g) |
|---|
Stud lengtes op aanvraag met een minimum van 250 stuks.
