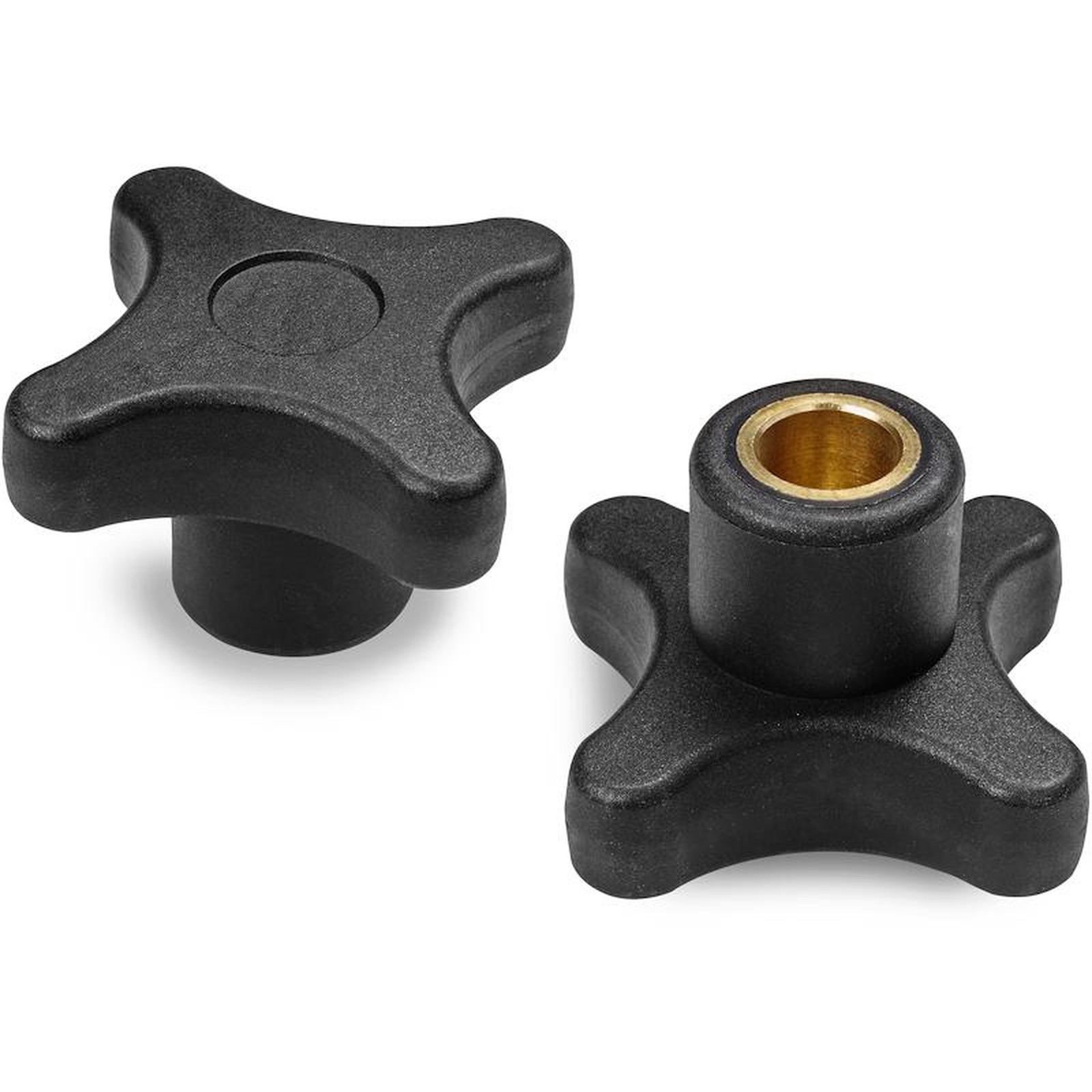

Materiaal:
Versterkte polyamide.
Bestand tegen oliën en vetten.
Oppervlak:
Gesatineerd.
Kleur:
Zwart(RAL 9011).
Inzetstuk:
Blinde messing bus met gladde boring (tolerantie boring H7).
OPGELET: boring kan niet worden verbreed.
Speciale verzoeken:

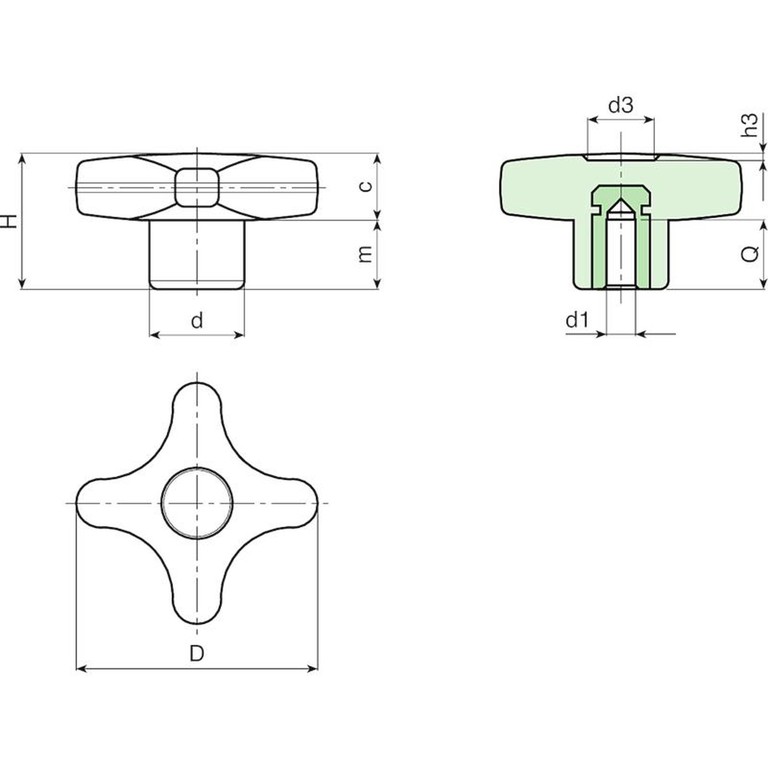

| Code | Art. | D | H | d | c | m | d3 | h3 | d1 H7 | Q | Gewicht (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F18732.0001 | F18732.TD0601 | 32 | 23 | 15 | 11 | 12 | 11 | 1.5 | 6 | 15 | 13 |
| F18732.0002 | F18732.TD0801 | 32 | 23 | 15 | 11 | 12 | 11 | 1.5 | 8 | 15 | 14 |
| F18740.0004 | F18740.TD0601 | 40 | 24.5 | 16 | 12 | 12.5 | 13 | 1.5 | 6 | 15 | 18 |
| F18740.0001 | F18740.TD0801 | 40 | 24.5 | 16 | 12 | 12.5 | 13 | 1.5 | 8 | 15 | 21 |
| F18740.0002 | F18740.TD1001 | 40 | 24.5 | 16 | 12 | 12.5 | 13 | 1.5 | 10 | 17 | 20 |
| F18750.0001 | F18750.TD0601 | 50 | 29 | 20 | 14 | 15 | 14 | 2 | 6 | 15 | 29 |
| F18750.0002 | F18750.TD0801 | 50 | 29 | 20 | 14 | 15 | 14 | 2 | 8 | 15 | 31 |
| F18750.0005 | F18750.TD1001 | 50 | 29 | 20 | 14 | 15 | 14 | 2 | 10 | 17 | 32 |
| F18760.0001 | F18760.TD0801 | 60 | 34 | 24 | 15.5 | 18.5 | 18 | 2 | 8 | 18 | 70 |
| F18760.0002 | F18760.TD1001 | 60 | 34 | 24 | 15.5 | 18.5 | 18 | 2 | 10 | 25 | 65 |
| F18760.0003 | F18760.TD1201 | 60 | 34 | 24 | 15.5 | 18.5 | 18 | 2 | 12 | 22 | 60 |
