Materiaal:
Zelfdovende versterkte polyamide UL94 V0 met geel label.
Bestand tegen oliën en vetten.
Oppervlak:
Gesatineerd.
Kleur:
Zwart(RAL 9011).
Boring:
Doorlopende gladde boring bekomen door vormpersen in plastic.
Speciale verzoeken:
Geen.

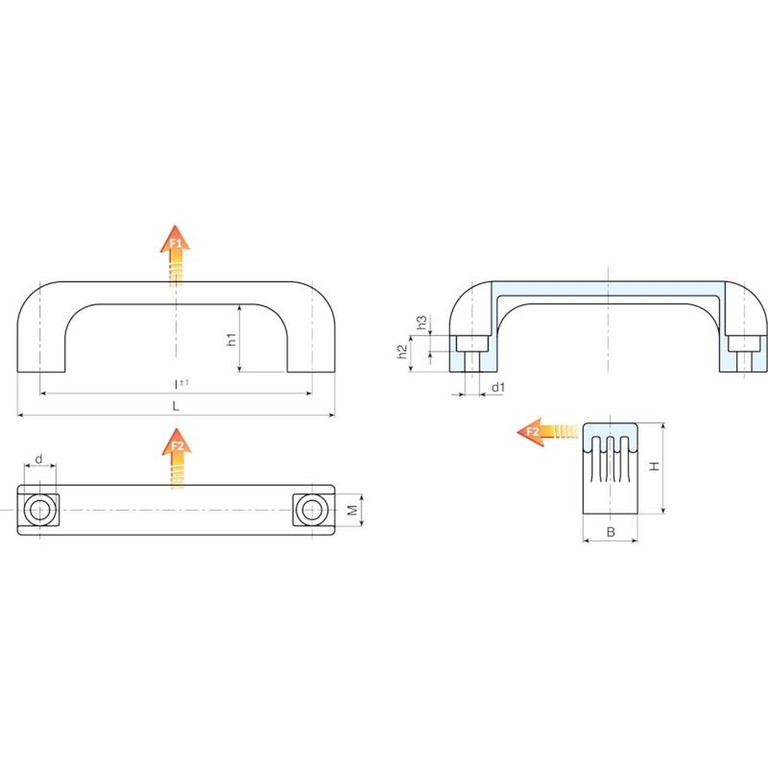

| Code | art. | L | I ±1 | B | M | H | h1 | h2 | h3 | d | d1 | Gewicht (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B224094.0001 | B224094.TG6.501AE | 110 | 94 | 21 | 13 | 37 | 29 | 13 | 7 | 11 | 6.5 | 22 | 2500 | 1250 |
| B224117.0001 | B224117.TG6.501AE | 140 | 117 | 24 | 13 | 40 | 29 | 15 | 7 | 14 | 6.5 | 43 | 4400 | 3000 |
| B224117.0008 | B224117.TG8.501AE | 140 | 117 | 24 | 13 | 40 | 29 | 15 | 9 | 14 | 8.5 | 39 | 4400 | 3000 |
| B224120.0002 | B224120.TG6.501AE | 140 | 120 | 24 | 14 | 40 | 29 | 15 | 7 | 14 | 6.5 | 42 | 4800 | 3200 |
| B224120.0008 | B224120.TG8.501AE | 140 | 120 | 24 | 14 | 40 | 29 | 15 | 9 | 14 | 8.5 | 39 | 4800 | 3200 |
| B224132.0001 | B224132.TG8.501AE | 151 | 132 | 26 | 14 | 43 | 31 | 16 | 9 | 14 | 8.5 | 63 | 3400 | 3200 |
| B224180.0001 | B224180.TG8.501AE | 200 | 180 | 28 | 17 | 51 | 39 | 21 | 9 | 14 | 8.5 | 74 | 4000 | 3000 |
| B224235.0001 | B224235.TG10.501AE | 262 | 235 | 32 | 20 | 53 | 40 | 21 | 11 | 17 | 10.5 | 123 | 3800 | 3000 |
