W860
TORNILLO SIN CABEZA ROSCADO DE ACERO CON RANURA HEXAGONAL Y PUNTA DE LATÓN
Tornillo sin cabeza de presión con punta
Materiales:
W860:
Cuerpo tornillo sin cabeza de acero bonificado con clase de resistencia 10.9.
W860CIN:
Cuerpo tornillo sin cabeza de acero inoxidable (AISI 303).
Superficie:
Lisa.
Color:
W860:
Pavonado.
W860CIN:
Natural.
Punta:
Punta cilíndrica fija de latón.
Requerimientos especiales:
Ninguna.

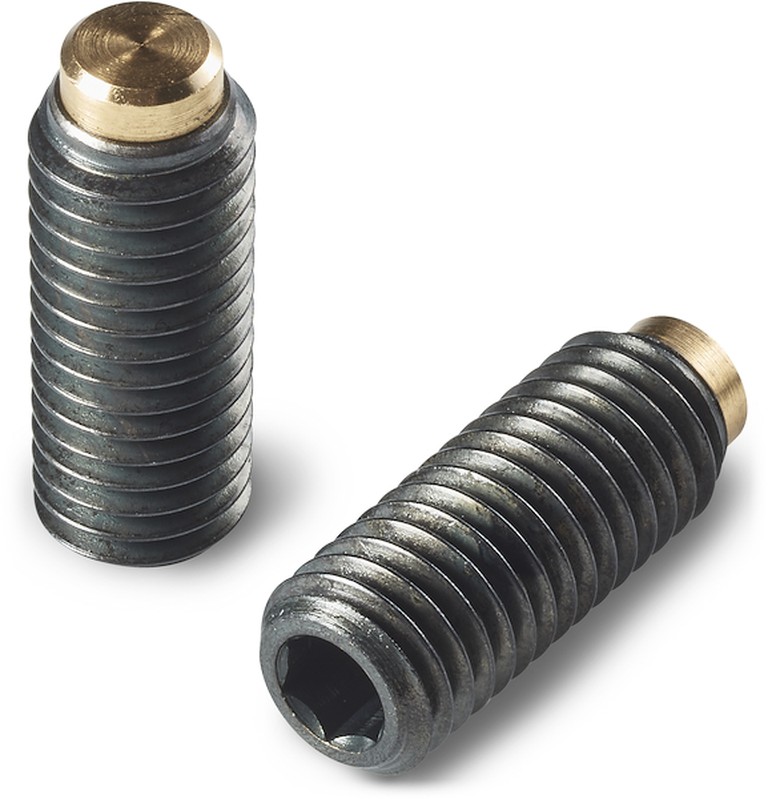

Versión W860: de acero pavonado

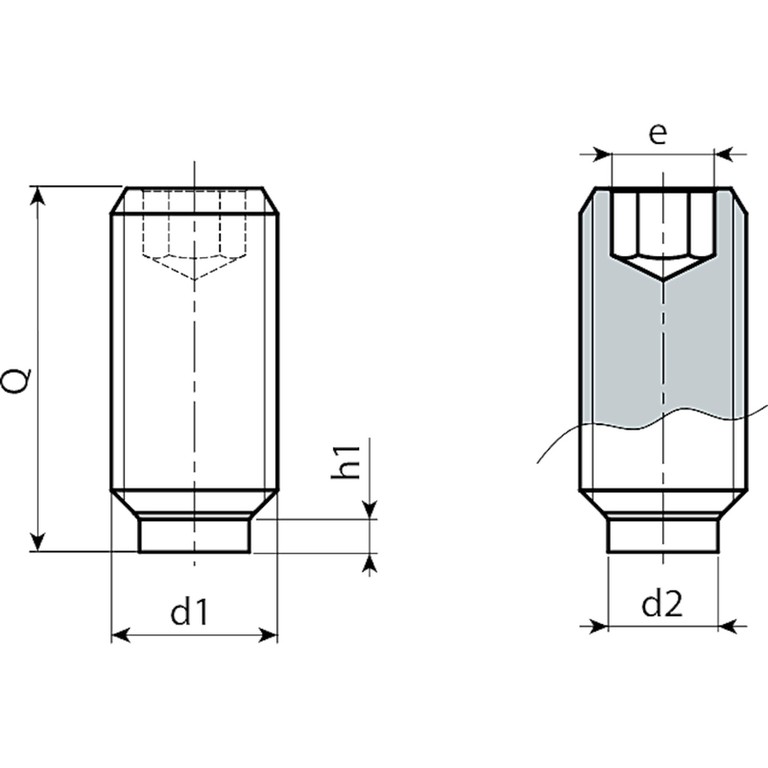

| Código | art. | d1 6g | e | h1 | d2 | Q | Peso (g) |
|---|---|---|---|---|---|---|---|
| W860.0020 | W860.SBM04X06,5 | M4 | 2 | 1.2 | 2.5 | 06,5 | 1 |
| W860.0021 | W860.SBM04X10,5 | M4 | 2 | 1.2 | 2.5 | 10,5 | 1 |
| W860.0044 | W860.SBM04X16,5 | M4 | 2 | 1.2 | 2.5 | 16,5 | 1,5 |
| W860.0022 | W860.SBM04X30,5 | M4 | 2 | 1.2 | 2.5 | 30,5 | 2 |
| W860.0023 | W860.SBM05X08,5 | M5 | 2.5 | 1.3 | 3 | 08,5 | 1 |
| W860.0024 | W860.SBM05X12,5 | M5 | 2.5 | 1.3 | 3 | 12,5 | 1,5 |
| W860.0045 | W860.SBM05X20,5 | M5 | 2.5 | 1.3 | 3 | 20,5 | 2,5 |
| W860.0025 | W860.SBM05X30,5 | M5 | 2.5 | 1.3 | 3 | 30,5 | 4 |
| W860.0026 | W860.SBM06X11.5 | M6 | 3 | 1.9 | 4 | 11.5 | 2 |
| W860.0027 | W860.SBM06X17.5 | M6 | 3 | 1.9 | 4 | 17.5 | 2,5 |
| W860.0028 | W860.SBM06X26.5 | M6 | 3 | 1.9 | 4 | 26.5 | 4 |
| W860.0029 | W860.SBM06X41.5 | M6 | 3 | 1.9 | 4 | 41.5 | 6,5 |
| W860.0030 | W860.SBM08X12 | M8 | 4 | 2.5 | 5.5 | 12 | 3,5 |
| W860.0031 | W860.SBM08X22 | M8 | 4 | 2.5 | 5.5 | 22 | 6 |
| W860.0032 | W860.SBM08X32 | M8 | 4 | 2.5 | 5.5 | 32 | 8,5 |
| W860.0033 | W860.SBM08X52 | M8 | 4 | 2.5 | 5.5 | 52 | 14 |
| W860.0034 | W860.SBM10X14 | M10 | 5 | 2.7 | 7 | 14 | 5,5 |
| W860.0035 | W860.SBM10X18 | M10 | 5 | 2.7 | 7 | 18 | 7 |
| W860.0036 | W860.SBM10X27 | M10 | 5 | 2.7 | 7 | 27 | 11,5 |
| W860.0037 | W860.SBM10X37 | M10 | 5 | 2.7 | 7 | 37 | 16,5 |
| W860.0038 | W860.SBM10X52 | M10 | 5 | 2.7 | 7 | 52 | 25 |
| W860.0039 | W860.SBM12X18.5 | M12 | 6 | 3.4 | 8.5 | 18.5 | 10,5 |
| W860.0040 | W860.SBM12X22.5 | M12 | 6 | 3.4 | 8.5 | 22.5 | 13 |
| W860.0041 | W860.SBM12X32.5 | M12 | 6 | 3.4 | 8.5 | 32.5 | 20 |
| W860.0042 | W860.SBM12X42.5 | M12 | 6 | 3.4 | 8.5 | 42.5 | 29 |
| W860.0043 | W860.SBM12X52.5 | M12 | 6 | 3.4 | 8.5 | 52.5 | 38 |

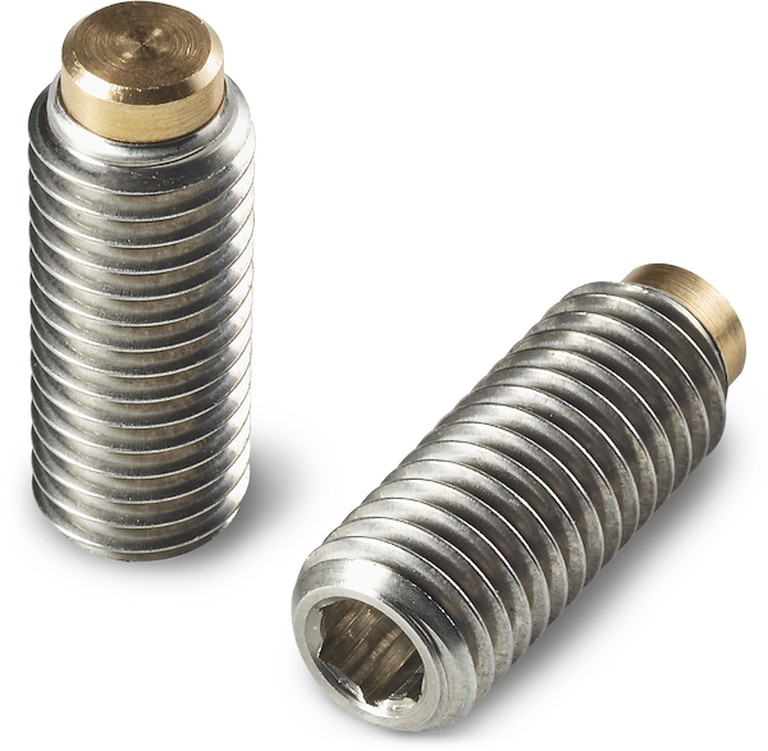

Versión W860CIN - de acero inoxidable (AISI 303)
| Código | art. | d1 6H | e | h1 | d2 | Q | Peso (g) |
|---|---|---|---|---|---|---|---|
| W860.0001 | W860.INM04X06,5CIN | M4 | 2 | 1.2 | 2.5 | 06,5 | 1 |
| W860.0002 | W860.INM04X10,5CIN | M4 | 2 | 1.2 | 2.5 | 10,5 | 1 |
| W860.0003 | W860.INM04X16,5CIN | M4 | 2 | 1.2 | 2.5 | 16,5 | 1,5 |
| W860.0006 | W860.INM05X08,5CIN | M5 | 2.5 | 1.3 | 3 | 08,5 | 1 |
| W860.0004 | W860.INM05X12,5CIN | M5 | 2.5 | 1.3 | 3 | 12,5 | 1,5 |
| W860.0005 | W860.INM05X20,5CIN | M5 | 2.5 | 1.3 | 3 | 20,5 | 2,5 |
| W860.0007 | W860.INM06X11.5CIN | M6 | 3 | 1.9 | 4 | 11.5 | 2 |
| W860.0008 | W860.INM06X17.5CIN | M6 | 3 | 1.9 | 4 | 17.5 | 2,5 |
| W860.0009 | W860.INM06X26.5CIN | M6 | 3 | 1.9 | 4 | 26.5 | 4 |
| W860.0010 | W860.INM08X12CIN | M8 | 4 | 2.5 | 5.5 | 12 | 3,5 |
| W860.0011 | W860.INM08X22CIN | M8 | 4 | 2.5 | 5.5 | 22 | 6 |
| W860.0012 | W860.INM08X32CIN | M8 | 4 | 2.5 | 5.5 | 32 | 8,5 |
| W860.0013 | W860.INM10X14CIN | M10 | 5 | 2.7 | 7 | 14 | 5,5 |
| W860.0014 | W860.INM10X18CIN | M10 | 5 | 2.7 | 7 | 18 | 7 |
| W860.0015 | W860.INM10X27CIN | M10 | 5 | 2.7 | 7 | 27 | 11,5 |
| W860.0016 | W860.INM10X37CIN | M10 | 5 | 2.7 | 7 | 37 | 16,5 |
| W860.0017 | W860.INM12X22.5CIN | M12 | 6 | 3.4 | 8.5 | 22.5 | 12,5 |
| W860.0018 | W860.INM12X32.5CIN | M12 | 6 | 3.4 | 8.5 | 32.5 | 20 |
| W860.0019 | W860.INM12X42.5CIN | M12 | 6 | 3.4 | 8.5 | 42.5 | 29 |
