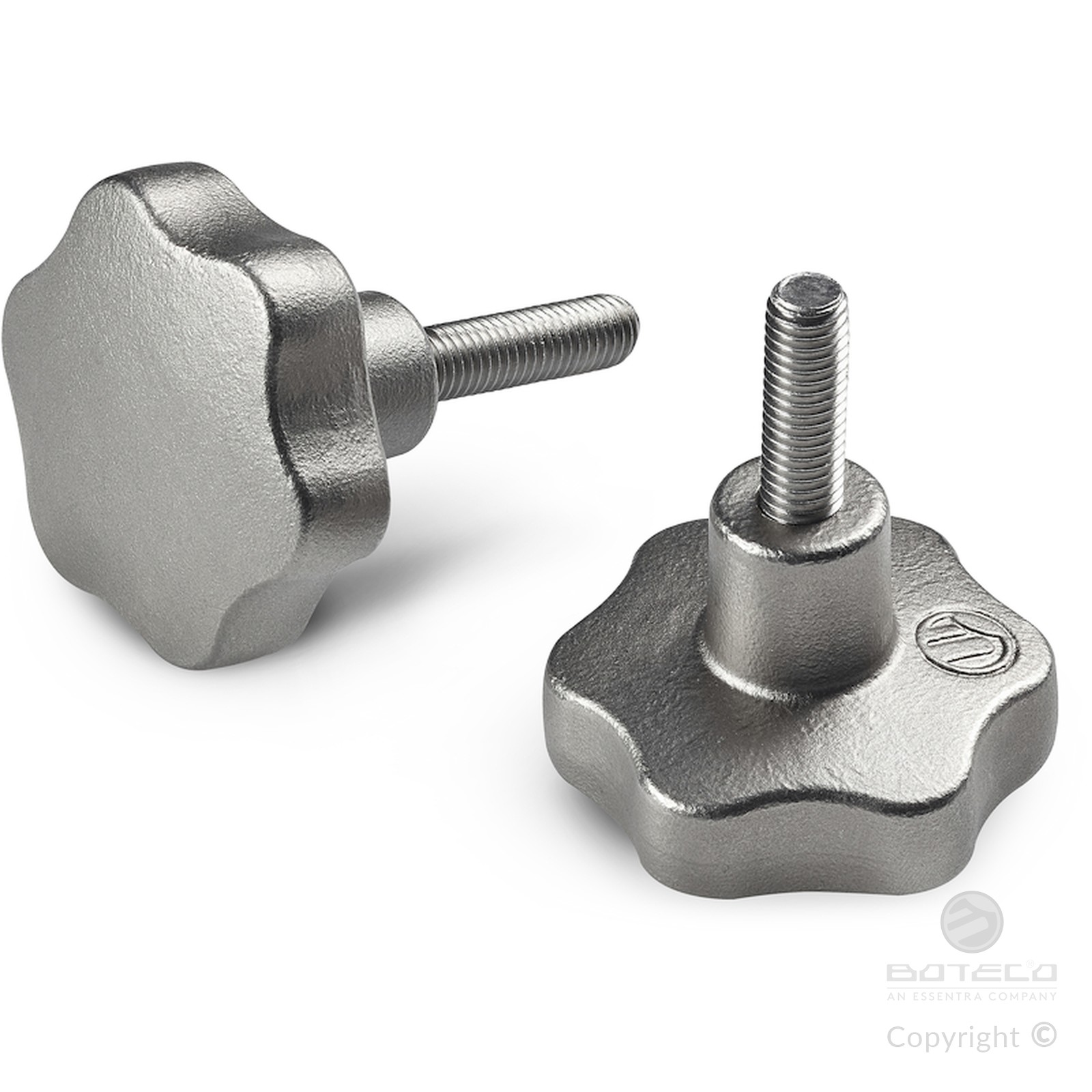

Materials:
Precision-cast stainless steel, (Aisi 304).
Surface finish:
Electropolished satin finish.
Colour:
Natural.
Stud:
Threaded stainless steel stud (AISI 303) (thread tolerance 6g), assembled and fixed with high-strength threadlocker.
Special requests:
Upon request and for a minimum of 50 pieces inserts can be supplied with customised lengths.

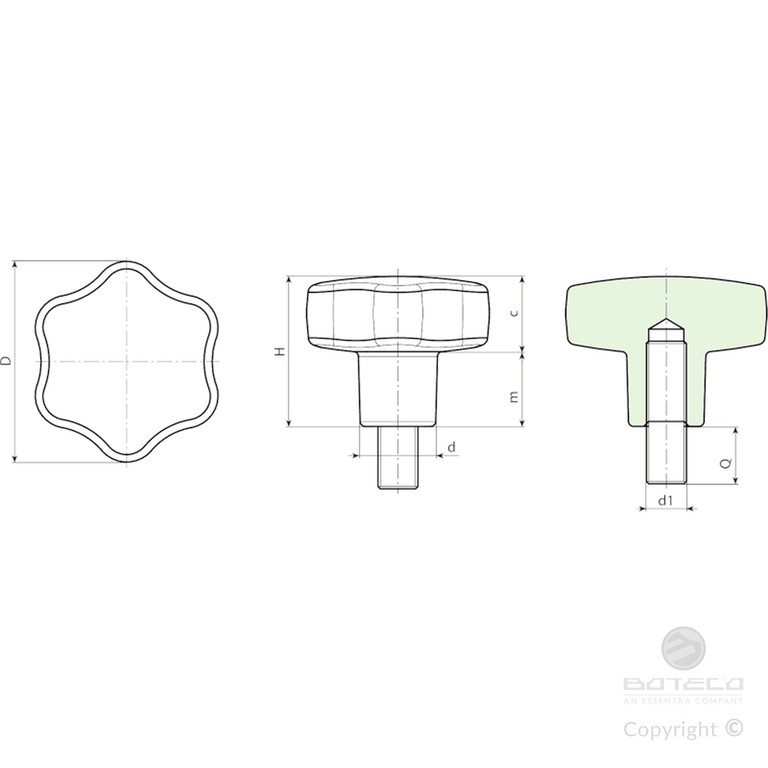

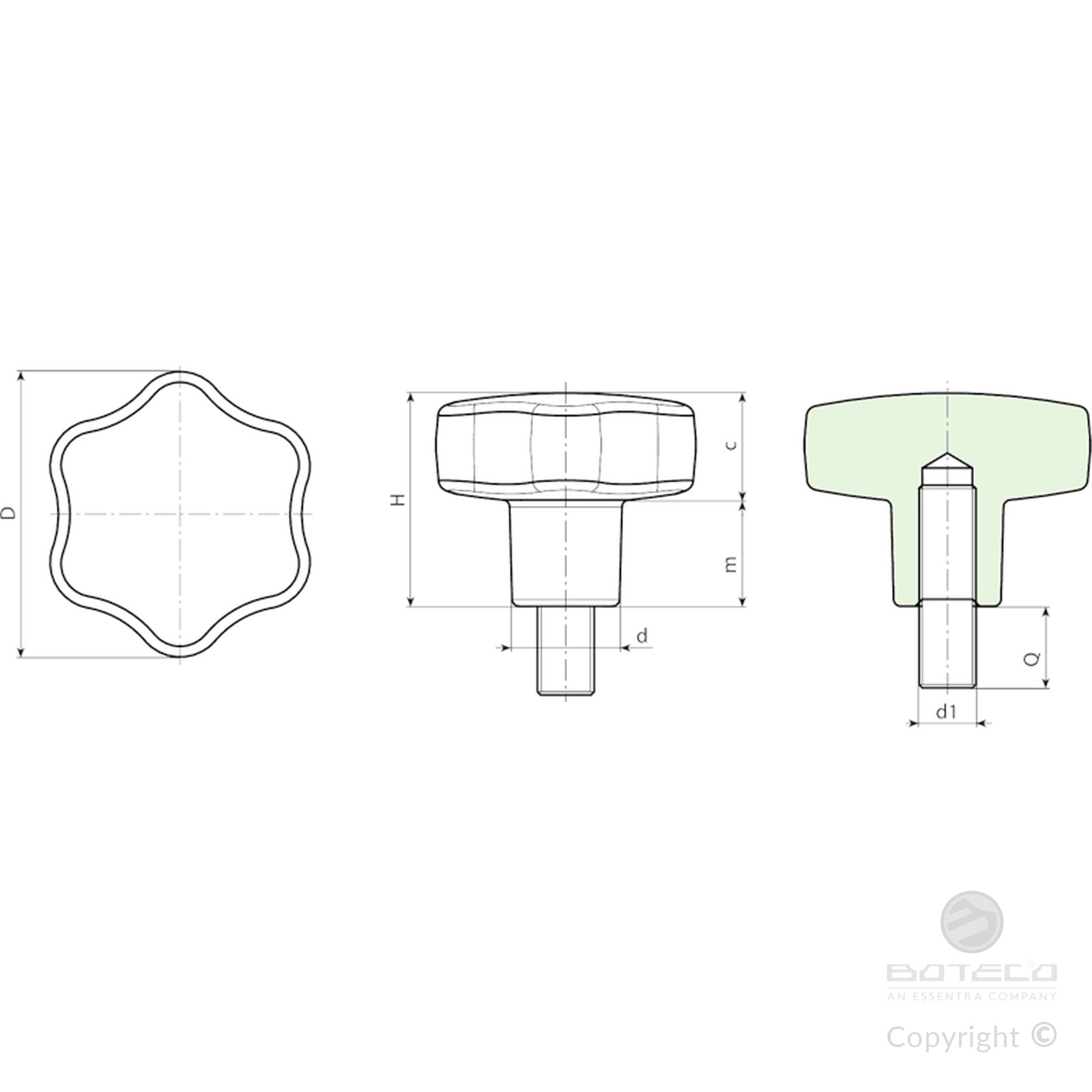

| Code | Art. | D | H | d | m | d1 6H | Q | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|
| W10330.0001 | W10330.HNM05X15HIN | 30 | 21 | 11 | 11 | 10 | M5 | 15 | - |
| W10330.0002 | W10330.HNM06X15HIN | 30 | 21 | 11 | 11 | 10 | M6 | 20 | - |
| W10340.0001 | W10340.HNM06X20HIN | 40 | 30 | 15 | 15 | 15 | M6 | 20 | - |
| W10340.0002 | W10340.HNM08X20HIN | 40 | 30 | 15 | 15 | 15 | M8 | 20 | - |
| W10350.0001 | W10350.HNM08X30HIN | 50 | 34 | 17 | 17 | 17 | M8 | 30 | - |
| W10350.0002 | W10350.HNM10X30HIN | 50 | 34 | 17 | 17 | 17 | M10 | 30 | - |
| W10360.0001 | W10360.HNM08X30HIN | 60 | 39 | 21 | 18 | 21 | M08 | 30 | - |
| W10360.0002 | W10360.HNM10X30HIN | 60 | 39 | 21 | 18 | 21 | M10 | 30 | - |
| W10360.0003 | W10360.HNM12X30HIN | 60 | 39 | 21 | 18 | 21 | M12 | 30 | - |
