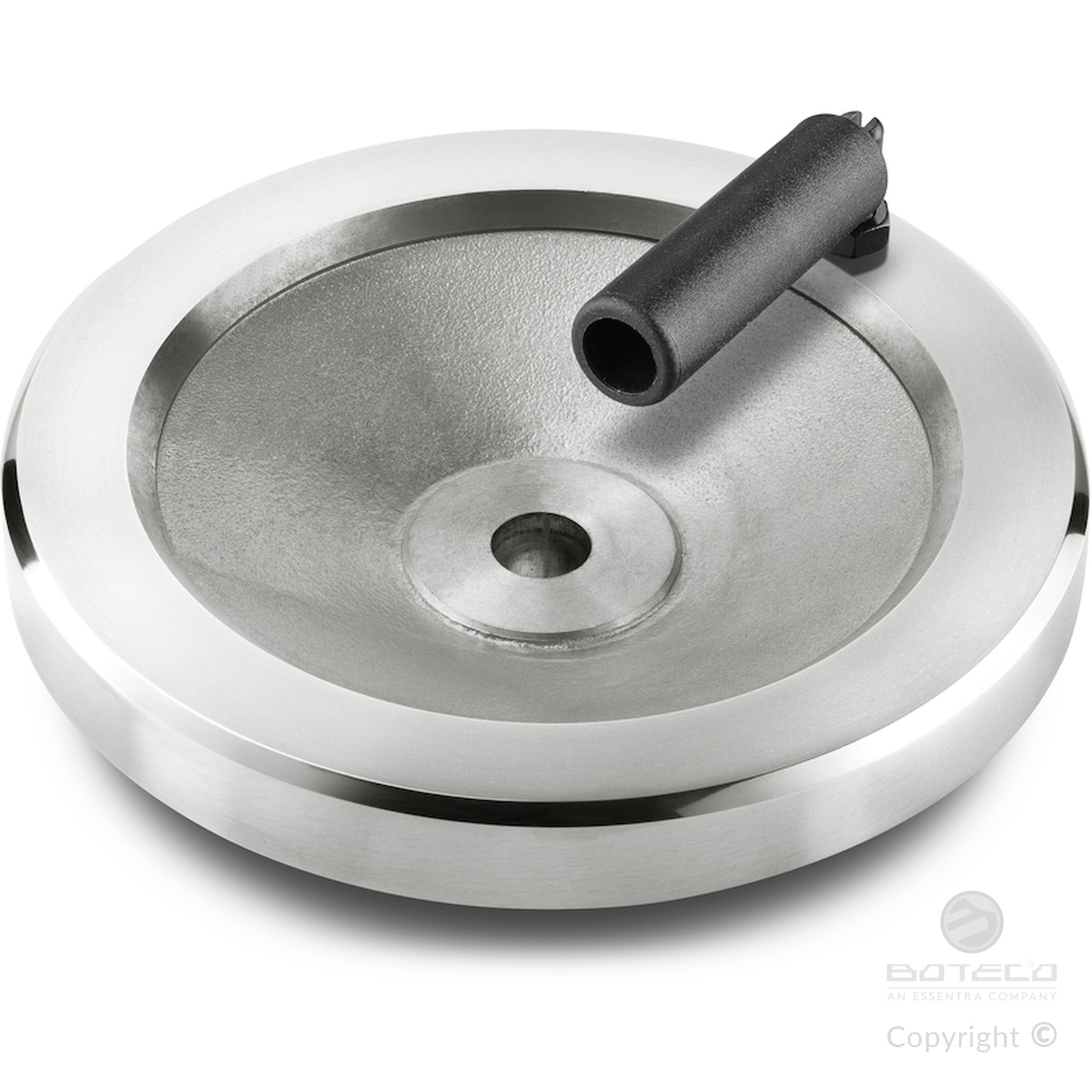

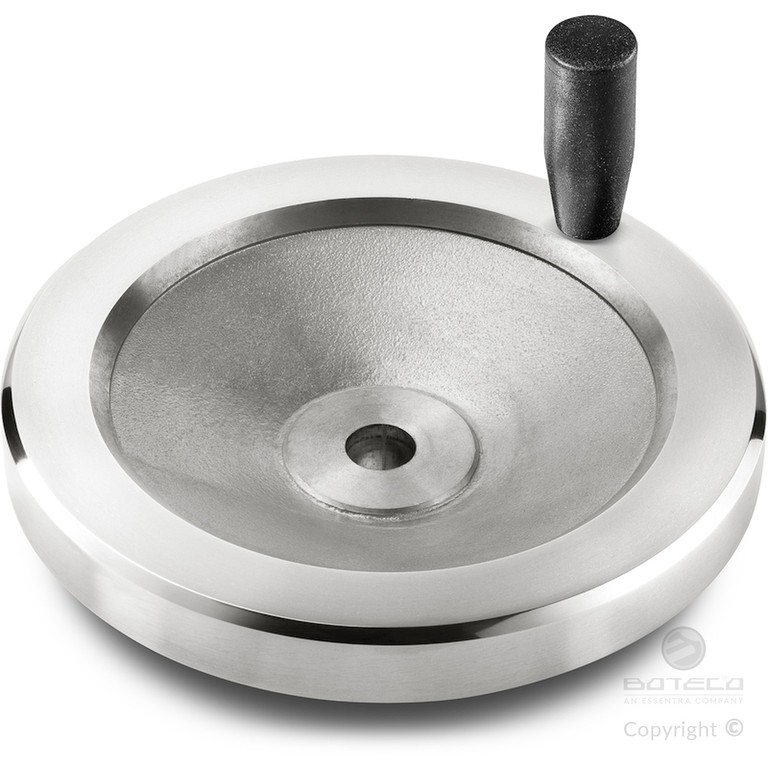

Materials:
Aluminium.
Surface finish:
Satin finish, except for the sections (T) with low surface roughness obtained by turning.
Colour:
Natural.
Lateral handle:
Revolving, folding handle art. M136.
Hole:
Smooth through hole, remachined with H7 tolerance.
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special Requests:
Upon request and for special quantities handwheels can be supplied on customer’s drawing with hole diameter d1.

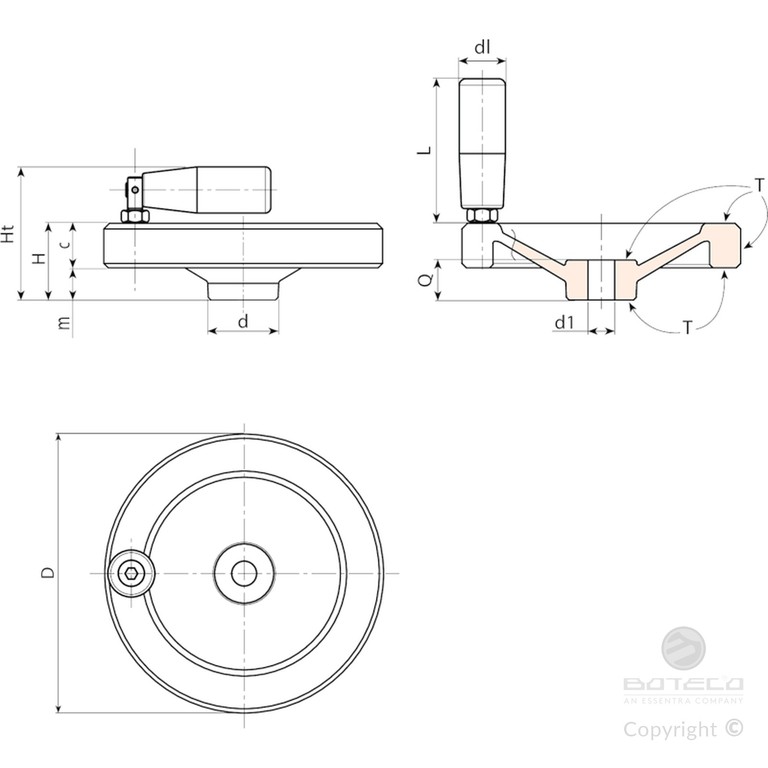

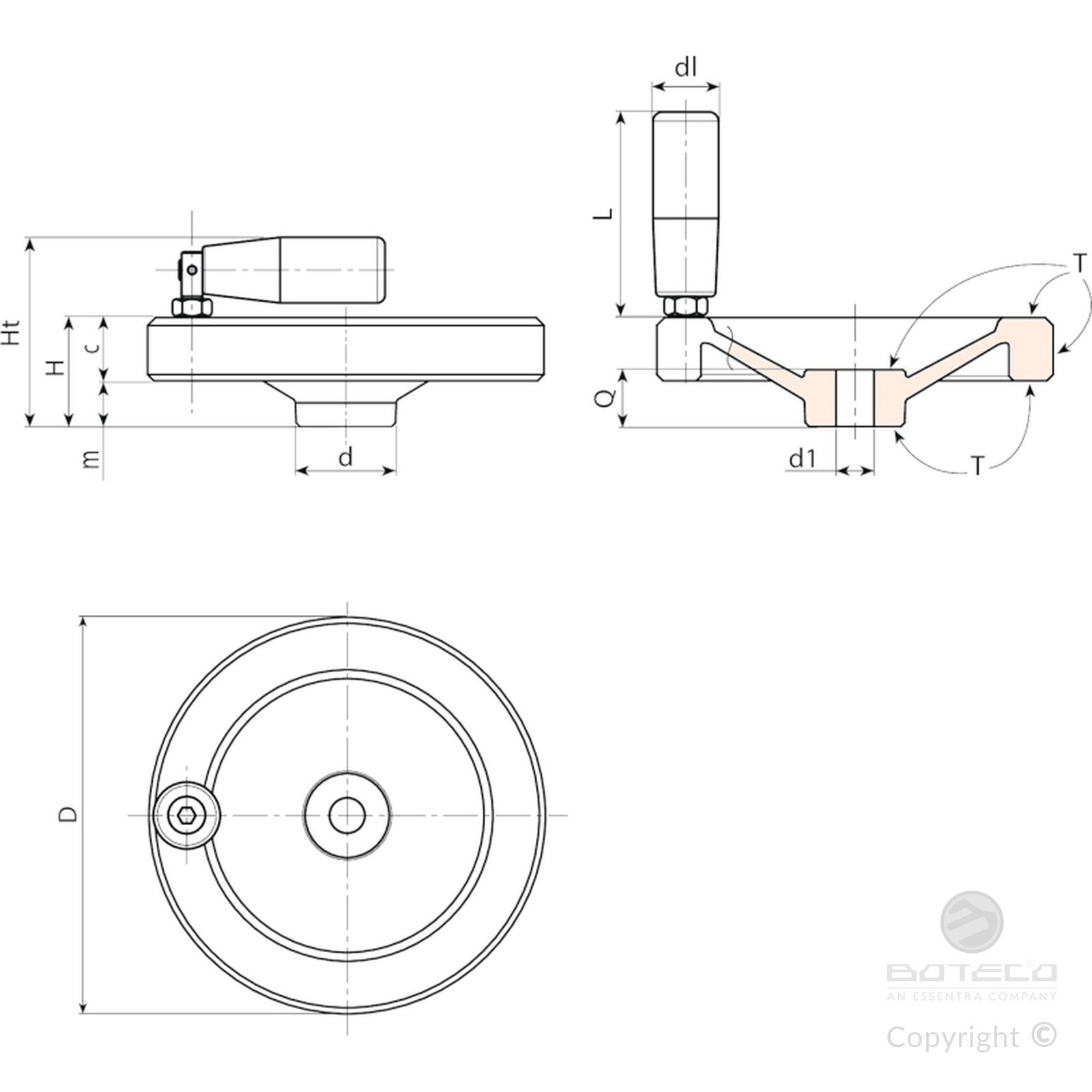

| Code | Art. | d | D | H | m | c | Q | d1 H7 | Ht | dl | L | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C498080.0001 | C498080.AD08 | 26 | 80,5 | 28,5 | 14 | 14,5 | 16 | 10 | 52,5 | 19,5 | 55 | 171 |
| C498100.0001 | C498100.AD10 | 30,5 | 101 | 33 | 15 | 18 | 17 | 10 | 57 | 19,5 | 55 | 285 |
| C498125.0001 | C498125.AD12 | 31,5 | 125,5 | 34,5 | 14,5 | 20 | 18 | 12 | 63,5 | 23,5 | 75,5 | 451 |
| C498160.0001 | C498160.AD15 | 42 | 161 | 40 | 19,5 | 20,5 | 20 | 15 | 69 | 23,5 | 75,5 | 738 |
| C498200.0001 | C498200.AD18 | 51,5 | 201 | 45 | 24,5 | 20,5 | 24 | 18 | 80 | 26 | 89 | 1164 |
Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H7).
