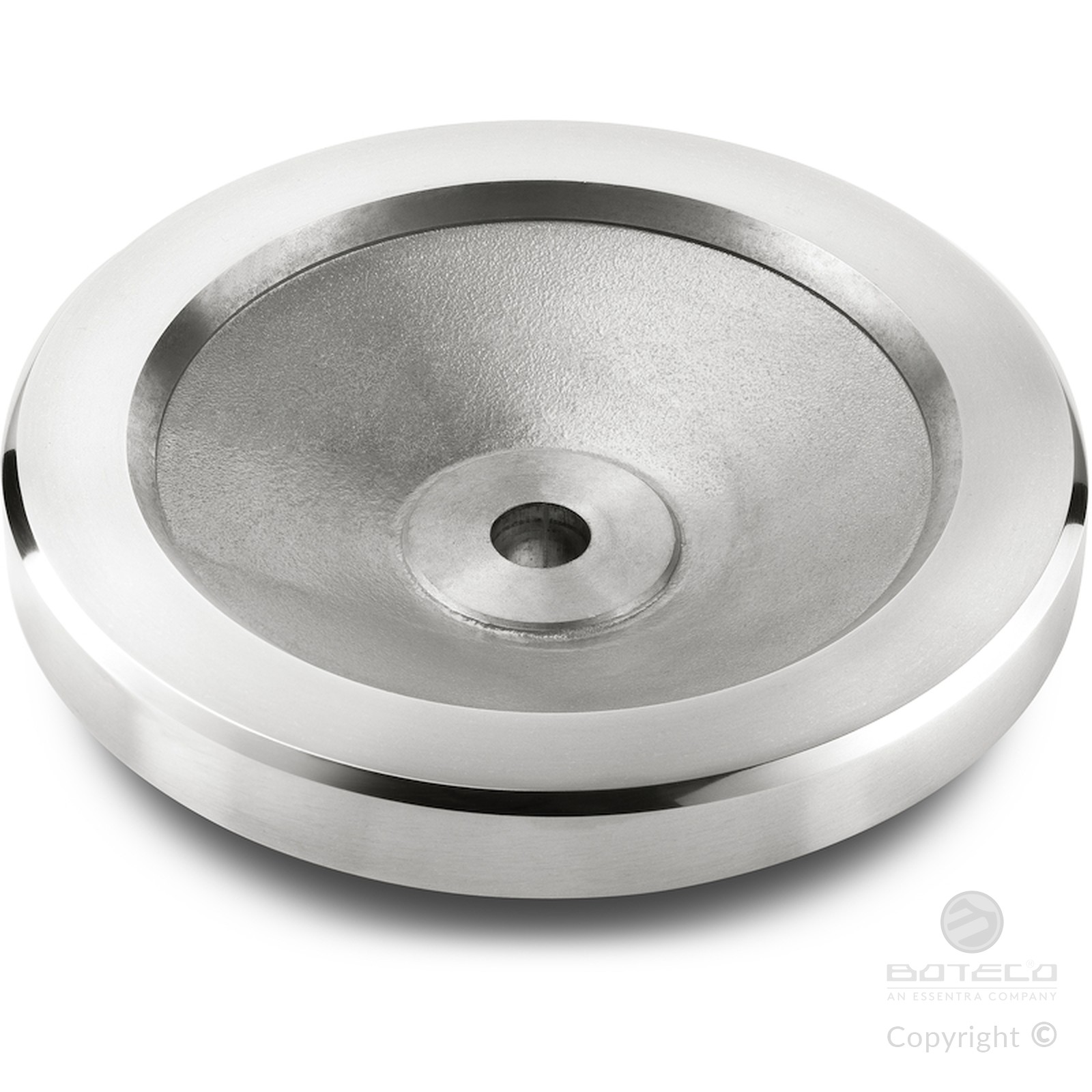

Materials:
Aluminium.
Surface finish:
Satin finish, except for the sections (T) with low surface roughness obtained by turning.
Colour:
Natural.
Hole:
Smooth through hole, remachined with H7 tolerance.
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special Requests:
Upon request and for special quantities handwheels can be supplied on customer’s drawing with hole diameter d1.

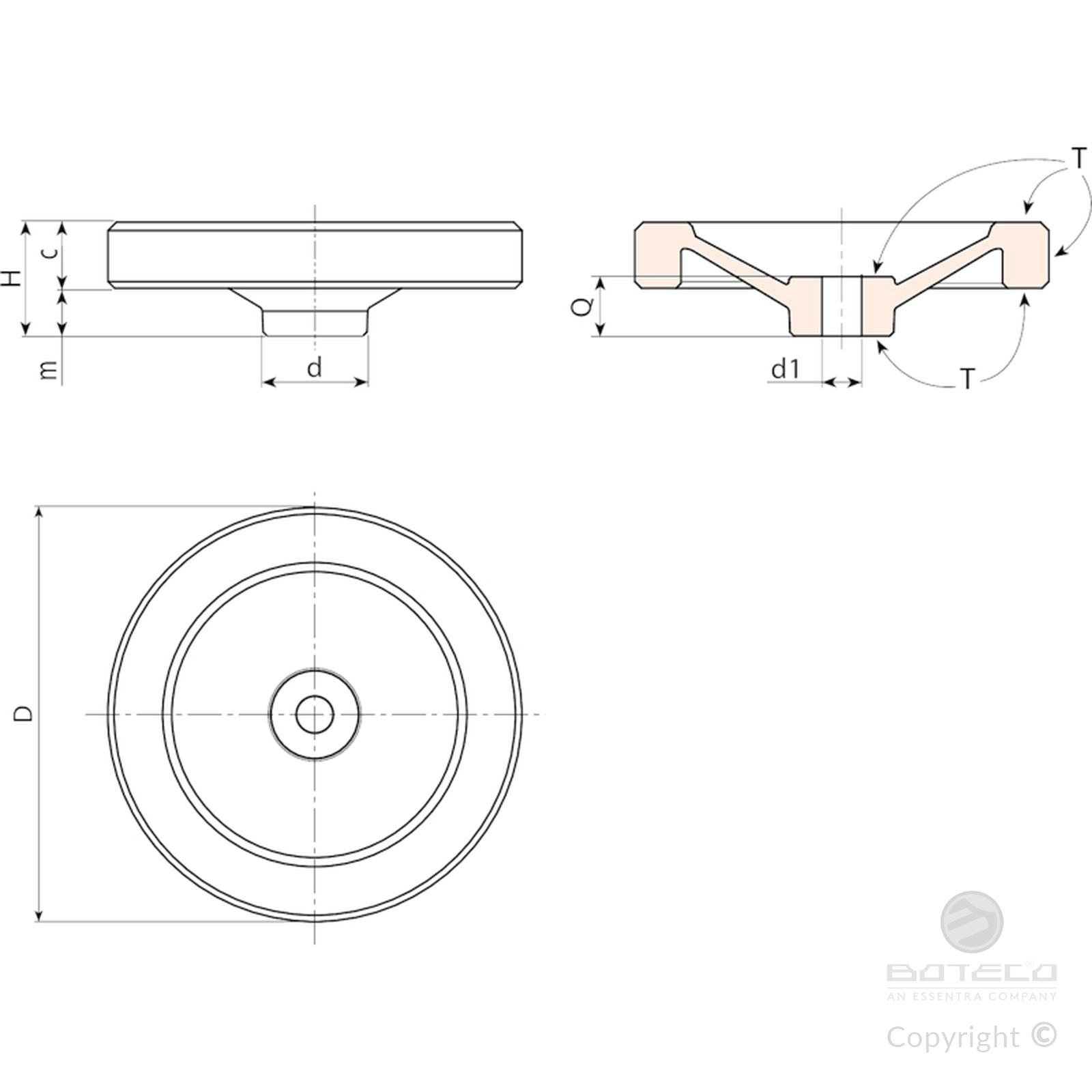

| Code | Art. | d | D | H | m | c | Q | d1 H7 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| C496080.0001 | C496080.AD10 | 26 | 80,5 | 28,5 | 14 | 14,5 | 16 | 10 | 141 |
| C496100.0001 | C496100.AD10 | 30,5 | 101 | 33 | 15 | 18 | 17 | 10 | 255 |
| C496125.0001 | C496125.AD12 | 31,5 | 125,5 | 34,5 | 14,5 | 20 | 18 | 12 | 395 |
| C496160.0001 | C496160.AD15 | 42 | 161 | 40 | 19,5 | 20,5 | 20 | 15 | 682 |
| C496200.0001 | C496200.AD18 | 51,5 | 201 | 45 | 24,5 | 20,5 | 24 | 18 | 1036 |
Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H7).
