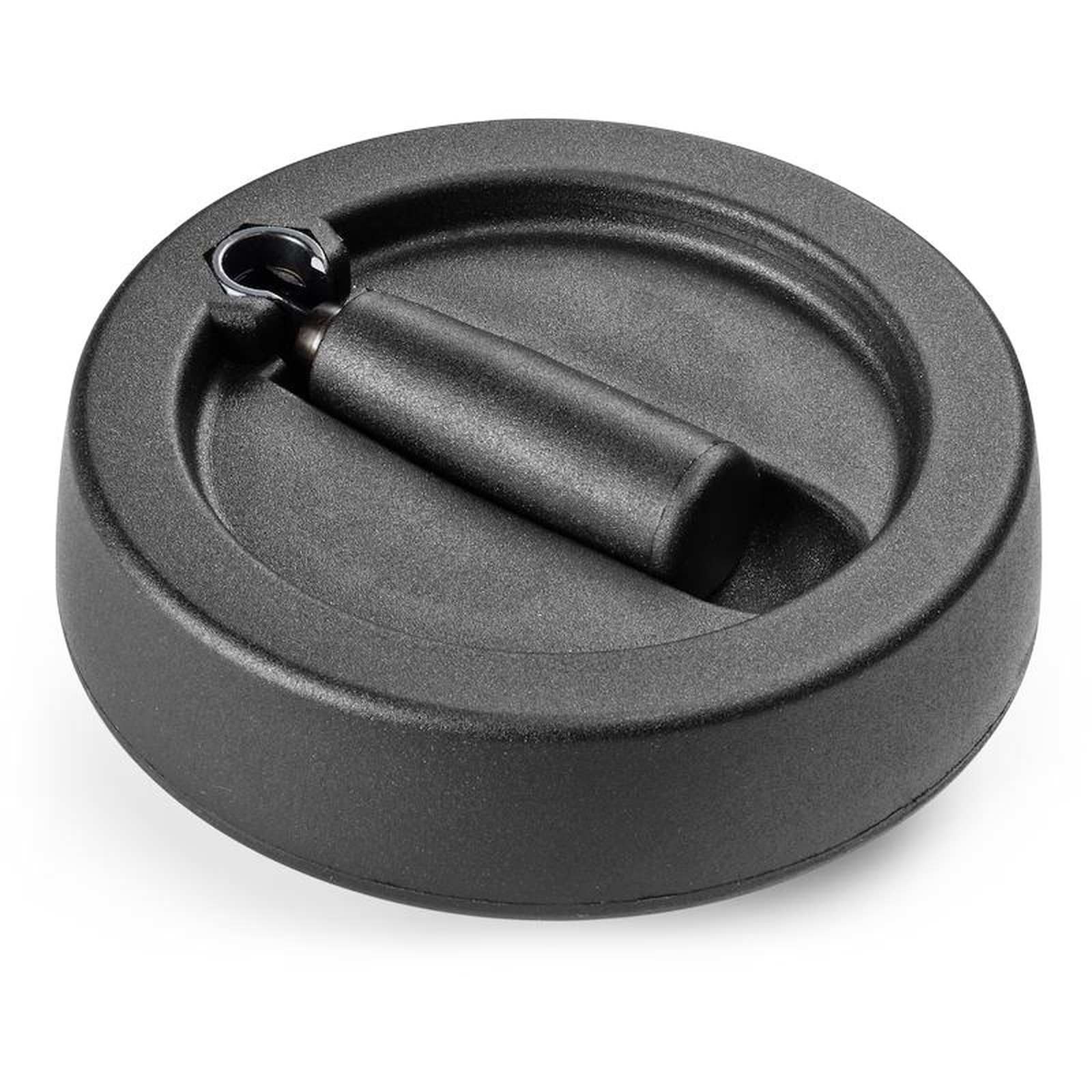

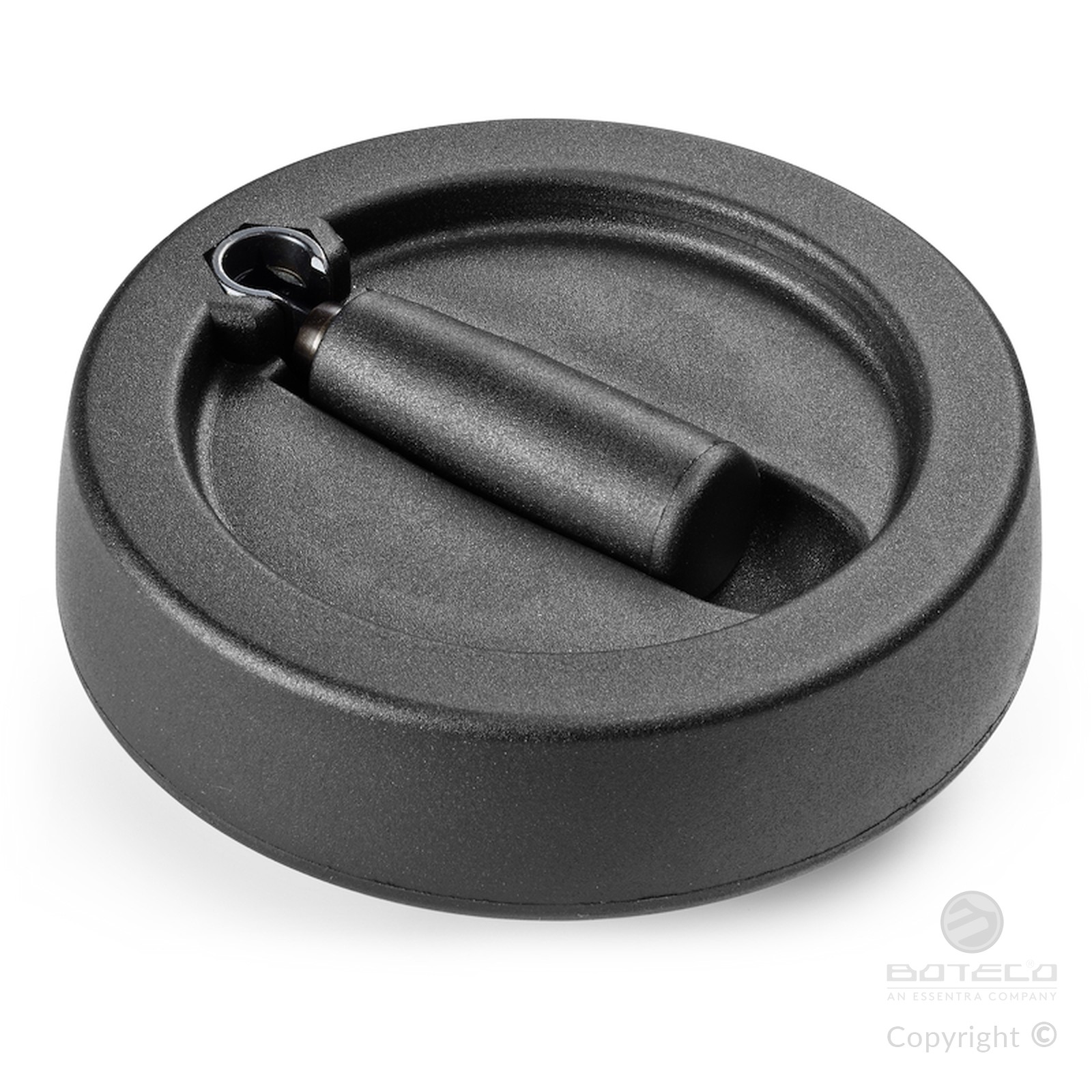

SOLID CONTROL HANDWHEEL WITH CENTRAL FOLDAWAY REVOLVING HANDLE

03

C199C


Volantini con manico pieghevole

Materials:

Reinforced and stabilized polyamide. Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Black(RAL 9011).

Central cap:

Grey polyamide (RAL 7035). 13).

Alternative cap colours:

Orange(RAL 2004 code 02).

Blue(RAL 5015 code 07).

Yellow(RAL 1021 code 10).

Red(RAL 3000 code 16).

Green(RAL 6024 code 17).

Black(RAL 9011 code 01).

Main insert:

Galvanised steel insert with smooth through bore (tolerance H10).

Lateral handle:

Revolving handle that folds into the handwheel, with hexagonal connection.

Reinforced polyamide handle. Black-oxide treated internal mechanism. Fixed with black-oxide treated hexagon socket button head screw ISO 7838.

Fixing method:

For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.

Special requests:

On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.

Upon request and for special quantities inserts can be supplied with custom hole diameter d1.

Upon request and for special quantities inserts can be supplied in different materials/with different coatings.

Upon request and for special quantities handwheels, handles and caps are available in the colours indicated in the chart (attention: reduced range).

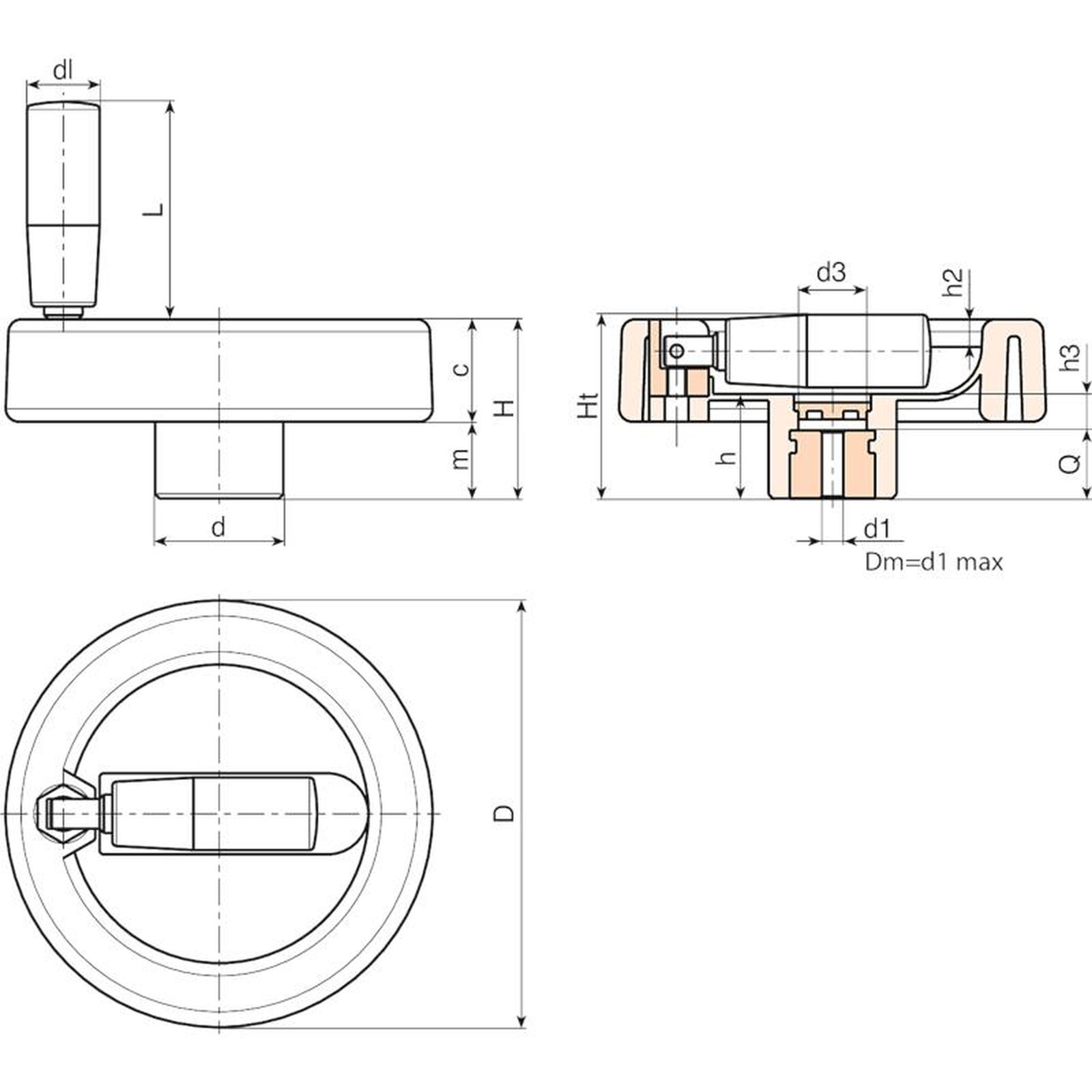

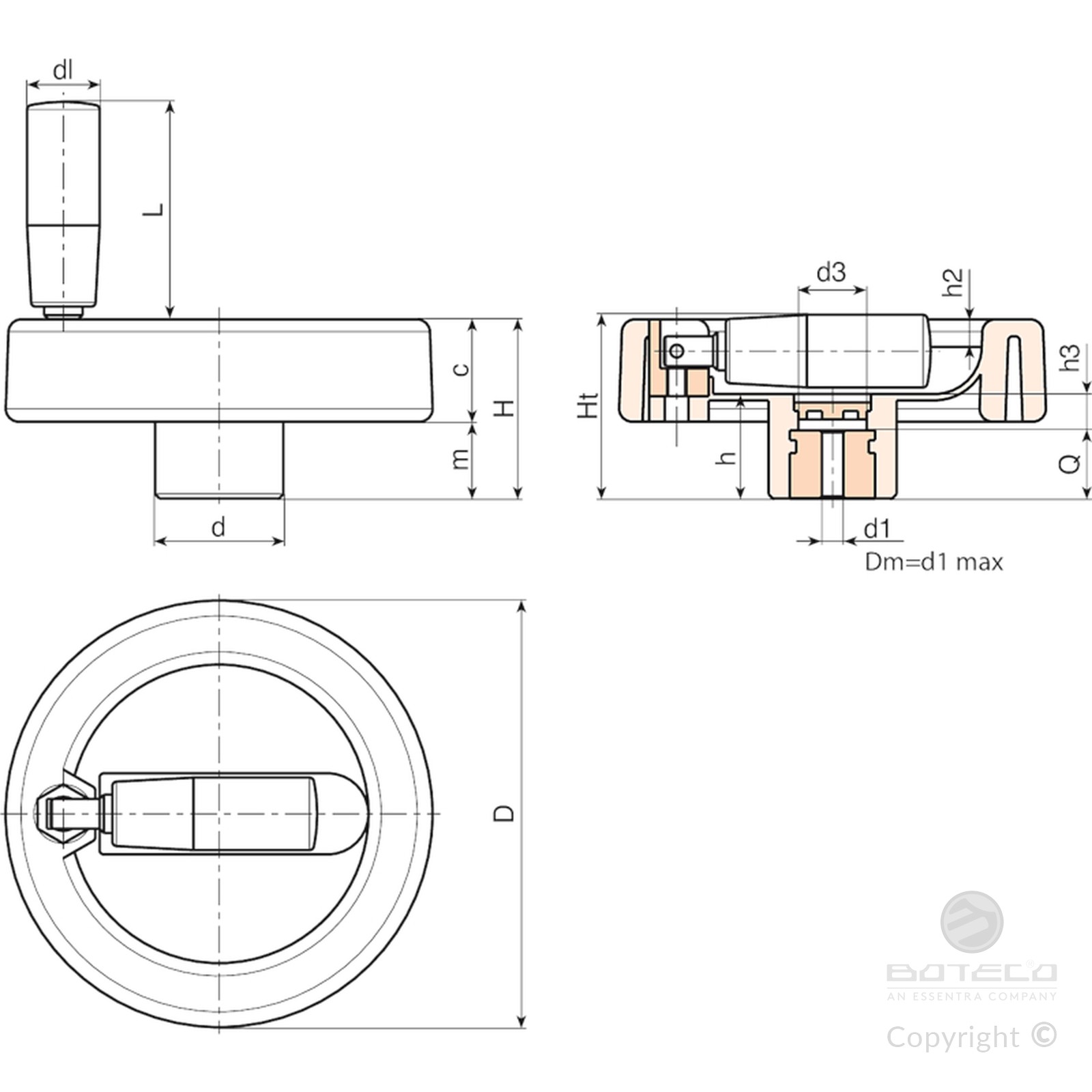

Data sheet
Code Art. D H Ht h d m c d3 h3 h2 dl L Dm d1 H10 Q Weight (g)
C199080.0018 C199080.TP0501P 80 33 35 19 25 15 18 15 6 4 16 38 12 5 13 113
C199080.0004 C199080.TD0801P 80 33 35 19 25 15 18 15 6 4 16 38 12 8 13 111
C199080.0011 C199080.TD1001P 80 33 35 19 25 15 18 15 6 4 16 38 12 10 13 110
C199100.0019 C199100.TP0501P 100 42 43.5 24 30 18 24 17 8 6.5 17 48 16 5 16 240
C199100.0001 C199100.TD0801P 100 42 43.5 24 30 18 24 17 8 6.5 17 48 16 8 16 238
C199100.0004 C199100.TD1001P 100 42 43.5 24 30 18 24 17 8 6.5 17 48 16 10 16 237
C199100.0010 C199100.TD1201P 100 42 43.5 24 30 18 24 17 8 6.5 17 48 16 12 16 232
C199100.0011 C199100.TD1401P 100 42 43.5 24 30 18 24 17 8 6.5 17 48 16 14 16 230
Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
Dm = Maximum obtainable diameter for subsequent machining (widening).
