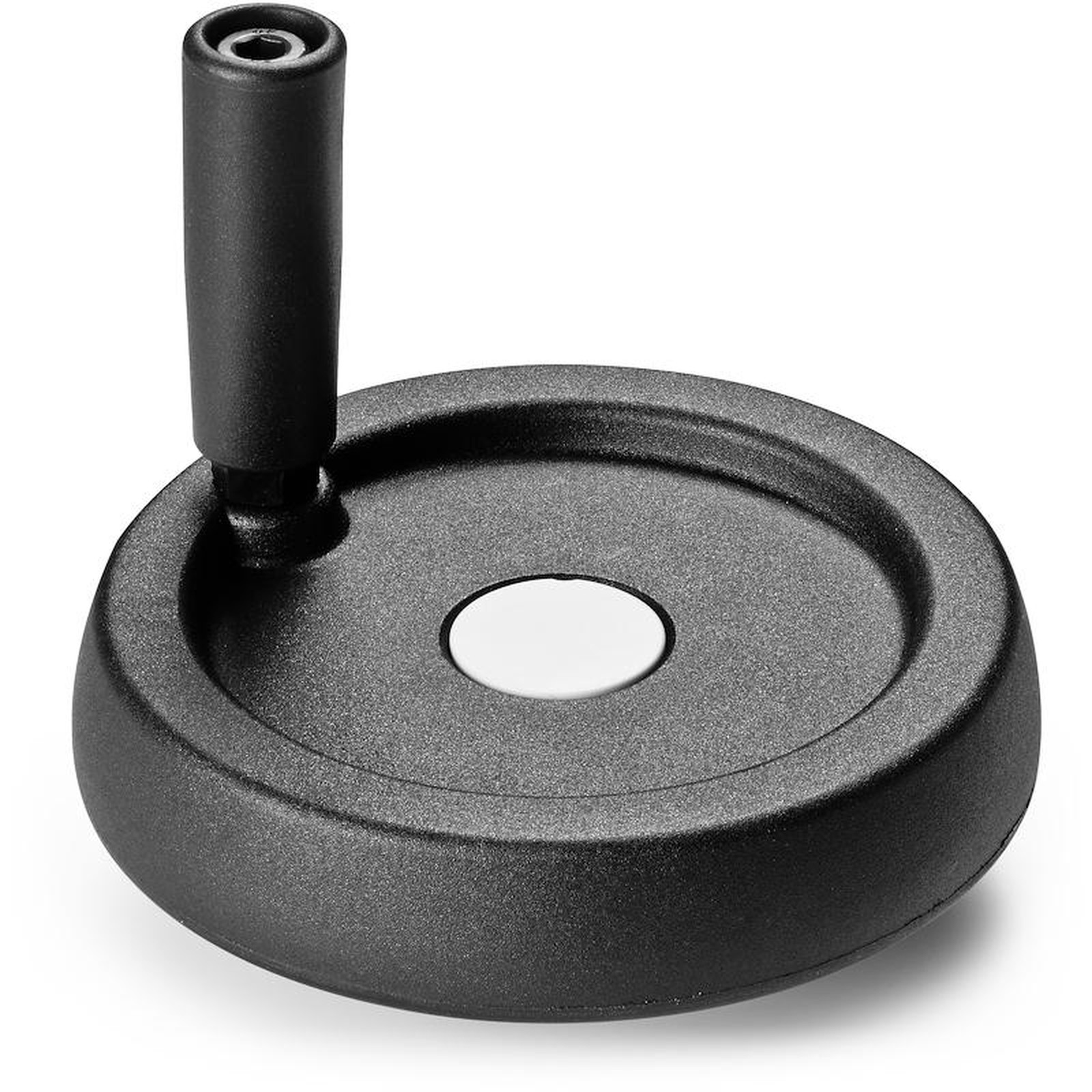

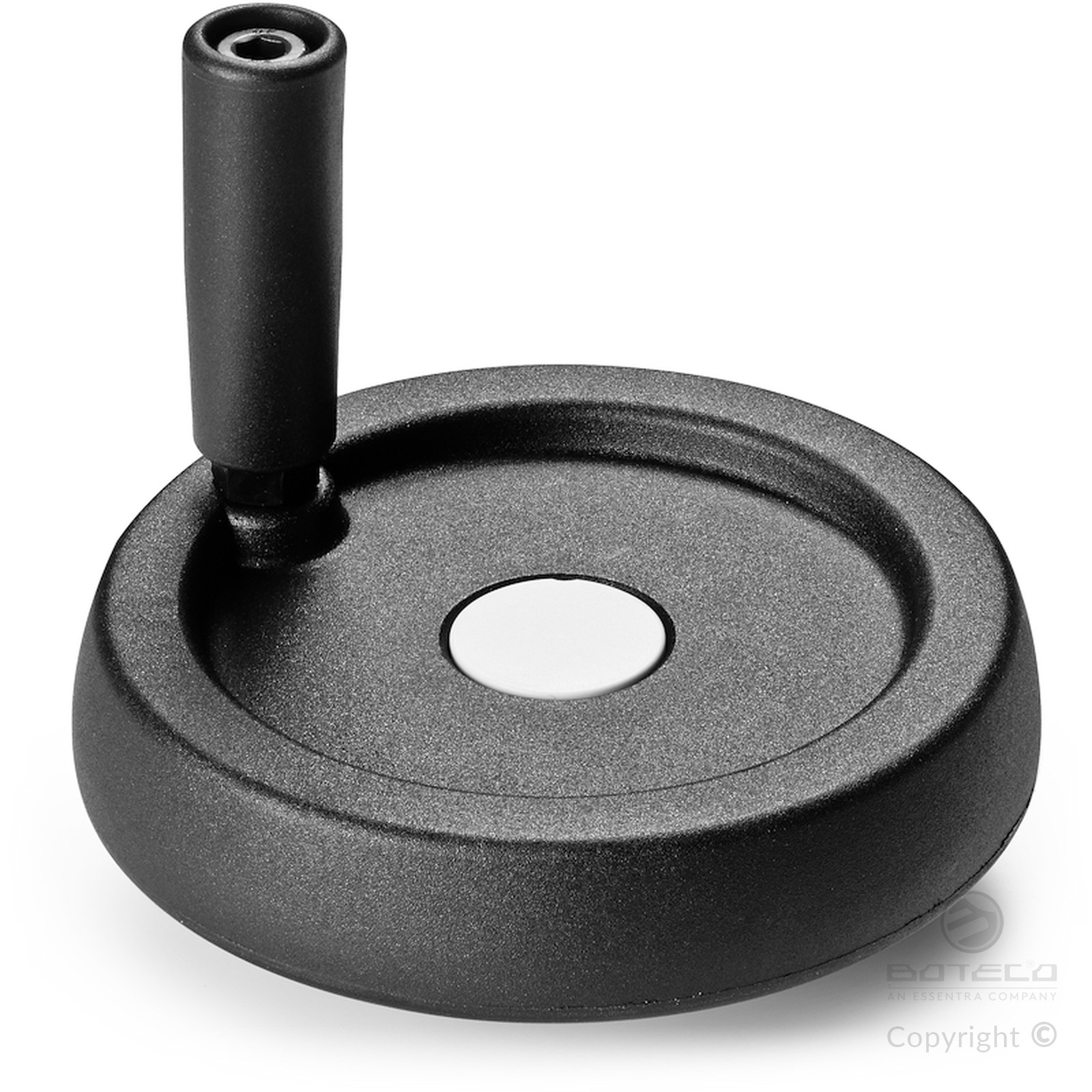

SOLID CONTROL HANDWHEEL WITH REVOLVING HANDLE

03

C197


Volantini con manico girevole

    Materials:

    Reinforced and stabilized polyamide.

    Resistant to oils and greases.

    Surface finish:

    Satin.

    Colour:

    Black (RAL 9011).

    Central cap:

    Grey polyamide (RAL 7035). 13).

    Alternative cap colours:

    Orange(RAL 2004 code 02).

    Blue(RAL 5015 code 07).

    Yellow(RAL 1021 code 10).

    Red(RAL 3000 code 16).

    Green(RAL 6024 code 17).

    Black(RAL 9011 code 01).

    Main insert:

    Galvanised steel insert with smooth through bore (tolerance H10).

    Lateral insert:

    Brass insert with threaded through hole.

    Lateral handle:

    Revolving handle art. M144.

    Fixing method:

    For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.

    Special requests:

    On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.

    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.

    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.

    Upon request and for special quantities handwheels, handles and caps are available in the colours indicated in the chart (attention: reduced range).

    Data sheet

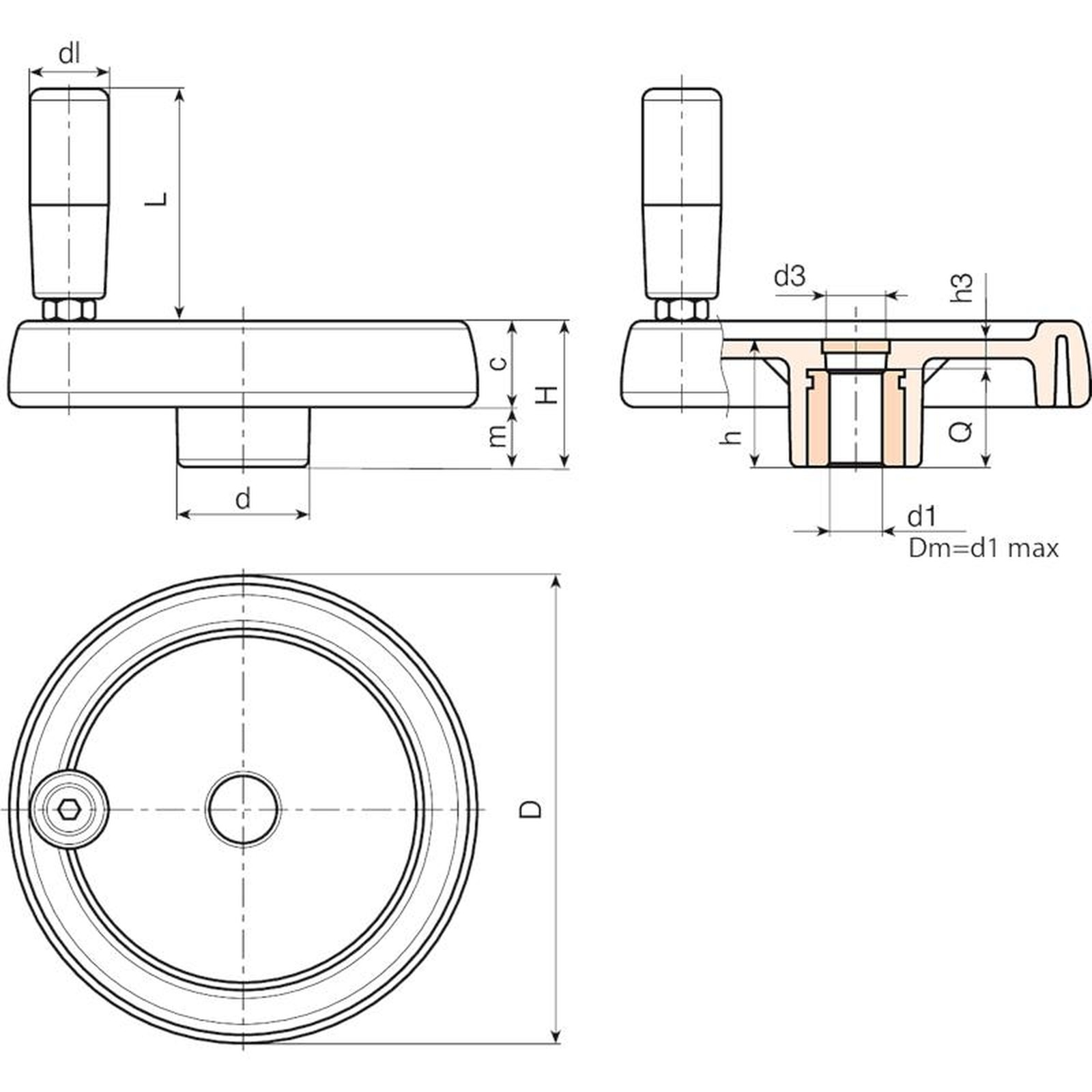

    Code Art. D H h d m c d3 h3 Dm d1 H10 Q Weight (g)
    C197080.0007 C197080.TP0501P 81 33 29 25 16 17 16 9 12 5 20 130
    C197080.0001 C197080.TD0801P 81 33 29 25 16 17 16 9 12 8 20 129
    C197080.0003 C197080.TD1001P 81 33 29 25 16 17 16 9 12 10 20 127
    C197100.0021 C197100.TP0501P 100.5 39 34 30.5 18 21 16.5 10 16 5 24 192
    C197100.0001 C197100.TD0801P 100.5 39 34 30.5 18 21 16.5 10 16 8 24 192
    C197100.0008 C197100.TD1001P 100.5 39 34 30.5 18 21 16.5 10 16 10 24 190
    C197100.0014 C197100.TD1201P 100.5 39 34 30.5 18 21 16.5 10 16 12 24 188
    C197125.0031 C197125.TP0501P 125 44 37 36 20 24 26 13 18 5 24 351
    C197125.0002 C197125.TD0801P 125 44 37 36 20 24 26 13 18 8 24 345
    C197125.0008 C197125.TD1201P 125 44 37 36 20 24 26 13 18 12 24 340
    C197125.0013 C197125.TD1401P 125 44 37 36 20 24 26 13 18 14 24 335
    C197150.0001 C197150.TD0801P 150 54 44 38 25 29 26 12 22 8 32 588
    C197150.0008 C197150.TD1201P 150 54 44 38 25 29 26 12 22 12 32 580
    C197150.0010 C197150.TD1401P 150 54 44 38 25 29 26 12 22 14 32 577
    C197150.0017 C197150.TD1601P 150 54 44 38 25 29 26 12 22 16 32 570
    C197175.0001 C197175.TD0801P 173 57 47 40 25.5 31.5 26 15 22 8 32 770
    C197175.0007 C197175.TD1601P 173 57 47 40 25.5 31.5 26 15 22 16 32 755
    C197175.0009 C197175.TD2001P 173 57 47 40 25.5 31.5 26 15 22 20 32 751
    C197200.0004 C197200.TD0801P 204 61 49.5 45 26 35 26.5 13.5 28 8 36 980
    C197200.0019 C197200.TD2001P 204 61 49.5 45 26 35 26.5 13.5 28 20 36 960
    C197250.0001 C197250.TD0801P 251 66,5 56,5 60 27,5 39 36 20,5 28 8 36 1530
    Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
    Dm = Maximum obtainable diameter for subsequent machining (widening).
