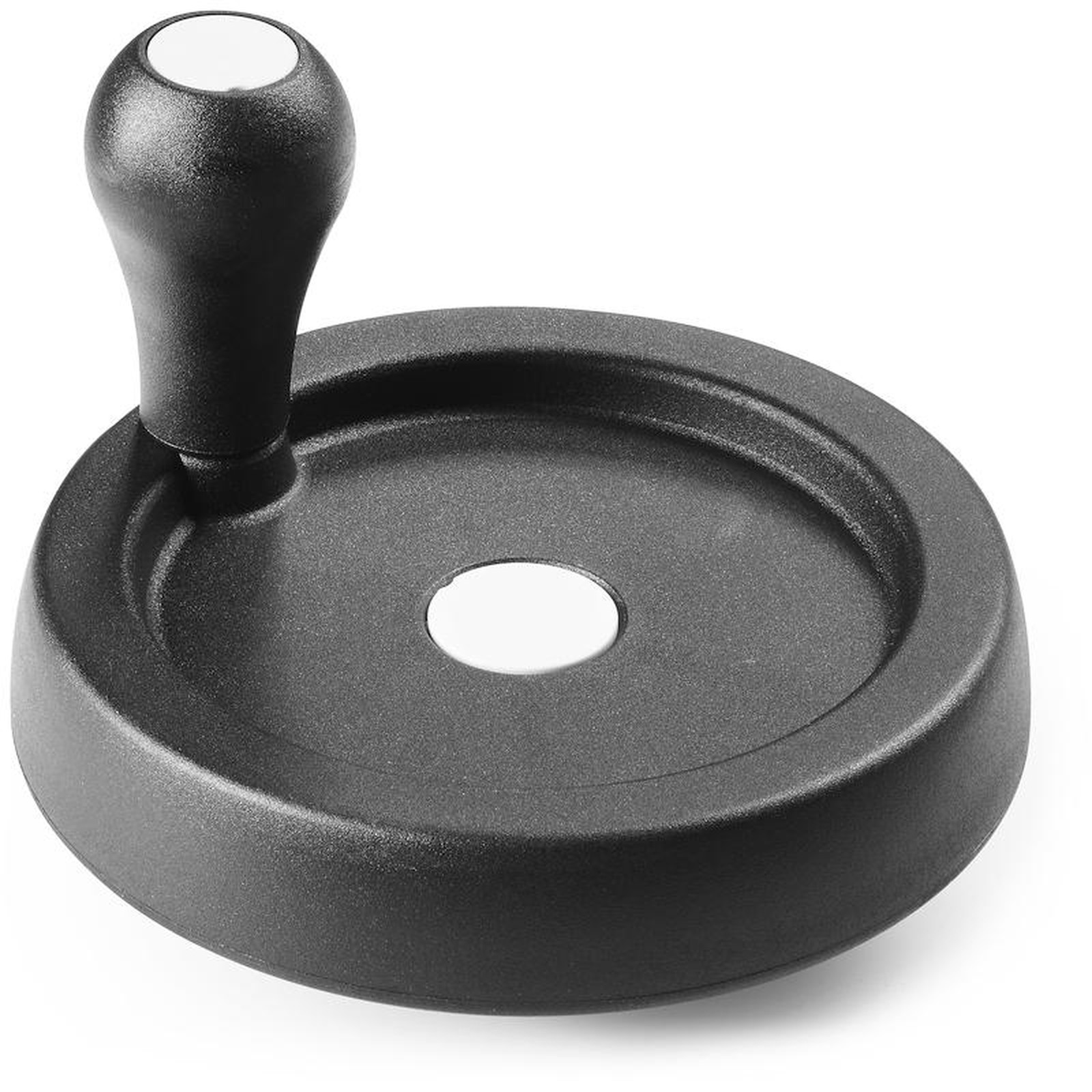

SOLID CONTROL HANDWHEEL WITH REVOLVING HANDLE M202
C195
Volantini con manico girevole
Materials:
Reinforced and stabilized polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Alternative cap colours:
Orange(RAL 2004 code 02).
Blue(RAL 5015 code 07).
Yellow(RAL 1021 code 10).
Red(RAL 3000 code 16).
Green(RAL 6024 code 17).
Black(RAL 9011 code 01).
Main insert:
Galvanised steel insert with smooth through bore (tolerance H10).
Lateral insert:
Brass insert with threaded through hole.
Lateral handle:
Revolving handle art. M202.
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special requests:
On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities handwheels, handles and caps are available in the colours indicated in the chart (attention: reduced range).

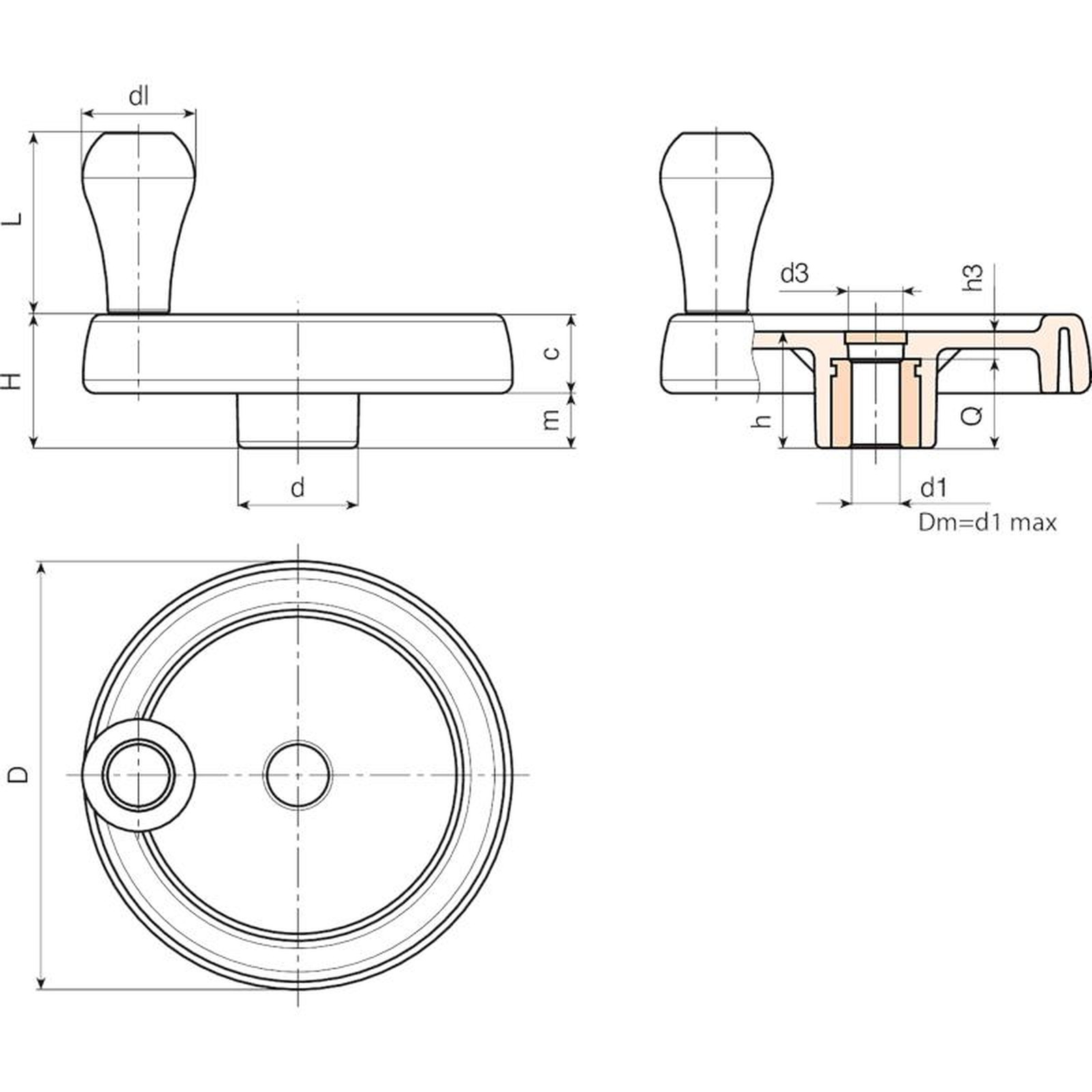

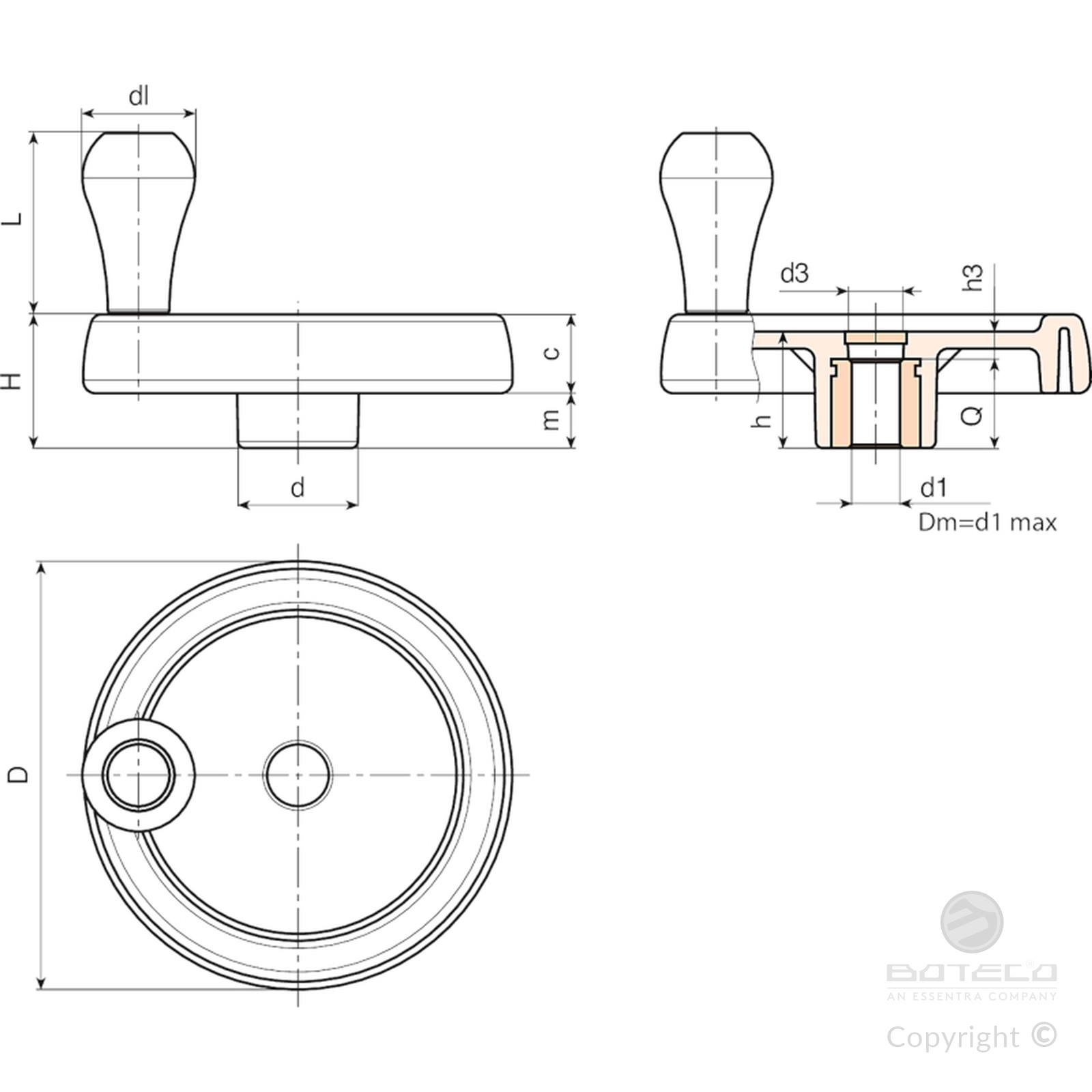

| Code | Art. | D | H | h | d | m | c | d3 | h3 | dl | L | Dm | d1 H10 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C195150.0001 | C195150.TD0801P | 150 | 54 | 44 | 38 | 25 | 29 | 26 | 12 | 40 | 64 | 22 | 8 | 32 | 610 |
| C195175.0001 | C195175.TD0801P | 173 | 57 | 47 | 40 | 25.5 | 31.5 | 26 | 15 | 40 | 64 | 22 | 8 | 32 | 750 |
| C195200.0001 | C195200.TD0801P | 204 | 61 | 49.5 | 45 | 26 | 35 | 27 | 13 | 40 | 64 | 28 | 8 | 36 | 960 |
| C195250.0001 | C195250.TD0801P | 251 | 66,5 | 56,5 | 60 | 27,5 | 39 | 36 | 20,5 | 40 | 64 | 28 | 8 | 36 | 1490 |
