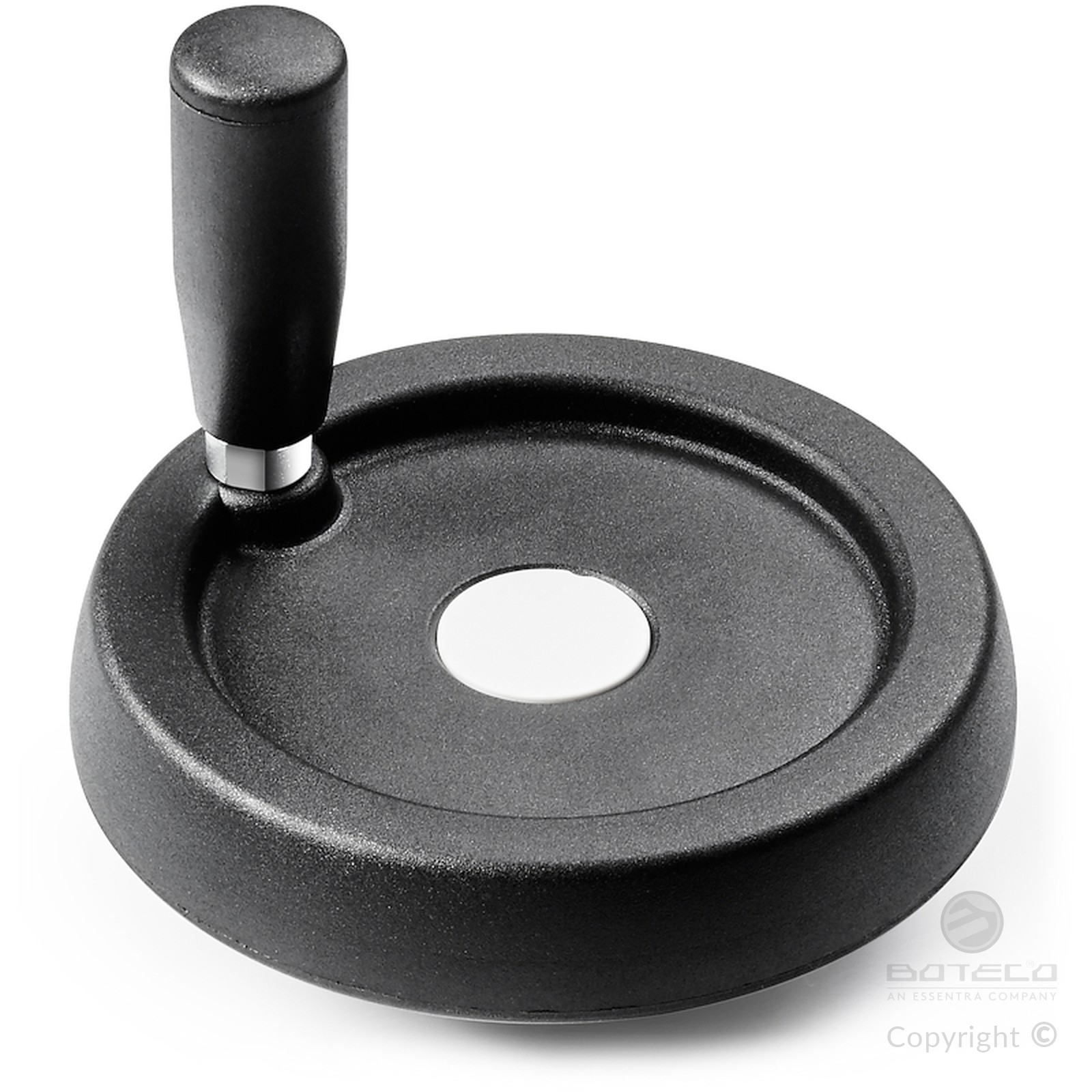

SOLID CONTROL HANDWHEEL WITH REVOLVING HANDLE M145

03

C193


Volantini con manico girevole

    Materials:

    Reinforced and stabilized polyamide.

    Resistant to oils and greases.

    Surface finish:

    Satin.

    Colour:

    Black(RAL 9011).

    Central cap:

    Grey polyamide (RAL 7035). 13).

    Alternative cap colours:

    Orange(RAL 2004 code 02).

    Blue(RAL 5015 code 07).

    Yellow(RAL 1021 code 10).

    Red(RAL 3000 code 16).

    Green(RAL 6024 code 17).

    Black(RAL 9011 code 01).

    Main insert:

    Galvanised steel insert with smooth through bore (tolerance H10).

    Lateral insert:

    Brass insert with threaded through hole.

    Lateral handle:

    Revolving handle art. M145.

    Fixing method:

    For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.

    Special requests:

    On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.

    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.

    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.

    Upon request and for special quantities handwheels, handles and caps are available in the colours indicated in the chart (attention: reduced range).

    Data sheet

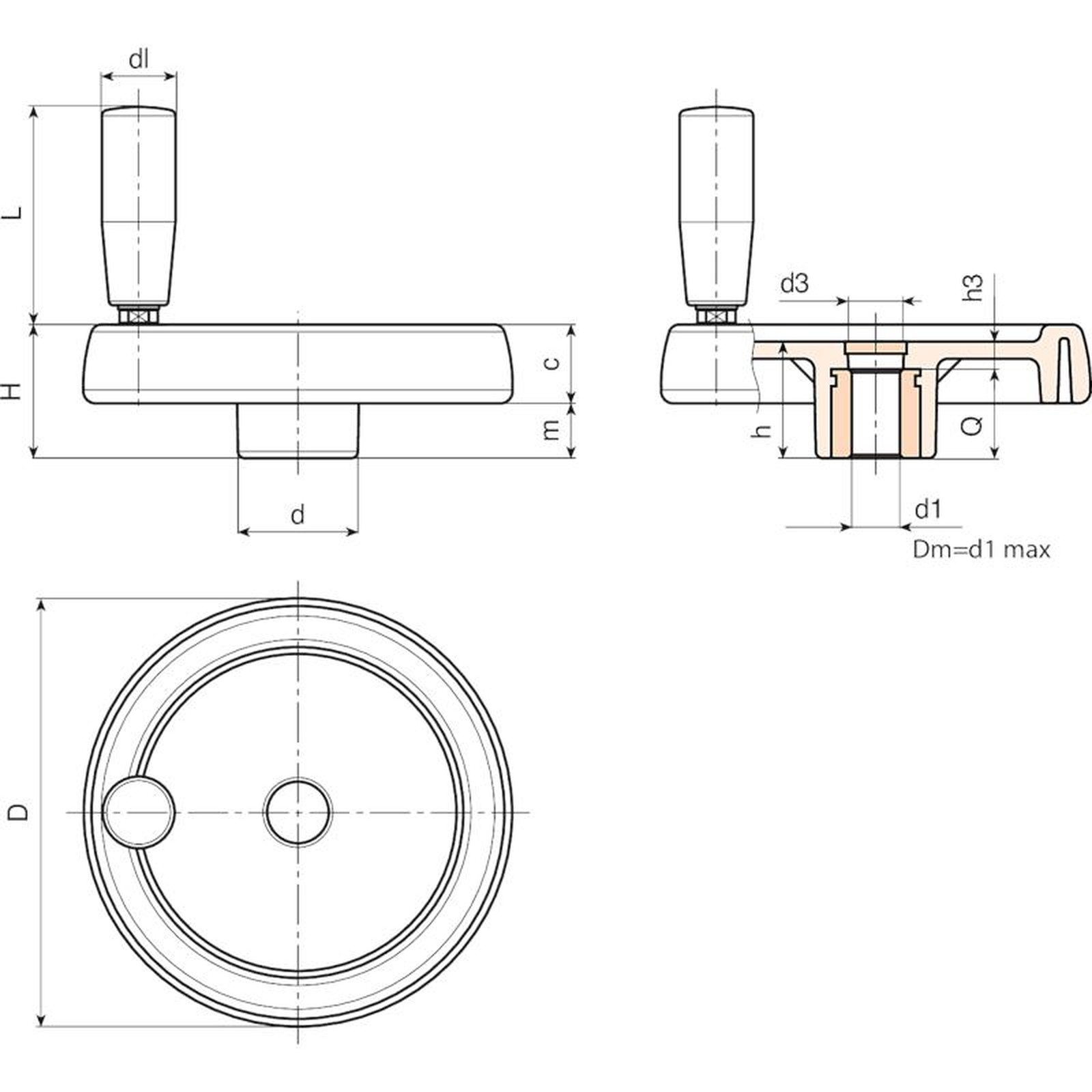

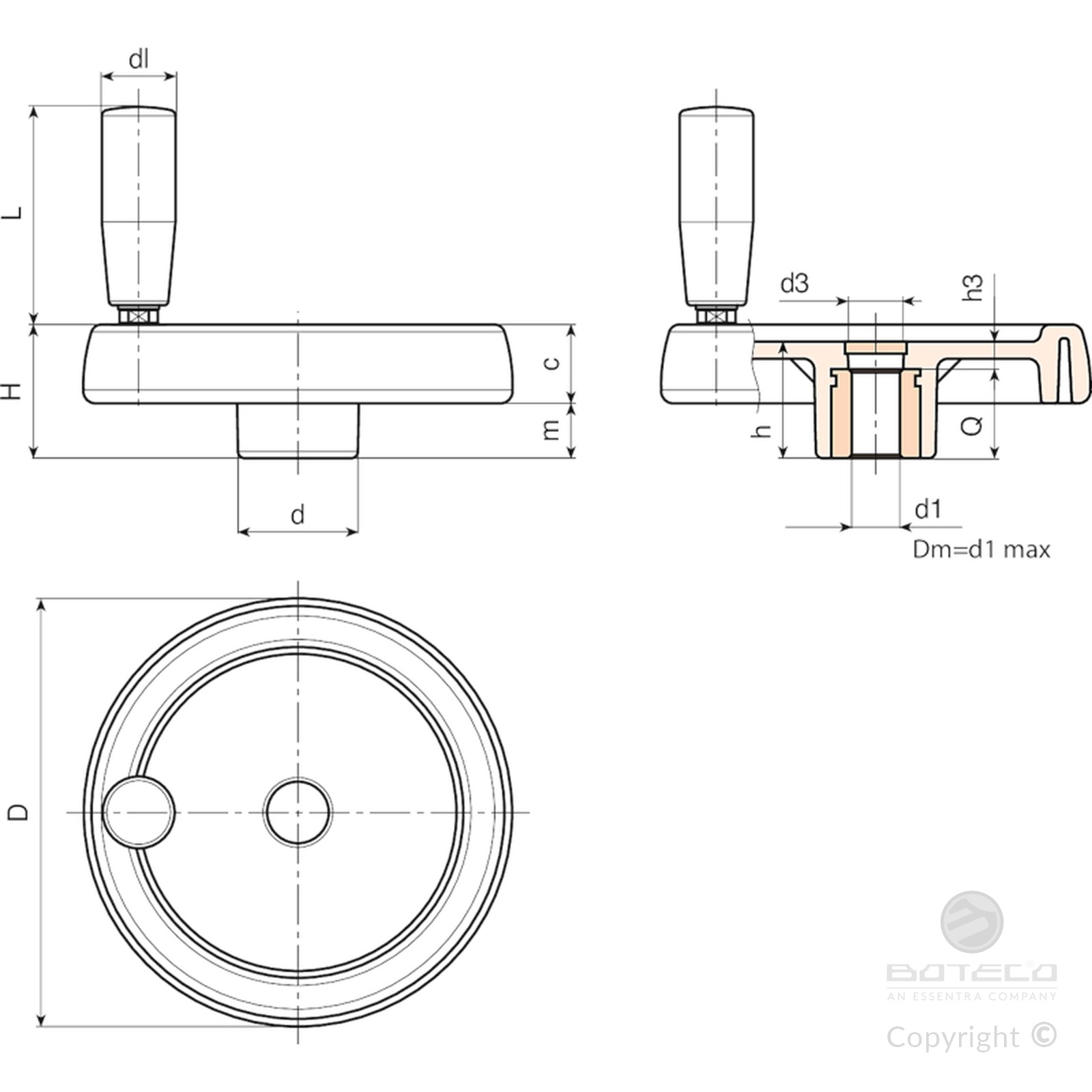

    Code Art. D H h d m c d3 h3 dl L Dm d1 H10 Q Weight (g)
    C193080.0001 C193080.TP0501P 81 33 29 25 16 17 16 9 20 55 12 5 20 135
    C193100.0002 C193100.TP0501P 100.5 39 34 30.5 18 21 16 10 20 55 16 5 24 220
    C193125.0004 C193125.TP0501P 125 44 37 36 20 24 26 13 23 66 18 5 24 370
    C193150.0001 C193150.TD0801P 150 54 44 38 25 29 26 12 25 76 22 8 32 594
    C193175.0001 C193175.TD0801P 173 57 47 40 25.5 31.5 26 15 25 87 22 8 32 750
    C193200.0001 C193200.TD0801P 204 61 49.5 45 26 35 27 13 27 96 28 8 36 965
    C193250.0001 C193250.TD0801P 251 66,5 56,5 60 27,5 39 36 20,5 27 96 28 8 36 1500
    Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
    Dm = Maximum obtainable diameter for subsequent machining (widening).
