Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).

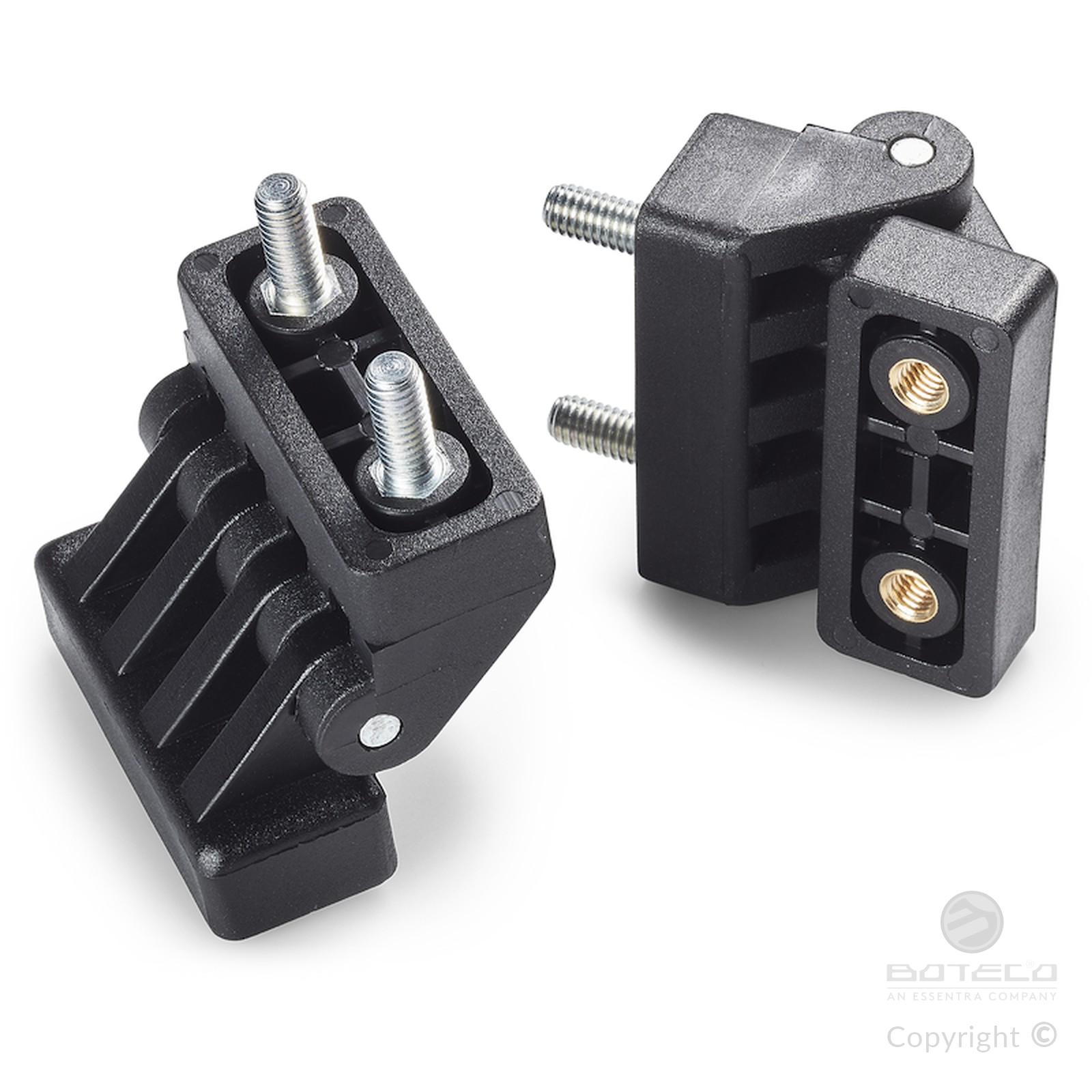

Inserts:
Galvanised steel pin.
Galvanised steel threaded stud (thread tolerance 6g).
Brass insert with female threaded hole (thread tolerance 6H).
Special Requests:
None.

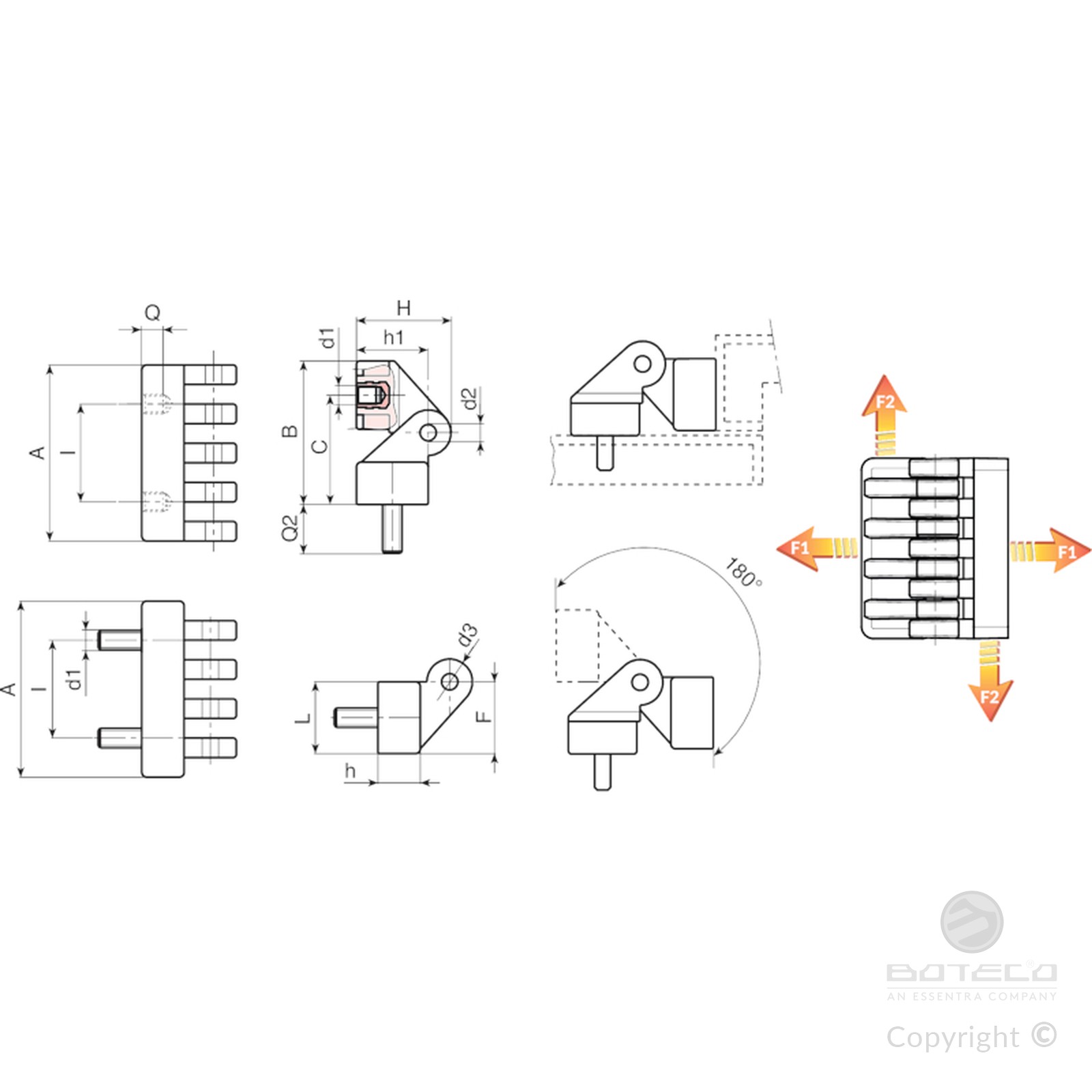

| Code | art. | I | C | A | B | L | F | h | h1 | H | d2 | d3 | d1 | Q | Q2 | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O45554.0001 | O45554.TM0601 | 30 | 22,5 | 54 | 44 | 21,5 | 22 | 13 | 22,5 | 30 | 5 | 15 | M6 | 7 | 15 | 72 | 295 | 1670 |
