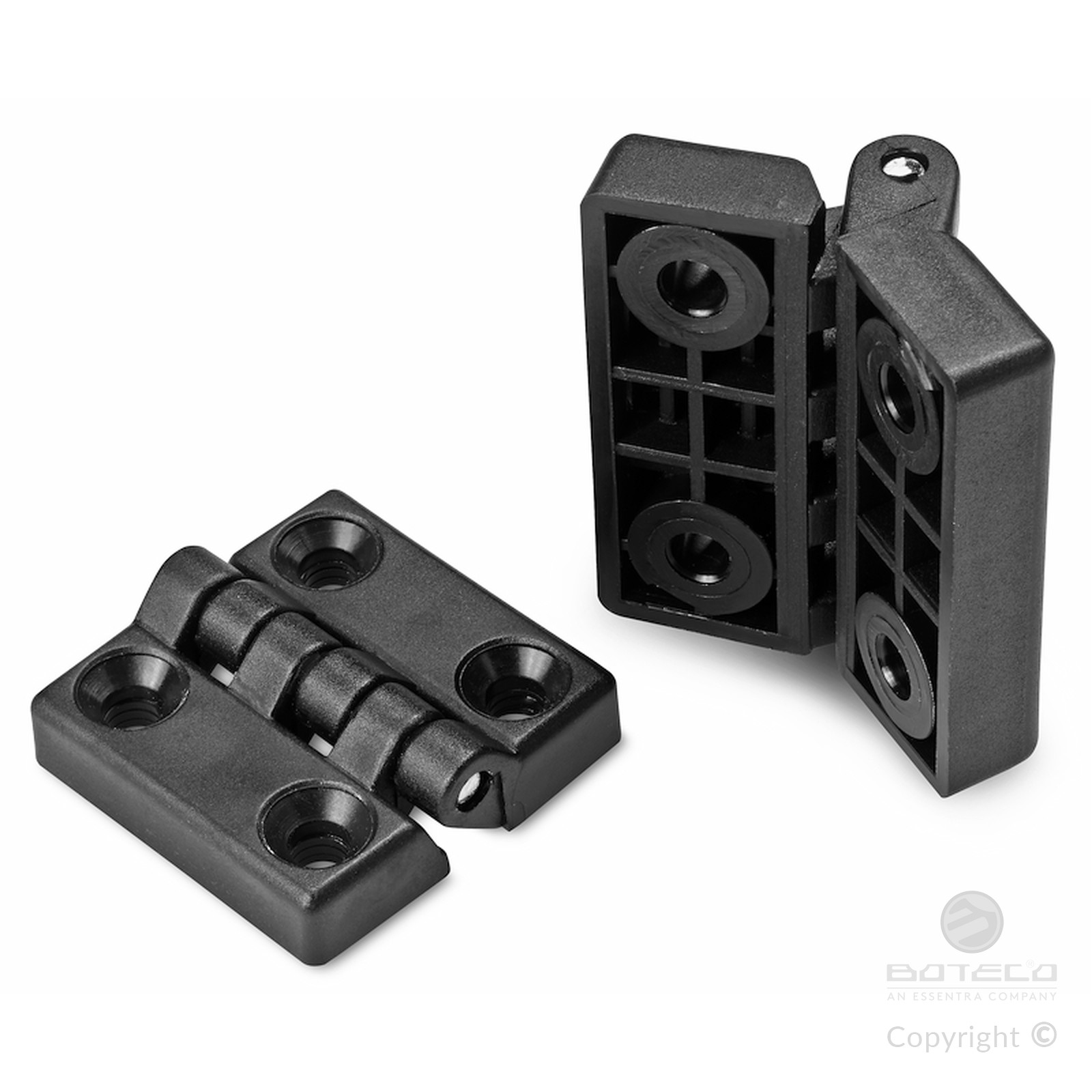

Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
Stainless steel pin (Aisi 303).
Hole:
Version TS:
Through hole obtained by moulding the plastic. Seat for countersunk screw DIN 7991 / UNI 5933.
Version TC:
Through hole obtained by moulding the plastic. Seat for cylindrical head screw DIN 912 / UNI 5931.
Special Requests:
Upon request and for special quantities available in the colours indicated in the chart.

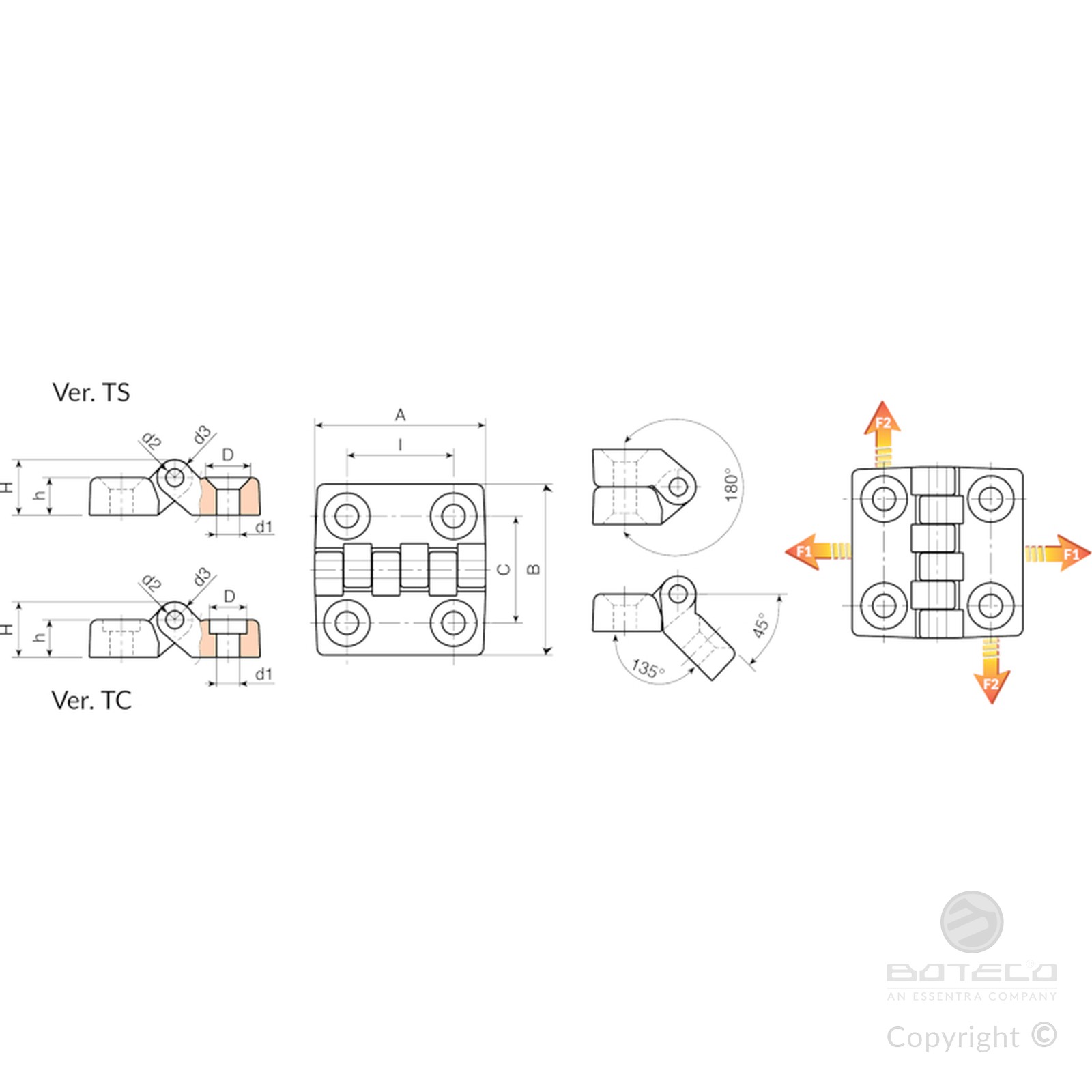

Version O400-TS CIN: with holes for countersunk head screws
| Code | art. | I | C | A | B | h | H | D | d2 | d3 | d1 | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O40020.0004 | O40020.TG04.501TSCIN | 20 | 20 | 32 | 32 | 7 | 10,5 | 8,5 | 3 | 7 | 4,5 | 9 | 1440 | 490 |
| O40030.0004 | O40030.TG05.501TSCIN | 30 | 30 | 48 | 48 | 10,5 | 15,5 | 12,5 | 5 | 10 | 5,5 | 27 | 1960 | 1470 |
| O40030.0008 | O40030.TG06.501TSCIN | 30 | 30 | 48 | 48 | 10,5 | 15,5 | 12,5 | 5 | 10 | 6,5 | 27 | 1960 | 1470 |
| O40040.0005 | O40040.TG06.501TSCIN | 40 | 40 | 64 | 64 | 13 | 19 | 12,5 | 5 | 12 | 6,5 | 53 | 2850 | 1520 |
| O40060.0004 | O40060.TG08.501TSCIN | 60 | 63 | 96 | 96 | 16 | 24 | 16,5 | 8 | 16 | 8,5 | 152 | 4300 | 1810 |
| O40060.0008 | O40060.TG10.501TSCIN | 60 | 63 | 96 | 96 | 16 | 24 | 20.5 | 8 | 16 | 10.5 | 152 | 4300 | 1810 |
Version O400-TC CIN: with holes for cylindrical head screws
| Code | art. | I | C | A | B | h | H | D | d2 | d3 | d1 | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O40020.0002 | O40020.TG04.501TCCIN | 20 | 20 | 32 | 32 | 7 | 10,5 | 7,5 | 3 | 7 | 4,5 | 9 | 1440 | 490 |
| O40030.0002 | O40030.TG05.501TCCIN | 30 | 30 | 48 | 48 | 10,5 | 15,5 | 10,5 | 5 | 10 | 5,5 | 27 | 1960 | 1470 |
| O40030.0006 | O40030.TG06.501TCCIN | 30 | 30 | 48 | 48 | 10,5 | 15,5 | 10,5 | 5 | 10 | 6,5 | 27 | 1960 | 1470 |
| O40040.0003 | O40040.TG06.501TCCIN | 40 | 40 | 64 | 64 | 13 | 19 | 10,5 | 5 | 12 | 6,5 | 53 | 2850 | 1520 |
| O40060.0002 | O40060.TG08.501TCCIN | 60 | 63 | 96 | 96 | 16 | 24 | 13,5 | 8 | 16 | 8,5 | 152 | 4300 | 1810 |
| O40060.0006 | O40060.TG10.501TCCIN | 60 | 63 | 96 | 96 | 16 | 24 | 16,5 | 8 | 16 | 10,5 | 152 | 4300 | 1810 |
