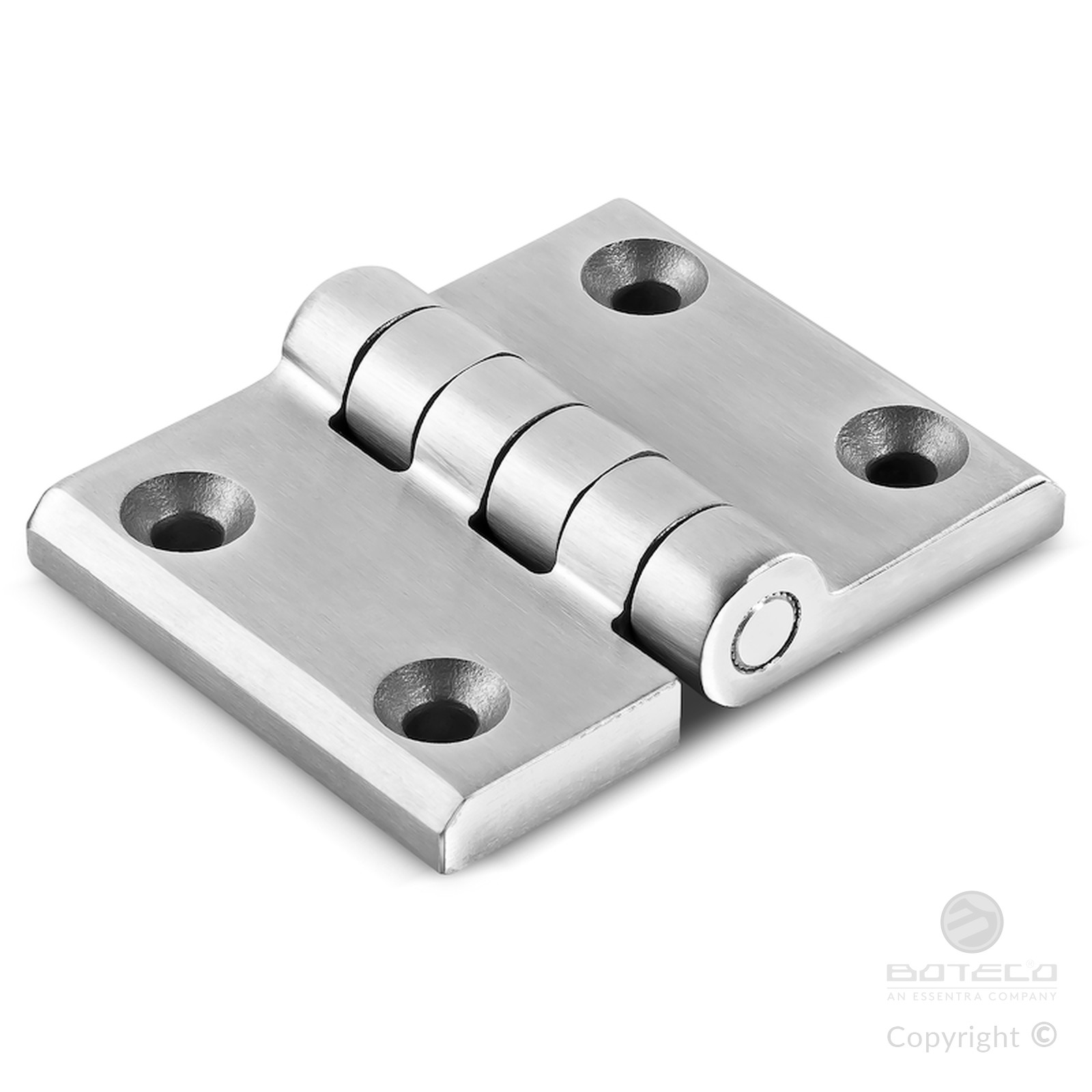

Materials:
Stainless steel (Aisi 316).
Surface finish:
Natural brushing.
Colour:
Natural.
Inserts:
Stainless steel pivot pin (Aisi 303).
Holes:
Through holes obtained by moulding. 90° countersunk hole for UNI 5933 – UNI 6109 screws.
Special Requests:
None.

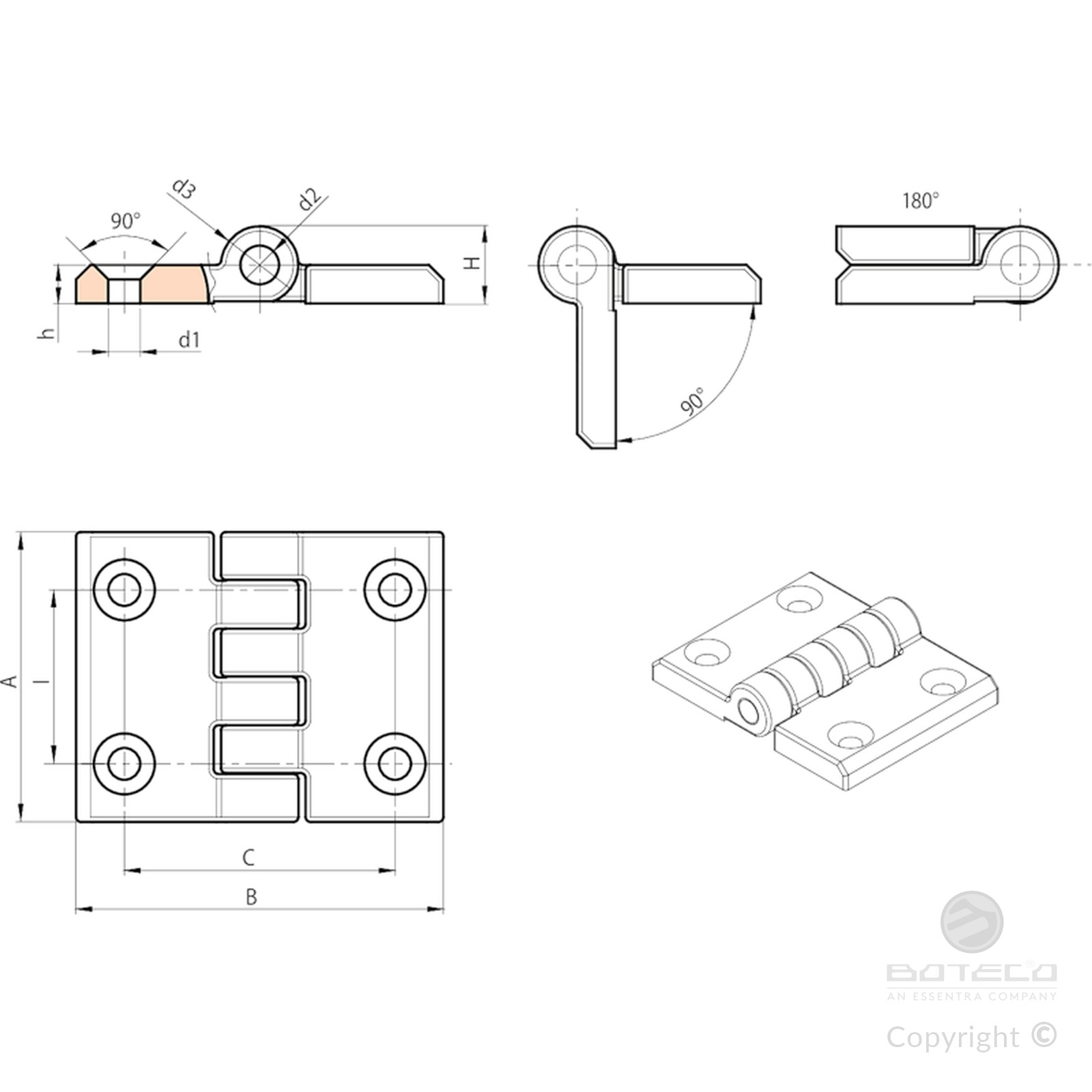

| Code | Art. | I | C | A | B | H | h | d2 | d3 | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| O30536.0002 | O30536.HG06.5CIN | 36 | 56 | 60 | 76 | 16 | 8 | 8 | 16 | 6,5 | 275 |
