A594CIN
FULL STAINLESS STEEL INDEXED CLAMPING LEVER WITH THREADED INSERT
Indexed clamping levers with screw
Description

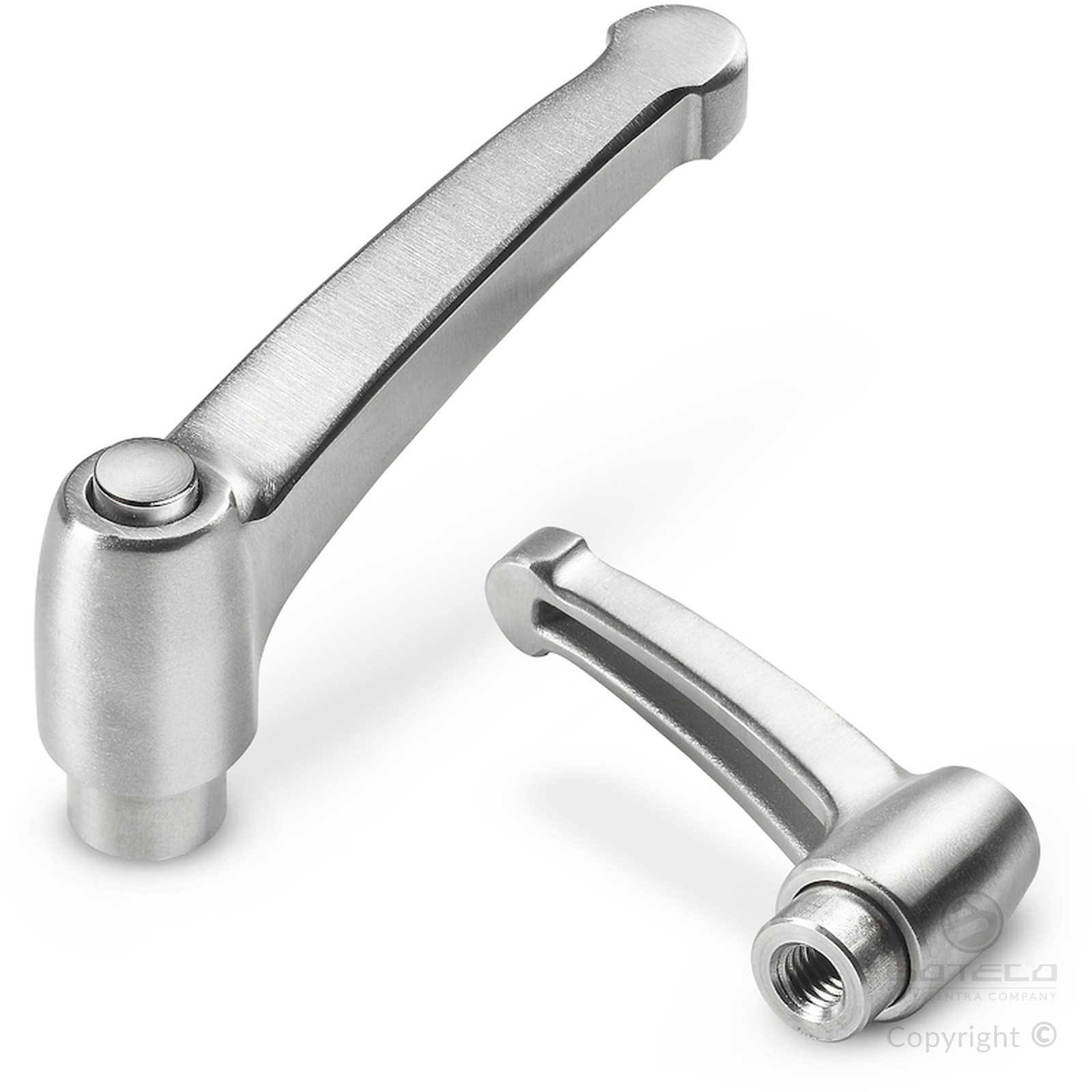

The full stainless steel indexed clamping lever is part of our 'METALLINE' line, designed ad hoc for applications where cleanliness and sanitisation are important. The functioning is the same as the plastic ones but, being made completely from stainless steel, the sturdiness and closure strength is greater. The shape and the possibility of raising the handle body to position it at a different angle means that this adjustable handle can be used in confined spaces where there is no room for full rotation.
Materials:
Lever body in precision-cast stainless steel (Aisi 304).
Surface finish:
Brushed.
Colour:
Natural.
Inserts:
Stainless steel insert with female threaded hole (Aisi 303) (thread tolerance 6H).
Fixing screw:
Vite in acciaio inox (Aisi 303) con testa chiusa.
Spring:
Stainless steel spring (Aisi 302).
Special requests:
None.

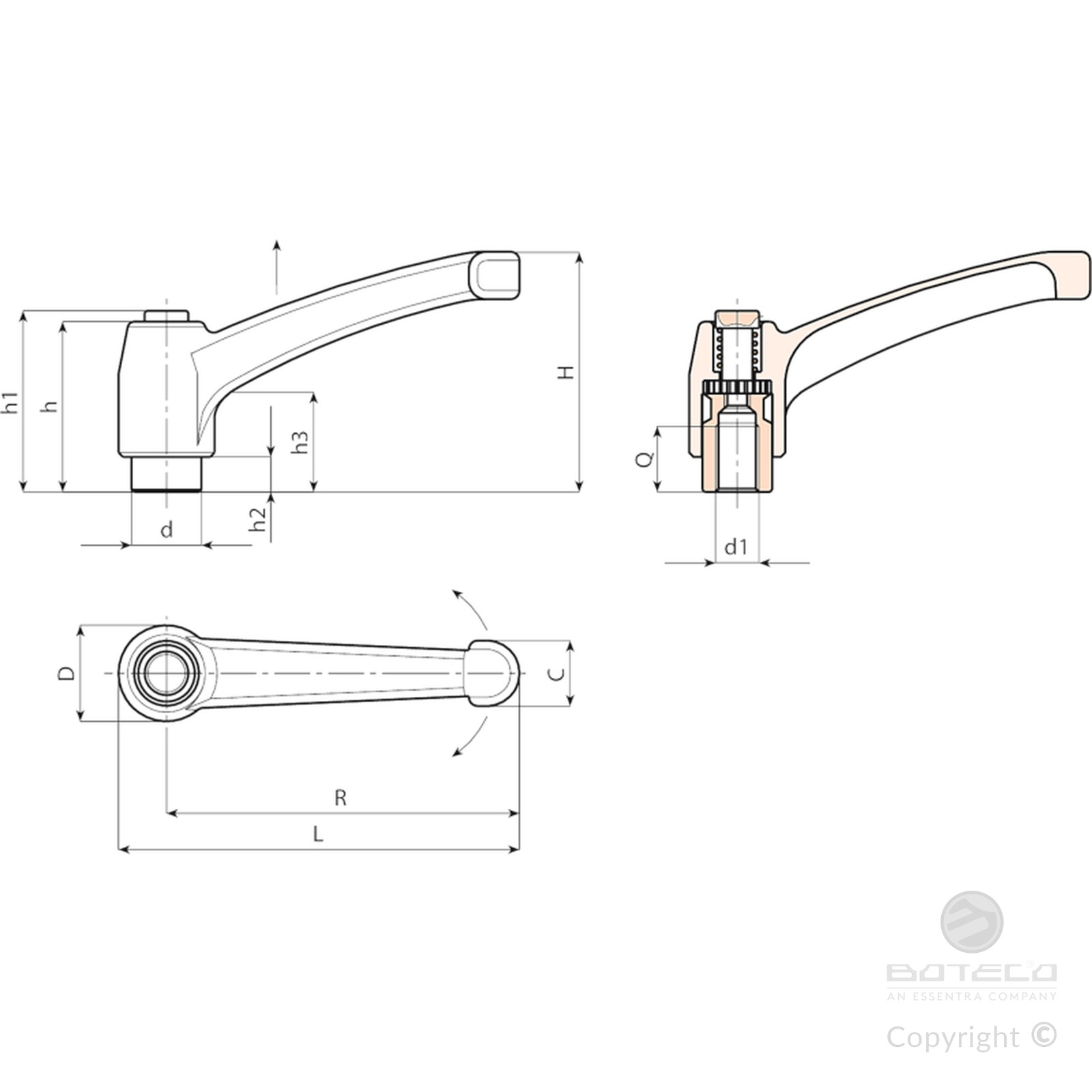

| Code | Art. | L | R | H | D | d | c | h | h1 | h2 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A594043.0001 | A594043.IM05CIN | 50 | 43 | 30 | 14 | 10 | 9 | 26 | 30 | 5 | 14 | M5 | 9 | 30 |
| A594043.0002 | A594043.IM06CIN | 50 | 43 | 30 | 14 | 10 | 9 | 26 | 30 | 5 | 14 | M6 | 9 | 28 |
| A594065.0001 | A594065.IM06CIN | 75 | 65 | 45 | 19 | 14 | 13 | 32 | 34 | 7 | 14 | M6 | 10 | 78 |
| A594065.0002 | A594065.IM08CIN | 75 | 65 | 45 | 19 | 14 | 13 | 32 | 34 | 7 | 14 | M8 | 10 | 76 |
| A594065.0003 | A594065.IM10CIN | 75 | 65 | 45 | 19 | 14 | 13 | 32 | 34 | 7 | 14 | M10 | 10 | 74 |
| A594080.0001 | A594080.IM08CIN | 91 | 80 | 57 | 22 | 16 | 16 | 40 | 42 | 8 | 16 | M8 | 14 | 134 |
| A594080.0002 | A594080.IM10CIN | 91 | 80 | 57 | 22 | 16 | 16 | 40 | 42 | 8 | 16 | M10 | 13 | 130 |
| A594080.0003 | A594080.IM12CIN | 91 | 80 | 57 | 22 | 16 | 16 | 40 | 42 | 8 | 16 | M12 | 12 | 128 |
| A594094.0001 | A594094.IM10CIN | 107 | 94 | 65 | 26 | 20 | 18 | 47 | 50 | 10.5 | 19 | M10 | 17 | 191 |
| A594094.0002 | A594094.IM12CIN | 107 | 94 | 65 | 26 | 20 | 18 | 47 | 50 | 10.5 | 19 | M12 | 17 | 195 |
| A594094.0003 | A594094.IM14CIN | 107 | 94 | 65 | 26 | 20 | 18 | 47 | 50 | 10.5 | 19 | M14 | 17 | 190 |
