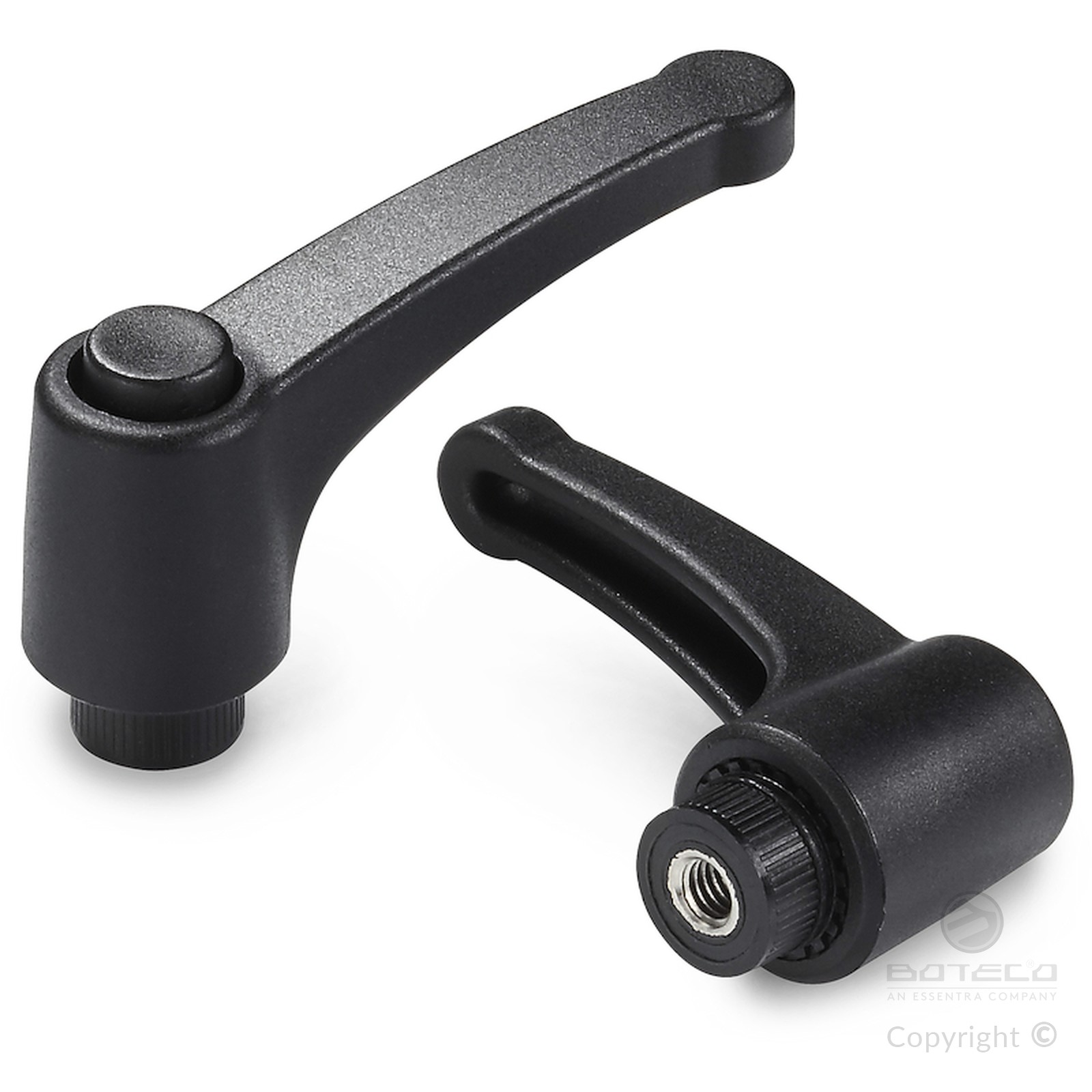

“EUROMODEL” INDEXED CLAMPING LEVER WITH BUTTON AND STAINLESS STEEL THREADED INSERT
Indexed clamping levers with button
Materials:
Special technopolymer reinforced with high-strength glass fiber.
Resistant to oils and greases.
Surface finish:
Satin.
Lever body and insert colour:
Black(RAL 9011).
Inserts:
Stainless steel insert with female threaded hole (Aisi 303) (thread tolerance 6H).
Button:
Black polyamide button (RAL 9011).
Spring:
Stainless steel spring (Aisi 302).
Alternative lever body and button colours:
Orange(RAL 2004 code 02).
Blue(RAL 5015 code 07).
Yellow(RAL 1021 code 10).
Red(RAL 3000 code 16).
Green(RAL 6024 code 17).
Grey(RAL 7035 cod. 13).
Special requests:
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

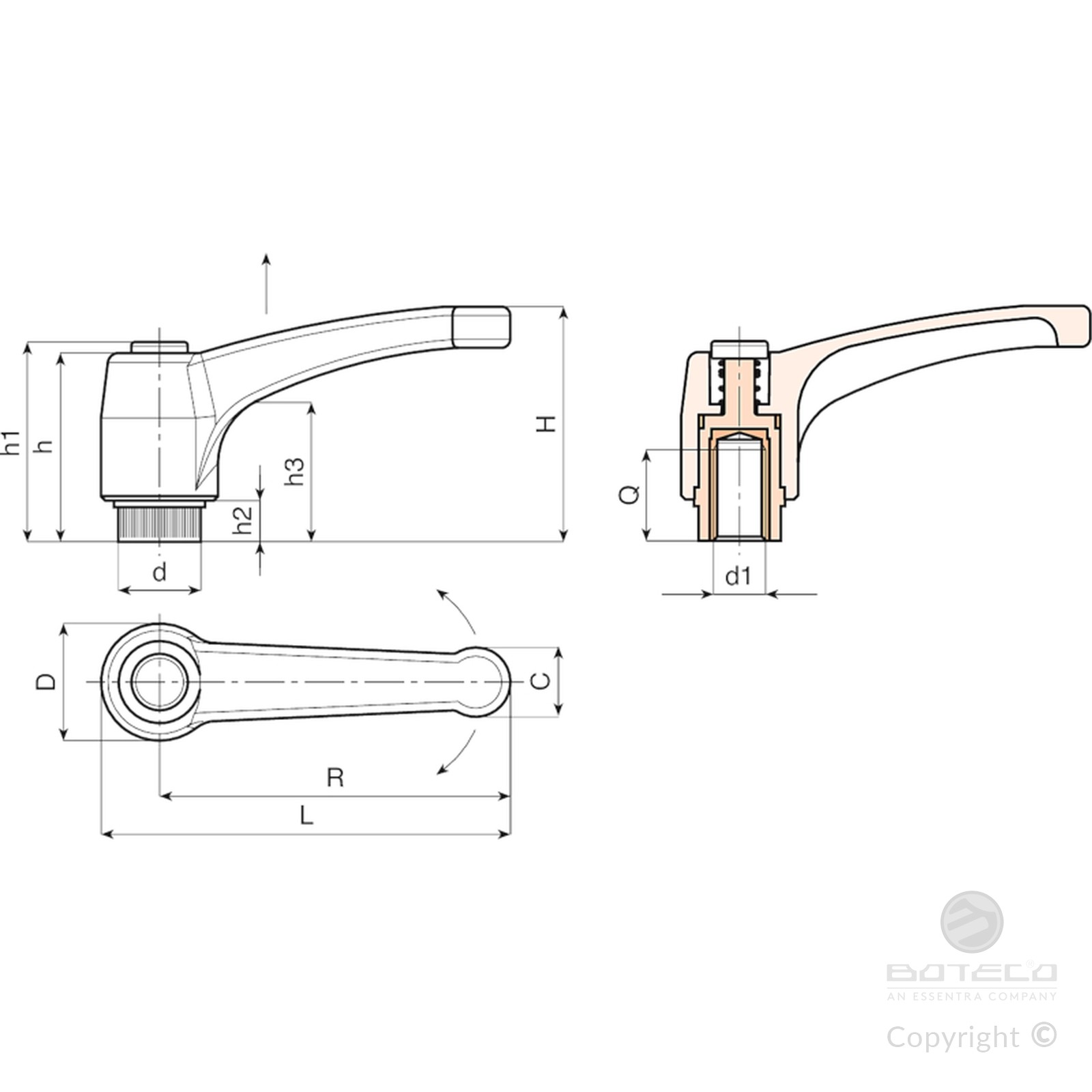

| Code | Art. | L | R | H | D | d | c | h | h1 | h2 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A582043.0003 | A582043.TM0401CIN | 51 | 43 | 33 | 17 | 11.5 | 9 | 29 | 32 | 6 | 18 | M4 | 8 | 15 |
| A582043.0010 | A582043.TM0501CIN | 51 | 43 | 33 | 17 | 11.5 | 9 | 29 | 32 | 6 | 18 | M5 | 10 | 15 |
| A582043.0019 | A582043.TM0601CIN | 51 | 43 | 33 | 17 | 11.5 | 9 | 29 | 32 | 6 | 18 | M6 | 10 | 14 |
| A582052.0004 | A582052.TM0601CIN | 63 | 52 | 41 | 22 | 15 | 12 | 36 | 40 | 8 | 23 | M6 | 14 | 31 |
| A582052.0012 | A582052.TM0801CIN | 63 | 52 | 41 | 22 | 15 | 12 | 36 | 40 | 8 | 23 | M8 | 14 | 30 |
| A582065.0004 | A582065.TM0601CIN | 76 | 65 | 43 | 23 | 15 | 13 | 36 | 40 | 8 | 24 | M6 | 14 | 36 |
| A582065.0014 | A582065.TM0801CIN | 76 | 65 | 43 | 23 | 15 | 13 | 36 | 40 | 8 | 24 | M8 | 14 | 35 |
| A582080.0007 | A582080.TM0801CIN | 93 | 80 | 54 | 27 | 19 | 15.5 | 44 | 48 | 8.5 | 29 | M8 | 19 | 55 |
| A582080.0023 | A582080.TM1001CIN | 93 | 80 | 54 | 27 | 19 | 15.5 | 44 | 48 | 8.5 | 29 | M10 | 19 | 54 |
| A582080.0035 | A582080.TM1201CIN | 93 | 80 | 54 | 27 | 19 | 15.5 | 44 | 48 | 8.5 | 29 | M12 | 19 | 54 |
| A582094.0003 | A582094.TM0801CIN | 109 | 94 | 56 | 30 | 19 | 18 | 45 | 49 | 9 | 30 | M8 | 19 | 80 |
| A582094.0007 | A582094.TM1001CIN | 109 | 94 | 56 | 30 | 19 | 18 | 45 | 49 | 9 | 30 | M10 | 19 | 81 |
| A582094.0013 | A582094.TM1201CIN | 109 | 94 | 56 | 30 | 19 | 18 | 45 | 49 | 9 | 30 | M12 | 19 | 83 |
| A582108.0005 | A582108.TM1201CIN | 125 | 108 | 64 | 34 | 24 | 21 | 51 | 55 | 10 | 35 | M12 | 22 | 144 |
| A582108.0007 | A582108.TM1401CIN | 125 | 108 | 64 | 34 | 24 | 21 | 51 | 55 | 10 | 35 | M14 | 21 | 146 |
| A582108.0010 | A582108.TM1601CIN | 125 | 108 | 64 | 34 | 24 | 21 | 51 | 55 | 10 | 35 | M16 | 23 | 149 |
