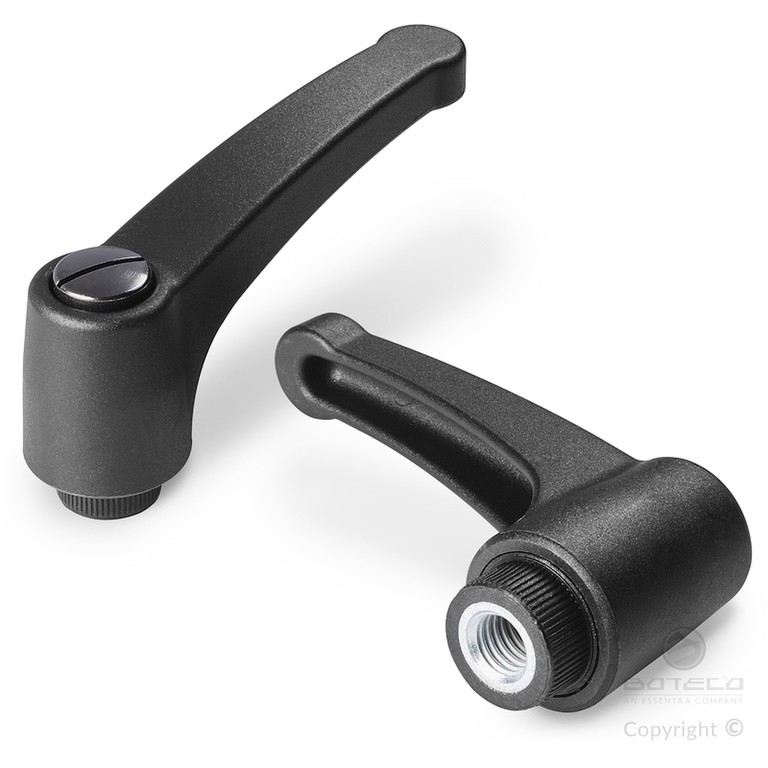

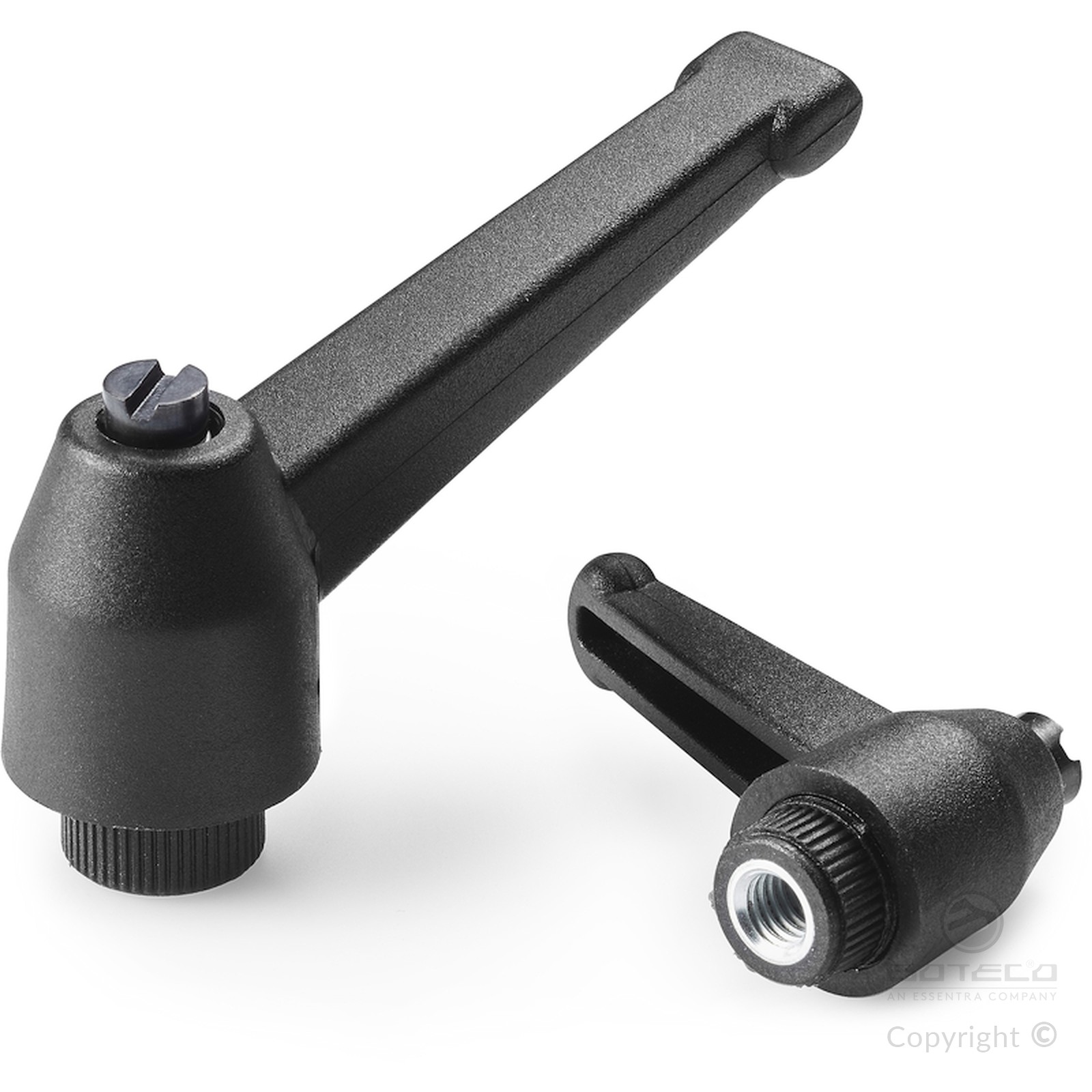

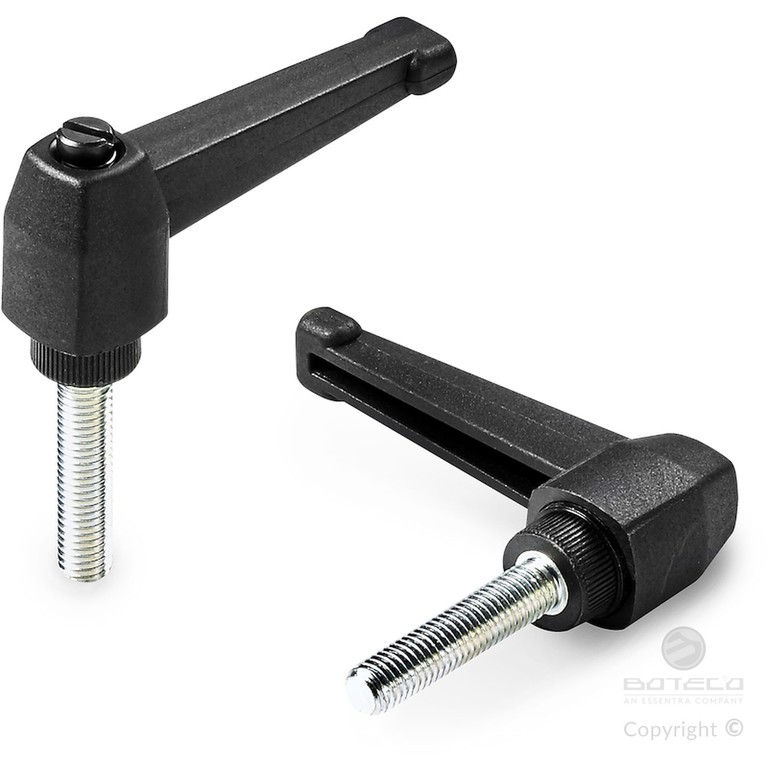

Materials:
Special technopolymer reinforced with high-strength glass fiber.
Resistant to oils and greases.
Surface finish:
Satin.
Lever body and insert colour:
Black(RAL 9011).
Inserts:
Galvanised steel insert with female threaded hole (thread tolerance 6H).
Fixing screw:
Black oxide treated steel screw with slotted head.
Spring:
Stainless steel spring (Aisi 302).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

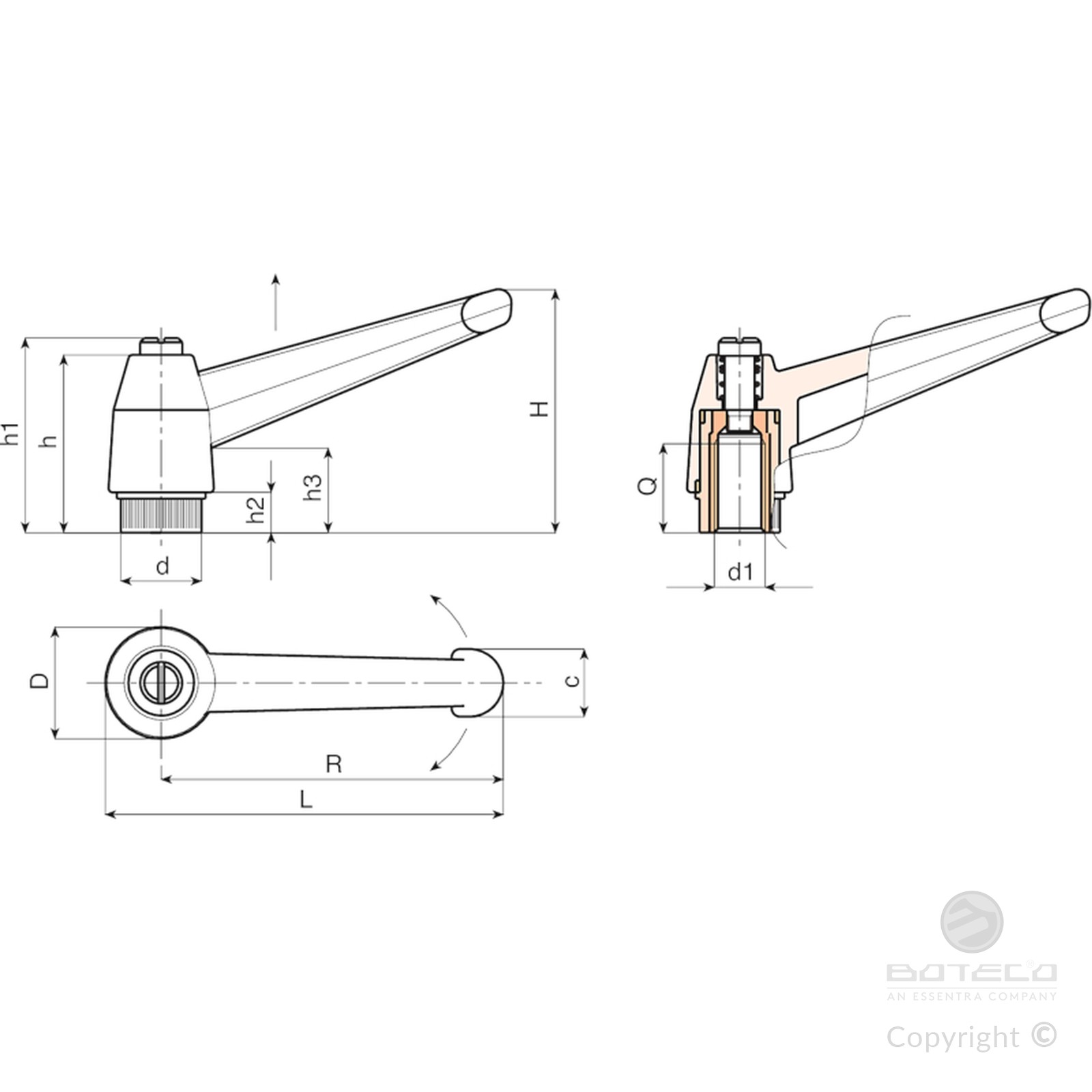

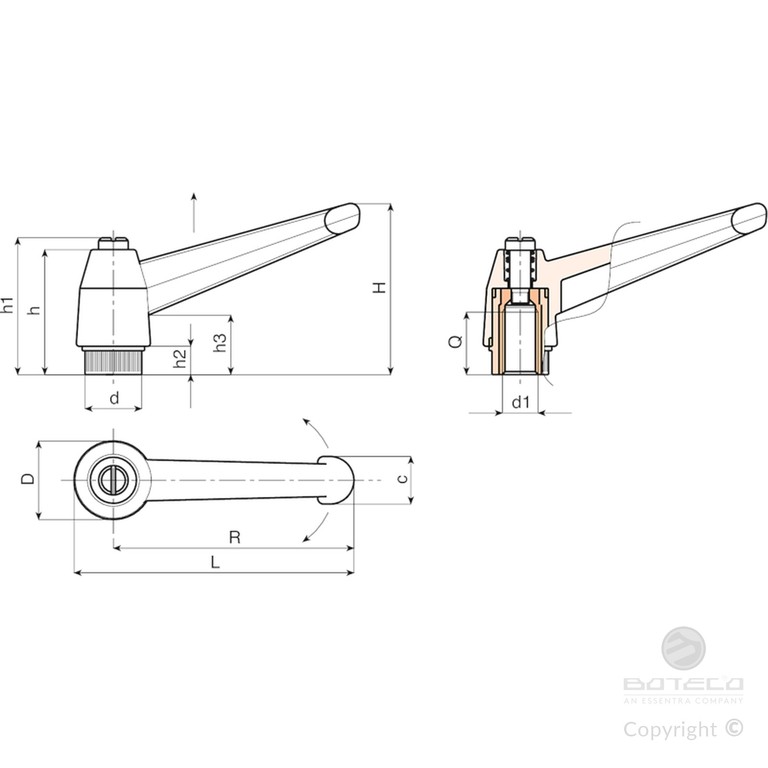

| Code | Art. | L | R | H | D | d | c | h | h1 | h2 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A522043.0001 | A522043.TM0401 | 52 | 43 | 33 | 17 | 11.5 | 11 | 27 | 30 | 6 | 14 | M4 | 10 | 14 |
| A522043.0003 | A522043.TM0501 | 52 | 43 | 33 | 17 | 11.5 | 11 | 27 | 30 | 6 | 14 | M5 | 9 | 14 |
| A522043.0005 | A522043.TM0601 | 52 | 43 | 33 | 17 | 11.5 | 11 | 27 | 30 | 6 | 14 | M6 | 9 | 14 |
| A522065.0001 | A522065.TM0601 | 77 | 65 | 45 | 23 | 15 | 13 | 34 | 38 | 8 | 17 | M6 | 15 | 28 |
| A522065.0004 | A522065.TM0801 | 77 | 65 | 45 | 23 | 15 | 13 | 34 | 38 | 8 | 17 | M8 | 15 | 26 |
| A522065.0012 | A522065.TM1001 | 77 | 65 | 45 | 23 | 15 | 13 | 34 | 38 | 8 | 17 | M10 | 13 | 28 |
| A522083.0001 | A522083.TM0801 | 97 | 83 | 57 | 27 | 19 | 16 | 43 | 47 | 10 | 23 | M8 | 17 | 52 |
| A522083.0006 | A522083.TM1001 | 97 | 83 | 57 | 27 | 19 | 16 | 43 | 47 | 10 | 23 | M10 | 17 | 48 |
| A522083.0015 | A522083.TM1201 | 97 | 83 | 57 | 27 | 19 | 16 | 43 | 47 | 10 | 23 | M12 | 16 | 48 |
| A522104.0002 | A522104.TM1001 | 121 | 104 | 70 | 33 | 24 | 19 | 50 | 53 | 11 | 26 | M10 | 20 | 114 |
| A522104.0004 | A522104.TM1201 | 121 | 104 | 70 | 33 | 24 | 19 | 50 | 53 | 11 | 26 | M12 | 22 | 106 |
| A522104.0006 | A522104.TM1401 | 121 | 104 | 70 | 33 | 24 | 19 | 50 | 53 | 11 | 26 | M14 | 21 | 100 |
| A522104.0008 | A522104.TM1601 | 121 | 104 | 70 | 33 | 24 | 19 | 50 | 53 | 11 | 26 | M16 | 23 | 100 |
