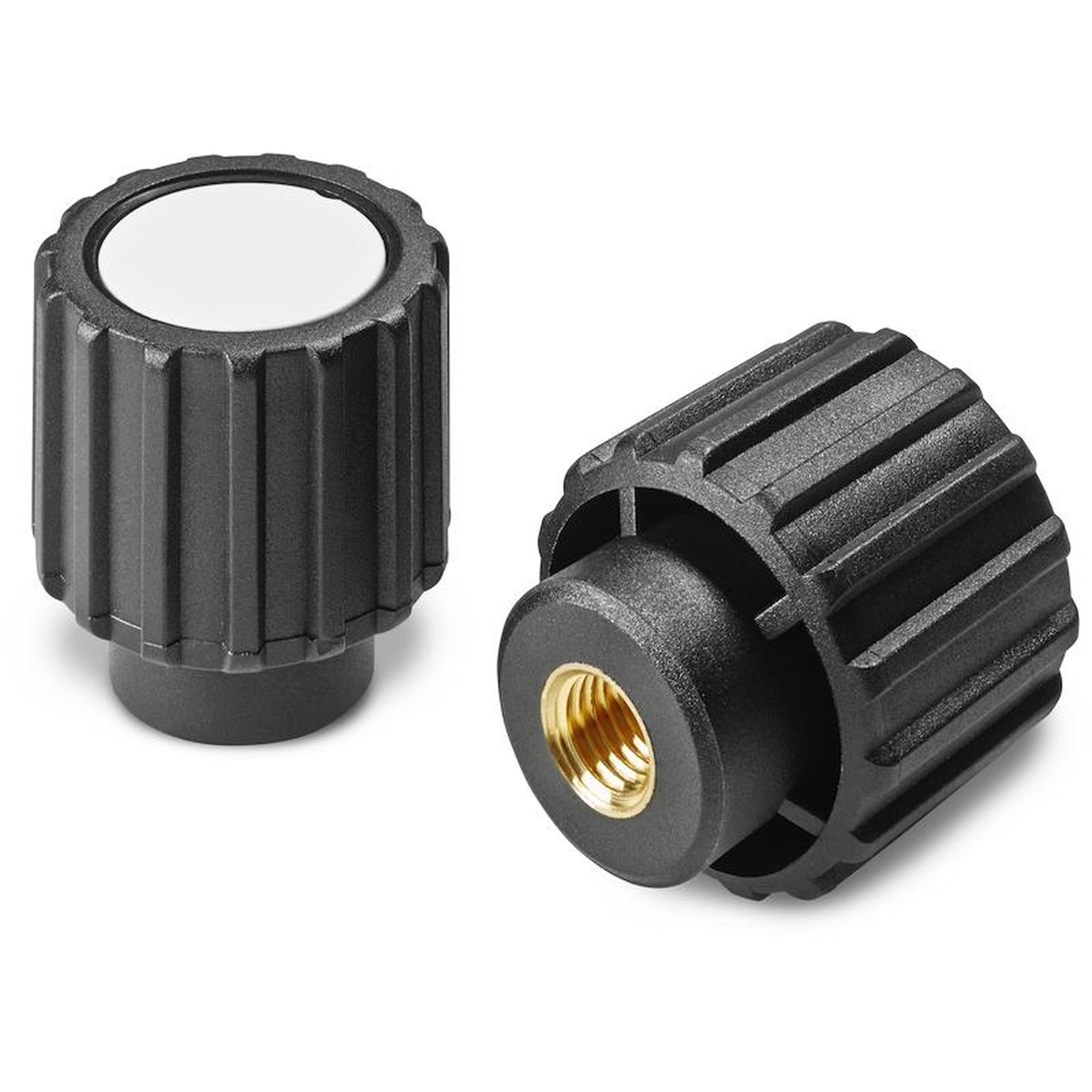

CONTROL KNOB WITH CAP AND THREADED HOLE INSERT

14

N241


Manicotti zigrinati

Materials:

Reinforced polyamide.

Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Black(RAL 9011).

Cap:

Central cap in grey polyamide (RAL 7035).

Alternative cap colours:

Orange(RAL 2004 code 02).

Blue(RAL 5015 code 07).

Yellow(RAL 1021 code 10).

Red(RAL 3000 code 16).

Green(RAL 6024 code 17).

Black(RAL 9011 code 01).

Inserts:

Brass insert with female threaded hole (thread tolerance 6H).

(*) Galvanised steel insert with female threaded hole (thread tolerance 6H).

Special requests:

Upon request and for special quantities inserts can be supplied in different materials.

Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

Data sheet

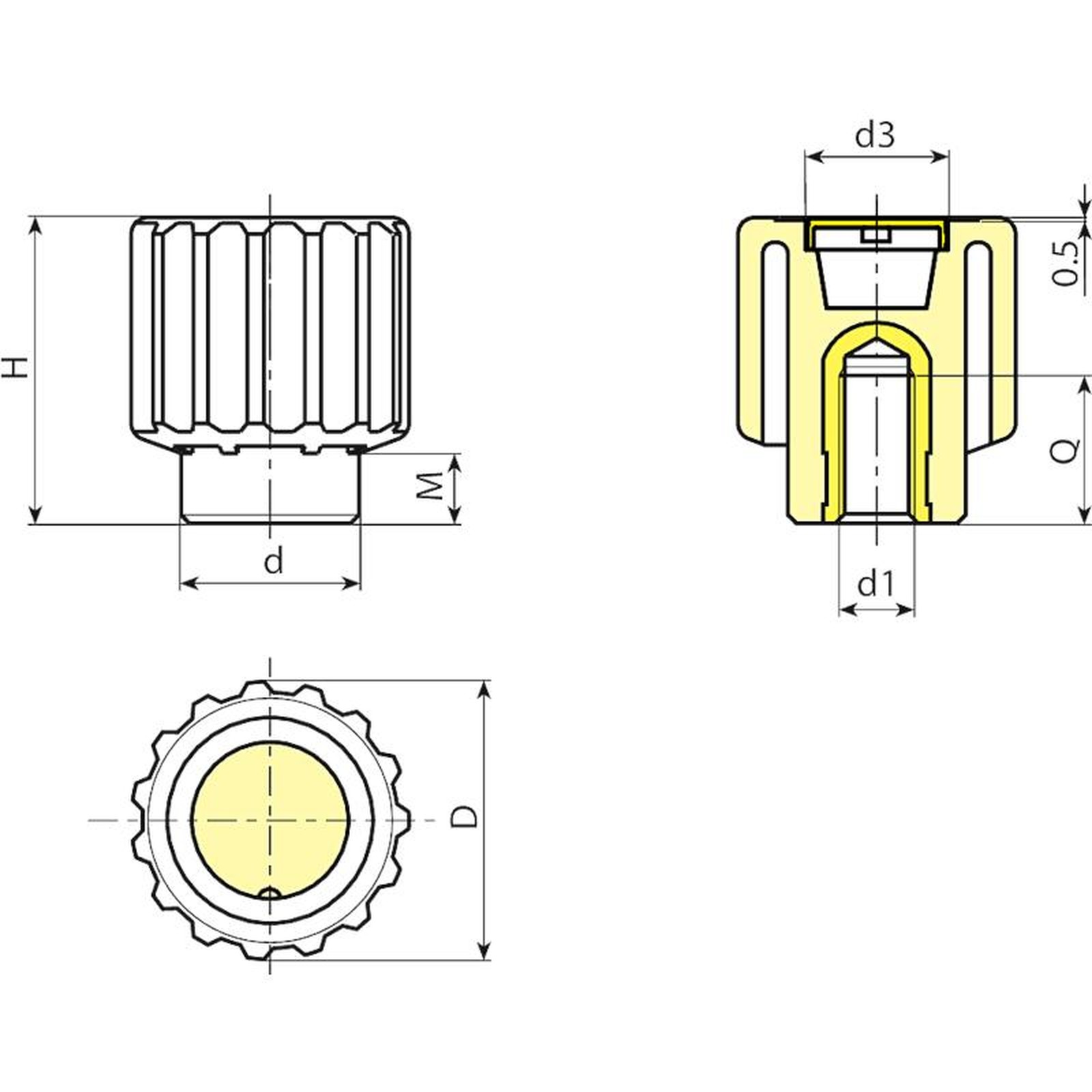

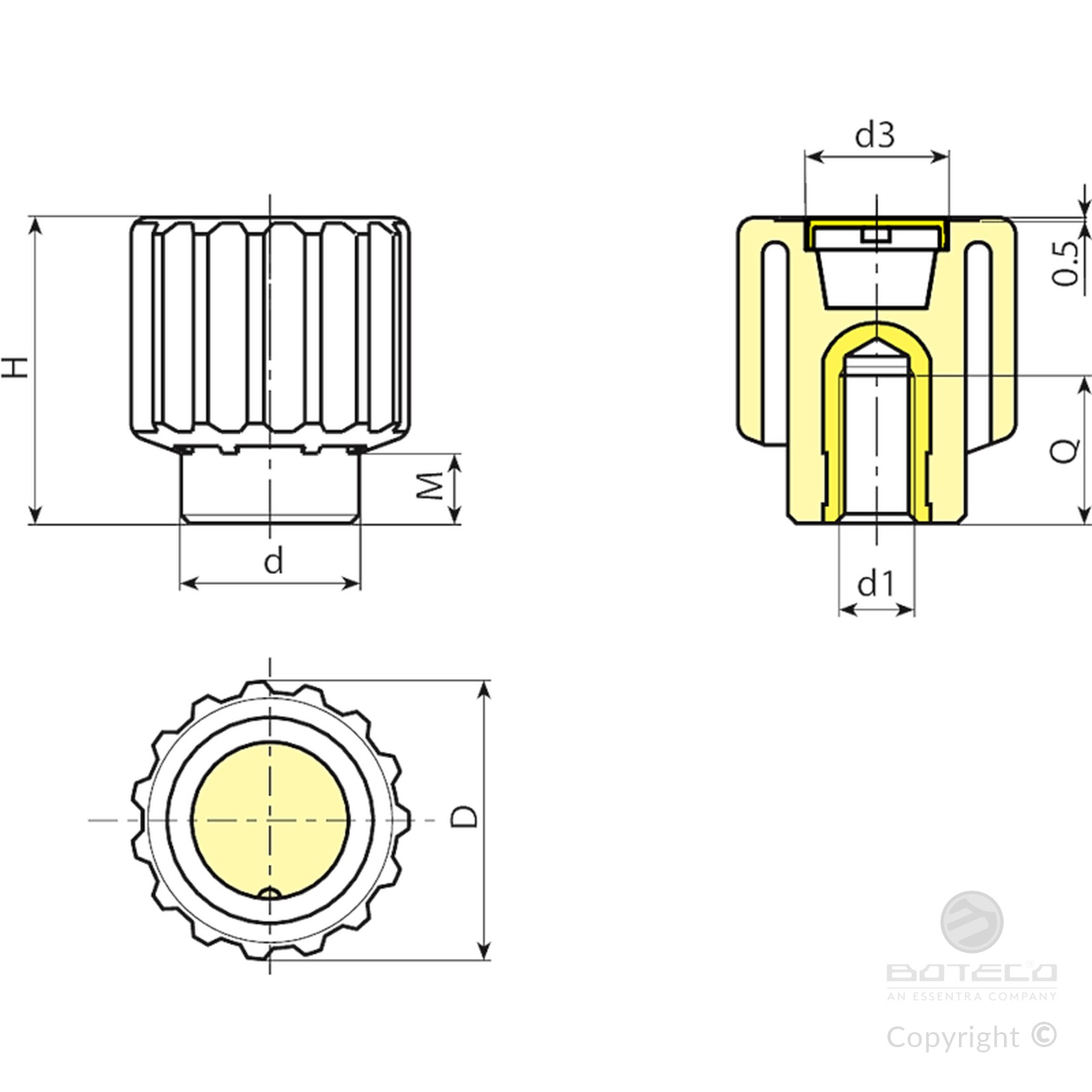

Code Art. D H M d d3 d1 6H Q Weight (g)
N24150.0009 N24150.TM0801 50 55 13 32 34 M8 13 92
N24150.0010 N24150.TM1001 50 55 13 32 34 M10 13 92
N24150.0013 N24150.TM1201 50 55 13 32 34 M12 17 83
N24150.0015 N24150.TM1401 50 55 13 32 34 M14 17 82
N24150.0017 N24150.TM1601 50 55 13 32 34 M16 (*) 16 96
